Edwards iQDP80 Dry Semiconductor Vacuum Pump
Condition:
Remanufactured
Call us for Availability
Item#:PN00268
Mfr Part#:iQDP80
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:

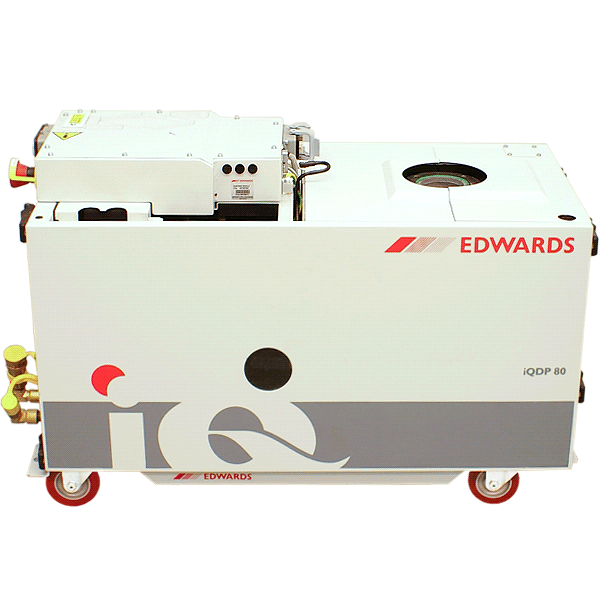

Edwards iQDP80 Dry Semiconductor Vacuum Pump
Edwards iQDP 80 Overview:
The iQ Drypumping System is a microprocessor controlled, modular, dry pump package that provides unparalleled control and monitoring facilities. The iQ pumping system can be locally controlled by a hand held LCD control panel or remotely controlled through a fully customized tool interface. All major control elements are located within the footprint of the pumping system.The iQ dry pumping system has integrated sensors, which continuously monitor key system performance parameters and give advanced warning of problems. These pumps have pump and motor temperature sensors installed.
The iQ pumpset parameters can be monitored and displayed through a variety of ouTPU t devices including: Hand-held or panel mounted control module; Local PC or laptop computer; OEM specified tool interface; PC as part of a fab-wide network. This is a hand held LCD control panel module provides access to: system control and configuration; system status and monitored values; diagnostics and recommended corrective action. A tool interface module can be used to provide a fully customized interface to your process tool. It communicates with the iQ pumping system through a screened twisted pair cable. It has integral system configuration which check process pump service history log, process/tool specific settings, updated on power-on, giving maximum pump interchangeability between process tools.
Every dry vacuum pump we sell goes through a rigorous rebuild process at our Albuquerque, New Mexico (NM) location. Each pump is fully dismantled and all parts are decontaminated and inspected. Damaged or worn parts are replaced. All bearings, o-rings, seals, and gaskets are replaced. Rebuilt pumps are attached to our computer controlled pressure diagnostics system where their performance is monitored for 72-hours under varying load. Pumps are leak tested to ensure safety during operation. Final pump is cleaned and painted as required.
Edwards iQDP 80:
Click Here for Edwards iQDP 80 Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Edwards iQDP80 Dry Semiconductor Vacuum Pump

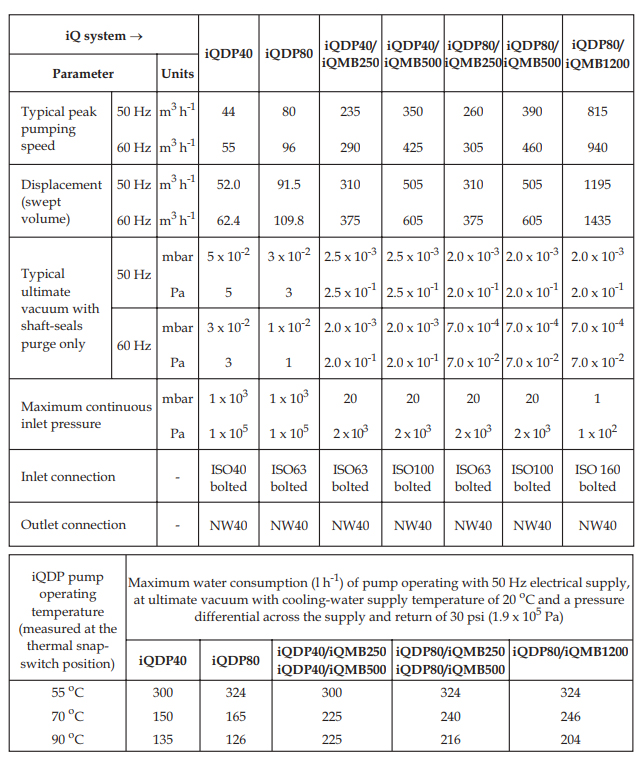

Edwards iQDP 80 Technical Data:
Click Here for Edwards iQDP 80 Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
