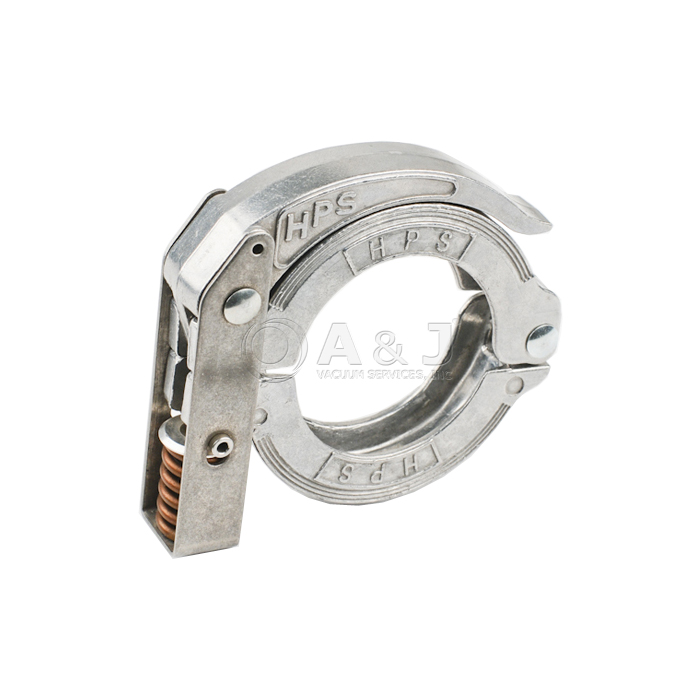

Toggle Clamp (Quick Clamp) KF40 Flange NW40, QF40 Aluminum, Spring Loaded, PN20005
Condition:
New
In Stock
Item#:PN20005
Mfr Part#:100318805 / PN20005
Manufacturer:AJVS
Features:
Toggle Clamp (Quick Clamp) KF40 Flange NW40, Aluminum, Spring Loaded, PN20005
KF-40 Toggle Clamp Overview:
The Toggle Clamp (Quick Release KF Clamp) is used to connect vacuum plumbing and process systems in combination with vacuum pumps or vacuum components. Toggle Clamp has the advantage of quick release and quick locking back onto KF-40, NW-40 or QF40 Flange.
The Toggle Clamp is used in conjunction with a centering ring with a fitted O-ring for mating KF40 and NW40 vacuum flanges.
The Toggle Spring Loaded Clamps are available in the following sizes: NW 10/16, NW 25, NW 40, NW 50
The Toggle Clamps are made out of Aluminum
KF Flanges (also referred to as NW Flange) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Toggle Clamps are assembled with Cotter Pin to prevent accidental release of the toggle lever.
A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.
This item is non-returnable/non-refundable
Toggle Clamp (Quick Clamp) KF40 Flange NW40, Aluminum, Spring Loaded, PN20005 Technical Data:
- Material: Aluminum with Steel spring
- Safety Cotter Pin Installed
- KF40, NW40, QF40
