- Pumping speed: 17.6 cfm
- Ultimate pressure: < 2 x 10-2 Torr
- Inlet port: DN 25 KF
- Motor rating: 0.72 kW
Shopping Cart ( )
Ulvac CR 30 Dry Vacuum Pump, DN 25 KF, 17.6 cfm 1049522
Condition:
New
Item#:PN17822
Mfr Part#:1049522
Manufacturer:Ulvac
Features:
Ulvac CR30 Dry Vacuum Pump, DN 25 KF, 17.6 cfm, 1049522
Ulvac CR 30 Overview:
The CR series is an air-cooled roots type dry vacuum pump. Stable operation and extended lifetime are possible because there is no oil inside of teh pump head and no contact between rotor and cylinder.
Ulvac CR 30 Features:
- Air cooled for low running costs
- No requirement for cooling water and nitrogen gas
- Low power consumption, air tight and light weight
- Possible to pump down water vapor with gas ballast
- Integrated silencer
Ulvac CR 30 Applications:
- Clean gas vacuum pumping such as air, inert gas
- Water vapor pumping for vacuum dryer equipment
- Vacuum equipment such as sputtering, evaporator, etc.

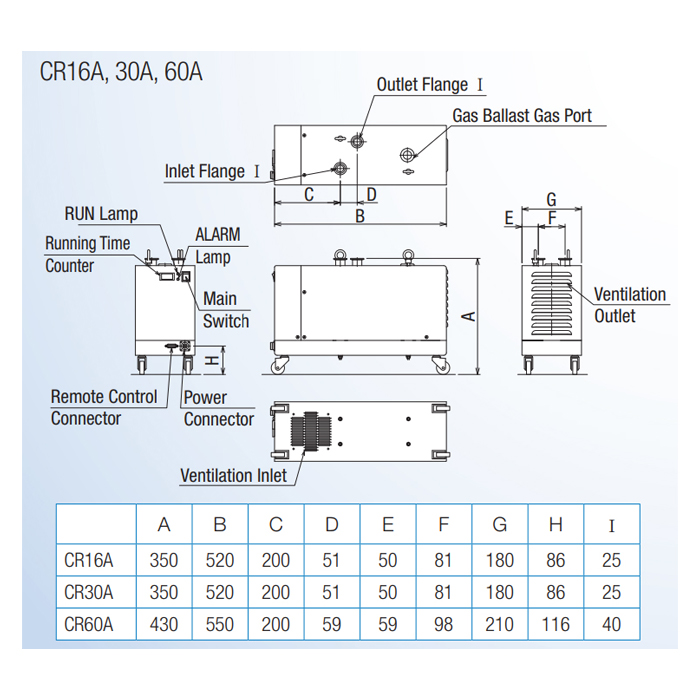

Ulvac CR 30 Dimensions:
A&J Vacuum Services offers full repair/service of Ulvac Vacuum Pumps, along with all other brands offered on our website. AJVS also services Ulvac turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Ulvac CR30 Dry Vacuum Pump, DN 25 KF, 17.6 cfm, 1049522
Ulvac CR 30 Technical Data:
| Pumping Speed: | 17.6 cfm |
| Ultimate Pressure: | < 2 x 10-2 Torr |
| Motor rating: | 0.72 kW |
| Inlet Flange: | DN 25 KF |
| Outlet Flange: | DN 25 KF |
| Length: | 20.47 inches |
| Width: | 7.087 inches |
| Height: | 13.78 inches |
| Weight: | 35 kg / 77 lbs |
A&J Vacuum Services offers full repair/service of Ulvac Vacuum Pumps, along with all other brands offered on our website. AJVS also services Ulvac turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
ULVAC CR Dry Vacuum Pump Series
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
