Pfeiffer Adixen ACP 15 Dry Vacuum Pump w / Manual Gas Ballast, 14 m3/h, 100-230 V, 50/60 Hz, 2000001324 / V5SATSMGAF

Pfeiffer Adixen ACP 15 Dry Vacuum Pump w / Manual Gas Ballast, 14 m3/h, 100-230 V, 50/60 Hz, 2000001324 / V5SATSMGAF

Alcatel Adixen ACP-15 Dry Pump - Series Overview:

• Featuring an integrated single-phase frequency converter, the ACP 15 Pump can be powered in the range of 100 V to 230 V at 50/60 Hz, utilizing a standard IEC connector with automatic voltage range selection.
• The rotational and pumping speeds of the ACP 15 remain constant throughout the pumping process, regardless of voltage and frequency.
• A digital timer/gauge projects information concerning the cumulative number of operational hours, an essential feature for maintenance and durability.
• The pump can be operated in remote control mode, using the Sub-D Connector located at the rear side of the pump.
• Features Compact Design for Easy Integration
• Air Cooling - No Water Supply Required
• Thanks to the frictionless design of the ACP 15, there is limited to non-existent degradation/wearing of parts within the path of pumped gases, and therefore no particulate generation.
• The ACP 15 Series of pumps is free of lubricantion inside the pumping module, which prevents the backstreaming of hydrocarbon vapors.

Pfeiffer/Adixen ACP Series Dry Roots Pumps - A Brief Overview:

Pfeiffer Vacuum specializes in the manufacture of Dry Multi-Stage Roots Pumps, ideally suited for production of clean and dry vacuum for a variety of processes and applications. Large pumps within the ACP Series provide a high pumping speed while utilizing low final pressures, allowing for high applicability and effectiveness in freeze-drying processes. Small ACP Roots pumps are specialized pumps that generate the fore vacuum required for particle acceleration and other highly concentrated processes. Still other versions of the ACP Series are used for the semiconductor and coating industries. Regardless of the application and industry, each of these processes share a common requirement - namely, the need for clean, dry, and uncontaminated air.

The ACP Series of dry, multi-stage roots pumps is ideally suited to provide clean air for these applications. The series' pumping module is frictionless and does not require a lubricant for operation. There is likewise no need for sealing material between the rotor and stator, as well as in the suction chamber of the pump. This serves to prevent the back-streaming of vapors and ensures that the pump is free of unwanted particles, thus improving the reliability and stability of the pump. This in turn increases the durability of the ACP Pump, which is reflected in lower maintenance costs for the owner.

Air-cooled multi-stage roots pumps within the ACP Series have the added benefit of low maintenance coupled with constant, stable performance. They are ideally utilized for analytical applications as well as in cleaning processes featuring semiconductors and plasma. Smaller editions of the ACP Series, such as A 100 L and A 200 L, can be fitted and integrated into larger systems due to their compact dimensions. Varieties such as these are ideally used for load locks and transfer chambers within photovoltaic and semiconductor production systems, thanks to the robust metal structures of these pumps. The smaller ACP Pump varieties are specialty, high-speed pumps also used extensively in research and development, vacuum coating, and metallurgy.

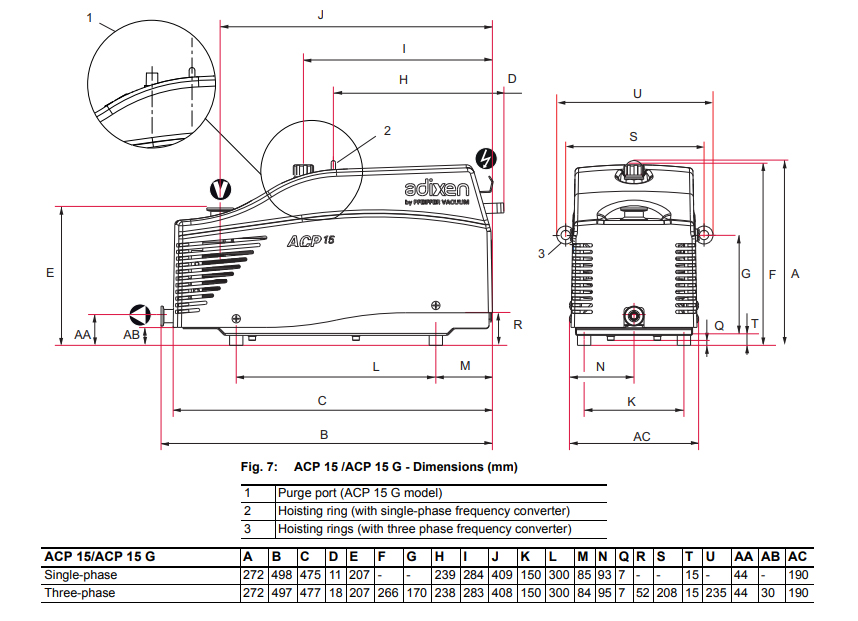

ACP 15 Dimensions:

Click Here for Pfeiffer ACP Dry Vacuum Pump Manual

A&J Vacuum services and repairs Pfeiffer Alcatel/Adixen ACP 15 Dry Vacuum Pumps, along with all other Pfeiffer Vacuum Multi-Stage Dry Roots Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
