- PN 1013284
- Oil Mist Trap
- for PKS-016 Rotary Piston Pump
- OEM
Shopping Cart ( )
ULVAC TM-2 (F) Oil Mist Trap for PKS-016 Series Rotary Piston Pumps, 1013284
Condition:
New
Item#:PN22250
Mfr Part#:1013284
Manufacturer:Ulvac
Features:
ULVAC TM-2 (F) Oil Mist Trap for PKS-016 Series Rotary Piston Pumps, 1013284
ULVAC TM-3
When an oil rotary pump is started at atmospheric pressure, and operated during low vacuum operation, the pump oil is exhausted along with the exhaust gas that is being pumped. This oil-laden exhaust mist, which consists of tiny oil droplets, appears as "smoke" exiting from the exhaust port of the pump. The TM and TMX series oil mist traps help to ensure a clean working environment and protect indoor equipment from contamination that would otherwise be caused by this oil mist.
Features
-
Removes oil droplets (“smoke”)
Pump oil vapor is greatly reduced reducing contamination in addition the need to regularly replenish the pump oil is likewise greatly reduced. -
Noise is most effectively reduced when the pump starts from atmospheric pressure, during low vacuum pumping, and during gas ballast operations. Low frequency noise is particularly reduced.
-
Selectable oil recovery method (optional)
When trapped oil is returned directly to the main pumping unit and reused, the filter lifespan is decreased and pump problems may occur.
Since recovery of the trapped oil is dependent on pump operating conditions, please consult Ulvac for advice about your particular pumping task and to help ensure the correct match of components for your application. -
Since the connection ports of TM series units are made to match standard pump exhaust ports, attachment is simple. (Excluding VD601 and VD901)
-
The internal filter element is a replaceable cartridge
Replacing this filter cartridge is simple. (An adapter is required when changing filters of old TM-3, 4, and 4S models to cartridge filters)
*1 Be sure to use an oil mist trap that is appropriately sized to match the pumping speed of the pump and the volume of the chamber which is being evacuated.
*2 An adapter is required for attachment to PVD series, VD151 and VD201.
*3 Oil recovery cannot be used with TMX-1 and TMX-2 models.
*4 Conversion to a cartridge filter is not possible for TMX-1, TMX-2, and TM-2 (old model) units.
This item is non-returnable/non-refundable
ULVAC TM-2 (F) Oil Mist Trap for PKS-016 Series Rotary Piston Pumps, 1013284
Specifications
| Model | Attachment flange *1 | Vacuum pump used | Weight(kg) | Material |
| TMX-1 | Special flange/ G1 1/2 |
PVD-180(B) *2 PVD-360(B) VD151 VD201 |
1.1 | Trap : Mild steel (SPCC) Filter : Glass wool |
| TM201 | VF40/G 1・1/2 | VD301 (for low loads)*5 VD401 (for low loads) |
8.5 | |
| TM401 | VF40/G 1・1/2 | VD301 (for high loads) *6 VD401 (for high loads) VD601 (for low loads) VD901 (for low loads) |
10 | |

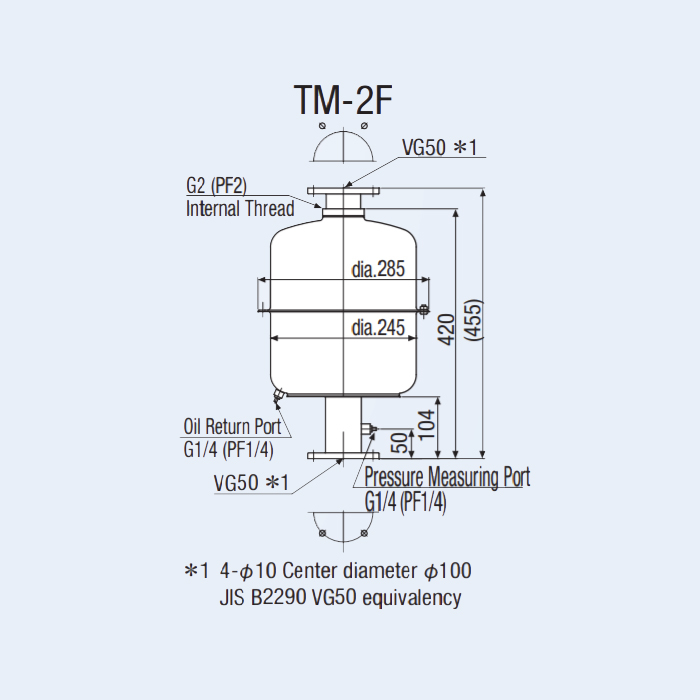

| TM-2 (standard, F) *3 |
VG50/G2, VG50 (for PKS-016） VF40/G2, VG50 (for VD601/VD901) |
PKS-016 VD601 (for high loads)*2 VD901 (for high loads) |
5.7(6.2) *4 | |
| TM-3 (standard, F)
|
VG80/G3, VG80 (for PKS-030) VF50\G3, VG80 (for VS1501) |
PKS-030 VS1501 |
10(11.5)*4 | |
| TM-4 (standard, F) |
VG100/G4, VG100 8for PKS-070) VF50/G4, VG100 (for VS2401) |
PKS-070 VS2401 |
23.5(25)*4 | |
| TM-4S | VG100/VG100 (for PKS-070) VF50/VG100 (for VS2401) |
PKS-070 (for high loads) VS2401 (for high loads) |
59 |
*1 Pump attachment flange : JIS B2290 vacuum flange (except for special flanges)/vent pipe screw size
*2 Adapter is required when attaching to PVD-180(B), PVD-360(B), VD151, VD201, VD601, and VD901.
*3 Standard : Umbrella type; F : Flange type.
*4 Values in ( ) indicate mass with flange attached.
*5 Low load models should have a cntinuous suction Pressure.
*6 Hgh load models should have a continuous suction pressure of 100kPa or less.
