- PN 1048990
- 200-230/460V
- Pumping Speed: 1600 l/min
- Ultimate Pressure: 6.7×10-1
Shopping Cart ( )
Ulvac PKS-016 Rotary Piston Pump, 200-230/460V, 1600 l/min Pumping Speed, 1048990
Condition:
New
Item#:PN22249
Mfr Part#:1048990
Manufacturer:Ulvac
Price upon request
CONTACT US
Features:
Ulvac PKS-016 Rotary Piston Pump, 200-230/460V, 1600 l/min Pumping Speed, 1048990
Ulvac PKS-016 Overview:
The Ulvac PKS Series Rotary Piston Pumps are designed for industrial use. The Ulvac PKS Series Pumps are oil units best suitable for small floor space. The PKS pumps are carefully engineered providing extreme durability and stable pumping performance.
The Ulvac PKS Series operates by moving the slide vane on the vane guide part in a piston motion by rotation of eccentric rotor, thereby volume of the space surrounded by slide vane and cylinder is varied and exhausted. Robust and comparatively strong for foreign materials. Workable for long term with appropriate regular maintenance.
The Ulvac PKS-016 Rotary Piston Pump offers the following features:
- Roust, long life and low speed rotation pump with less rotary sliding parts
- The high-efficiency multi-voltage motor
- The enclosed belt cover and the inspection hole to check the rotation direction and belt tension
- Vacuum hear treatment, vacuum sintering, vacuum carburization
- Solvent evacuation
- Vacuum impregnation, casting
Ulvac PKS Series Pumping Speed:

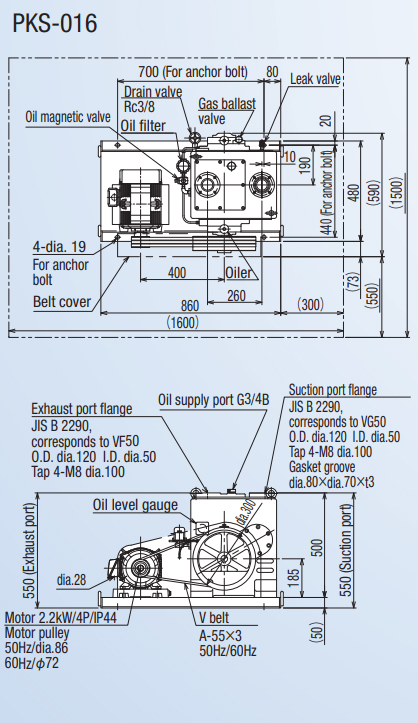

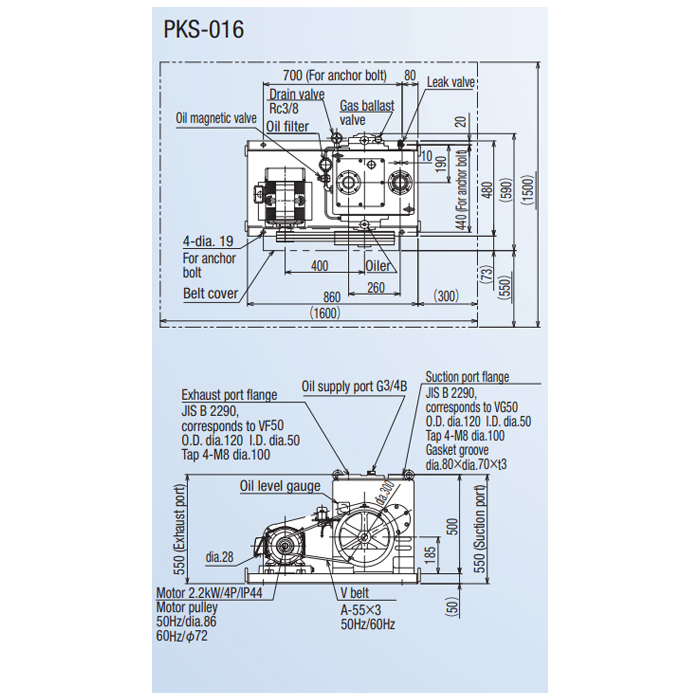

Ulvac PKS 016 Dimensions (mm):
Click Here for Ulvac PKS Series Data Sheet
A&J Vacuum Services / rebuilds and repairs all Ulvac vacuum pumps. We service all Ulvac PKS-016, PKS-030, PKS-070 Series pumps, including rotary vane and rotary piston pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Ulvac PKS-016 Rotary Piston Pump, 200-230/460V, 1600 l/min Pumping Speed, 1048990
Ulvac PKS 016 Technical Data:
Click Here for Ulvac PKS Series Data Sheet
A&J Vacuum Services / rebuilds and repairs all Ulvac vacuum pumps. We service all Ulvac PKS-016, PKS-030, PKS-070 Series pumps, including rotary vane and rotary piston pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN18517
Mfr Part#:1001771
Condition: Out of Stock
New
$995.00
Item#:PN18518
Mfr Part#:1041609
Condition: Out of Stock
New
$2,034.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
