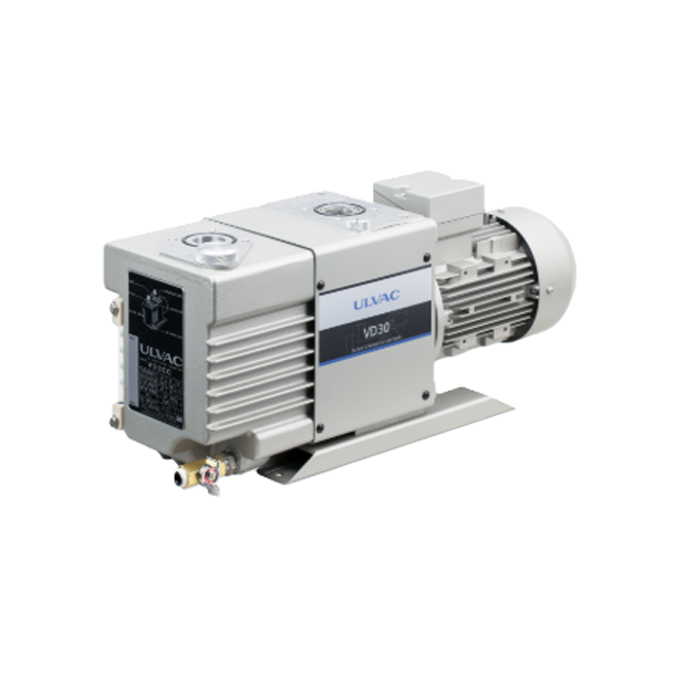

Ulvac VD60C Rotary Vane Vacuum Pump, FPM W/IE3 Motor, 200-240V / 380-460V, without ISO Flange, without GB Valve, R-7 Oil, 1058521
Ulvac VD60C Vacuum Pump Features:
- Optimized for maintainability
- Application of spring less vane
- Application of lubricant pump system
- Application of hydraulic oil anti-sucking system
- Application of variable oil level system
- Forced refueling method lets the exhaust speed to be stable, even near atmospheric pressure
Ulvac VD60C Vacuum Pump / 1058521 Overview:
The VD60C is a compact, low-noise, two-stage rotary vane vacuum pump designed for high-speed operation. This oil-sealed pump offer a low ultimate pressure, and its optimized construction ensures quiet performance. With a wide selection of available accessories, it is suitable for a broad range of applications.
For the storage, install and operation, ambient temperature and humidity for storage is -10°C to 50°C, less than 95%RH. Ambient temperature and humidity for operation is 4°C to 40°C, less than 80%RH. However, use pump oil ULVOIL R-42 for operation at 4-10°C, and pump oil "ULVOIL R-72" for operation at 10-40°C.
Ulvac VD60C Scope of Delivery:
- Quick start manual
- R7 oil
Ulvac VD60C Applications:
- Evaporation equipment, sputtering equipment, ion plating equipment
- Analysis equipment, leak detection equipment
- Gas exchange and fluid infusion
- Vacuum drying, freeze drying, vacuum degassing, vacuum insulation
- Vacuum adsorption and vacuum forming
- Other vacuum equipment
A&J Vacuum Services offers full repair/service of Ulvac Pumps, along with all other brands offered on our website. AJVS also services Ulvac Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Ulvac VD60C Rotary Vane Vacuum Pump, FPM W/IE3 Motor, 200-240V / 380-460V, without ISO Flange, without GB Valve, R-7 Oil, 1058521
Ulvac VD60C Vacuum Pump Technical Data:
- Height (for storage and operation): lower than 1,000 meters altitude
- External vibration (for storage and operation): vibration acceleration less than 114dB (0.5G)

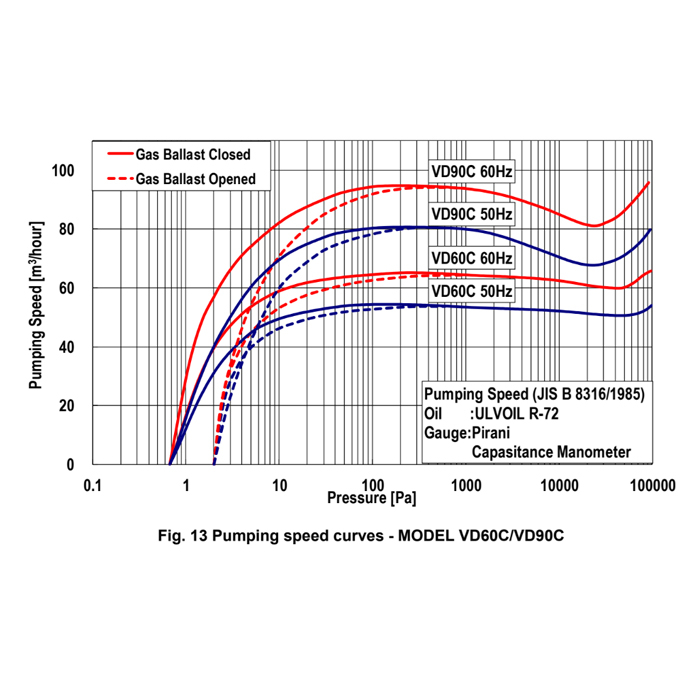

- Pumping Speed at 50Hz: 60 m3/hr | 1000 L/min | 35.31 cfm
- Pumping Speed at 60Hz: 72 m3/hr | 1200 L/min | 42.38 cfm
- Ultimate pressure GB port close: 0.67 Pa | 5×10-3 Torr | 6.7×10-3 mbar
- Ultimate pressure GB port open: 2 Pa | 1.5×10-2 Torr | 1.5×10-2 mbar
- Max. water vapor tolerance GB port open - 50 Hz: 1320 Pa | 9.9 Torr | 13.2 mbar
- Max. water vapor tolerance GB port open - 60 Hz: 2800 Pa | 21.0 Torr | 28.0 mbar
- Max. water vapor capacity GB port open - 50/60 Hz: 430 g/h | 1100 g/h
- Motor type: 3-phase motor
- Motor energy efficiency class: IE3
- Motor kw (number of poles): 2.2(4)
- Motor HP (number of poles): 2.95(4)
- Motor voltage 50Hz: 200V~240V/380V~415V
- Motor voltage 60Hz: 200V~240V/380V~460V
- Oil: ULVOIL R-72
- Oil capacity: 2.5 ~ 4.0 L
- Cooling method: Air cooled
- Inlet: VG50 equivalency / KF50 (optional)
- Outlet: VG40 equivalency / KF40 (optional)
- Weight: 90 kg | 198 lb

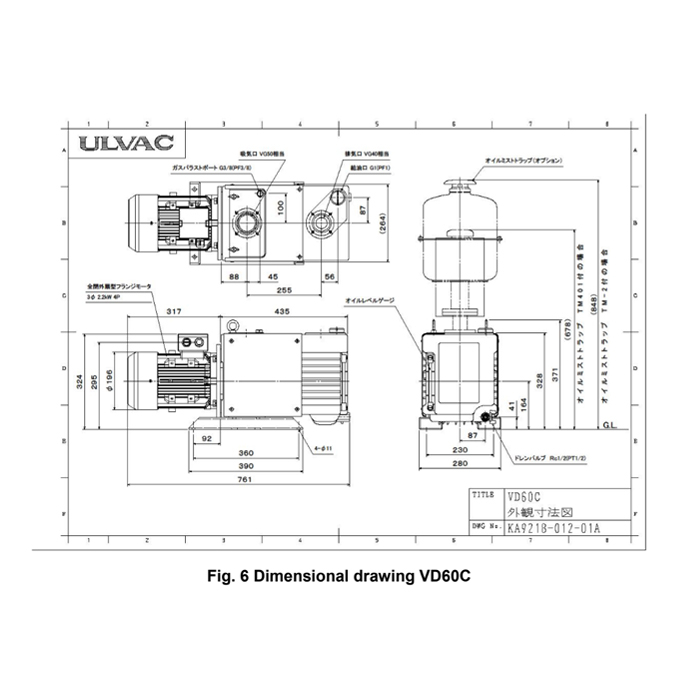

- Dimensions (WxDxH): 280 x 761 x 371
- Applicable standard: CE / cTUVus
- Standard accessory: A dose of oil, a set of Quick Start Manual
- Recommended oil mist trap (Optional): TM401 - for low load operation | TM-2 - for high load operation
- Options: Oil mist trap, gas ballast valve, oil return mechanism, ISO flange, explosion-resistant motor, special type for special application (spec F, N, B and H)
A&J Vacuum Services offers full repair/service of Ulvac Pumps, along with all other brands offered on our website. AJVS also services Ulvac Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
