- Main Area of Application: General Lubrication
- Resistant to Contamination and Creep Effect
- Silicone-Free, Allowing Resistance Against Corrosion Common in Traditional Greases
- Ideally Utilized in General-Purpose Applications and Critical Lubrication Conditions

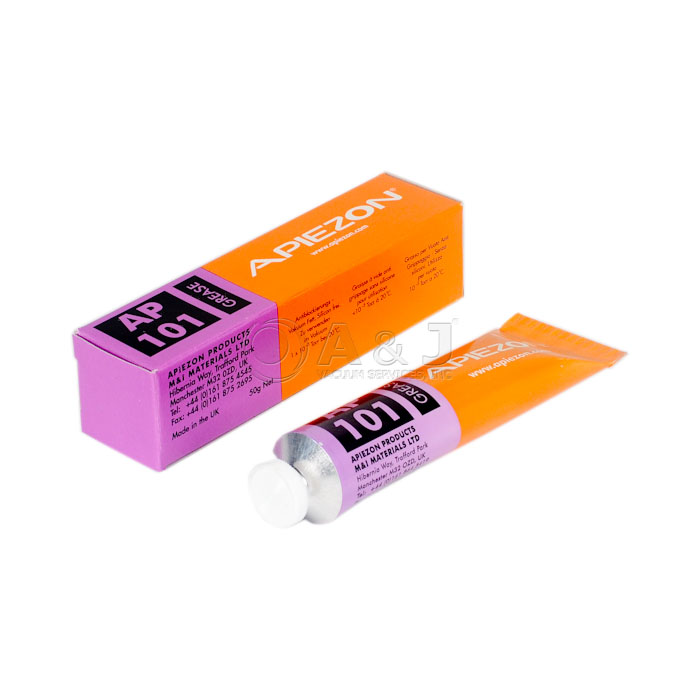

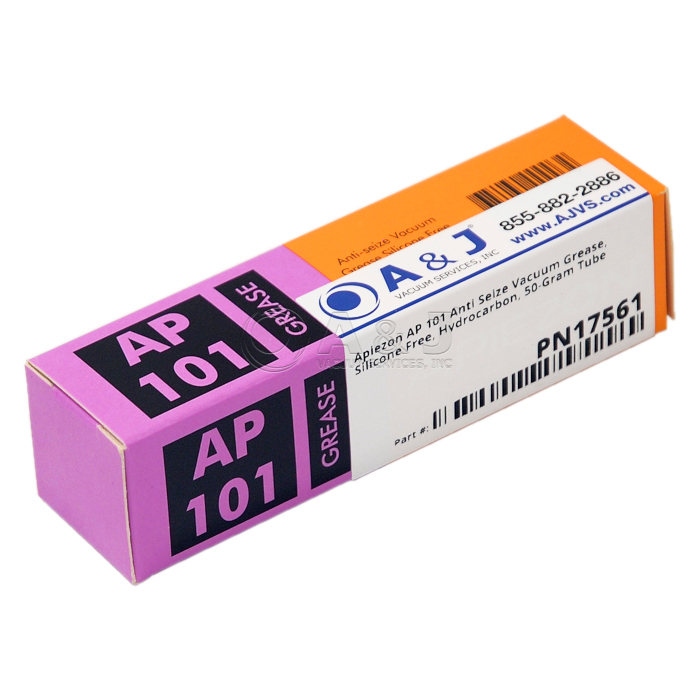

Apiezon AP 101 Anti Seize Vacuum Grease, Silicone Free, Hydrocarbon, 50-Gram Tube
AP 101 Anti Seize Vacuum Grease / APIEZON AP 101 Overview:
The Apiezon AP grease family of hydrocarbon high-vacuum greases has been serving the market for a number of years and includes products highly regarded worldwide for their quality, consistency, and excellent performance within vacuum applications. This category of Apiezon Technologies greases features products that are silicone-free and highly resistant to creep - the undesirable phenomenon often associated with many silicone-based products.
Apiezon AP 101 grease is a silicone-free, excellent general-purpose hydrocarbon grease, intended for use in a variety of industrial and scientific applications. Apiezon AP 101 grease is a specized anti-seize vacuum grease, containing PTFE, a substance that confers superior anti-seize properties, providing glass and metal surfaces with long-lasting lubrication and protection from fusing and corrosion.
The vacuum grease is ideally suited for use within low-to-medium vacuum ranges featuring vapor pressures below 10^[-5] Torr at 20 degrees Celsius.The grease contains anti-seize properties, making the Apiezon AP 101 an effective protector and lubricant for metal surfaces that may otherwise be subject to seizure or corrosion. Apiezon AP 101 is insoluble in most standard solvents and is resistant to water, alcohols, ketones and esters.
This lubricant also resists attack from aqueous acid and alkali solutions, alcoholic alkali solutions and corrosive gases. Apiezon AP 101 does not suffer from the contamination problems commonly associated with silicone-based greases (these include phenomena such as 'creep' or 'carry over'). Apiezon AP 101 lubricating grease is likewise easy to clean and remove using hot water combined with an aqueous glassware detergent or, alternatively, hydrocarbon or chlorinated solvents.
AP101 AntiSeizeVacuumGrease Applications:
- Scientific and industrial settings
- Laboratory
- Glassware
- Analytical techniques such as infrared and mass spectrometry
- Paint spraying and metal deposition processes
Apiezon AP 101 Anti Seize Vacuum Grease, Silicone Free, Hydrocarbon, 50-Gram Tube
Apiezon AP 101 Anti Seize Vacuum Grease Technical Data:
- Main Areas of Application: General
- Working Temperature: -40 to 180 Degrees Celsius / -40 to 365 Degrees Fahrenheit

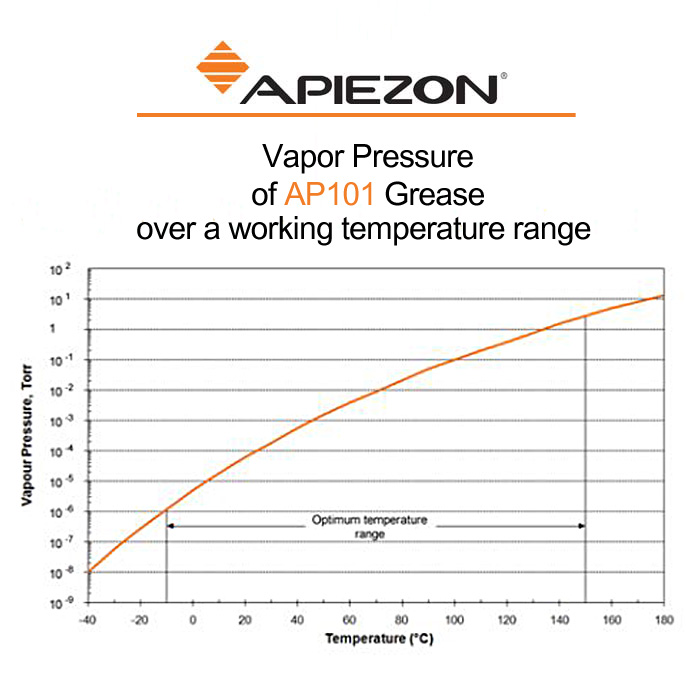

- Vapor Pressure at 20 Degrees Celsius: Below 1 x 10^[-5] Torr
- Relative Density at 20 Degrees Celsius: 0.981
Apiezon_AP101_Vacuum_Grease_Datasheet.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
