- Pumping speed: 1500 l/m (50 Hz)
- Ultimate pressure: 0.67 Pa (closed) / 2 Pa (open)
- Inlet port: DN 63 ISO
- 200-220 Volts
Shopping Cart ( )
Ulvac VD901 Vacuum Pump, Rotary Vane, DN 63 ISO, 200-220 V, 50/60 Hz, 1050661
Condition:
Discontinued
Item#:PN17820
Mfr Part#:1050661
Manufacturer:Ulvac
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:

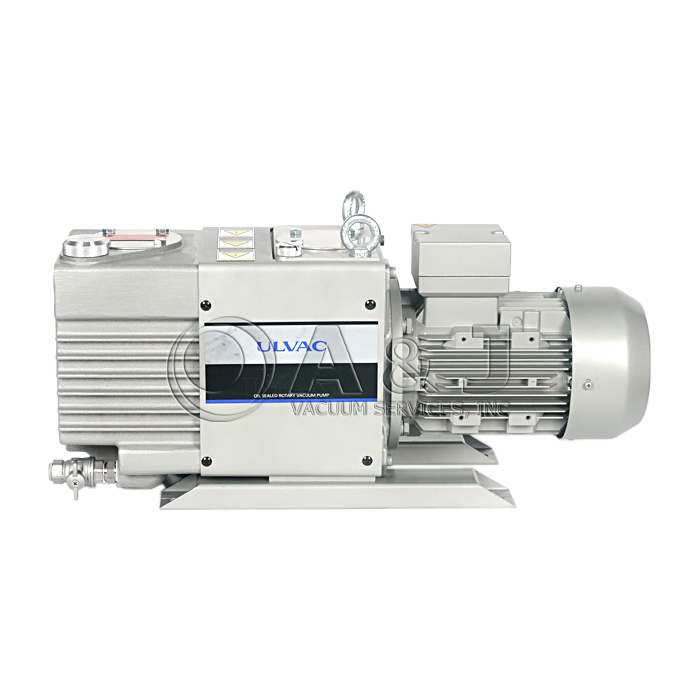

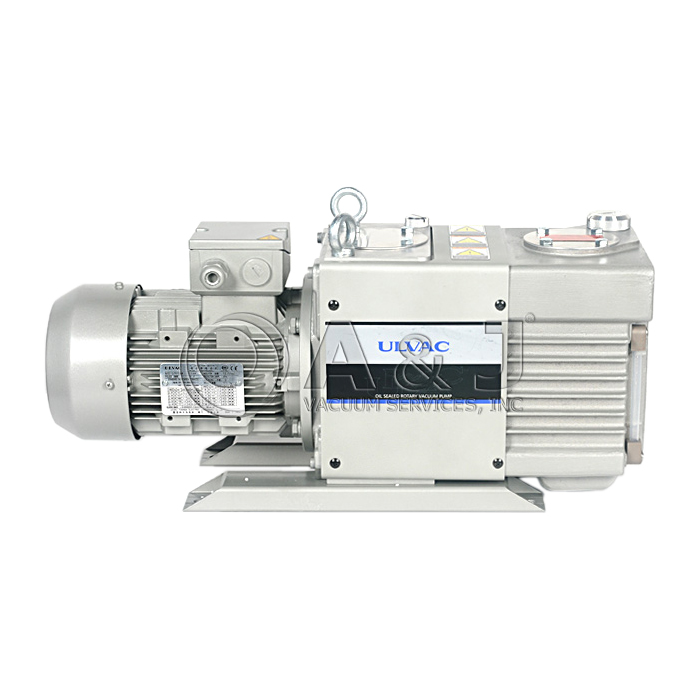

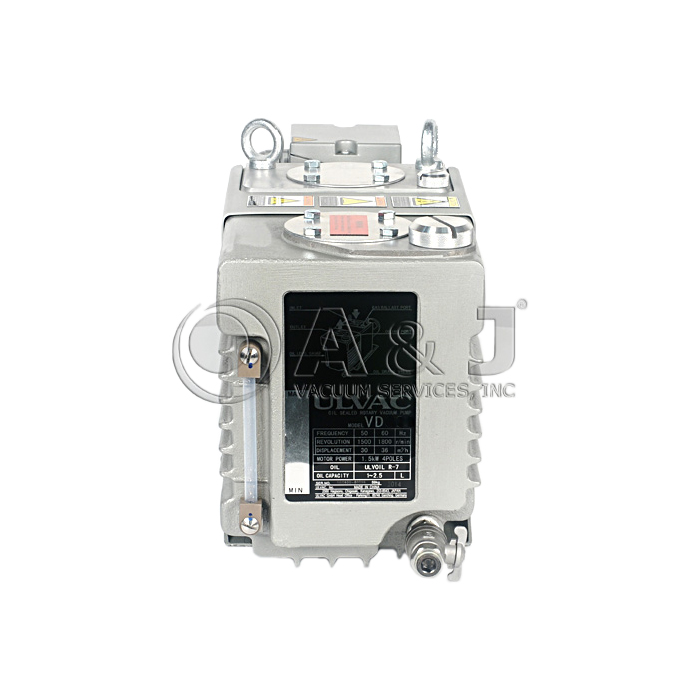

Ulvac VD 901 Vacuum Pump, Rotary Vane, DN 63 ISO, 200-220 V, 50/60 Hz, 1050661
Ulvac VD 901 Overview:
The pumping speed of Ulvac VD 901 up to 1800 L/min at 60 Hz. VD 901(1050661) has the ultimate pressure at 0.67 Pa. The weight of VD 901 is 105 kg. Inlet port is KF-25. Ulvac VD 901 oil capacity is 2.5 to 4.0 L
Developed to meet the demand for quieter pumps the VD series are oil rotary vacuum pumps with low-noise, direct-coupled motors. Designed for easy maintenance, the VD series makes daily maintenance and inspection extremely simple. Suitable for use in a wide range of applications on sites as diverse as research labs and production facilities.
Ulvac VD 901 Features & Applications:
- Quiet operation
- Pump head can be removed without disconnecting the vacuum piping
- Oil level gauge and drain valve accessible for easy oil exchange and daily inspection
- When equipped with the optional oil mist trap and oil return mechanism, the VD301, VD401 and VD601 can continuously run at all pressure ranges below atmospheric pressure
- Evaporation, sputtering, and ion plating
- Analytical instrument and leak test system
- Gas exchange, gas filling and vacuum insulation
- Vacuum drying, freeze drying, vacuum degassing, vacuum packing, vacuum chuck and vacuum molding
Ulvac VD 901 Pumping Speed:
Ulvac VD 901 Dimensions:
Click Here for Ulvac VD 901 Manual
A&J Vacuum Services offers full repair/service of Ulvac Pumps, along with all other brands offered on our website. AJVS also services Ulvac Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Ulvac VD 901 Vacuum Pump, Rotary Vane, DN 63 ISO, 200-220 V, 50/60 Hz, 1050661
Ulvac VD 901 Technical Data:
Click Here for Ulvac VD 901 Manual
A&J Vacuum Services offers full repair/service of Ulvac Pumps, along with all other brands offered on our website. AJVS also services Ulvac Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Item#:PN18270
Mfr Part#:1049401
Condition: Out of Stock
New
$3,850.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
