Vacuubrand Brandtech VACUUSELECT + VACUUVIEW Extended Package, KF DN 16, Fine Vacuum Control, 20700100 / 700100
Vacuubrand VACUUSELECT + VACUUVIEW Extended Package Features:
- Simple to use interface
- Application-based
- User-friendly design
- KF DN 16
VACUUSELECT + VACUUVIEW / 20700100 Overview:
The VACUUSELECT package offers a user-friendly vacuum control option of all fine vacuum applications for work down to 10-3 mbar. The package includes a vacuum controller with an operating panel and an external vacuum sensor. The KF DN 16 package can be used with rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and Vacuubrand's HYBRID pump RC 6. The controller provides several connection options for a wide range of applications.
VACUUSELECT+VACUUVIEW Scope of Delivery:
- Vacuum controller VACUU-SELECT (without internal vacuum sensor and venting valve) with VACUU·VIEW extended and power supply
- Solenoid valve VV-B 15C KF DN 16
- T-piece KF DN 16
- Hose nozzle DN 10 mm (PP)
- Clamping and sealing rings
- Operation manual
A&J Vacuum repair / rebuild and service Vacuubrand / Brandtech RE / RZ and HYBRID pumps along with all other Vacuubrand pumps Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand Brandtech VACUUSELECT + VACUUVIEW Extended Package, KF DN 16, Fine Vacuum Control, 20700100 / 700100
Vacuubrand VACUUSELECT + VACUUVIEW Extended Package Technical Data:
| Upper measuring limit in mbar/hPa | 1100 mbar |
| Upper measuring limit in torr | 825 torr |
| Lower measuring limit in mbar/hPa | 1 x 10-3 |
| Lower measuring limit in torr | 1 x 10-3 torr |
| Measurement principle | Ceramic diaphragm sensor + ceramic jacketed Pirani sensor |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-5 mbar / +-3 mbar for > 5 mbar mbar/hPa/torr |
| Vacuum sensor | VACUU·VIEW extended |
| Temperature coefficient | +- 0.2 mbar/hPa/0.15 torr /K mbar/hPa/torr /K |
| Vacuum connection | Small flange KF DN 16 / hose nozzle DN 10 mm |
| Venting valve | No |
| Lower ambient temperature (storage) | -10 °C | 14 °F |
| Upper ambient temperature (storage) | 60 °C | 140 °F |
| Lower ambient temperature (operation) | 10 °C | 50 °F |
| Upper ambient temperature (operation) | 40 °C | 104 °F |
| Max. media temperature for continuous operation | 40 °C | 104 °F |
| Max. media temperature short term | 80 °C | 176 °F |
| Material of outer housing | Robust plastic housing with good chemical resistance |
| Protection class IEC 60529 | IP 40 |
| Protection class UL50E | Type 1 |
| Protection class front side IEC 60529 | IP 41 |
| Protection class UL50E front side | Type 2 |

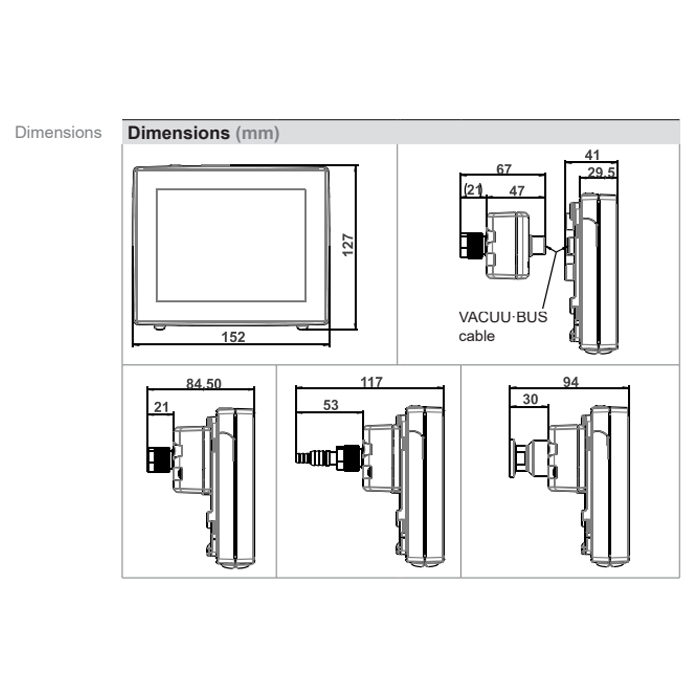

| Dimension L in mm | 152 mm |
| Dimension B in mm | 127 mm |
| Dimension H in mm | 41 mm |
| Max. current for VACUU BUS (24V DC) | 4 A |
| Cable length connection in m | 2 m | 79 in |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
| NRTL certification | Yes |
| Items supplied | Package for fine vacuum control, consisting of: Vacuum controller VACUU-SELECT (without internal vacuum sensor and venting valve) with VACUU·VIEW extended and power supply, solenoid valve VV-B 15C KF DN 16, T-piece KF DN 16, hose nozzle DN 10 mm (PP), clamping and sealing rings, ready for use, with manual. |
| Weight | 0.6 kg | 1.3 lb |
