Vacuubrand Vacuum Gauges, Vacuubrand DVR2, Vacuubrand DVR3, Vacuubrand DCP3000,

The DVR 2 pro is a fully electronic, versatile vacuum gauge for the measuring range from atmospheric pressure to 1 mbar. All wetted parts are made from enhanced chemical resistant material which allows the use under very rough laboratory conditions.

The high accuracy and the large graphical display from the DVR 2 have also been carried forward for the “pro” version. One of the main enhancements is the power supply with a normal 9 V Alkaline battery.

The new battery slot at the back of the Vacuubrand DVR 2 Pro gauge allows for easy replacement of the battery. A wider range of connection parts provide a great range of connection flexibility for laboratory use.

Vacuubrand DVR 2 Pro Features:

improved functionality within the navigation menu helps to save energy and to increase the life cycle of the battery
large, graphical analog display with digital measuring values alows to detect tendencies and makes it easier to readout precisely
pressure unit user-selectable in mbar, hPa or Torr prevents unnecessary conversions
different vacuum connections and the additional support rod allow the use in almost every laboratory application
chemical resistant materials for wetted parts together with the capacitive ceramic diaphragm pressure sensor provide excellent long-term stability and accuracy

Vacuubrand DVR 2 Pro Dimensions:

Vacuubrand DVR 2 Pro, 20682906, Dimensions

A&J Vacuum Services offers full repair/service of Vacuubrand , along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

Condition: New In Stock

Vacuubrand DVR 2 Vacuum Gauge Range from Atmosphere down to 1 Mbar, 20682902 / 682902

Item#: PN19315 Mfr Part#: 20682902 / 682902 Manufacturer: Vacuubrand

This product has been discontinued and is no longer available for sale

Vacuubrand DVR 2 Vacuum Gauge Range from Atmosphere down to 1 Mbar, 682902, Also known as BrandTech DVR2

This Item Has Been Discontinued - It Has Been Replaced By The DVR 2 PRO - PN23275 Click Here!

Vacuubrand DVR 2 Overview:

The Vacuubrand DVR 2 Vacuum Gauge is a portable, battery operated, fully electronic unit for the measuring range from atmosphere down to 1 mbar.

Vacuubrand DVR 2 has a built in integrated ceramic diaphragm vacuum sensor with capacitive readout. The DVR2 vacuum sensor is exceptionaly resistant to chemicals, and measures independently of the type of gas.

Vacuubrand / Brandtech DVR 2 Gauge features outstanding measuring accuracy, very low temperature dependenceand excellent long term stability.

DVR 2 battery operated design allows cordles operation. Its simple operation and the combined digital / analog vacuum reading for precise readout and quick trend detection, makes the DVR2 vacuum gauge one of the best on the market.

Vacuubrand DVR 2 Features:

Large digital and analog vacuum display
Easy selection of pressure units (mbar, hPa, Torr)
Support rod for stand mount available
Typical batter life time is one year of continues operation
Capative alumina ceramic diaphragm vacuum sensor with outstanding chemical resistance, accuracy and long term stability

Condition: Discontinued

Vacuubrand DCP 3000 Vacuum Gauge with MPT 200 Vacuum Sensor, 100-230V / 50-60Hz, 20683175

Item#: PN22837 Mfr Part#: 20683175 Manufacturer: Vacuubrand

PRICE: $3,700.00

WEB SAVINGS: $311.01

YOU PAY: $3,388.99

Vacuubrand DCP3000 Vacuum Gauge with MPT200 Vacuum Sensor, 100-230V/50-60Hz, 20683175

Vacuubrand DCP3000 Overview:

The Vacuubrand DCP3000 + MPT200 gauge set is able to measure from atmospheric pressure down to high vacuum @ 5 x 10-9 mbar.

This wide range of measurement is achieved due to a combined thermal conductivity (Pirani) / cold cathode (Penning) measurement system .

Condition: New

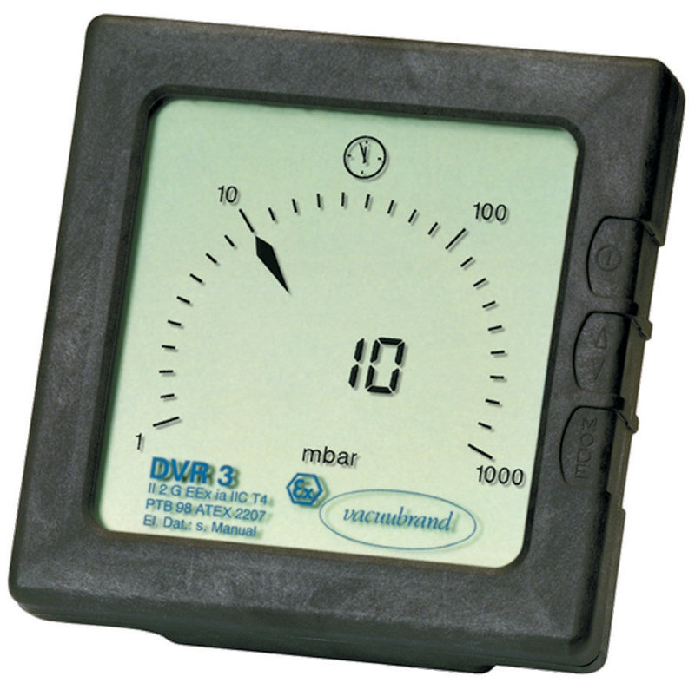

Vacuubrand DVR 3 Vacuum Gauge, PTB 98 / ATEX 2 Range from Atmosphere down to 1 Mbar, 682903

Item#: PN19316 Mfr Part#: 682903 Manufacturer: Vacuubrand

PRICE: $1,372.00

WEB SAVINGS: $73.00

YOU PAY: $1,299.00

Vacuubrand DVR 3 Vacuum Gauge PTB 98 / ATEX 2, Range from Atmosphere down to 1 Mbar, 682903, Also known as BrandTech DVR3

Vacuubrand DVR 3 Overview:

The Vacuubrand DVR 3 Vacuum Gauge is a portable, battery operated, fully electronic unit for the measuring range from atmosphere down to 1 mbar. For use in areas with potentialy explosive atmosphers (measured gas and enviroment of gauge)

Vacuubrand DVR 3 has a built in integrated ceramic diaphragm vacuum sensor with capacitive readout. The DVR3 vacuum sensor is exceptionaly resistant to chemicals, and measures independently of the type of gas.

Vacuubrand / Brandtech DVR 3 Gauge features outstanding measuring accuracy, very low temperature dependenceand excellent long term stability.

DVR 3 battery operated design allows cordles operation. Its simple operation and the combined digital / analog vacuum reading for precise readout and quick trend detection, makes the DVR3 vacuum gauge one of the best on the market.

Vacuubrand DVR 3 Features:

Large digital and analog vacuum display
For use in areas with potentialy explosive atmosphers (measured gas and enviroment of gauge)
Easy selection of pressure units (mbar, hPa, Torr)
Support rod for stand mount available
Typical batter life time is one year of continues operation
Capative alumina ceramic diaphragm vacuum sensor with outstanding chemical resistance, accuracy and long term stability

Condition: New

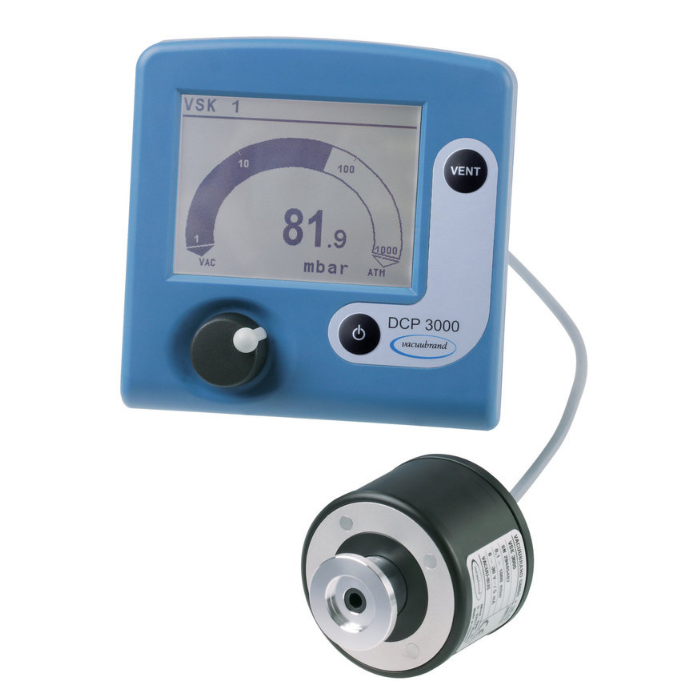

Vacuubrand DCP 3000 Vacuum Gauge with VSK 3000 Vacuum Sensor, 100-230V/50-60Hz, 683170

Item#: PN19321 Mfr Part#: 683170 Manufacturer: Vacuubrand

PRICE: $2,035.00

WEB SAVINGS: $100.00

YOU PAY: $1,935.00

Vacuubrand DCP3000 Vacuum Gauge with VSK3000 Vacuum Sensor, 100-230V/50-60Hz, 683170

Vacuubrand DCP 3000 Overview:

The Vacuubrand DCP 3000 Vacuum Gauge is an outstanding product to be used for Rough and fine vacuum. A large and user friendly illuminated display shows the measured values of all vacuum sensors by a simple turn of a button.

The Vacuubrand VSK 3000 (636657) vacuum sensor with unique ceramic diaphragm measures from atmospheric pressure down to 0.1 mbar. VSK3000 displays absolute pressure independent of gas type. Vacuubrand VSK3000 sensor is very corrosion resistant and has an outstanding accuracy and longterm stability.

Vacuubrand DCP 3000 offers simultaneous connection of up to eight vacuum sensors which alloes flexable measuring on the spot.

The DCP3000 is equipped with VACUU·BUS® (Digital Bus System) feature which allows the gauge to communicate with external components.

The Vacuubrand DCP 3000 / 683170 offers fully automatic configuration, unified plug connections and cable lenghts up to 30 meters

Vacuubrand DCP 3000 Features:

VSK 3000 capacitive alumina ceramic diaphragm vacuum sensor with very high chemical resistance, offers gas-type independent absolute pressure measurement
outstanding measuring accuracy, temperature and long term stability
relative pressure measurement option (VSK 3000) and data logger feature (up to 32,000 values, readout via RS 232C)
up to four gauge heads VSK 3000 (Atm. - 0.1 mbar) and four VSP 3000 (Atm. - 10-3 mbar) can be simultaneously connected

Condition: New

Vacuubrand DCP 3000 Vacuum Gauge with VSP 3000 Pirani Vacuum Sensor, 100-230V/50-60Hz, 20683190 / 683190

Item#: PN19324 Mfr Part#: 20683190 / 683190 Manufacturer: Vacuubrand

PRICE: $2,794.00

WEB SAVINGS: $254.00

YOU PAY: $2,540.00

Vacuubrand DCP3000 Vacuum Gauge with VSP3000 Pirani Vacuum Sensor, 100-230V/50-60Hz, 683190, also known as Brandtech DCP 3000

Vacuubrand DCP3000 Overview:

The Vacuubrand VSP 3000 (636163) Pirani vacuum sensor with unique ceramic diaphragm measures from atmospheric pressure down to 10-3 mbar. Vacuubrand VSK3000 sensor features a much better chemical resistance and ruggedness than conventional Pirani sensors with their fragile metallic spiral-wound filament.

Vacuubrand DCP 3000 offers simultaneous connection of up to eight vacuum sensors which alloes flexable measuring on the spot.

The DCP3000 is equipped with VACUU·BUS® (Digital Bus System) feature which allows the gauge to communicate with external components.

The Vacuubrand DCP 3000 / 683190 offers fully automatic configuration, unified plug connections and cable lenghts up to 30 meters

Vacuubrand DCP3000 Features:

brand new rugged VSP 3000 vacuum sensor made of plastics and ceramics with high chemical resistance
outstanding measuring accuracy, temperature and long term stability
VSP 3000 with wide measurement range from atmospheric pressure to fine vacuum
up to four gauge heads VSK 3000 (Atm. - 0.1 mbar) and four VSP 3000 (Atm. - 10-3 mbar) can be simultaneously connected
for vacuum control from atmospheric pressure down to 10-3 mbar combine the CVC 3000 vacuum controller with gauge head VSP 3000 and vacuum solenoid valves of type VV-B. Suitable complete packages for fine vacuum control are available.

Condition: New
