- Final Pressure: 1.5 mbar
- Max. Pumping Speed: 0.82 cfm (50 Hz)
- Max. Back Pressure: 1.1 bar
- Motor Speed: 1500 min-1 (50 Hz)
Shopping Cart ( )

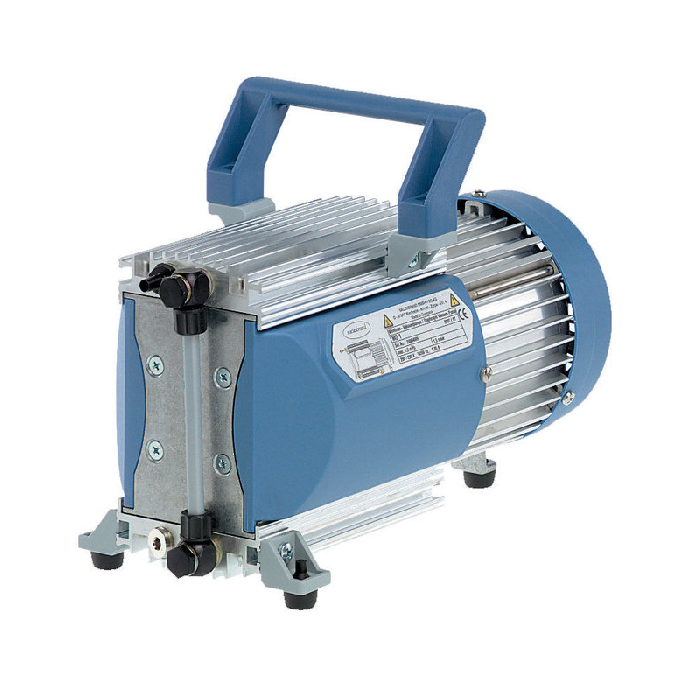

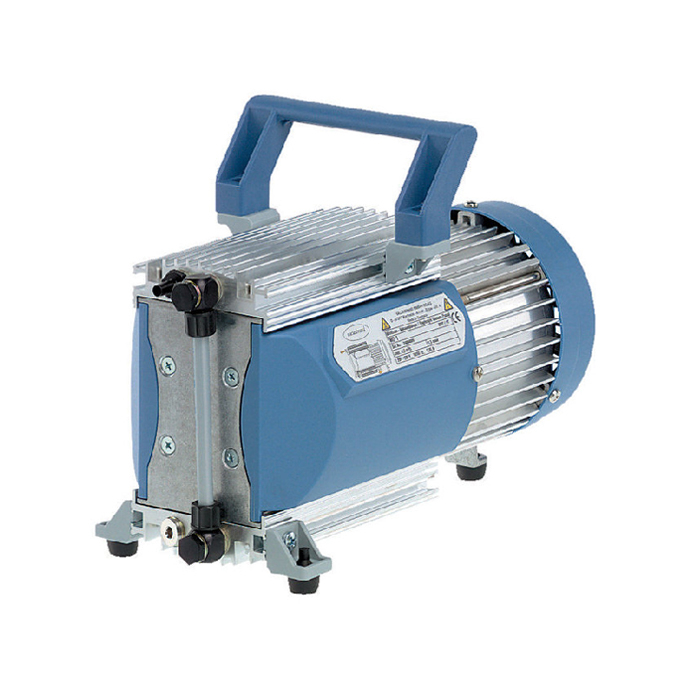

Vacuubrand MD 1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.82 cfm, 100-120V / 200-230V 50/60 Hz, 696083 / 20696083
Condition:
New
In Stock
Item#:PN24408
Mfr Part#:696083 / 20696083
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand MD 1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.82 cfm, 100-120V / 200-230V 50/60 Hz, 696083 / 20696083
Vacuubrand MD 1 Features:
- Contamination free vacuum pumping
- High flow rate even near ultimate vacuum
- Excellent ultimate vacuum
- Whisper quiet and low vibration
- Long diaphragm life, maintenance free drive system design
MD 1 / 20696083 Overview:
The Vacuubrand MD1 diaphragm pump is an excellent choice for oil-free evacuation and pumping of non-corrosive gases down to 1.5 mbar ultimate vacuum.
The three-stage design with precisely guided flat diaphragms provides outstanding pumping speed even close to the ultimate vacuum, especially when compared with similarly rated two-stage diaphragm pumps.
The Vacuubrand MD1 is an ultra-low vibration pump with very long diaphragm lilfetimes and stable ultimate vacuum documented with years of testing.
With a flow path consisting of aluminum and selected plastics (diaphragms and valves made of PTFE/FKM and FKM, respectively) the Vacuubrand MD1 pumps are suitable for a wide range of applications with non-corrosive gases.
MD1 Scope of Delivery:
- Pump completely mounted
- Manual
MD1 Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand MD 1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.82 cfm, 100-120V / 200-230V 50/60 Hz, 696083 / 20696083
Vacuubrand MD 1 Technical Data:

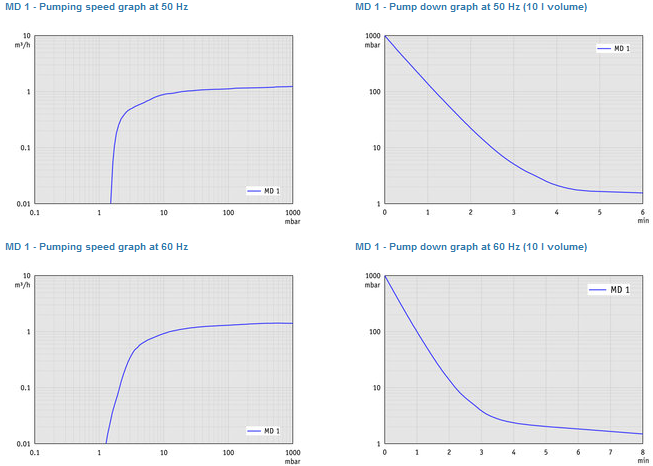

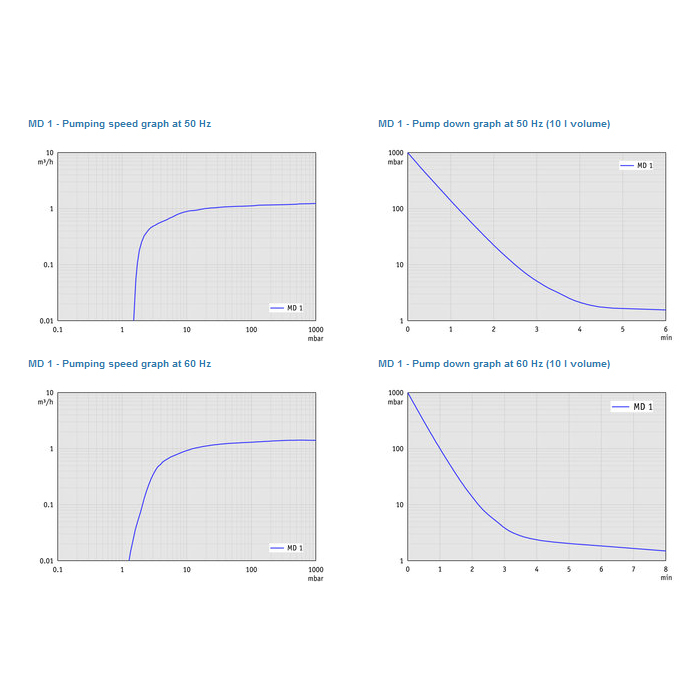

- Max. pumping speed 50 Hz: 1.2 m3/h
- Max. pumping speed 60 Hz: 0.82 cfm
- Ultimate vacuum: 1.5 mbar / 1.1 torr
- Number of heads: 4
- Number of stages: 3
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 6 mm
- Outlet connection: Silencer / G1/8"
- Rated motor power: 0.08 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Protection class IEC 60529: IP 40

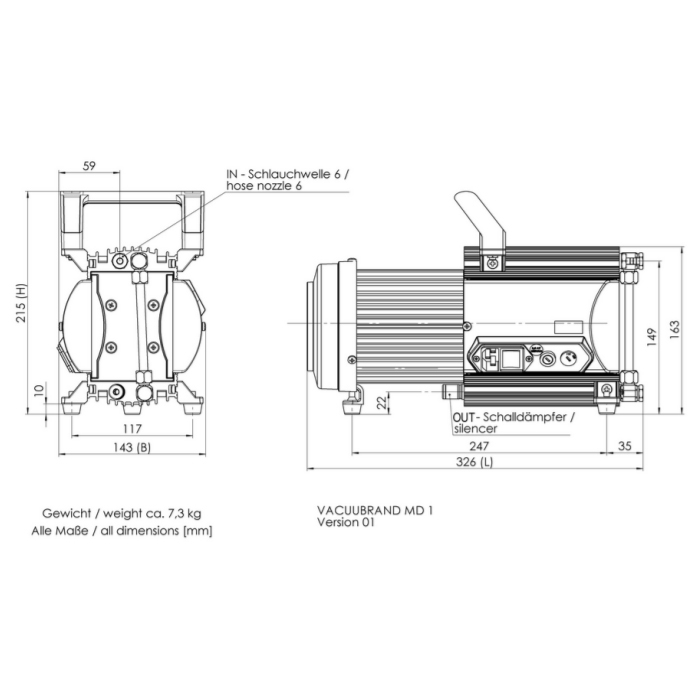

- Dimension L in mm: 326 mm
- Dimension B in mm: 143 mm
- Dimension H in mm: 215 mm
- Weight: 7.3 kg | 16.10 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 40 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Rated mains voltage range 1: 220-230 V
- Rated mains voltage range 2: 100-115 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 50-60 Hz
- Mains frequency 3: 60 Hz
