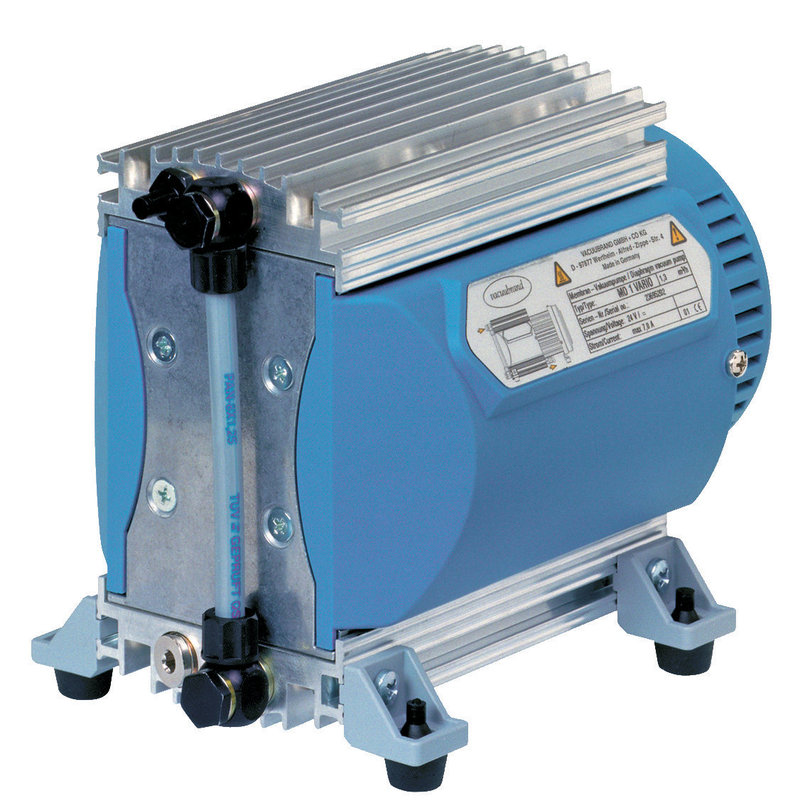

Vacuubrand MD 1 VARIO-SP Diaphragm Vacuum Pump, 24 VDC, 1.06 CFM, 1 mbar, 696101 / 20696101
Vacuubrand MD 1 VARIO-SP Features:
- Super quiet
- Ultra low vibration
- High chemical resistance
- Space saver
- Simple to use
- Maintenance free drive system
MD 1 VARIO-SP / 20696101 Overview:
The three-stage Vacuubrand MD1 VARIO-SP diaphragm pump with its variable speed drive system, attains significantly higher pumping speed and a better ultimate vacuum than the corresponding fixed speed pump. The brushless 24V DC motor (maintenance-free) enables easy integration of the pump into other equipment, and operation independent of line voltage.
The Vacuubrand MD1 pump is extraordinarily silent and vibration-free, with an extended lifetime for its diaphragms.
The Vacuubrand MD1 is an ultra-low vibration pump with very long diaphragm lilfetimes and stable ultimate vacuum documented with years of testing.
With a flow path consisting of aluminum and selected plastics (diaphragms and valves made of PTFE/FKM and FKM, respectively) the pumps are suitable for a wide range of applications with non-corrosive gases.
MD1VARIO-SP Scope of Delivery:
- Pump completely mounted
- Manual
MD1VARIO-SP Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand MD 1 VARIO-SP Diaphragm Vacuum Pump, 24 VDC, 1.06 CFM, 1 mbar, 696101 / 20696101
Vacuubrand MD 1 VARIO-SP Technical Data:

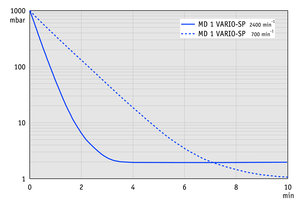

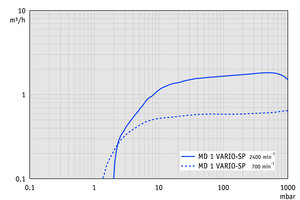

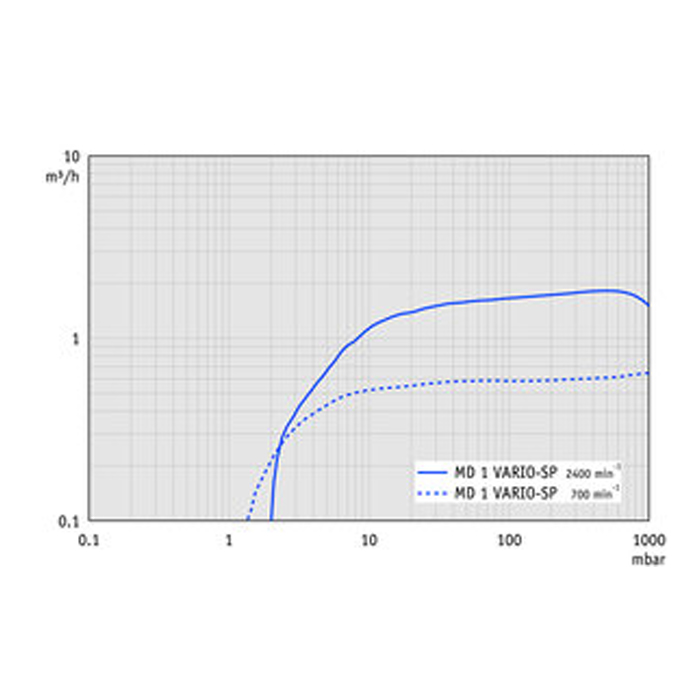

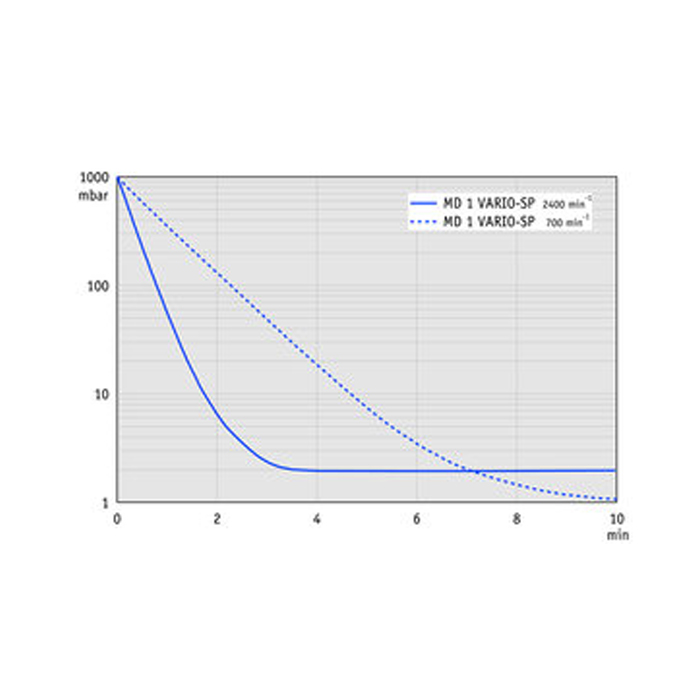

- Max. pumping speed 50 Hz: 1.8 m3/h
- Max. pumping speed 60 Hz: 1.06 cfm
- Ultimate vacuum: 1 mbar / 0.75 torr
- Number of heads: 4
- Number of stages: 3
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 6 mm
- Outlet connection: Silencer / G1/8"
- Rated motor power: 0.064 kW
- Minimum motor speed VARIO in min-1: 200 min-1
- Maximum motor speed VARIO in min-1: 2400 min-1
- Protection class IEC 60529: IP 20

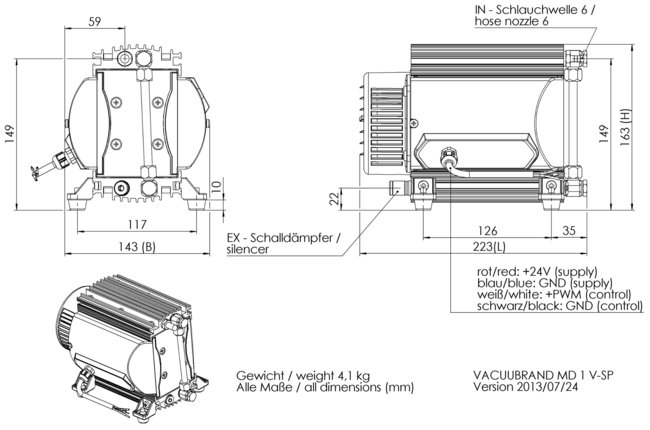

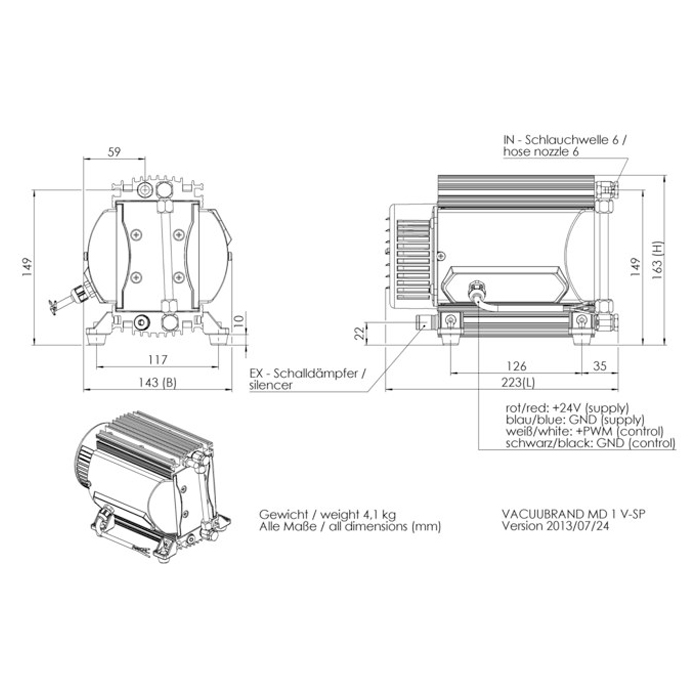

- Dimension L in mm: 223 mm
- Dimension B in mm: 143 mm
- Dimension H in mm: 163 mm
- Weight: 4.1 kg | 9 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 37 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Rated mains voltage range 1: 24 V
- Mains frequency 1: DC
