Vacuubrand MZ 2C NT VARIO® Chemistry Diaphragm Pump, CVC 3000, 100-120V / 50-60Hz, US Power Cord, 1.6 CFM, 7 mbar, 732403 / 20732403
Condition:
New
Item#:PN19494
Mfr Part#:732403 / 20732403
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand MZ 2C NT VARIO® Chemistry Diaphragm Pump, CVC 3000, 100-120V / 50-60Hz, US Power Cord, 1.6 CFM, 7 mbar, 732403 / 20732403
Vacuubrand MZ 2C NT VARIO® Corrosive Diaphragm Dry Vacuum Pump provide precise vacuum control by of the diaphragm pump's motor speed.
The Vacuubrand MZ 2C NT VARIO® is a two stage chemistry corrosion resistant diaphragm pump the meets medium vacuum requirements for most chemical solvents.
The on demend motor speed control results in unpatalleled lnght of service intervals for all wearing internal parts.
-
Automaticelectronic adaptation of the vacuum level throughout the process for high process reliability and unattended operation
-
Extraordinary diaphragm life for minimum operational and servicing costs
-
Easily operated VACUU-SELECT vacuum controller with clear text menus, with integrated venting valve
-
Short process times due to zero-fluctuation (hysteresis-free) vacuum control
-
Excellent chemical resistance
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Vacuubrand MZ 2C NT VARIO® Chemistry Diaphragm Pump, CVC 3000, 100-120V / 50-60Hz, US Power Cord, 1.6 CFM, 7 mbar, 732403 / 20732403
| Technical data | Unit | MZ 2C NT VARIO |
|---|---|---|
| Vacuum controller | CVC 3000 | |
| Number of heads / stages | 2 / 2 | |

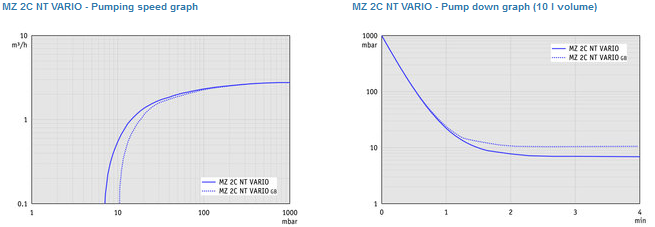

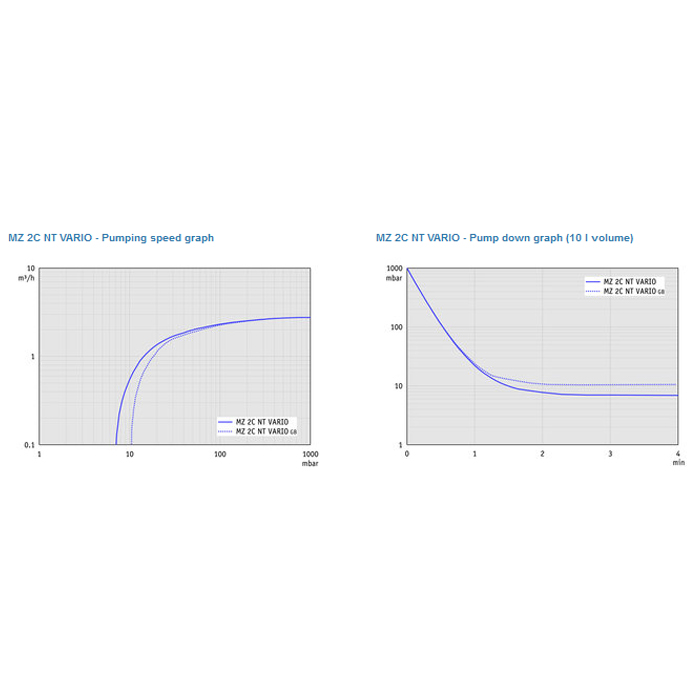

| Max. pumping speed | m3/h | 2.8 |
| Max. pumping speed | cfm | 1.6 |
| Ultimate vacuum (abs.) | mbar/torr | 7 / 5 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 12 / 9 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | kW | 0.53 |
| Motor speed range | min-1 | 30 - 2400 |
| Degree of protection | IP 20 | |

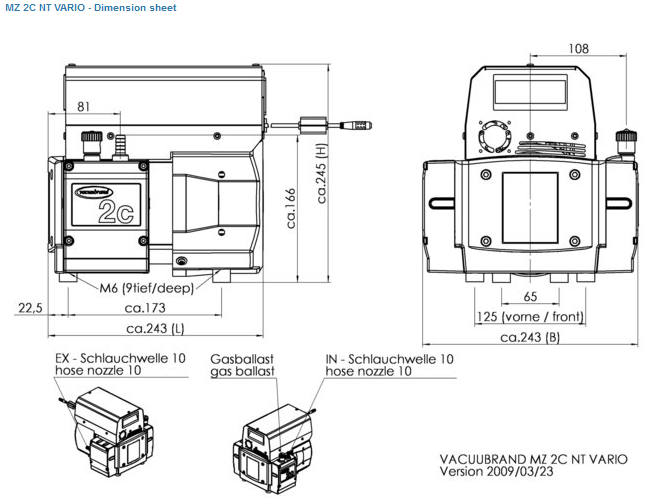

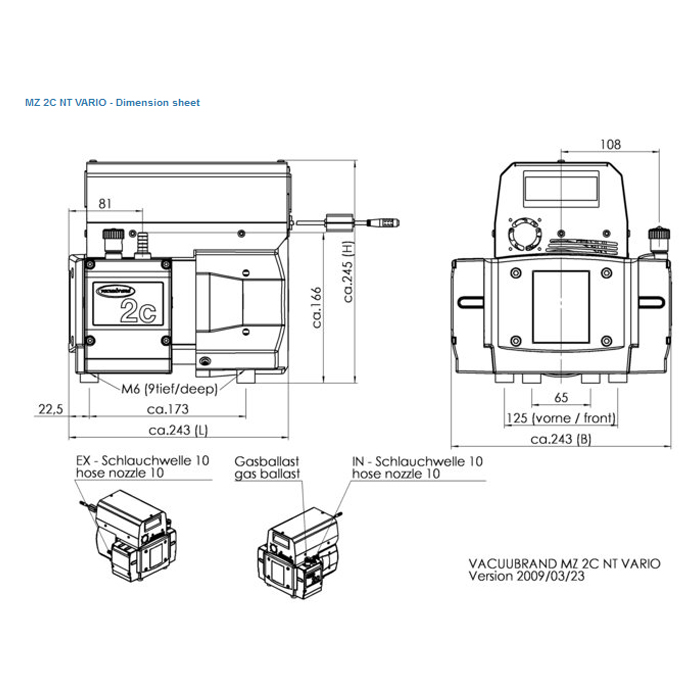

| Dimensions (L x W x H) | mm | 243 x 243 x 245 |
| Weight | kg | 13.8 |
| Noise level at 50 Hz, typ. | dBA | 43 |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
