Vacuubrand RZ 2.5 Dual Stage, Dual Voltage High Performance Vacuum Pump, 1.7 CFM RZ 2.5, 120 VAC - 60Hz, 20798126
This is the current revision of the previous version p/n 20698126
Vacuubrand RZ 2.5 Overview:

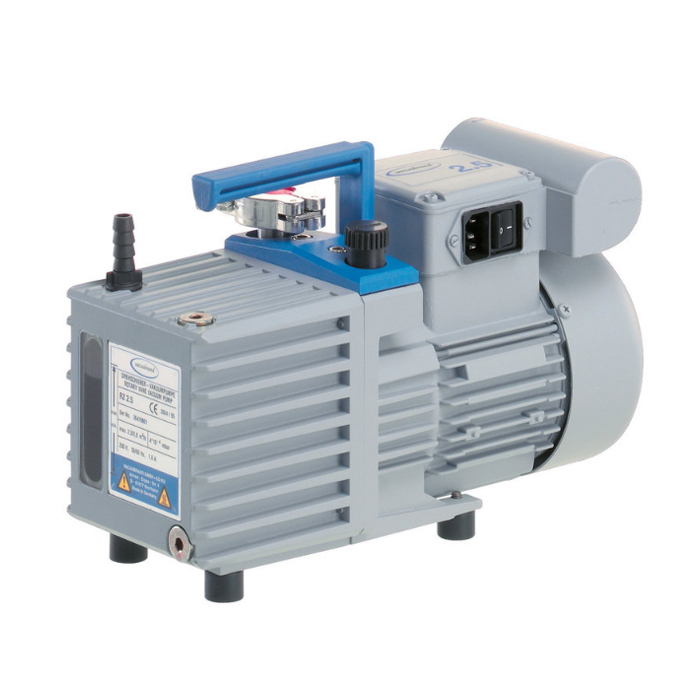

The Vacuubrand RZ 2.5 dry vacuum rotary vane pumps. The max pumping speed up to 1.6 CFM at 60 Hz. Vacuubrand (20698126) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RZ 2.5 is 11.4 kg. Noise level Vacuubrand RZ 2.5 is 43 dB at 50 Hz.
The one-stage RE 2.5 and two-stage RZ 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate. The rotary vane pumping unit PC 3 with cold trap (GKF 1000i) at the inlet helps the pump to handle larger volumes of condensable vapors. The pumping unit is compact, user-friendly, and well-arranged, with oil mist filter at the outlet, a valve, and a T-connection for a gauge. The RZ 2.5 is also available combined with the oil mist filter (FO) and the VS 16 valve as a package.
Vacuubrand RZ 2.5 Features:
- Single Stage, High Performance Rotary Vane Pump
- High flow rates even at vacuum levels approching ultimate vacuum
- High water vapor tolerance due to efficient gas ballast
- Very good ultimate pressure even with gass ballast
- Vacuum tight at switch off; external andi-suckback valve not needed
- Large oil volume: long intervals between oil changes
- Ease of maintenance due to telescopic design
Vacuubrand RZ 2.5 Applications:
Typical applications for Vacuubrand RZ 2.5 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RE 2.5 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.

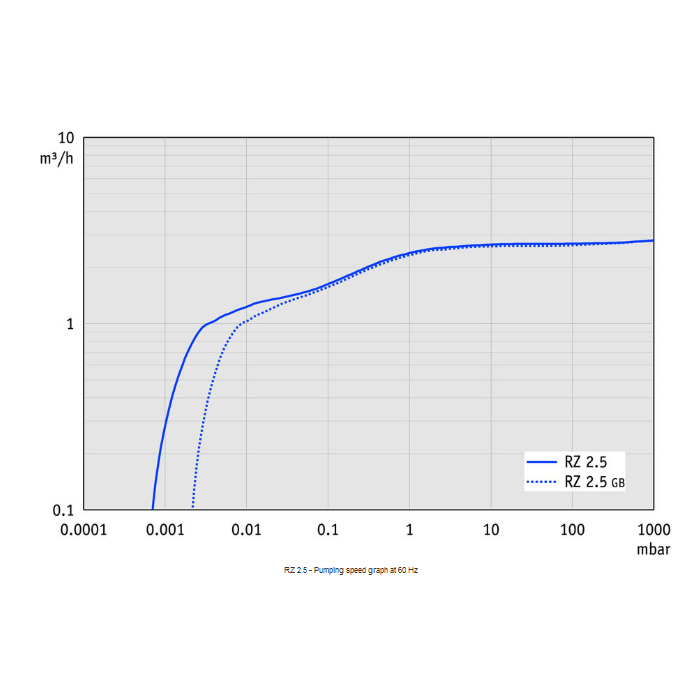

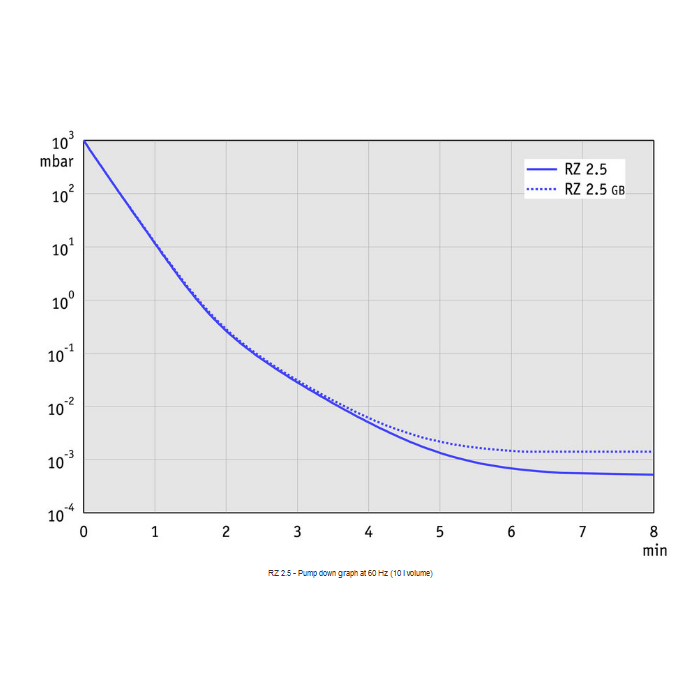

Vacuubrand RZ 2.5 Pumping Speed:

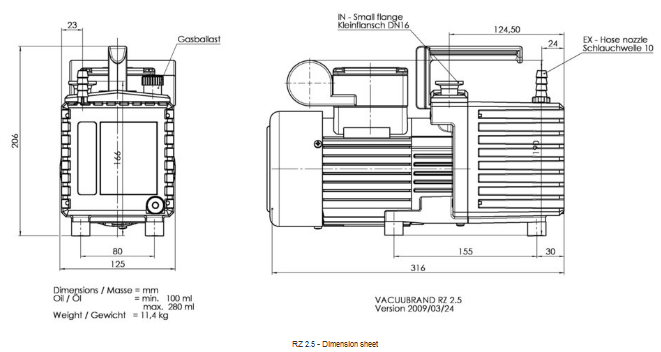

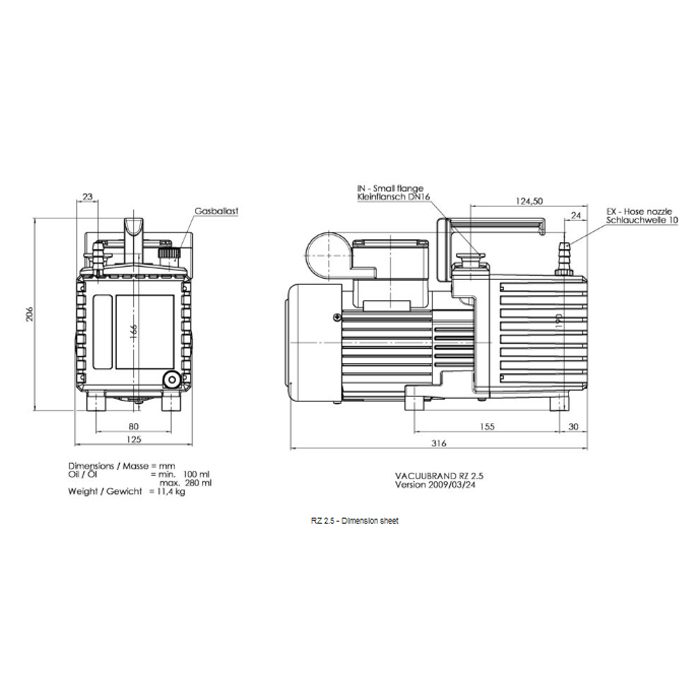

Vacuubrand RZ 2.5 Dimensions:
Click Here for Vacuubrand RZ Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Vacuubrand RZ 2.5 Dual Stage, Dual Voltage High Performance Vacuum Pump, 1.7 CFM RZ 2.5, 120 VAC - 60Hz, 20798126
Vacuubrand RZ 2.5 Technical Data:
| Technical data | Unit | RZ 2.5 |
|---|---|---|
| Number of stages | 2 | |
| Max. pumping speed at 50/60 Hz | m3/h | 2.3 / 2.8 |
| Max. pumping speed at 50/60 Hz | cfm | 1.4 / 1.6 |
| Ultimate partial vacuum (abs.) | mbar | 4 x 10-4 |
| Ultimate vacuum (abs.) | mbar/torr | 2 x 10-3 / 1.5 x 10-3 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 1 x 10-2 / 0.75 x 10-2 |
| Water vapor tolerance with gas ballast | mbar | 40 |
| Ambient temperature range (operation) | °C | 12 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Oil capacity (B-Oil) min./max. | l | 0.1 / 0.28 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Small flange KF DN 16 | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | kW | 0.1 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 390 x 156 x 240 |
| Weight | kg | 14.7 |
| Noise level at 50 Hz, typ. | dBA | 48 |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. | |
| Accessories | Stainless steel tubing KF DN 16 (1000 mm: 20673336) Separator inlet side AK R 2/2.5 (20698000) Oil mist filter FO R 2/2.5/5/6 (20698003) Package fine vacuum control KF DN 16 (20700100 or 20700101) Rubber vacuum tubing DN 8 mm (20686001) Small flange KF DN 16 with hose nozzle DN 8-10 mm (20662806) |
Click Here for Vacuubrand RZ Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
