Vacuubrand PC 101 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 1.4 CFM, 7 mbar, 733003 / 20733003
Condition:
New
Item#:PN19503
Mfr Part#:733003 / 20733003
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand PC 101 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 1.4 CFM, 7 mbar, 733003 / 20733003
Vacuubrand PC 101 NT Features:
- Lab quiet with very low vibration
- Excellent for parallel operations of several vacuum ports
- High performance
- Outstanding chemical resistance
- Long diaphragm life
- Perfect for lab vacuum
- Manual pressure control with analog display
PC 101 NT / 20733003 Overview:
Vacuubrand PC101NT Corrosion Resistant Diaphragm pumping System has a wide range of chemical vacuum applications such as evacuation, evaporation and pumping of chemical, biological gases and pharmaceutical laboratories.
Most common applications include rotary evaporators and vacuum dying ovens. The manual flow control valve allows end user to accurate and efectively regulate pumping speed at the vacuum connection.
PC 101 NT is equipped with analog vacuum display. PC101NT is also equipped with the waste vapor condenser at the outlet (EK) Vacuubrand vapor condenser is very compact and highly efficient.
The PC 101NT condenser enables almost 100 percent solvent recovery. Recycling and efficient vapor recovery will help to protect our environment.
PC101NT Scope of Delivery:
- Pump completely mounted
- Manual
PC101NT Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand PC 101 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 1.4 CFM, 7 mbar, 733003 / 20733003
Vacuubrand PC 101 NT Technical Data:

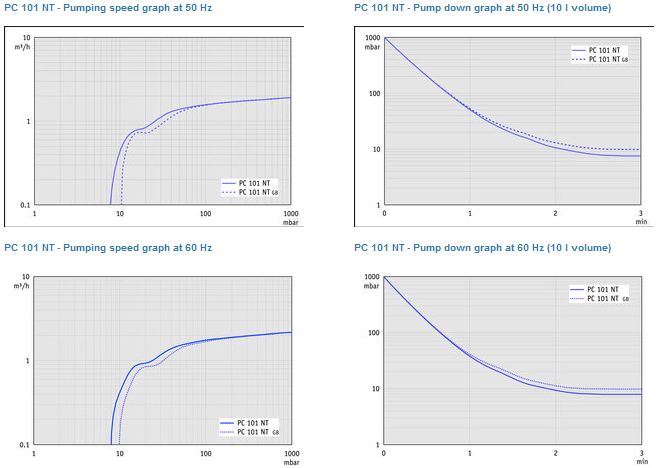

- Max. pumping speed 50 Hz: 2 m3/h
- Max. pumping speed 60 Hz: 1.4 cfm
- Ultimate vacuum: 7 mbar / 5 torr
- Ultimate vacuum with gas ballast: 12 mbar / 9 torr
- Number of heads: 2
- Number of stages: 2
- Vacuum controller: Manometer
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Protection class IEC 60529: IP 40

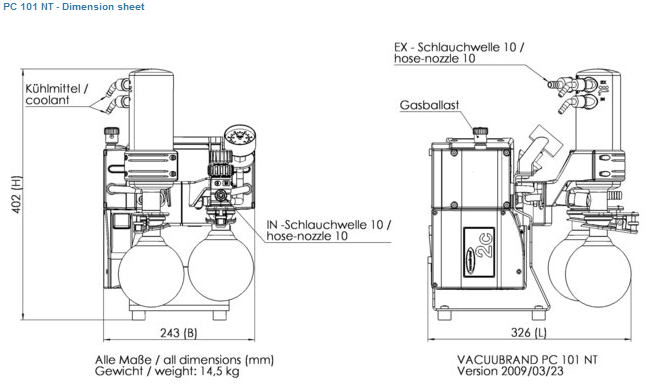

- Dimension L in mm: 326 mm
- Dimension B in mm: 243 mm
- Dimension H in mm: 402 mm
- Weight: 14.5 kg | 32 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- NRTL certification: Yes
- Rated mains voltage range 1: 100-115 V
- Rated mains voltage range 2: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 60 Hz
