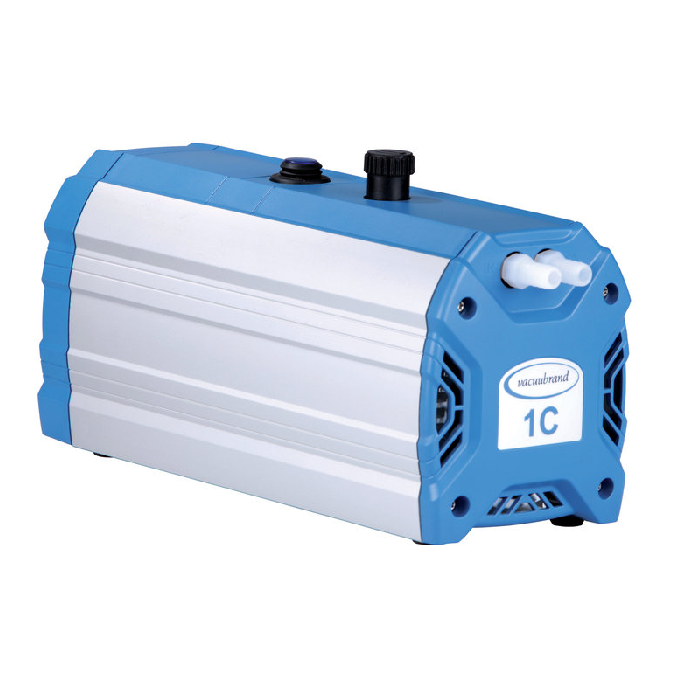

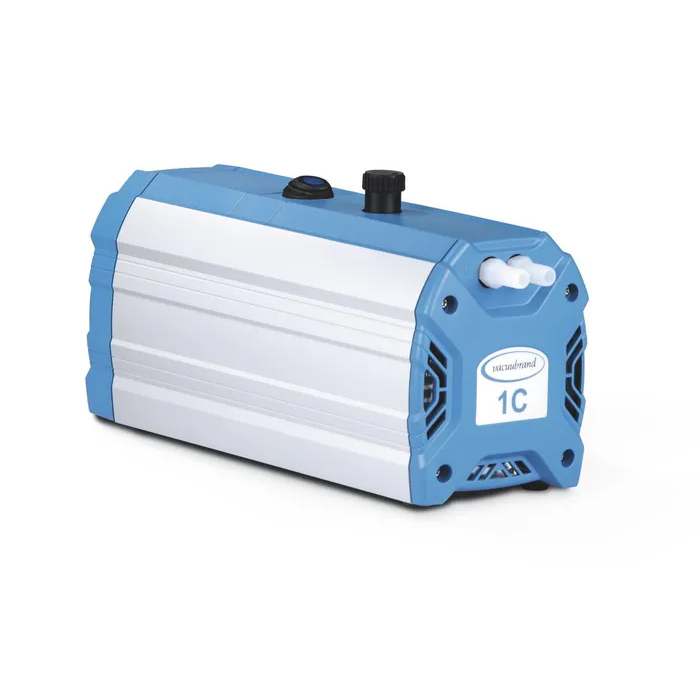

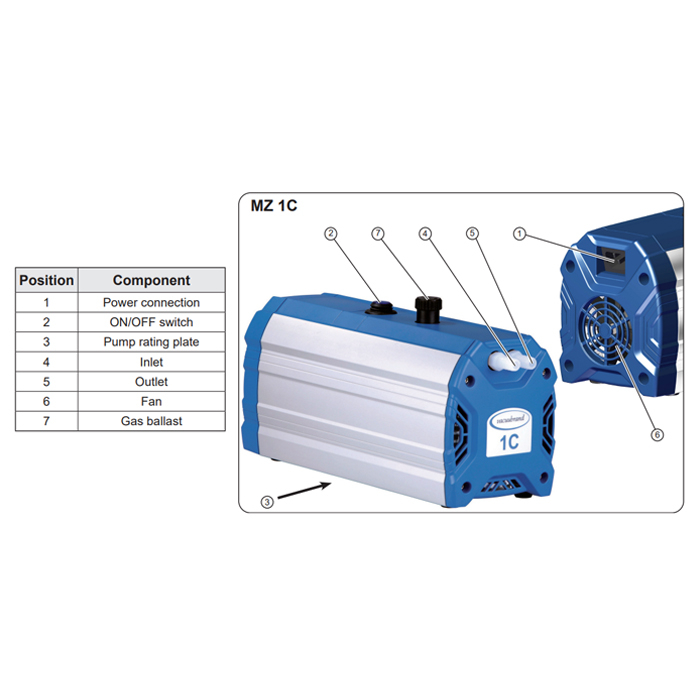

Vacuubrand MZ 1C Chemistry Diaphragm Pump, 100-120V / 50-60Hz, US Power Cord, 0.5 CFM, 12 mbar, 724103 / 20724103
Vacuubrand MZ 1C Features:
- Super quiet
- Ultra low vibration
- High chemical resistance
- Space saver
- Simple to use
- Maintenance free drive system
MZ 1C / 20724103 Overview:
MZ 1C Chemistry design diaphragm pumps are an excellent solution for continues oil-free vacuum pumping of corrosive gases and vapors.
Vacuubrand MZ1C Chemical two-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE-sandwich diaphragms increase reliability and extend operating life.
The MZ 1C pump is equipped with a gas ballast valve for continuous condensate purge increasing the pumping capability of condensable vapors. It features slim design for space-saving installation and good vacuum performance. A manual vacuum regulator valve with dial gauge for adjustment of pumping speed and ultimate vacuum is available as accessory.
MZ1C Scope of Delivery:
- Pump completely mounted
- Manual
MZ1C Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Servi ce Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand MZ 1C Chemistry Diaphragm Pump, 100-120V / 50-60Hz, US Power Cord, 0.5 CFM, 12 mbar, 724103 / 20724103
Vacuubrand MZ 1C Technical Data:

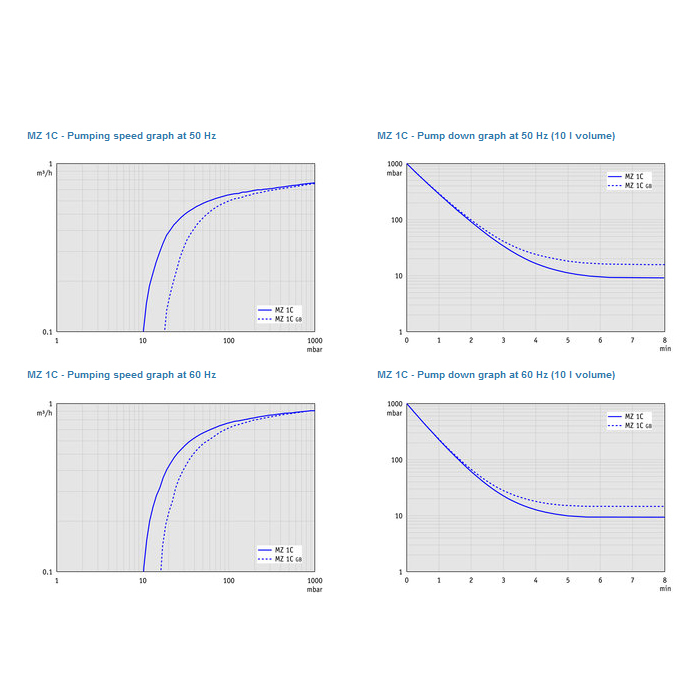

- Max. pumping speed 50 Hz: 0.75 m3/h
- Max. pumping speed 60 Hz: 0.5 cfm
- Ultimate vacuum: 12 mbar / 9 torr
- Ultimate vacuum with gas ballast: 20 mbar / 15 torr
- Number of heads: 2
- Number of stages: 2
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.06 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Protection class IEC 60529: IP 40

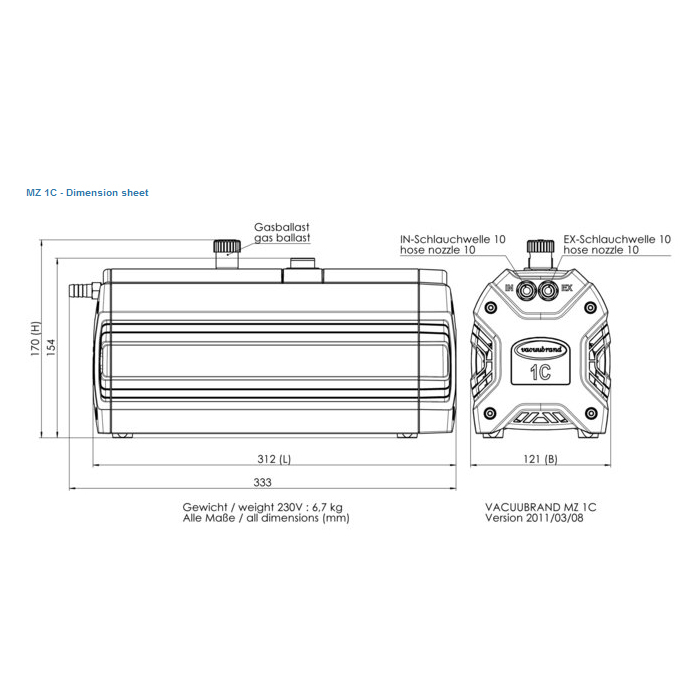

- Dimension L in mm: 312 mm
- Dimension B in mm: 121 mm
- Dimension H in mm: 170 mm
- Weight: 6.7 kg | 14.8 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- NRTL certification: Yes
- Rated mains voltage range 1: 100-115 V
- Rated mains voltage range 2: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 60 Hz
A&J Vacuum Services, Inc is a Authorized Vacuubrand Servi ce Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand ME1 ME1C MZ 1C Diaphragm Pump Operation Manual
|
