- PN 733303
- Two CVC 3000 Vacuum Controllers
- Inlet connection: 2 x hose nozzle DN 8-10 mm
- Pumping Speed: 2.0/2.3 m3/h
Shopping Cart ( )
Vacuubrand PC 520 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 1.2 CFM, 7 mbar, 733303 / 20733303
Condition:
New
Item#:PN19509
Mfr Part#:733303 / 20733303
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand PC 520 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 1.2 CFM, 7 mbar, 733303 / 20733303
Vacuubrand PC520NT Corrosion Resistant Diaphragm pumping System has a wide range of chemical vacuum applications such as evacuation, evaporation and pumping of chemical, biological gases and pharmaceutical laboratories.
PC 520 NT design allows simultaneous operation of two independent vacuum applications, with well proven check valves to prevent interference between systems. PC 511NT comes with two CVC 3000 electronic vacuum controllers and two solenoid vacuum valves.
Popular Vacuubrand MZ 2C NT corrosive diaphragm pump is installed inside this pumping systrem, along with popular CVC 3000 vacuum controllers with a solenoid valves for electronic vacuum control.
Most common applications include rotary evaporators and vacuum dying ovens. The manual flow control valve alows end user to accurate and efectively regulate pumping speed at the vacuum connection.
PC 520 NT is equiped with analog vacuum display. PC 520NT is also equipped with the waste vapor condenser at the outlet (EK) Vacuubrand vapor condenser is very compact and highly efficient.
The PC 520NT condenser enables almost 100 percent solvent recovery. Recycling and efficient vapor recovery will help to protect our enviroment.
PC 510NT Performance features;
-
Lab quiet with very low vibration
-
2 Electronic CVC 3000 pressure controllers with integrated venting valves
-
PC 520 NT design allows simultaneous operation of two independent vacuum applications, with well proven check valves to prevent interference between systems.
-
Excelent for parallel operations of several vacuum ports
-
High performance
-
Outstanding chemical resistance
-
Hemistry design flow control valve with large cross section for best performance.
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Vacuubrand PC 520 NT Chemistry Diaphragm Pumping Unit, 100-120V / 50-60Hz, US Power Cord, 1.2 CFM, 7 mbar, 733303 / 20733303
| Technical data | Unit | PC 520 NT |
|---|---|---|
| Vacuum controller | 2 x CVC 3000 | |
| Number of heads / stages | 2 / 2 | |

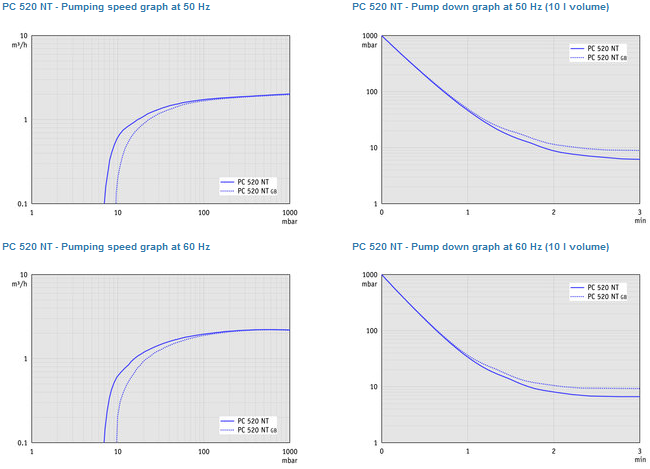

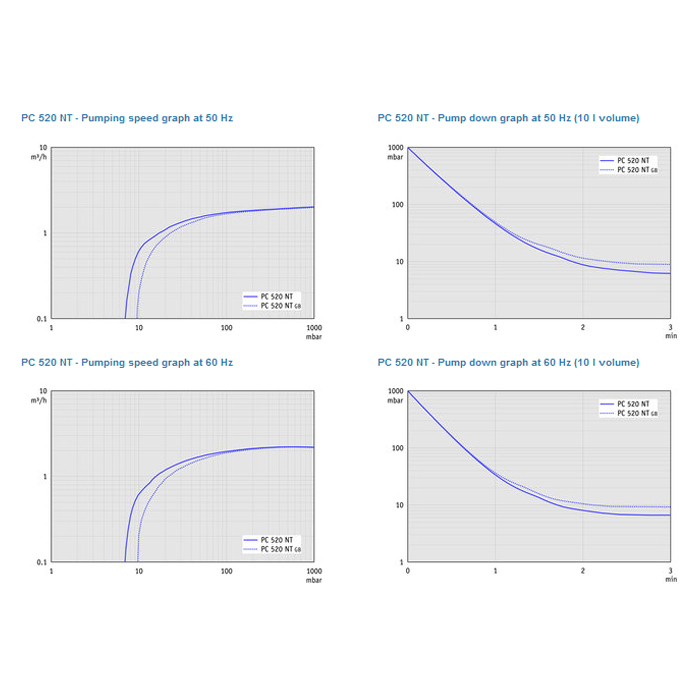

| Max. pumping speed at 50/60 Hz | m3/h | 2.0 / 2.3 |
| Max. pumping speed at 50/60 Hz | cfm | 1.2 / 1.4 |
| Ultimate vacuum (abs.) | mbar/torr | 7 / 5 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 12 / 9 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | 2 x hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | kW | 0.18 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |

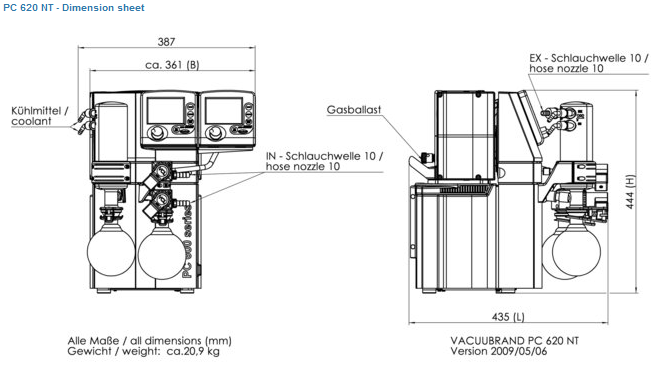

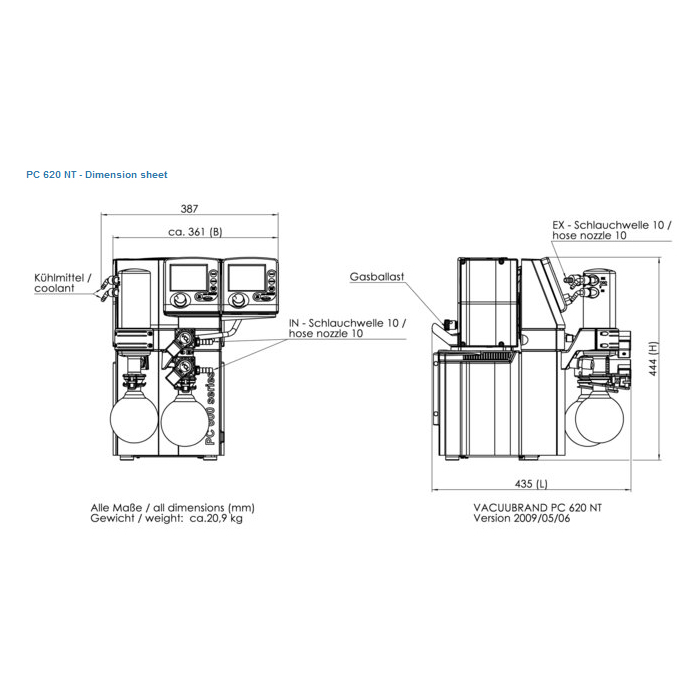

| Dimensions (L x W x H) | mm | 435 x 361 x 444 |
| Weight | kg | 17.7 |
| Noise level at 50 Hz, typ. | dBA | 45 |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pumping unit largely mounted, ready for use, with manual. |
