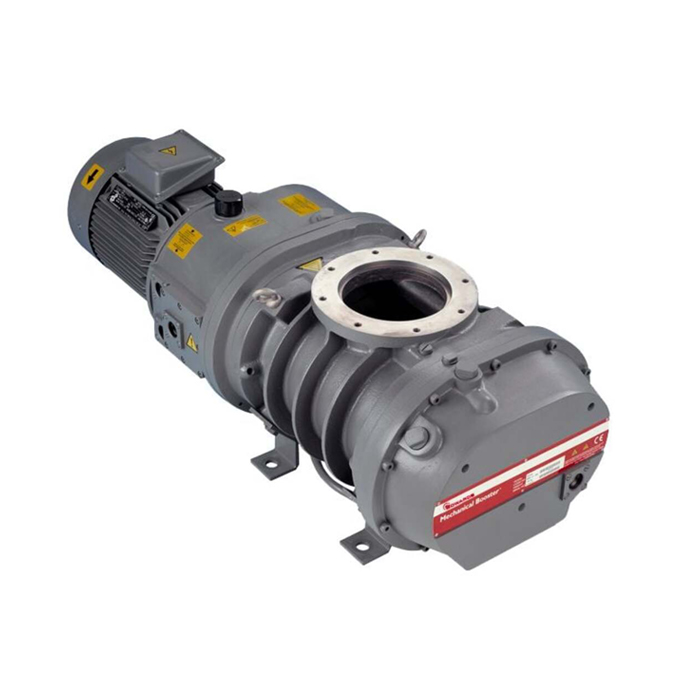

Edwards EH500, Mechanical Booster Pump, 3Ph 230/460V 60 HZ, FX, (PFPE prepared), A30208946

Edwards EH500 Features:

• Power supply voltage: 230/460V
• Connection inlet flange: DN 100 ISO-F
• Connection outlet flange: DN 63 ISO-F
• Pressure ultimate: 0.100 mbar
• Pump-down times cut by up to 50%
• Reliable performance even under harsh duties
• ATEX certification

Edwards EH500 Mechanical Booster Pump / A30208946 Overview:

The mechanical booster vacuum pumps are positive displacement devices that utilize rotors or lobes to amplify pressure differentials and enhance the efficiency of a backing pump. They are particularly well-suited for industrial processes involving high flow rates or fluctuating pressures. Operating without oil, these pumps are ideal for applications that demand a clean, oil-free vacuum environment.

Designed for operational stability, Edwards' pumps deliver consistent performance, making them suitable for continuous use across a broad pressure range.

A key benefit of our mechanical booster pumps is their extensive installed base, reflecting their reliability and field-proven performance. For operations in hazardous or chemically active environments, we also provide ATEX-certified models to ensure safety and efficiency.

Edwards EH500 Scope of Delivery:

• Installation, operation and maintenance instructions

Edwards EH500 Applications:

• Semiconductor processing
• Vacuum distillation
• Vacuum packaging
• Steel degassing
• Thin film coating
• Vacuum metallurgy
• Low density wind tunnels
• Space simulation
• Vacuum impregnation
• Oil drying and degassing
• Pharmaceutical freeze drying
• CO2 lasers
