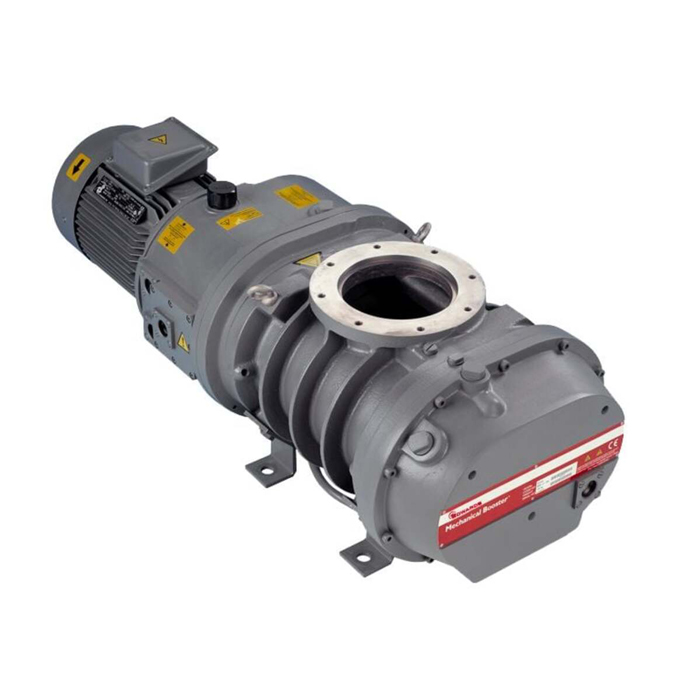

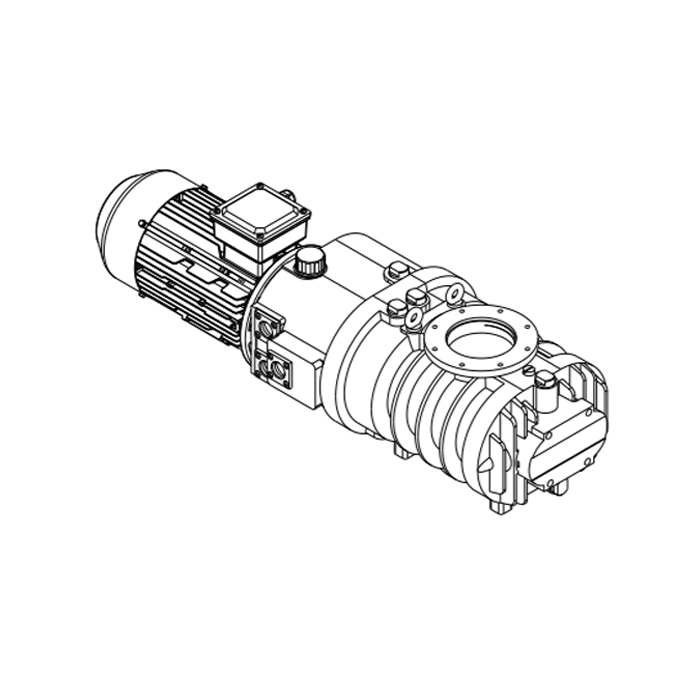

Edwards EH500, Mechanical Booster Pump, 3Ph 230/460V 60 HZ, FX, (PFPE prepared), A30208946
Edwards EH500 Features:
- Power supply voltage: 230/460V
- Connection inlet flange: DN 100 ISO-F
- Connection outlet flange: DN 63 ISO-F
- Pressure ultimate: 0.100 mbar
- Pump-down times cut by up to 50%
- Reliable performance even under harsh duties
- ATEX certification
Edwards EH500 Mechanical Booster Pump / A30208946 Overview:
The mechanical booster vacuum pumps are positive displacement devices that utilize rotors or lobes to amplify pressure differentials and enhance the efficiency of a backing pump. They are particularly well-suited for industrial processes involving high flow rates or fluctuating pressures. Operating without oil, these pumps are ideal for applications that demand a clean, oil-free vacuum environment.
Designed for operational stability, Edwards' pumps deliver consistent performance, making them suitable for continuous use across a broad pressure range.
A key benefit of our mechanical booster pumps is their extensive installed base, reflecting their reliability and field-proven performance. For operations in hazardous or chemically active environments, we also provide ATEX-certified models to ensure safety and efficiency.
Edwards EH500 Scope of Delivery:
- Installation, operation and maintenance instructions
Edwards EH500 Applications:
- Semiconductor processing
- Vacuum distillation
- Vacuum packaging
- Steel degassing
- Thin film coating
- Vacuum metallurgy
- Low density wind tunnels
- Space simulation
- Vacuum impregnation
- Oil drying and degassing
- Pharmaceutical freeze drying
- CO2 lasers
A&J Vacuum services and repairs all Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information, please contact A&J Vacuum Services at 973-249-0854. Thank you for choosing AJVS as your supplier.
Edwards EH500, Mechanical Booster Pump, 3Ph 230/460V 60 HZ, FX, (PFPE prepared), A30208946
Edwards EH500 Technical Data:
- Connection Inlet Flange: DN 100 ISO-F
- Weight: 106 kg | 233.69 lbs
- Connection vacuum outlet flange: DN 63 ISO-F
- Power Supply Phase: 3-Ph
- Power Supply Voltage: 3Ph 230/460V 60Hz
- Dimension Length: 33.90 in
- IP Rating: IP44
- Power Supply Frequency: 60 Hz
- Dimension Height: 9.21 in
- Dimension Width: 11.50 in
- Connector Electrical Power: Hard wiring (in electrical box of pump / mains)
- Noise / Sound Level: 70.00 db(A)
- Cooling Method: Air Cooling
- Connection Cooling: 3/8" BSPP (G) Male
- Motor Efficiency Class: IE3
- Connection Inlet / Outlet Flange: DN 100 ISO-F / DN 63 ISO-F
- Certification Motor: CE
- Pressure Absolute Inlet Continuous Max: 1000 mbar
- Oil Capacity Max: 1.500 × 10⁻³ m³
- Pressure Absolute Outlet Continuous Max: 1000 mbar
- Temperature Ambient Operation Max: 104.00 °F | 40.00 °C | 313.15 K
- Temperature Ambient Operation Min: 17.60 °F | -8.00 °C | 265.15 K
- Temperature Ambient Storage Min: -4.00 °F | -20.00 °C | 253.15 K
- Temperature Ambient Storage Max: 176.00 °F | 80.00 °C | 353.15 K
- Classification Product Pressure Range: Medium Vacuum: 1 mbar - 1·10⁻³ mbar | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar
- Classification High / Medium / Rough Vacuum pump: Rough Vacuum Pump
- Classification Dry or Wet Pump: Dry
- Classification Vacuum Pump Technology: Mechanical Booster Pump
- Classification Region: US
- Pressure Differential Max: 110 mbar
- Power Total Rated: 2200 W
- Power Total Rated @60Hz: 2200 W
- Power Total Rated @50Hz: 2200 W
- Nominal Rotational Speed 50HZ: 48.33 Hz
- Displacement @50Hz Max: 297.23 cfm
- Pressure Ultimate: 0.100 mbar
- Nominal Rotational Speed 60Hz: 58.33 Hz
- Displacement @60Hz Max: 356.09 cfm
- Nominal rotational speed: 48.33 Hz
- Pressure Differential Max @60Hz: 90 mbar
- Pressure Differential Max @50Hz: 110 mbar
- Default Oil Type: ULTRAGRADE™ Performance 20
- lubricantProductOption1: PFPE FOMBLIN® Y VAC 16/6
- Variant EH Mechanical Booster: FX - (PFPE prepared)
- Material of Construction: Grey cast iron, grade 250 (BS1452), SG iron grade 420/12 (BS2789), Aluminium LM25TF (BS1490), Fluoroelastomer, PTFE polytetrafluoroethylene, Copper/brass, Loctite 518
- Material Rotor: Cast Iron GGG40
- Material Stator: Cast Iron GGL25
