- Displacement: 3.8 cfm
- Pumping Speed: 3.6 cfm
- Ultimate Pressure: < 5 Pa
- Inlet Flange: DN 25 KF
Shopping Cart ( )

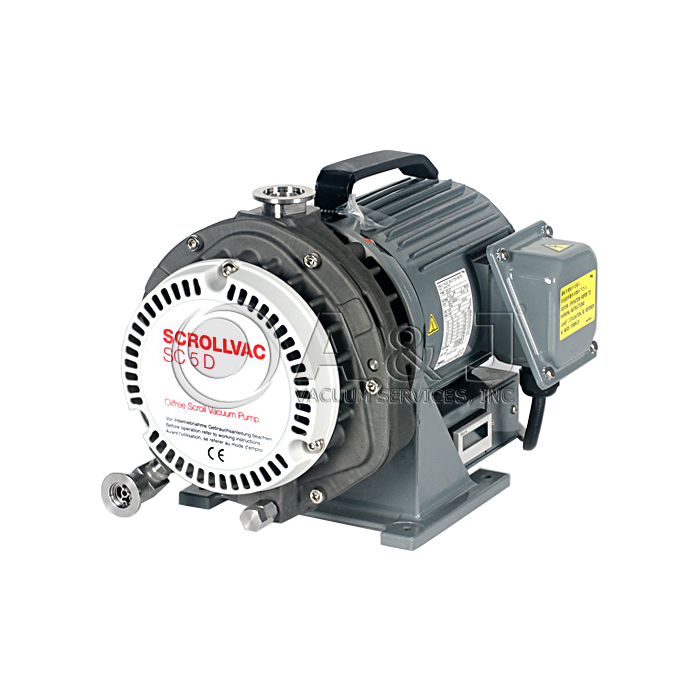

Leybold SC 5 D Scroll Dry Vacuum Pump 100 - 115V AC 50/60 HZ, 133100, SC5, SC-5
Condition:
Remanufactured
Call us for Availability
Item#:PN00311
Mfr Part#:133100
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Fully remanufactured Leybold SC 5 D Scroll Dry Vacuum Pump 100 - 115V AC 50/60 HZ, 133100, SC5, SC-5 with 2.5 M Power cord and US plug
This Item Has Been Discontinued - It Has Been Replaced By The Anest Iwata ISP 90 Series - Click Here

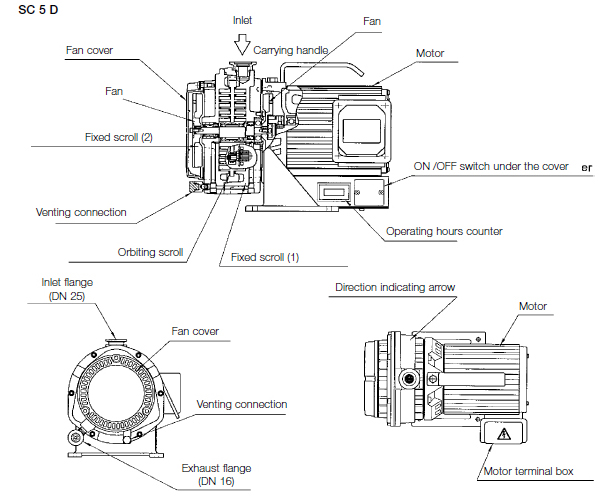

Leybold SC 5D Overview:
The LEYBOLD SCROLLVAC SC5D, SC15D, SC30D and SC60 Scroll vacuum pumps are oil-free vacuum pumps.
Each Leybold SC 5D Scroll pump 133 100 consists of two Archimedes spirals offset within each other by 180 degrees. Thus several crescent-shaped pockets of different sizes are created.
With the aid of an eccentric drive, the second spiral orbits about the fixed spiral thereby reducing, respectively increasing the volume of the pockets whereby the gases are conveyed from outside to inside thereby being compressed.
Scroll Pump Advantages to the User:
- Maintenance-poor, free of oil and bearing lubrication, free of hydrocarbons
- Absolutely oil-free
- High effective pumping speed
- Low ultimate pressure
- Low noise level
- Low vibration operation
- Atmospheric inlet pressure allowable
- Low weight
- Air cooling
- Low power consumption
Leybold SC 5D Pumping Speed:
Typical Leybold SC 5D / 133100 Applications:
- Electron beam welding
- Lasers
- Leak detection systems
- Accelerators / synchrontrons
- Surface analysis instruments
- Scanning electron microscopes
- Load lock
- Spectroscopy
- Lamp manufacturing
- As a backing pump for turbomolecular pump systems
Click Here to view Leybold SC5D, SC15D, SC30D and SC60C Operation Manual
Inlet Pump Filters are also avaialble Click Here
Exhaust Pump Silencers Click Here
A&J Vacuum repair / rebuild and service all Leybold SC5D PN133100, SD15D, SC30D and SC60S Scroll Pump along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Fully remanufactured Leybold SC 5 D Scroll Dry Vacuum Pump 100 - 115V AC 50/60 HZ, 133100, SC5, SC-5 with 2.5 M Power cord and US plug
Leybold SC 5D Technical Data:
Click Here to view Leybold SC5D, SC15D, SC30D and SC60C Operation Manual
Inlet Pump Filters are also avaialble Click Here
Exhaust Pump Silencers Click Here
A&J Vacuum repair / rebuild and service all Leybold SC5D PN133100, SD15D, SC30D and SC60S Scroll Pump along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
