- Ultimate Vacuum: 6 x 10-2 mbar
- Inlet Flange: NW 25
- Exhaust Flange: NW 25
Shopping Cart ( )

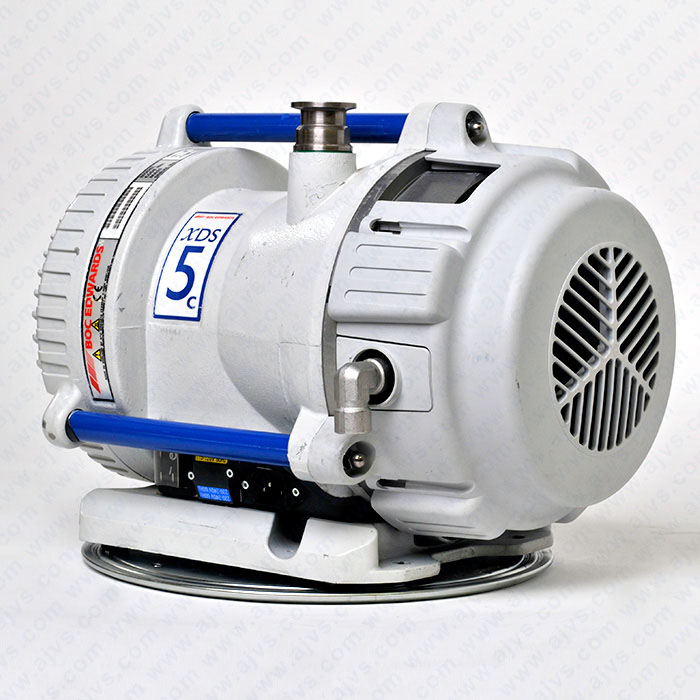

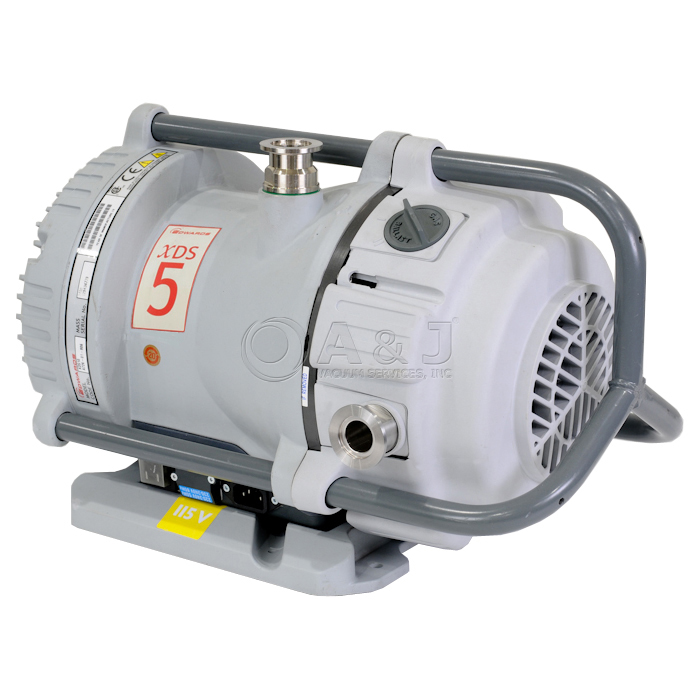

Edwards XDS 5 Dry Scroll Vacuum Pump, 100 / 200 V, Single Phase, A72401904, XDS5
Condition:
Remanufactured
Call us for Availability
Item#:PN00300
Mfr Part#:A72401904
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:
Edwards XDS5 Dry Scroll Vacuum Pump, 100 / 200 V, Single Phase, A72401904
Edwards XDS 5 Overview:
The Edwards XDS 5 Pumps are an innovative design which use a bearing shield to isolate the vacuum environment from all forms of lubricant, not only making it totally dry, but hermetically sealed. The shield also protects the bearing from any process vapors.
Edwards XDS 5Gas ballast allows vapor to be handled and opens up the range of applications to many that were previously unsuited to scroll pumps.
The XDS5 scroll pump is designed for pumping condensable vapors and uses materials selected for a wide range of laboratory wet chemistry applications.
- Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
- No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
- Simple single sided scroll design means routine maintenance is done in minutes for low cost of ownership and maximum up-time
- No oil changes required eliminating costs of contaminated oil disposal
- Gas ballast feature to enable pumping of vapors

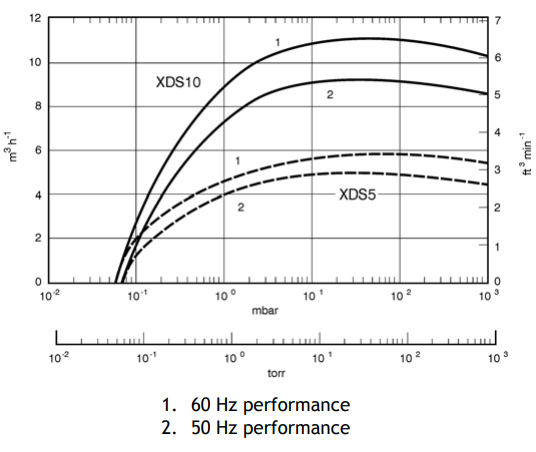

Edwards XDS 5 Characteristic:

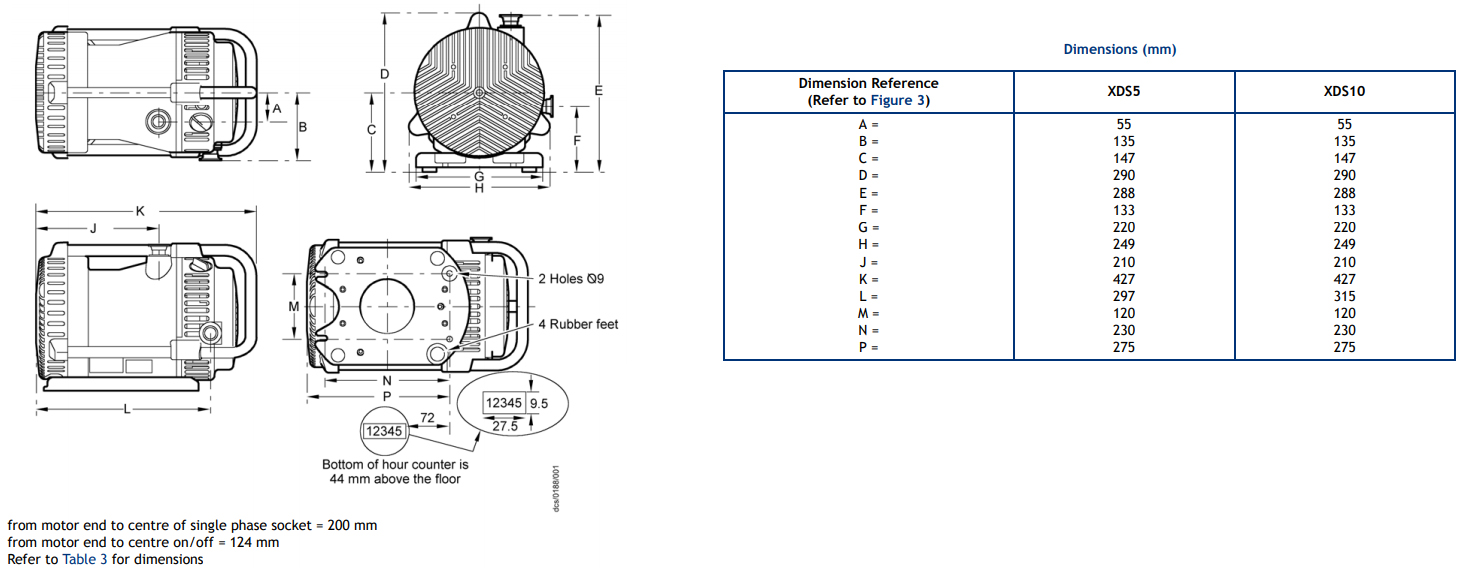

Edwards XDS 5 Dimensions:
A&J Vacuum repair / rebuild and service all Edwards XDS5, XDS10, XDS35i Scroll Vacuum Pumps, Edwards Tip Seal replacement, along with all other Edwards Turbo Pumps, Edwards Dry 35i Pumps, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Edwards XDS5 Dry Scroll Vacuum Pump, 100 / 200 V, Single Phase, A72401904
Edwards XDS 5 Technical Data:
| Rotational Speed (50 Hz / 60 Hz): | 1500 rpm / 1800 rpm |
| Ultimate Vacuum: | 6 x 10-2 mbar / 4.5 x 10-2 Torr |
| Inlet Flange: | NW 25 |
| Exhaust Flange: | NW 25 |
| Weight: | 23 kg / 51 lbs |
A&J Vacuum repair / rebuild and service all Edwards XDS5, XDS10, XDS35i Scroll Vacuum Pumps, Edwards Tip Seal replacement, along with all other Edwards Turbo Pumps, Edwards Dry 35i Pumps, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Item#:PN06799
Mfr Part#:A72601805
Condition: In Stock
New
In Stock
$542.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
