Pfeiffer Vacuum TMU 521P Turbo Pump, DN 160 CF-F, For TCP-350 Controller, PM P03 465 / PMP03465
Condition:
Remanufactured
In Stock
Item#:PN00738
Mfr Part#:PM P03 465 / PMP03465
Manufacturer:Pfeiffer Vacuum
Features:

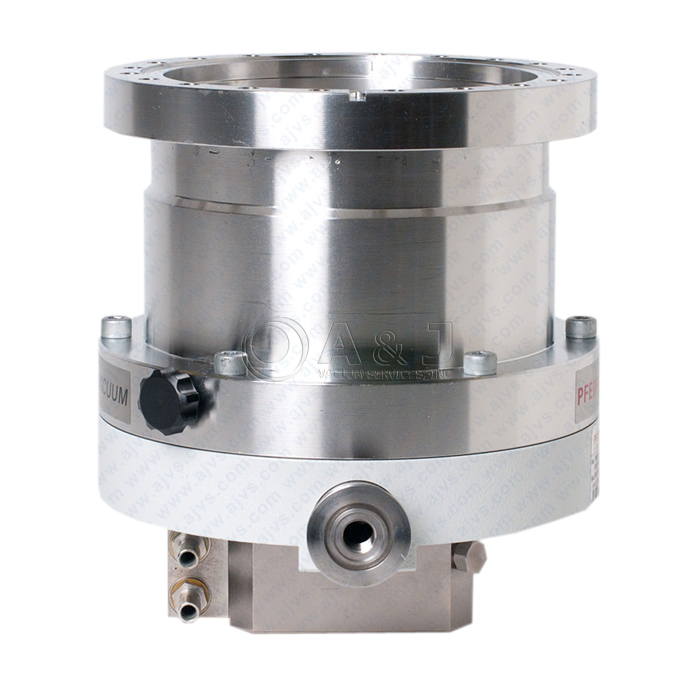

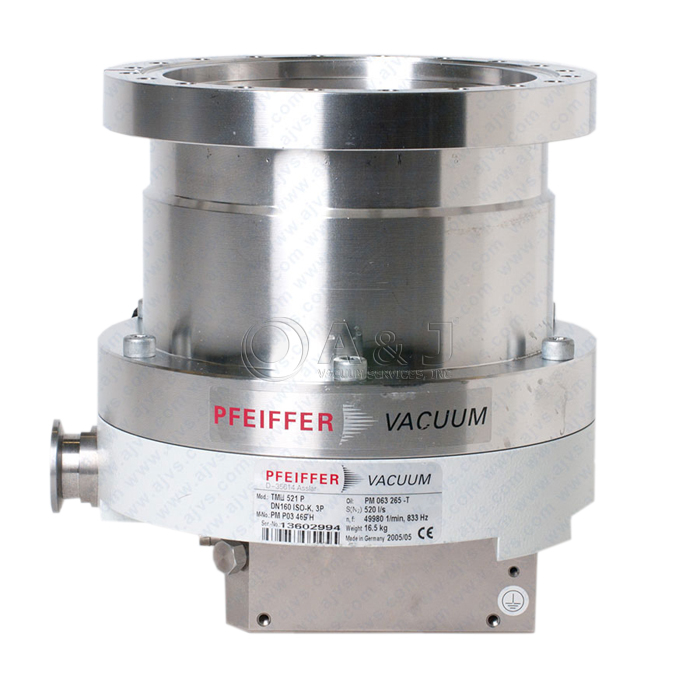

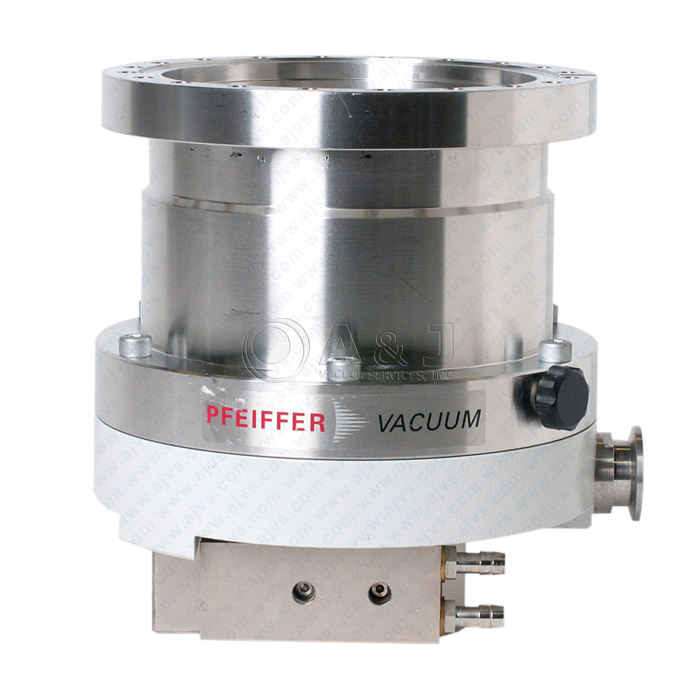

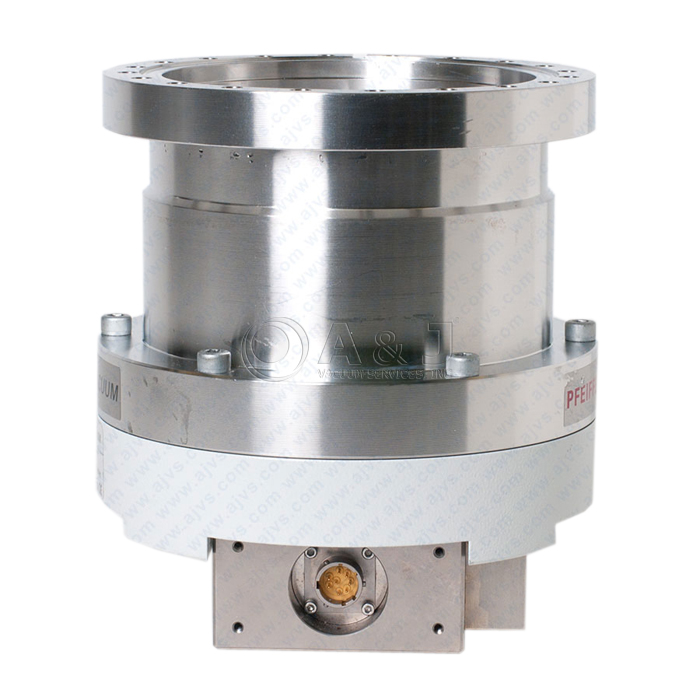

Pfeiffer Vacuum TMU 521P Turbo Pump, DN 160 CF-F, For TCP-350 Controller, PM P03 465 / PMP03465
Pfeiffer TMU 521P / PM P03 465 Overview:
Fully refurbished Pfeiffer Vacuum TMU 521 P PMP03465 Turbo Pump coupled with a DN 160 ISO-K Inlet Flange and DN 25 ISO-KF Outlet Flange. This particular Turbomolecular Drag Pump has a pumping velocity of 510 liters per second and a final pressure of 5 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TMU 521 P Turbo Pump comes with an entire 12-Month Warranty.
This Pfeiffer Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are aidentical in terms of design. They only differ in their intake flange.
A turbopump is a gas turbine that is made up of two independent components ; a rotodynamic pump and a driving turbine. They can be mounted on the same shaft or customarily geared together. The design of a turbopump is to produce a high pressure fluid for feeding a combustion chamber or other use. Visit the turbo pump wiki page for more information.
A turbomolecular pump is a form of vacuum pump similar to a turbopump which is used to obtain and hold a high vacuum. These pumps work on the principle that gas particles can be given momentum in a wanted direction by reiterated collision with a traveling solid surface. In a turbomolecular pump, a quickly spinning turbine rotor 'strikes' gas particles from the intake of the pump towards the exhaust in order to make or hold a vacuum. Visit the turbomolecular pump wiki page for more information.
TMU521P Applications:
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Incandescent lamp manufacturing
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum Services offers full repair/service of Pfeiffer TMU 521P Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum TMU 521P Turbo Pump, DN 160 CF-F, For TCP-350 Controller, PM P03 465 / PMP03465

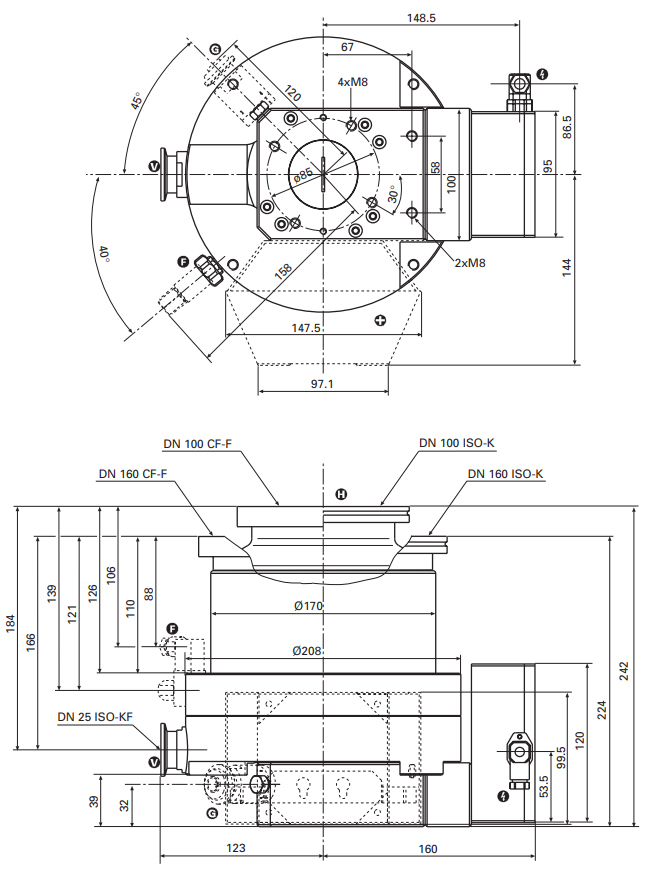

Pfeiffer TMU 521P Technical Data:
| Feature | Unit | TMU 521 P | |
| Connection nominal diameter | |||
| Inlet | DN 100 CF-F | DN 160 CF-F | |
| Outlet | DN 25 ISO-KF/G 1/4" | ||
| Venting connection | G 1/8" | ||
| Nominal rotation speed | Hz (1/min) | 833 (50 000) | |
| Standby rotation speed | Hz (1/min) | 550 (33 000) | |
| Start-up time | min | 5,5 | |
| Maximum noise level | dB (A) | 50 | |
| Final pressure, backing pump | mbar | < 5 | |
| Integral leak rate (He) | mbar l/s | < 1 x 10-7 | |
| Maximum permissible rotor temperature | °C | 90 | |
| Permissible heat radiaten power | W | 14 | |
| Volum flow rate for: | |||
| Nitrogen N | l/s | 290 | 510 |
| Helium He | l/s | 400 | 520 |
| Hydrogen H | l/s | 380 | 450 |
| Argon Ar | l/s | 260 | 500 |
| Compression ration for: | |||
| N2 | > 1012 | ||
| He | 5 x 107 | ||
| H2 | 6,5 x 105 | ||
| Ar | > 1012 | ||
| Maximum fore-vacuum pressure | |||
| N2 | mbar | 13,0 | |
| He | mbar | 12,5 | |
| H2 | mbar | 9,0 | |
| Ar | mbar | 11,0 | |
| Maximum gas throughput3) with water cooling | |||
| N2 | mbar l/s | 4,0 | |
| He | mbar l/s | 8,0 | |
| H2 | mbar l/s | 9,5 | |
| Ar | mbar l/s | 2,0 | |
| Maximum gas throughput at | |||
| intake pressure of 0.1 mbar4) | |||
| N2 | mbar l/s | 12,0 | |
| He | mbar l/s | 12,0 | |
| H2 | mbar l/s | 8,0 | |
| Ar | mbar l/s | 12,0 | |
| Vertex power characteristics line | |||
| A | W / Hz | 185/833 | |
| B | W / Hz | 260/485 | |
| C | W / Hz | 160/833 | |
| D | W / Hz | 260/435 | |
| Final pressure6) | |||
| with rotary vane pumps | mbar | < 5 x 10-10 | |
| with diaphragm pumps | mbar | < 1 x 10-8 | |
| Lubricant | TL 011 | ||
| Cooling water consumption | |||
| with water at 15 °C) | l/h | 100 | |
| Cooling water temperature | °C | 5 - 25 | |
| Permissible ambient temperature | |||
| with air cooling | °C | 0 - 35 | |
| Heating power consumption | W | 100 | |
| Weight | kg | 15,0 | 14,5 |
| Permissible magnetic field | mT | 5,0 |
