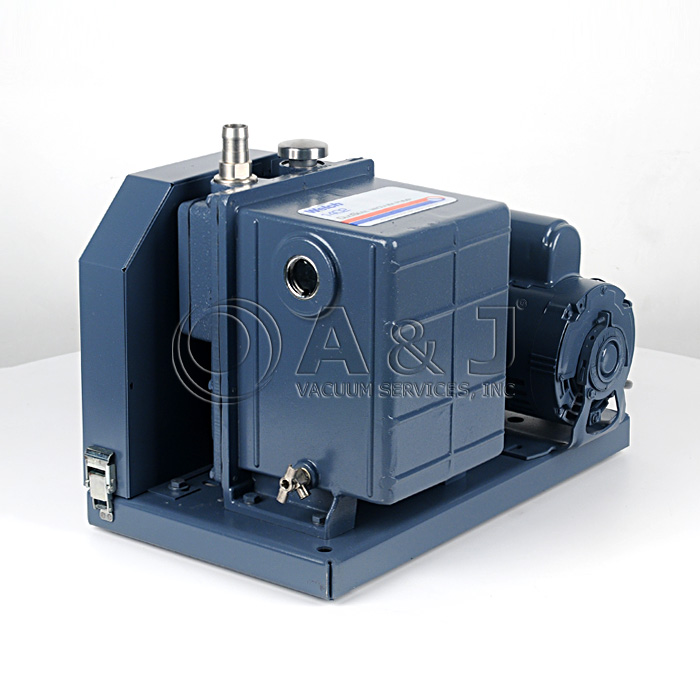

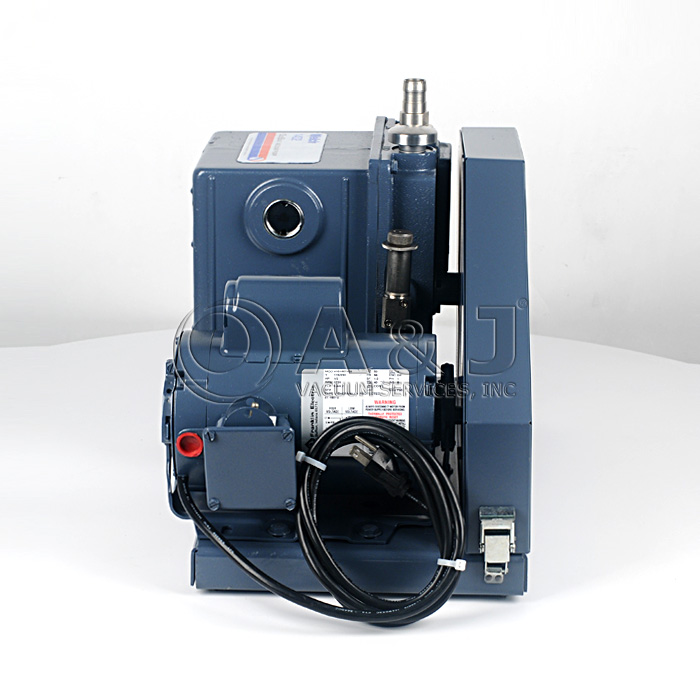

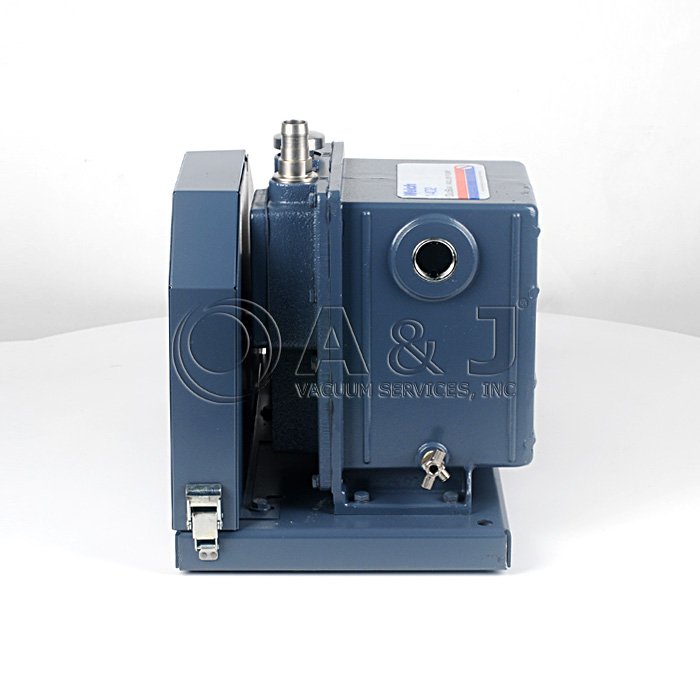

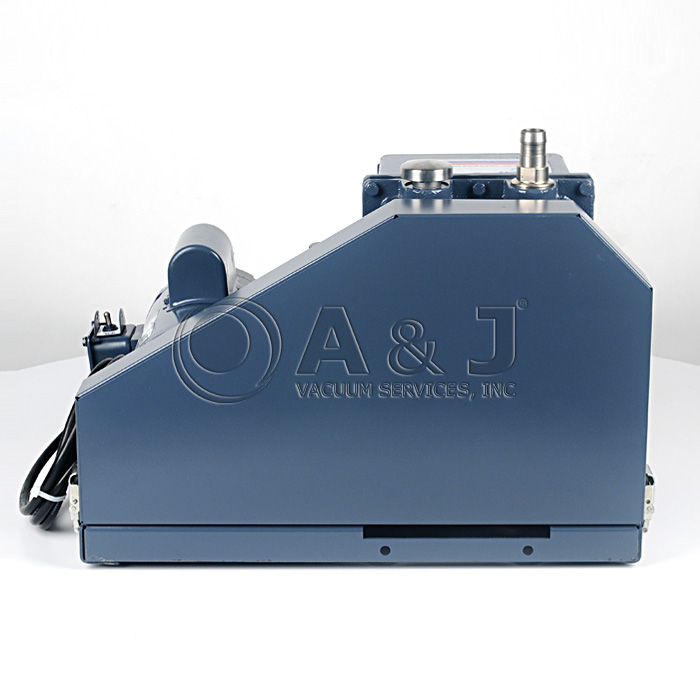

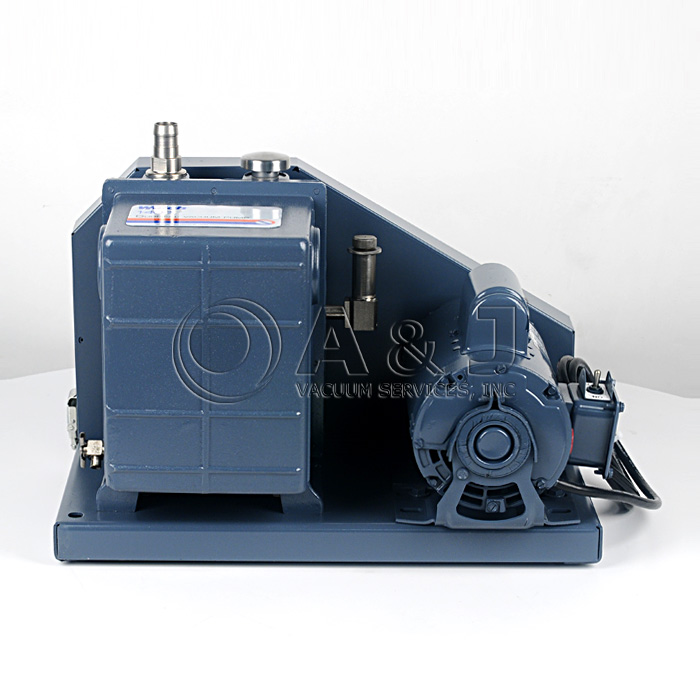

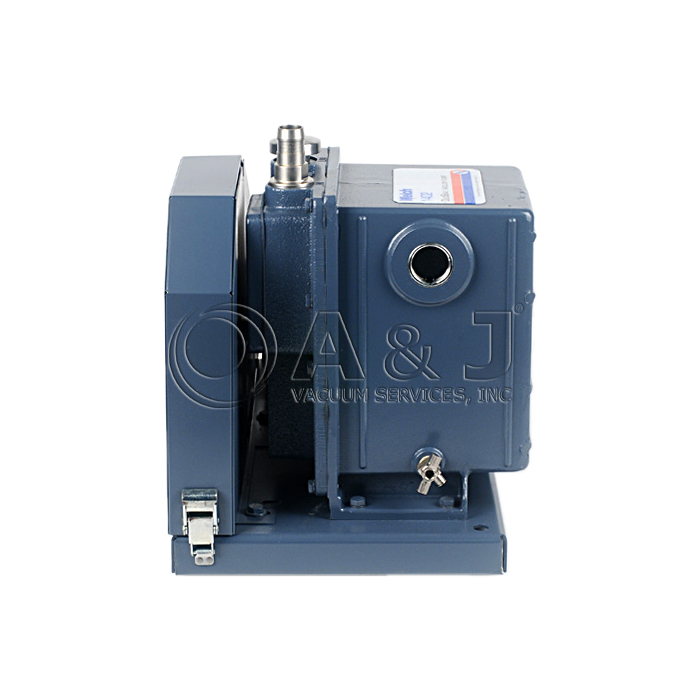

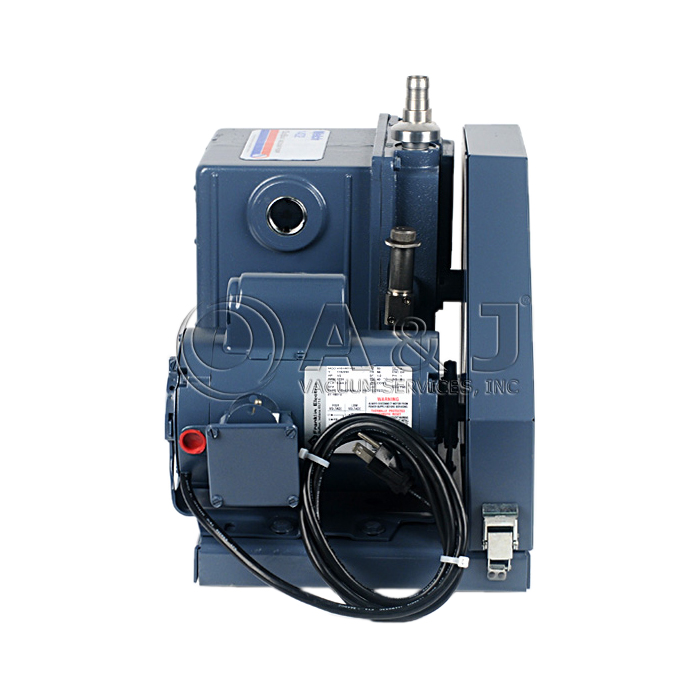

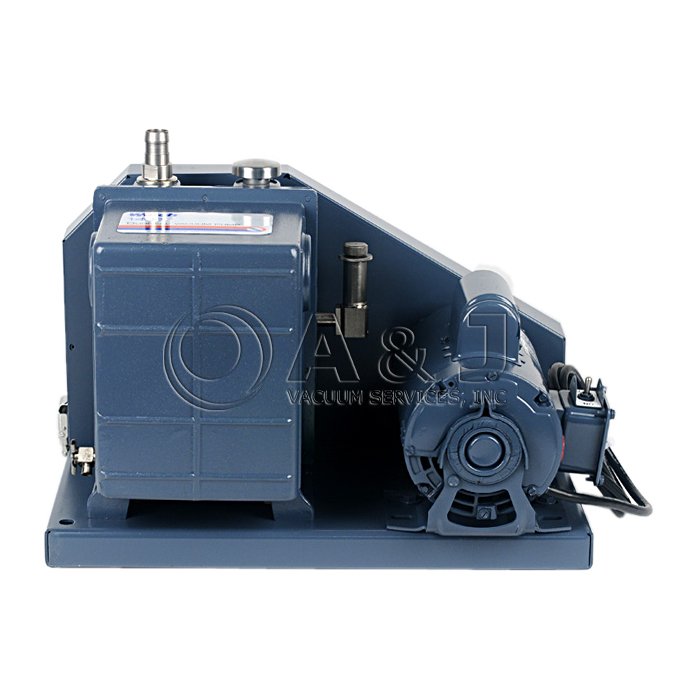

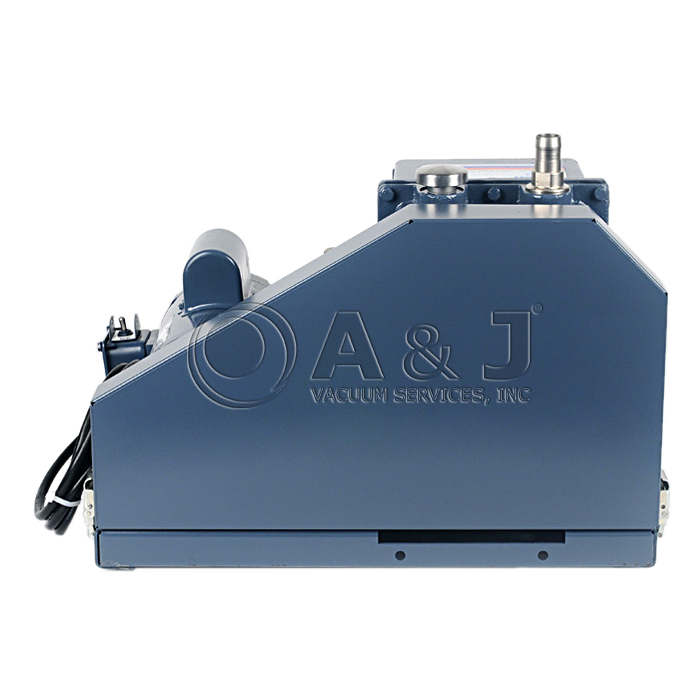

Welch 1402N DUOSEAL Rotary Vane Pump, 115/230V, 60 Hz, Single Phase
Condition:
Remanufactured
Call us for Availability
Item#:PN06712
Mfr Part#:1402N
Manufacturer:Welch
Price upon request
CONTACT US
Features:
Welch 1402N DUOSEAL Rotary Vane Pump, 115/230V, 60 Hz, Single Phase
The Welch DOUSEAL two-stage pumps are designed to be most efficient when operated at or near their ultimate blankoff pressure. The pump is designed to remove air from a vacuum system at atmospheric pressure to a deep vacuum. When the pump is operated at elevated pressures up to about 10 Torr for long periods of time, the pump will run hotter. At elevated ambient temperatures under these conditions, the thermal protection switch on single phase motors may cute out. Use of an exhaust filter with coalescing element is required.
This pump has been fully refurbished and fully tested. It is ready for a wide range of applications.
This item is non-returnable/non-refundable
Welch 1402N DUOSEAL Rotary Vane Pump, 115/230V, 60 Hz, Single Phase
Free Air Displacement: 160 l/m
Ultimate Pressure: 1 x 10-4 Torr
Rotational Speed: 525 rpm
Oil Capacity: 2.25 quarts
Standard Flange Size: NW 25
Intake Thread Size: 1-20
Exhaust Thread Size: 1-20
Electrical Requirements: 115/230 V, 60 Hz, Single Phase
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
