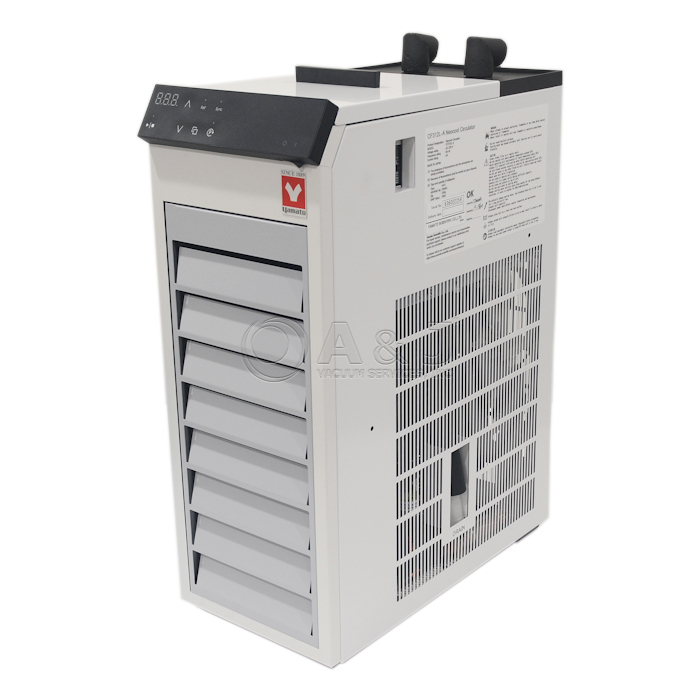

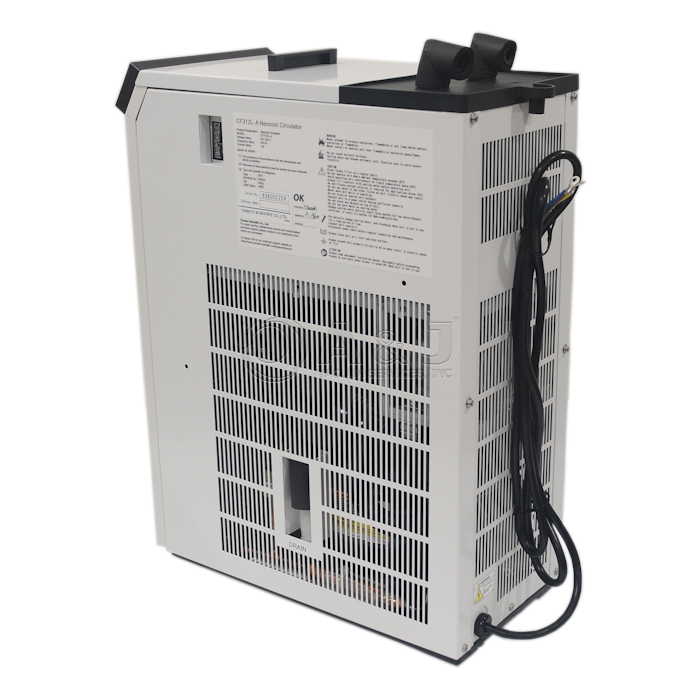

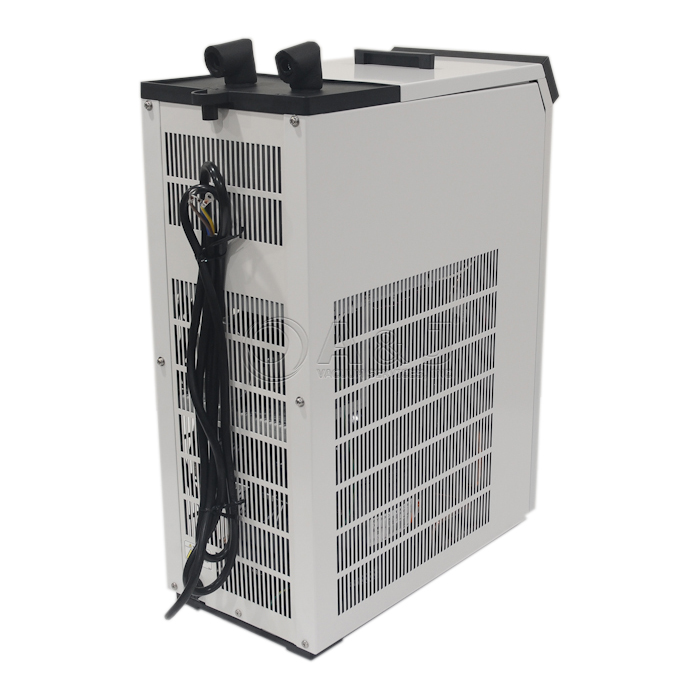

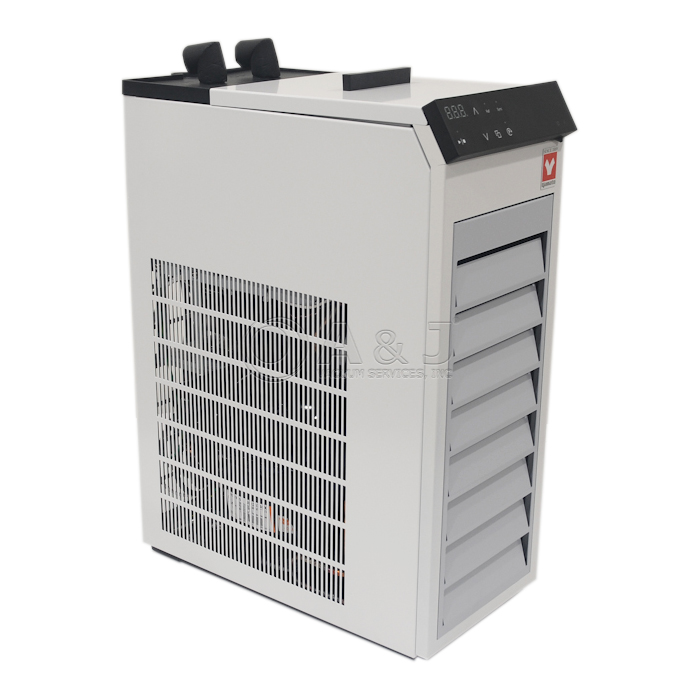

Yamato CF 302L-A Cooling Water Circulator 4L 115VAC 3A 60Hz, CF-302L-A / CF302LA

Condition: New

In Stock

Item#:PN31604

Mfr Part#:CF-302L-A / CF302LA

Manufacturer:Yamato Scientific

PRICE:

$2,600.00

Web savings:

$120.00

YOU PAY:

$2,480.00

Add to cart

Request a repair estimate Request sales quote Financing available

New Yamato CF 302L-A Cooling Water Circulator 4L 115VAC 3A 60Hz, CF-302L-A / CF302LA

Features:

Operating Temperature Range -20°C to Room Temp.
115 VAC Single Phase 60Hz
Liquid Capacity 3 L
Air Cooling 450W, R404A

Overview
Specifications
Manuals
MFR Brochures
Videos
Service & Repair

Yamato CF 302L-A Cooling Water Circulator 4L 115VAC 3A 60Hz, CF-302L-A / CF302LA

Yamato CF302L-A Cooling Water Circulator Features:

Water Proof Touch Panel with LED Indicator and Sheet Key for Easier Setting
Minimized Cooling Liquid Dilution and/or Loss by fixing Heat-resistant Lid
Capacity Approx 4 L (Liquid amount 3 L)
External Dimensions: 205×396×535
Remote ON/OFF usable as an energy saver to auto-switch off the circulator after rotary evaporation process is finished
Equipped with a remote control ON/OFF terminal to interlock the circulator with main unit
Powerful cooling and BIG ENERGY saver in combination with Rotary Evaporator distillation
Less energy use and less cooling capacity loss by fixing the heat-resistant lid

CF302L-A Cooling Water Circulator / CF302LA Overview:

The Yamato CF 302 LA and Yamato CF 800 series of Cooling Water Circulators represents a standard type of water temperature control. Yamato water chillers are equipped with a newly developed easy operation controller, and digital setting and indication.

The Yamato CF 302 and CF 800 have great operating temperature from Room Temperature down to -20C. CF 302 water chiller operates on Non-chlorofluorocarbon Coolant, R404A for Refrigeration.

Yamato CF 302 is one of the best water chillers in its line.

A&J Vacuum services and repairs all Yamato products available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

Yamato CF 302L-A Cooling Water Circulator 4L 115VAC 3A 60Hz, CF-302L-A / CF302LA

Yamato CF302L-A Cooling Water Circulator Technical Data:

Model	CF302L-A
Performance
Circulation Type	Externally Closed Circulation System
Operating Temperature Range	5 to 35°C
Temp. Adjustment Accuracy	±2°C
Cooling Capacity	Approx. 420W (385Kcal/h) at Liquid Temp. 10°C
	Approx. 350W (300Kcal/h) at Liquid Temp. 0°C
	Approx. 280W (220Kcal/h) at Liquid Temp. -10°C
Components
Temp. Control System	Refrigerator On/Off Control
Temp. Sensor	Pt100Ω
Temp. Setting / Display	White LED digital display, key input, minimum digit 1 ℃
Refrigerator • Coolant	Air Cooling 450W, R404A
Circulation Pump (60Hz)	Magnet Pump 20W
Pump Max. Flow Rate (50/60Hz)	14/15.5L/min.
Pump Max. Lift (50/60Hz)	4.2m/5.6m
Cooling Coil	Copper-Nickel Plated
External Circulation Nozzle	O.D. 11mm for In and Out, Hose Nipple
Surrounding Operation Temp. Range	5 to 35°C
Safety Device
Safety Countermeasures	Electric leakage breaker, temperature sensor abnormality, Temperature upper /lower limit alarm, Temperature upper /lower limit abnormality, Refrigerator overload relay, Fan motor protection, Pump thermal protector, Refrigerator protection delay timer
Other Function	Drainage hose, Circulation port condensation water drainage hose, Intake port dustproof filter, Cooling operation switch
Other Function	Circulation pump switch, Calibration offset, Power failure recovery function (selected)
Standard
Inner Tank Material	Stainless Steel
Capacity	Approx. 3.9L (liquid volume 3.5L)
Power Source (60Hz)	AC220V 4A Single-phase
External Dimension	W228 x D508 x H726 mm
Weight	Approx. 31 kg
Accessories	Two hose nozzles (for flexible hose connection ), One condensation waterdrainage hose 1m (inner diameter φ12 mm )
Accessories	Two clamps for hose fixing

Yamato CF302L-A Operation Manual

Yamato CF 302 Water Chiller circulator, CF-302 Specification Broshure

Yamato CF 302 Water Chiller circulator, CF-302
