- Tank Capacity Approx 14 L
- Air Cooling 1320W, R404A
- 115 VAC Single Phase 60Hz
- Operating Temperature Range -20°C to Room Temp.

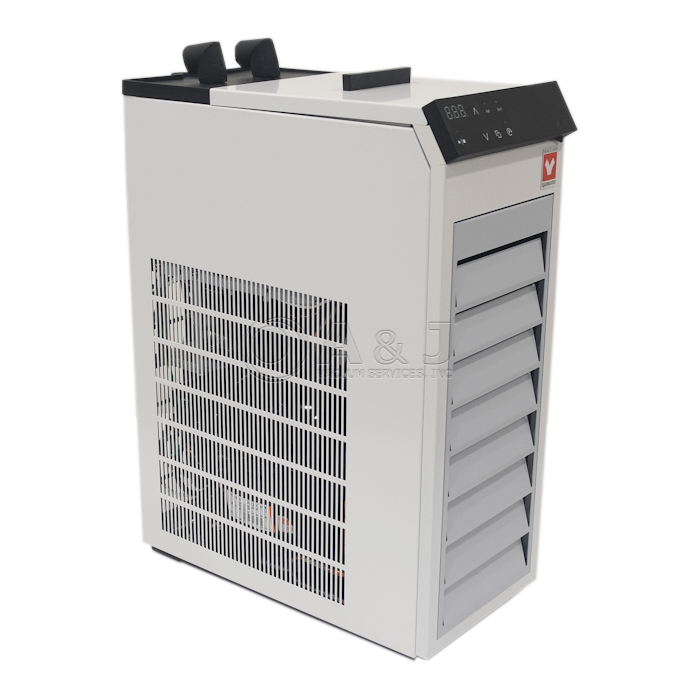

Yamato CF-802A Cooling Water Circulator 15.5L, 115VAC, 50/60Hz, CF802A
Yamato CF-802A Cooling Water Circulator Features:
- Water Proof Touch Panel with LED Indicator and Sheet Key for Easier Setting
- Minimized Cooling Liquid Dilution and/or Loss by fixing Heat-resistant Lid
- Tank Capacity Approx 14 L
- External Dimensions: W340×D370×H838 mm
- Remote ON/OFF usable as an energy saver to auto-switch off the circulator after rotary evaporation process is finished
- Equipped with a remote control ON/OFF terminal to interlock the circulator with main unit
- Powerful cooling and BIG ENERGY saver in combination with Rotary Evaporator distillation
- Less energy use and less cooling capacity loss by fixing the heat-resistant lid
CF-802A Cooling Water Circulator / CF802A Overview:
The Yamato CF 802-A Series of Cooling Water Laboratory Chiller represents a standard type of water temperature control. Yamato water chillers are equipped with a newly developed easy operation controller, and digital setting and indication.
The Yamato CF 802A Water Chiller has great operating temperature from Room Temperature down to -20C.
The CF802A water chiller operates on Non-chlorofluorocarbon Coolant, R404A for Refrigeration. It is one of the best and powerful closed circuit water chillers in its line.
A&J Vacuum services and repairs all Yamato products available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Yamato CF-802A Cooling Water Circulator 15.5L, 115VAC, 50/60Hz, CF802A
Yamato CF-802A Cooling Water Circulator Technical Data:
|
Model |
CF802-A |
|---|---|
|
|
|
|
Circulation Type |
Externally Closed Circulation System |
|
Operating Temperature Range |
5 to 35°C |
|
Temp. Adjustment Accuracy |
±2°C |
|
Cooling Capacity |
Approx. 1320W |
|
Approx. 700W |
|
|
|
|
|
|
|
|
Temp. Control System |
Refrigerator On/Off Control |
|
Temp. Sensor |
Pt100Ω |
|
Temp. Setting / Display |
White LED digital display, key input, minimum digit 1 ℃ |
|
Refrigerator • Coolant |
Air Cooling 1320W, R404A |
|
Circulation Pump (60Hz) |
Magnet Pump 20W |
|
Pump Max. Flow Rate (50/60Hz) |
14/15.5L/min. |
|
Pump Max. Lift (50/60Hz) |
4.2m/5.6m |
|
Cooling Coil |
Copper-Nickel Plated |
|
External Circulation Nozzle |
O.D. 10 mm for In and Out, Hose Nipple |
|
Surrounding Operation |
5 to 35°C |
|
|
|
|
Safety Countermeasures |
Electric leakage breaker, temperature sensor abnormality, Temperature upper /lower limit alarm, Temperature upper /lower limit abnormality, Refrigerator overload relay, Fan motor protection, Pump thermal protector, Refrigerator protection delay timer |
|
Other Function |
Drainage hose, Circulation port condensation water drainage hose, Intake port dustproof filter, Cooling operation switch |
|
Circulation pump switch, Calibration offset, Power failure recovery function (selected) |
|
|
|
|
|
Inner Tank Material |
Stainless Steel |
|
Capacity |
Approx. 3.9L (liquid volume 3.5L) |
|
Power Source (60Hz) |
AC115V 15A Single-phase |
|
External Dimension |
W340 x D370 x H838 mm |
|
Weight |
Approx. 44 kg |
|
Accessories |
Two hose nozzles (for flexible hose connection ), One condensation waterdrainage hose 1m (inner diameter φ12 mm ) |
|
Two clamps for hose fixing |
|
A&J Vacuum services and repairs all Yamato products available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
