- 220V, Single Phase 50/60 Hz
- Operating Temperature Range: Room Temp. +5 to 300deg.C
- Internal Capacity: 74 L
- Yamato
Shopping Cart ( )
Yamato DX-412C Natural Convection Oven 74L 220V 6.4A 50/60Hz, DX412C
Condition:
New
Item#:PN19798
Mfr Part#:DX-412C
Manufacturer:Yamato Scientific
Features:
Yamato DX-412C Natural Convection Oven 74L 220V 6.4A 50/60Hz, DX412C
Yamato DX-412C Natural Convection Oven Features:
- Operating Temperature Range + 10deg C to +300 deg C.
- Temperature Distribution Accuracy +- 10 dec @ 300deg C
DX-412C Natural Convection Oven / DX412C Overview:
Yamato Scientific DX-412C Natural Convection Oven 74L 220V 6.4A 50/60Hz, DX412C
The DX-302, DX-402, DX-602 series of Natural Convection Ovens represents a standard type of natural convection constant temperature drying ovens with constant temperature. They are equipped with a newly developed easy operation controller, and digital setting and indication method by up and down key input is adopted.
The DX302, DX402, DX602 are equipped with self diagnostics function. Fixed setting, Quick Auto Stop and Auto start.
A&J Vacuum services and repairs all Yamato products available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Yamato DX-412C Natural Convection Oven 74L 220V 6.4A 50/60Hz, DX412C
Yamato DX-412C Natural Convection Oven Technical Data:
- Circulation method: Natural convection
- Operating temperature range: Room temp. +5 to 300deg.C
- Temp. control accuracy: ±1.0deg.C(at 300deg.C
- Max. temp. reaching time: Approx. 60 min.
- Interior material: Stainless steel
- Exterior material: Electro-galvanized steel sheet with melamine resin baking finish
- Heat insulating material: Glass wool
- Heater: Iron-chrome wire heater, 0.9 kW
- Exhaust port: 34 mm I.D. x 2 pcs. (the top)
- Temp. controller: PID control by microprocessor
- Temp. setting method: Digital setting by UP/DOWN key
- Timer: 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.
- Operation function: Fixed temperature operation, Quick auto stop, Auto stop, Auto start
- Additional functions: Calibration off-set, Uninterruptible power for memory
- Heater circuit control: SSR control

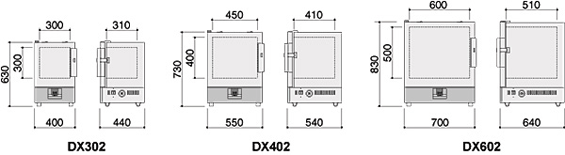

- Internal dimensions (W×D×H mm): 450×410×400
- External dimensions(W×D×H mm): 550×540×730
- Shelf plate with standard load: Approx. 15 kg/piece
- Shelf rest step number: 9 steps
- Power source 50/60Hz: 100V/220V, single phase, 9.5A/4.3A
- Weight: Approx. 38 kg
- Internal capacity: 74 L
A&J Vacuum services and repairs all Yamato products available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Yamato DX302C, DX402C, DX602C, DX312C, DX412C, DX612C Operation Manual
Yamato DX-302_DX-402_DX-602_Manual
