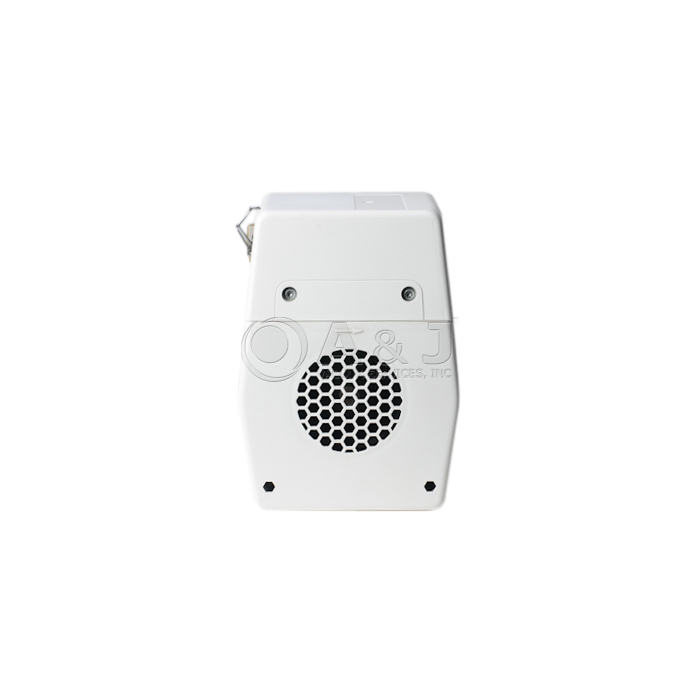

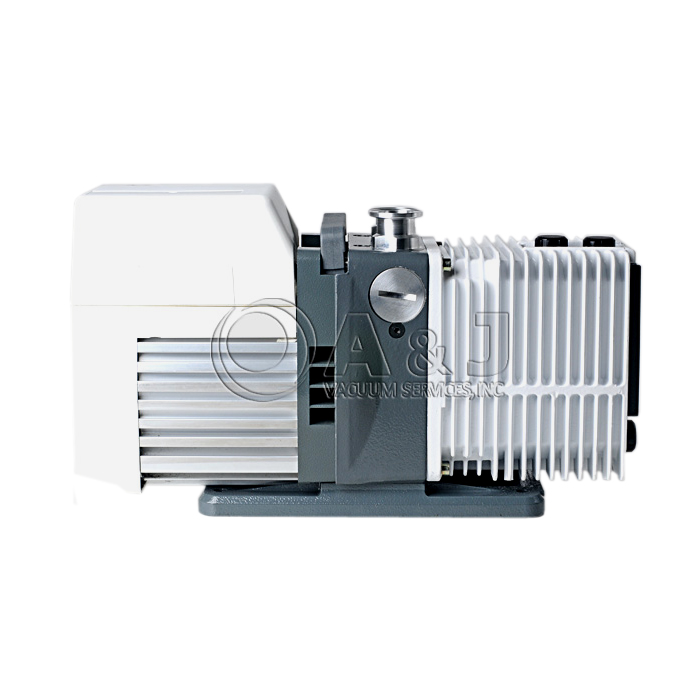

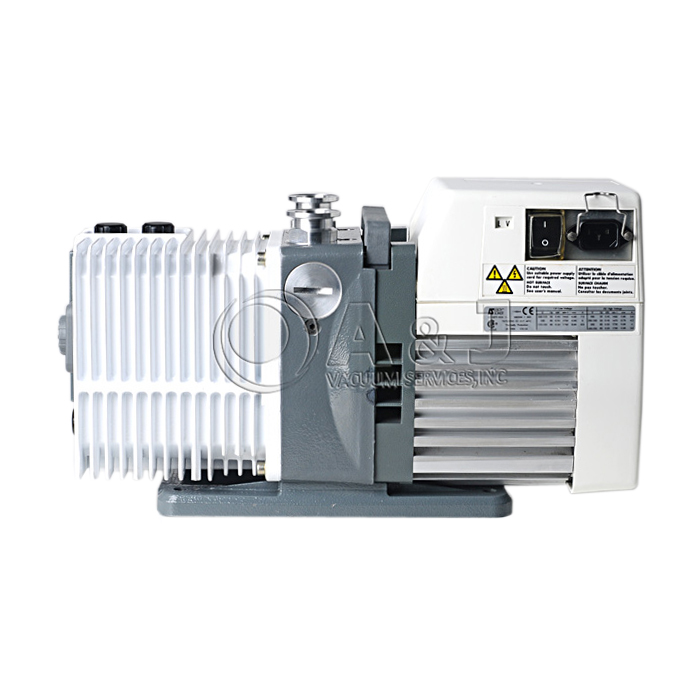

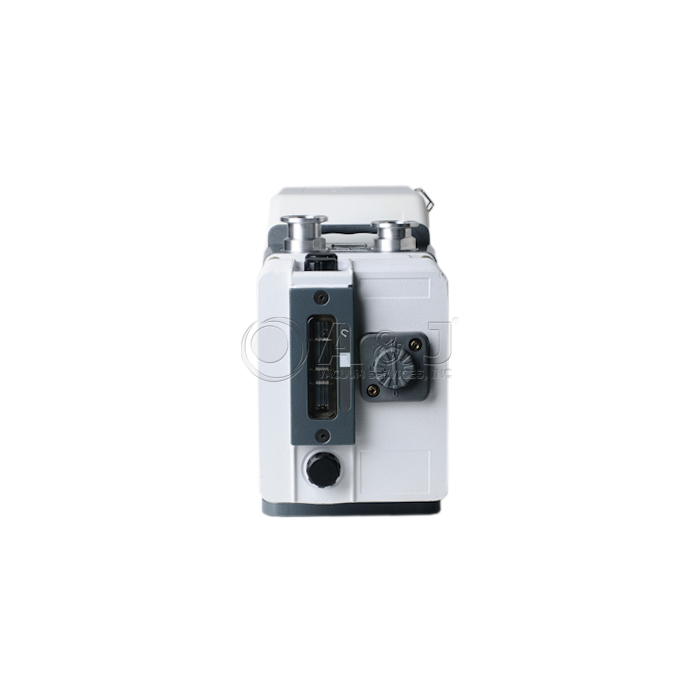

Fully Refurbished Alcatel Adixen 2005 SD Pascal Dual Stage Rotary Vane Vacuum Pump, Hydrocarbon Oil, Elite Z Overview: Fully Refurbished Alcatel Adixen 2005 SD Pascal Dual Stage Rotary Vane Vacuum Pump, Hydrocarbon Oil, Elite Z, 115/220 VAC. This pump has been thoroughly examined and is ready for a broad range of applications within the research and industrial industries. Applications: - Gas analysis
- Leak detection
- Mass spectrometers
- Electron microscopes
- Surface analysis
- Centrifuges
- Sterilization
- Distillation
- Metallurgy
- Ion implantation
- Dry etching
- Load-lock
- Cryogenics
- Gas recovery
- Oxygen pumping
Technical Data: Peak Pumping Speed: 3.8 cfm KF25 Inlet Flange KF25 Outlet Flange Ultimate Pressure: 1 x 10-3 Torr. Unit is fully rebuilt and comes with a FULL 12-MONTH WARRANTY! PN06416 AJVS Service and Repair Information:  Alcatel Adixen 2005 SD Pascal Dual Stage Rotary Vane Vacuum Pump Repair A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service. Due to our confidence in the quality parts and service we guarantee 6-12 month warranty for parts and labor. We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed. We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies. Repair Steps - Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
For more information, please visit this products webpage. |
