Fully Refurbished Alcatel / Adixen ACT 100T Turbo Pump Controller, PN 111111, Designed with a high level communication interface Features  Automatic power supply detection from 100 to 240V 50/60Hz, single phase  Menu operation.

Designed with a high level communication interface Features

• Automatic power supply detection from 100 to 240V 50/60Hz, single phase

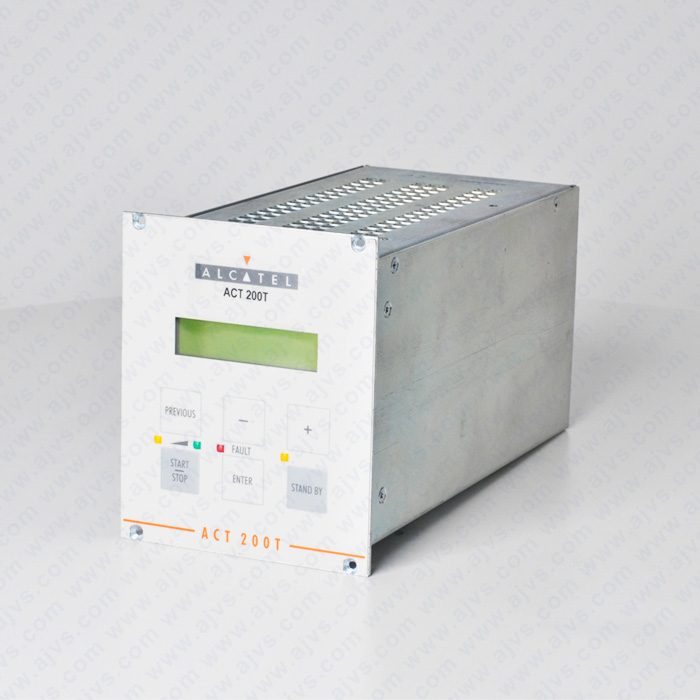

• Menu operation

Sophisticated pump monitoring

• Rotational speed
• Pump current consumption
• Pump and controller temperature
• Total running time
• Pump fault detection
• Diagnostic mode with last ten alarm codes

Control of:

• Rotational speed
• venting
• Auto start
• Start delay
• Maintenance schedule

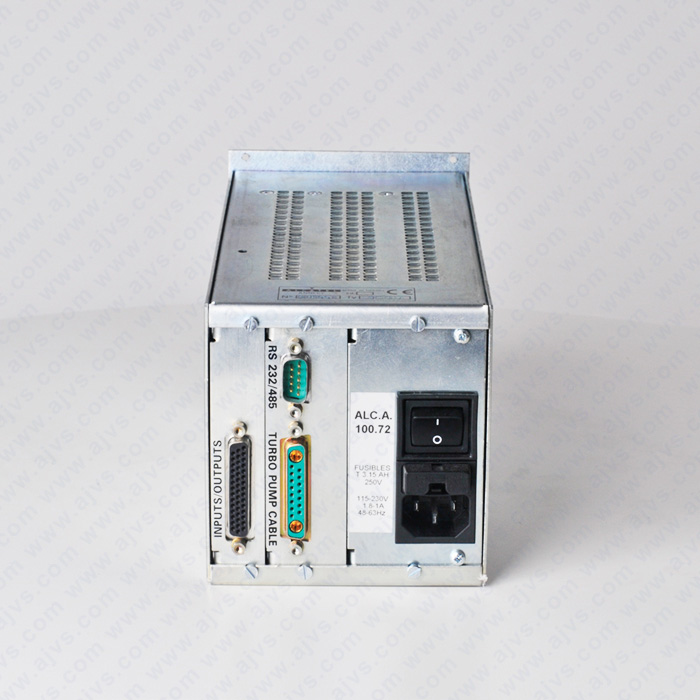

Multiple interfaces

• PC/PLC controlled processes via RS 232/485 (configurable)
• Remote control

Inputs:

• Remote start/stop
• Remote stand-by
• Remote interlock

OuTPU ts:

• Pump starting
• Pump at speed
• Stand-by on
• Venting valve on/off
• Power supply of air cooling fan
• Selectable 0-10 volts ouTPU t


PN06921
