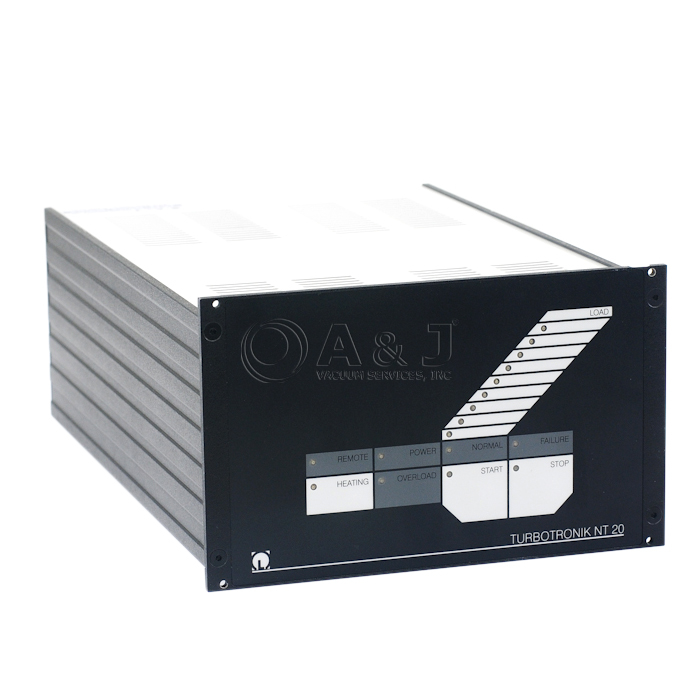

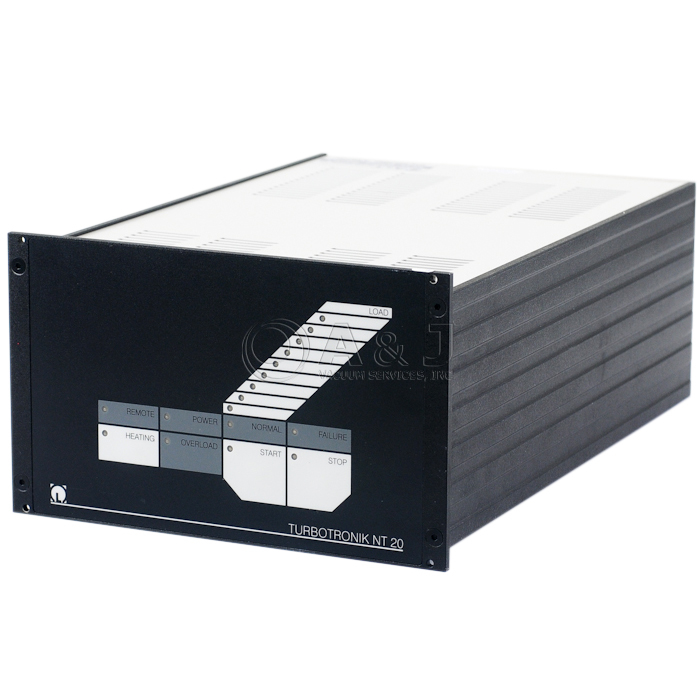

Fully Remanufactured Oerlikon Leybold Turbotronik NT 20 Turbo Pump Controller, 85720
Leybold Oerlikon NT20 Overview:
The mains voltage of Leybold Turbotronik NT20 is 100/120/220/240 V,%/-15%. Mains frequency of Leybold NT-20 is 50/60 Hz. Interface for data output of Turbotornik NT20 is RS 232/V.24. The weight of Oerlikon NT20 is 7 kg.
The electronic frequency converter TURBOTRONIK NT-20 is used to drive the following turbo molecular pumps:
- TURBOVAC 150, 360,
- TURBOVAC 150 CSV, 360 CSV,
- TURBOVAC 150 V, 360 V,
- TURBOVAC 151, 151 C, 361, 361 C,
- TURBOVAC 600, 600 C,
- TURBOVAC 1000, 1000 C, 1100 C.
These pumps each comprise a three-phase asynchronous motor with the appropriate rating to drive the rotor.
The TURBOTRONIK NT20 converts the single-phase mains voltage into a three-phase AC voltage with regulated frequency and amplitude.
Each installed TURBOVAC has been individually coded. The respective pump code must be entered using the DIP switches provided. For safety reasons, the TURBOVAC will not start up unless the two codes match.
The acceleration sequence, the regulation during operation, and the output speed will vary depending on the installed pump model.
The TURBOTRONIK NT 20 does not support the pump models TURBOVAC 150 H and TURBOVAC 360 H. LEYBOLD customer service can adjust the speed of each TURBOVAC to ± 5%, if required.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

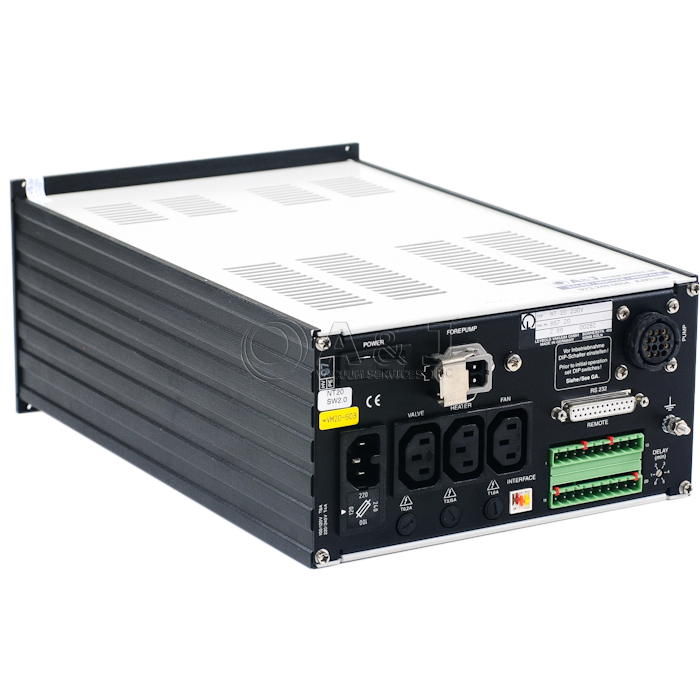

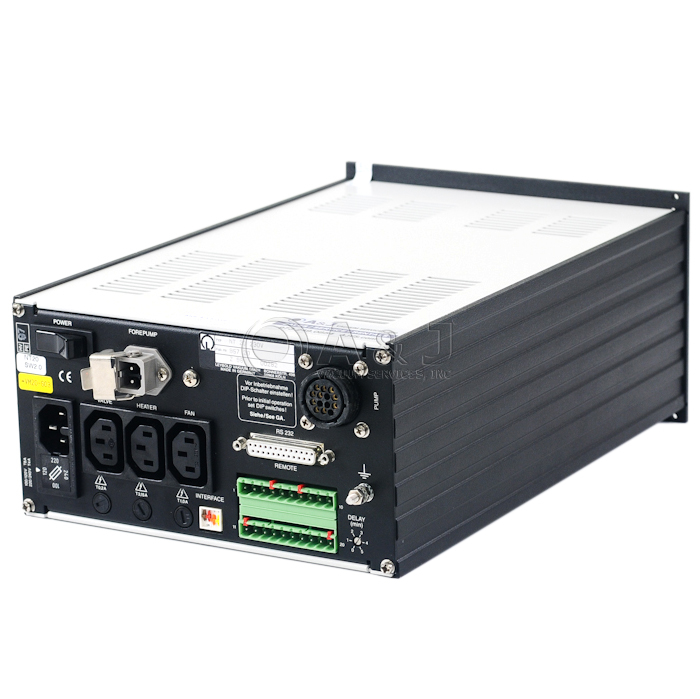

Leybold NT 20 Rear Panel:
Leybold NT 20 Dimensions:
Click Here for Leybold TURBOTRONIK NT 20 Manual
A&J Vacuum Services offers full repair/service of Leybold Turbotronik NT20 Controller, along with all other brands offered on our website. AJVS also services Leybold Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

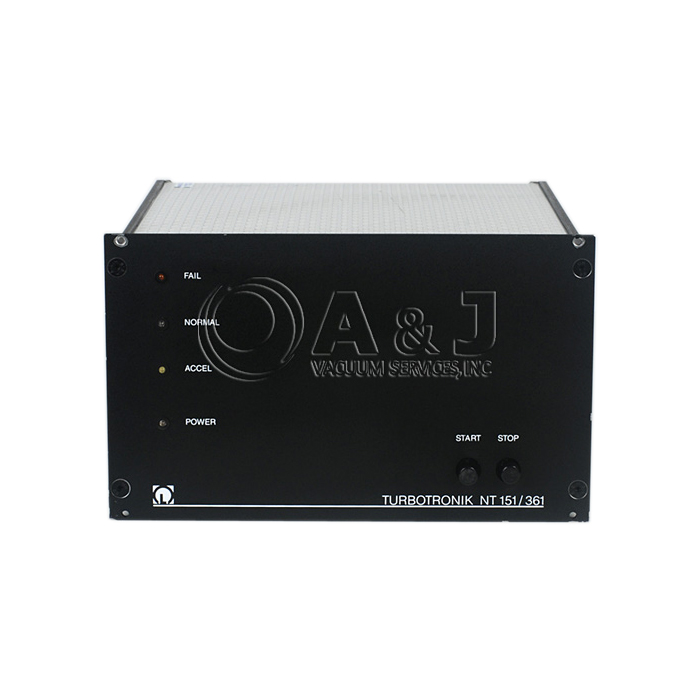

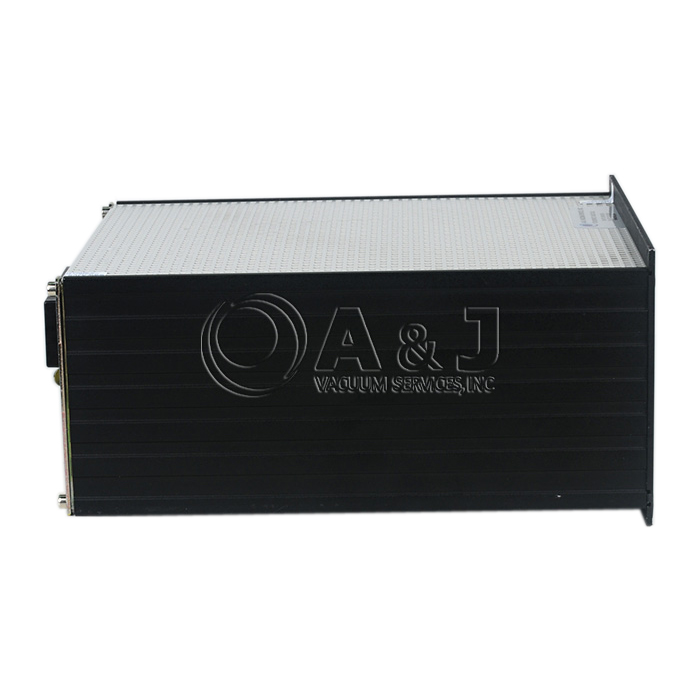

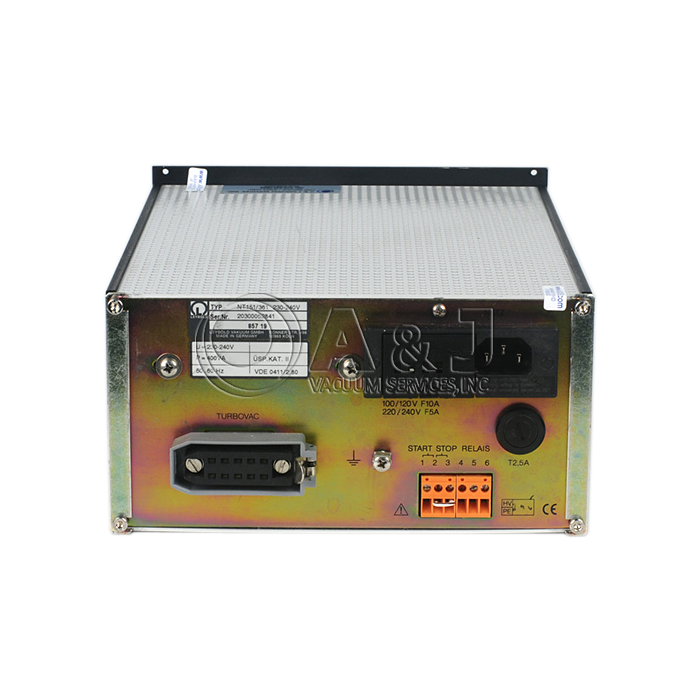

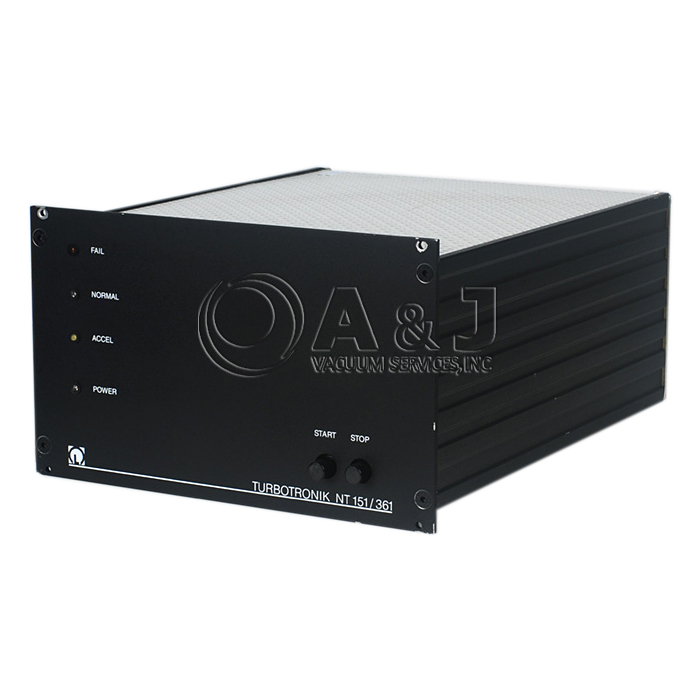

Leybold NT 151/361 Turbotronik Controller, 230-240 V, 85719
Overview:
The electronic frequency converter TURBOTRONIK NT 151/361 is used to drive the turbomolecular pumps TURBOVAC150, 360, 150 CSV, 360 CSV, 150 V, 360 V,151, 361, 151 C, 361 C.
The TURBOTRONIK NT 151/361 converts the single phase mains voltage into a three-phase AC voltage for driving the asynchronous motor of the connected turbomolecular pump.
The following operational states are indicated by LEDs:
- Mains voltage applied (POWER, green),
- Acceleration (ACCEL, yellow),
- Normal (NORMAL, green),
- Failure (FAIL, red).
A relay output is also available for the NORMAL signal.
After starting the pump will run up at maximum current. This is indicated by the ACCEL LED.
Having reached approx. 80% of the nominal speed the NORMAL LED comes on and the ACCEL LED goes off.
The motor current is continuously monitored and controlled. If the speed cannot be maintained even at the maximum current due to external influences, for example because of a greater gas supply, the speed will drop but the pump will continue to operate.
When the speed drops below 150 Hz approx. the LED FAIL on the converter lights up.
The outputs are short-circuit proof and protected against no load conditions.
The TURBOTRONIK recognizes which pump is connected.
The connection line between TURBOTRONIK and TURBOVAC may be up to 100 m long.
The TURBOTRONIK is contained within a housing, and can be used as a table top instrument or for installation in a 19� rack. Operation is by means of the START and STOP buttons on the front plate.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
The Oerlikon / Leybold Turbo Drive TD 400 supplies power to the TW series turbo pumps and is used to control their operation.
The Turbo Drive TD 400 is suited for operation of the following pumps:
- TURBOVAC TW 70 H
- TURBOVAC TW 220/150 S, TW 220/150/15 S
- TURBOVAC TW 250 S
- TURBOVAC TW 300, TW 300 H
Other pumps may only be operated after approval from Leybold or if the operation of such pumps is expressly permitted in the Operating Instructions for the specific pump. The Turbo Drive TD 400 is either integrated in the pump or it is separate and linked to the pump by means of a connecting cable. The Turbo Drive TD 400 requires a supply voltage of 24 V DC. It is equipped with interfaces for programmable controls (REMOTE) and an optional interface for serial communication. The Turbo Drive TD 400 complies with SELV requirements (Safety Extra Low Voltage).
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Leybold NT 151/361 SCIEX Turbotronik Controller, 230-240 V, 86400
Overview:
The electronic frequency converter TURBOTRONIK NT 151/361 is used to drive the turbomolecular pumps TURBOVAC150, 360, 150 CSV, 360 CSV, 150 V, 360 V,151, 361, 151 C, 361 C installed in SCIEX instruments.
The TURBOTRONIK NT 151/361 converts the single phase mains voltage into a three-phase AC voltage for driving the asynchronous motor of the connected turbomolecular pump.
The following operational states are indicated by LEDs:
- Mains voltage applied (POWER, green),
- Acceleration (ACCEL, yellow),
- Normal (NORMAL, green),
- Failure (FAIL, red).
A relay output is also available for the NORMAL signal.
After starting the pump will run up at maximum current. This is indicated by the ACCEL LED.
Having reached approx. 80% of the nominal speed the NORMAL LED comes on and the ACCEL LED goes off.
The motor current is continuously monitored and controlled. If the speed cannot be maintained even at the maximum current due to external influences, for example because of a greater gas supply, the speed will drop but the pump will continue to operate.
When the speed drops below 150 Hz approx. the LED FAIL on the converter lights up.
The outputs are short-circuit proof and protected against no load conditions.
The TURBOTRONIK recognizes which pump is connected.
The connection line between TURBOTRONIK and TURBOVAC may be up to 100 m long.
The TURBOTRONIK is contained within a housing, and can be used as a table top instrument or for installation in a 19� rack. Operation is by means of the START and STOP buttons on the front plate.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Power consumption
- briefly (acceleration): up to 64 VA(45 W)
- continuously (nominal speed): 35 VA(18 W)
- idle: 6 VA(3 W)
OuTPU ts
- Voltage 3 x 150 V
- Nominal frequency 1200 Hz
- Frequency range of the ouTPU t voltage 220-1250 Hz
Ambient temperatures
- during operation 0-40°C
- during storage - 40°C to 85°C
Max. rating of the relay contacts 8 and 10
- Switching voltage ≤250 V
- Switching current ≤6 A
- Switching capacity for DC ≤150 W
- Switching capacity for AC ≤1500 VA
Max. rating of the relay contacts 4 and 6, mains isolated: 25 Veff / 60 V DC / 1 A
Weight 1.5 kg
Housing dimensions 1/4 19“, 3 HU*
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Overview:

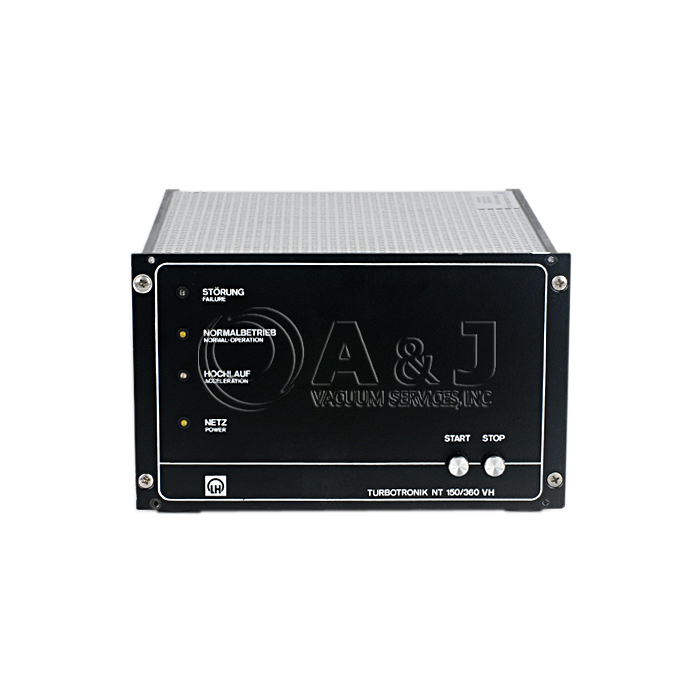

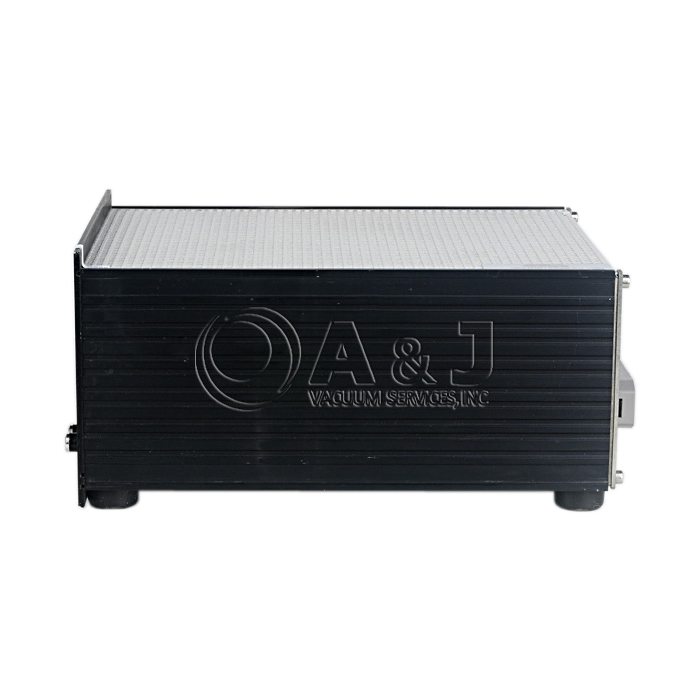

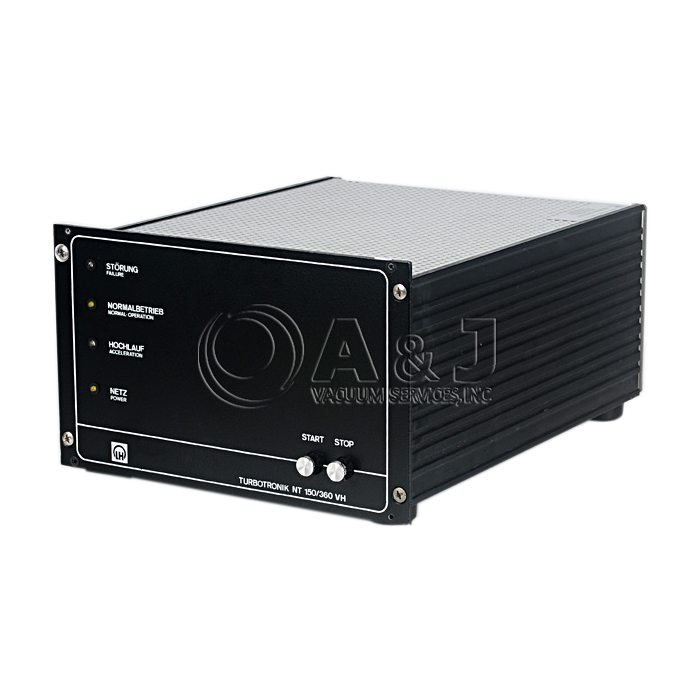

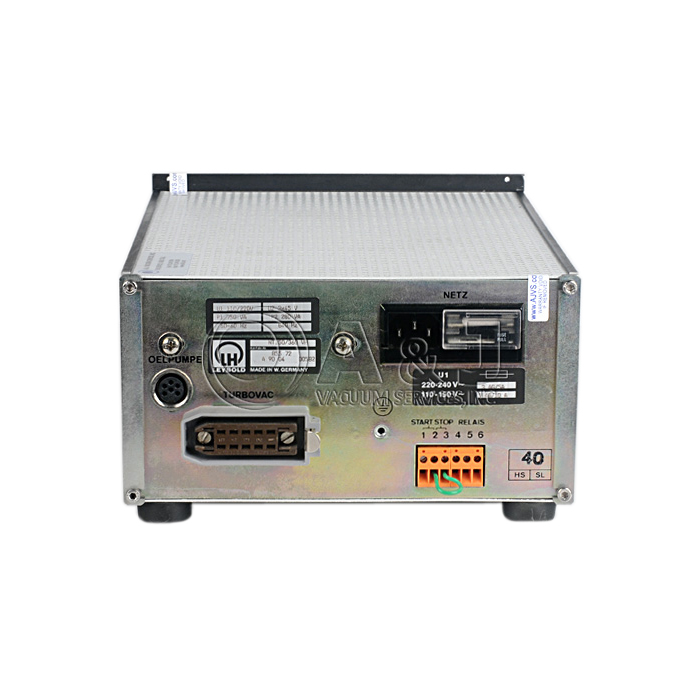

The Leybold Turbotronik NT 150/360 solid-state frequency converter converts the single-phase A.C. voltage of the mains supply into a three-phase A.C. voltage with variable voltage and frequency.
The frequency converter is an externally controlled three-phase transistor-rectifier consisting mainly of six transistor switches. These transistor switches are controlled so that a three-phase connection is formed at the output R, S, T. The diodes connected in antiparallel to the connected consumer into the intermediate D.C. circuit.
After depressing the "START" button, the voltage Uzk in the D.C. intermediate circuit is controlled according to an IU characteristic. Current I and voltage Uzk are proportional to motor current Im and motor voltage Um. The frequency of the three-phase output voltage is varied from a preset minimum value, as a function of the D.C. intermediate circuit voltage Uzk, up to a preset maximum value.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Leybold Turbotronik NT 151/361 Controller, 85716
Overview:
The electronic frequency converter TURBOTRONIK NT 151/361 is used to drive the turbomolecular pumps TURBOVAC150, 360, 150 CSV, 360 CSV, 150 V, 360 V,151, 361, 151 C, 361 C.
The TURBOTRONIK NT 151/361 converts the single phase mains voltage into a three-phase AC voltage for driving the asynchronous motor of the connected turbomolecular pump.
The following operational states are indicated by LEDs:
- Mains voltage applied (POWER, green),
- Acceleration (ACCEL, yellow),
- Normal (NORMAL, green),
- Failure (FAIL, red).
A relay output is also available for the NORMAL signal.
After starting the pump will run up at maximum current. This is indicated by the ACCEL LED.
Having reached approx. 80% of the nominal speed the NORMAL LED comes on and the ACCEL LED goes off.
The motor current is continuously monitored and controlled. If the speed cannot be maintained even at the maximum current due to external influences, for example because of a greater gas supply, the speed will drop but the pump will continue to operate.
When the speed drops below 150 Hz approx. the LED FAIL on the converter lights up.
The outputs are short-circuit proof and protected against no load conditions.
The TURBOTRONIK recognizes which pump is connected.
The connection line between TURBOTRONIK and TURBOVAC may be up to 100 m long.
The TURBOTRONIK is contained within a housing, and can be used as a table top instrument or for installation in a 19 inch rack. Operation is by means of the START and STOP buttons on the front plate.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Fully Remanufactured Oerlikon Leybold Turbotronik NT 20 Turbo Pump Controller, 85562
Leybold Oerlikon NT20 Overview:
The mains voltage of Leybold Turbotronik NT20 is 100/120/220/240 V,%/-15%. Mains frequency of Leybold NT-20 is 50/60 Hz. Interface for data output of Turbotornik NT20 is RS 232/V.24. The weight of Oerlikon NT20 is 7 kg.
The electronic frequency converter TURBOTRONIK NT-20 is used to drive the following turbo molecular pumps:
- TURBOVAC 150, 360,
- TURBOVAC 150 CSV, 360 CSV,
- TURBOVAC 150 V, 360 V,
- TURBOVAC 151, 151 C, 361, 361 C,
- TURBOVAC 600, 600 C,
- TURBOVAC 1000, 1000 C, 1100 C.
These pumps each comprise a three-phase asynchronous motor with the appropriate rating to drive the rotor.
The TURBOTRONIK NT20 converts the single-phase mains voltage into a three-phase AC voltage with regulated frequency and amplitude.
Each installed TURBOVAC has been individually coded. The respective pump code must be entered using the DIP switches provided. For safety reasons, the TURBOVAC will not start up unless the two codes match.
The acceleration sequence, the regulation during operation, and the output speed will vary depending on the installed pump model.
The TURBOTRONIK NT 20 does not support the pump models TURBOVAC 150 H and TURBOVAC 360 H. LEYBOLD customer service can adjust the speed of each TURBOVAC to ± 5%, if required.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Leybold NT 20 Rear Panel:
Leybold NT 20 Dimensions:
Click Here for Leybold TURBOTRONIK NT 20 Manual
A&J Vacuum Services offers full repair/service of Leybold Turbotronik NT20 Controller, along with all other brands offered on our website. AJVS also services Leybold Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Overview:
The Oerlikon / Leybold Turbo Drive S Controller supplies power to the TW series turbomolecular pumps and is used to control their operation.
The Turbo Drive S is suited for operation of the following pumps:
- TURBOVAC TW 70 H
- TURBOVAC TW 220/150 S, TW 220/150/15 S
- TURBOVAC TW 250 S
- TURBOVAC TW 300, TW 300 H
The Turbo Drive S is either integrated in the pump or it is separate and linked to the pump by means of a connecting cable.
The Turbo Drive S requires a supply voltage of 24 V DC. It is equipped with interfaces for programmable controls (REMOTE) and an optional interface for serial communication.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Fully Remanufactured Oerlikon Leybold Turbotronik NT 20 Turbo Pump Controller, 85721
Leybold Oerlikon NT20 Overview:
The mains voltage of Leybold Turbotronik NT20 is 100/120/220/240 V,%/-15%. Mains frequency of Leybold NT-20 is 50/60 Hz. Interface for data output of Turbotornik NT20 is RS 232/V.24. The weight of Oerlikon NT20 is 7 kg.
The electronic frequency converter TURBOTRONIK NT-20 is used to drive the following turbo molecular pumps:
- TURBOVAC 150, 360,
- TURBOVAC 150 CSV, 360 CSV,
- TURBOVAC 150 V, 360 V,
- TURBOVAC 151, 151 C, 361, 361 C,
- TURBOVAC 600, 600 C,
- TURBOVAC 1000, 1000 C, 1100 C.
These pumps each comprise a three-phase asynchronous motor with the appropriate rating to drive the rotor.
The TURBOTRONIK NT20 converts the single-phase mains voltage into a three-phase AC voltage with regulated frequency and amplitude.
Each installed TURBOVAC has been individually coded. The respective pump code must be entered using the DIP switches provided. For safety reasons, the TURBOVAC will not start up unless the two codes match.
The acceleration sequence, the regulation during operation, and the output speed will vary depending on the installed pump model.
The TURBOTRONIK NT 20 does not support the pump models TURBOVAC 150 H and TURBOVAC 360 H. LEYBOLD customer service can adjust the speed of each TURBOVAC to ± 5%, if required.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Leybold NT 20 Rear Panel:
Leybold NT 20 Dimensions:
Click Here for Leybold TURBOTRONIK NT 20 Manual
A&J Vacuum Services offers full repair/service of Leybold Turbotronik NT20 Controller, along with all other brands offered on our website. AJVS also services Leybold Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
