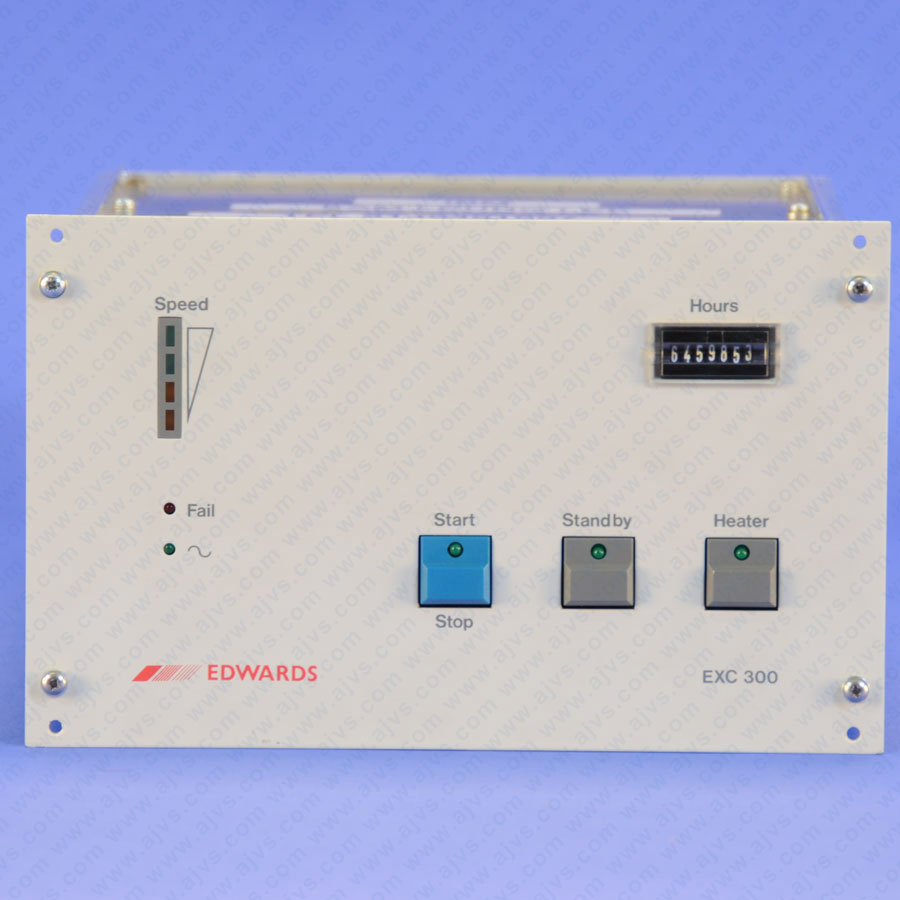

Edwards EXC 300 Turbo Pump Controller, D39614000, EXC300
Control functions available:
Display functions available:
Compatible turbomolecular pumps:
Direct connection possible for:
A&J Vacuum Repair / Rebuild and Service all Edwards EXC Turbo Pump Controllers along with all other Edwards EXT Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Overview:

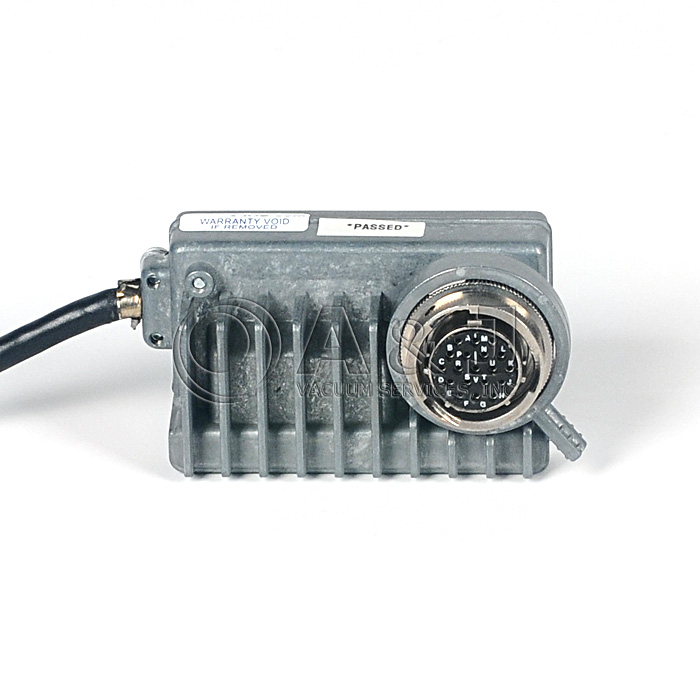

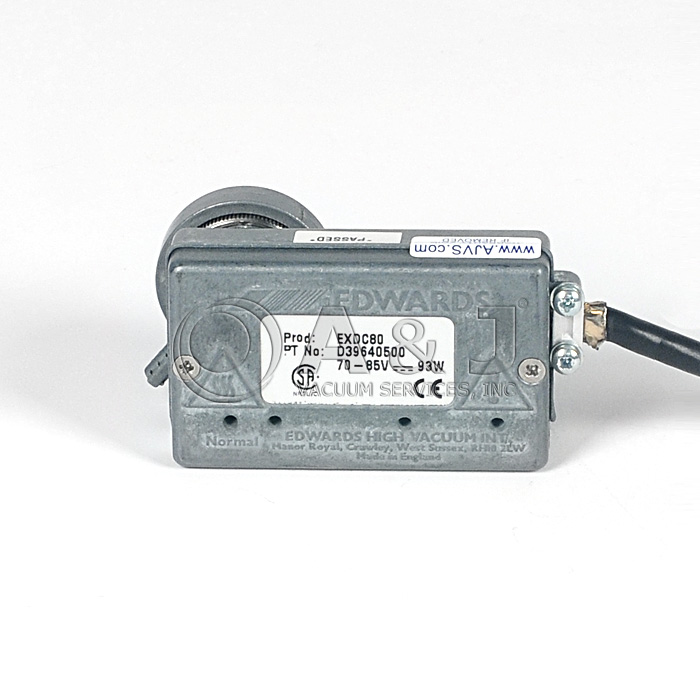

The Edwards EXDC-80 Turbo Pump Controller generates the control signals necessary to operate an EXT pump and its accessories.
The EXDC80 has no manual controls and can only be operated through the logic interface. To operate the EXT pump, you must therefore connect the EXDC to your own control equipment and electrical supply.
This Controller is designed for the following Mass Spectrometer Turbo Pumps:
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Overview:

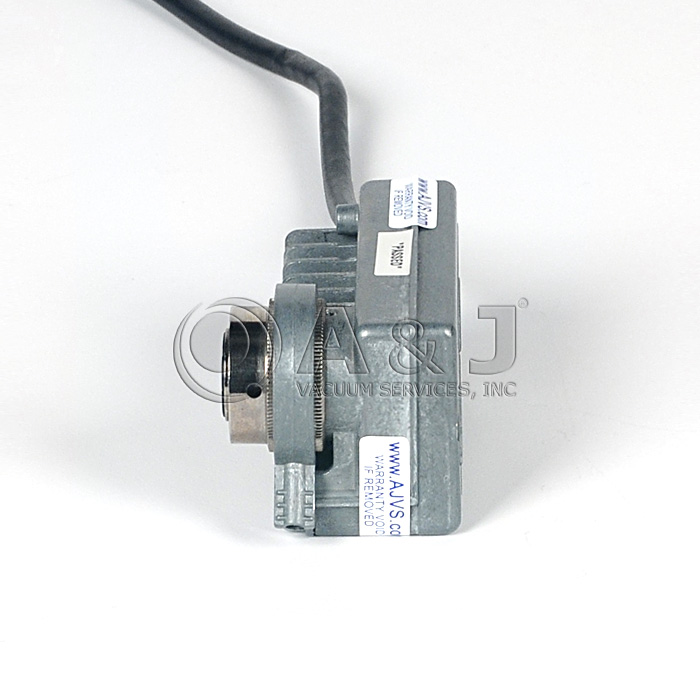

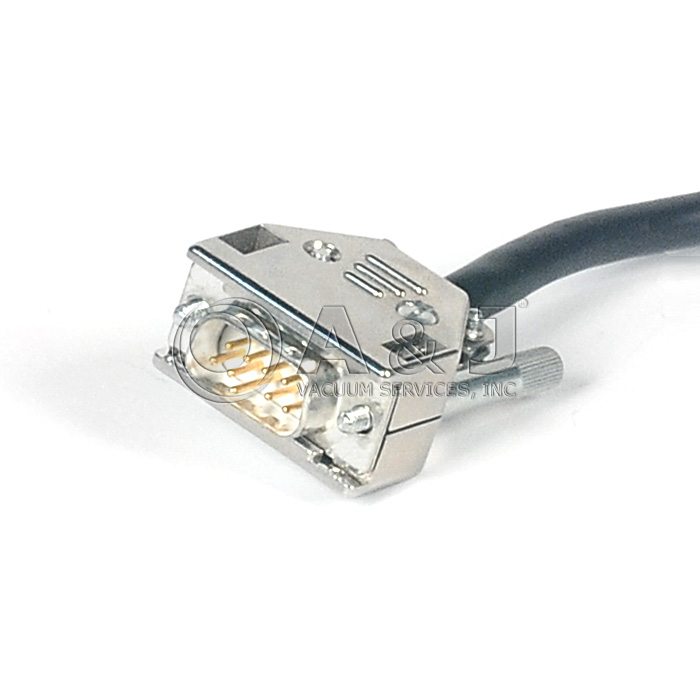

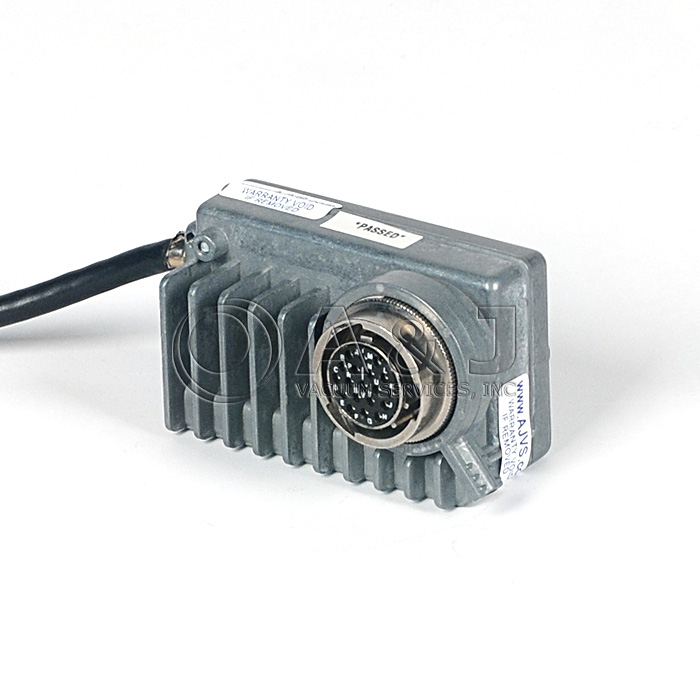

The Edwards EXDC80 Turbo Pump Controller generates the control signals necessary to operate an EXT pump and its accessories.
The EXDC has no manual controls and can only be operated through the logic interface. To operate the EXT pump, you must therefore connect the EXDC to your own control equipment and electrical supply.
This Controller is designed for the following Mass Spectrometer Turbo Pumps:
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

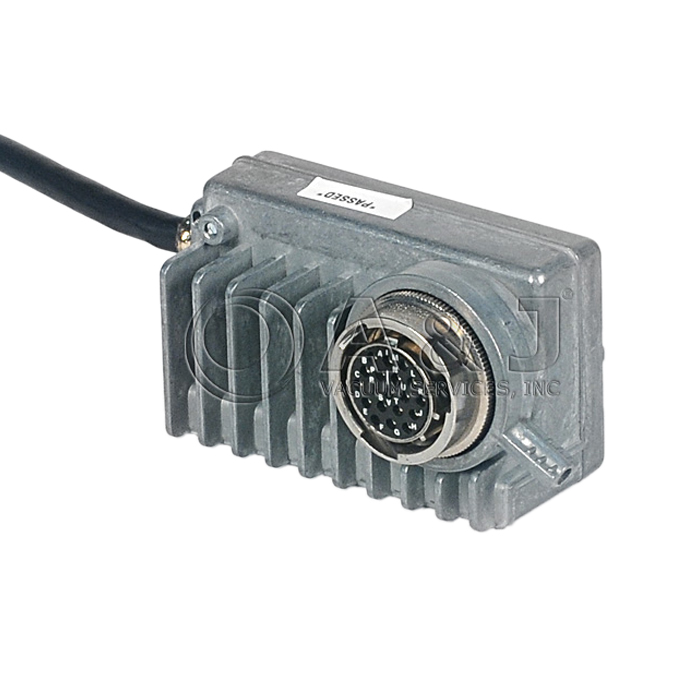

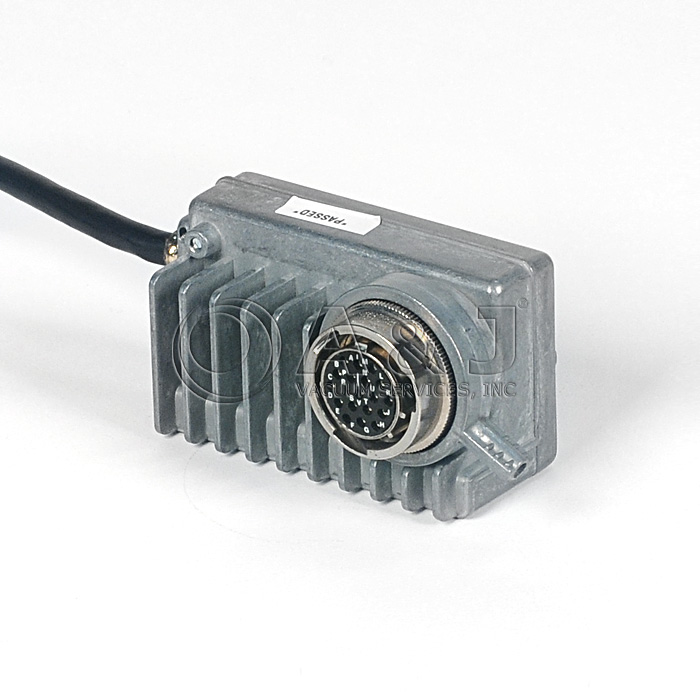

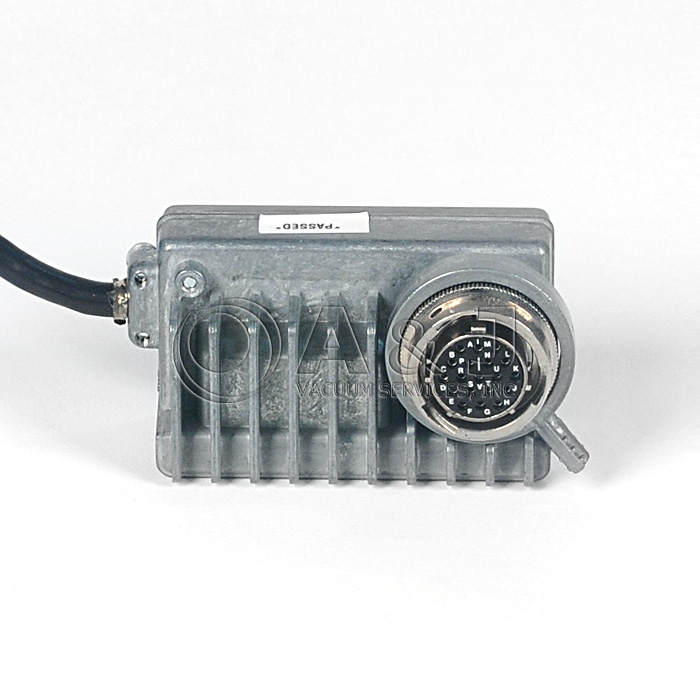

The Edwards EXDC160 Turbo Pump Controller generates the control signals necessary to operate an EXT pump and its accessories.
The EXDC has no manual controls and can only be operated through the logic interface. To operate the EXT pump, you must therefore connect the EXDC to your own control equipment and electrical supply.
This Controller is designed for the following Mass Spectrometer Turbo Pumps:
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
The Edwards EXDC160 Turbo Pump Controller generates the control signals necessary to operate an EXT pump and its accessories.
The EXDC-160 has no manual controls and can only be operated through the logic interface. To operate the EXT pump, you must therefore connect the EXDC / D396-46-510 to your own control equipment and electrical supply.
This Controller is designed for the following Mass Spectrometer Turbo Pumps:
A&J Vacuum also repair / rebuild and service all Edwards EXT200/200 Turbo Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

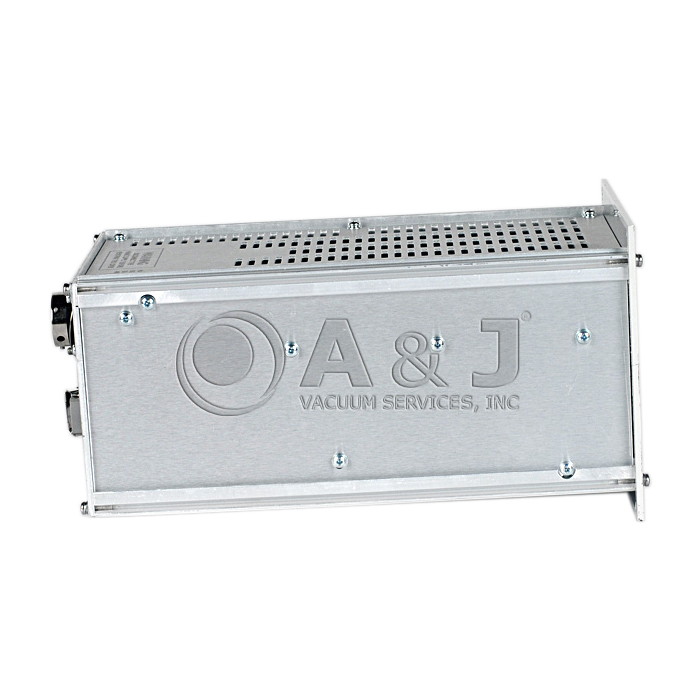

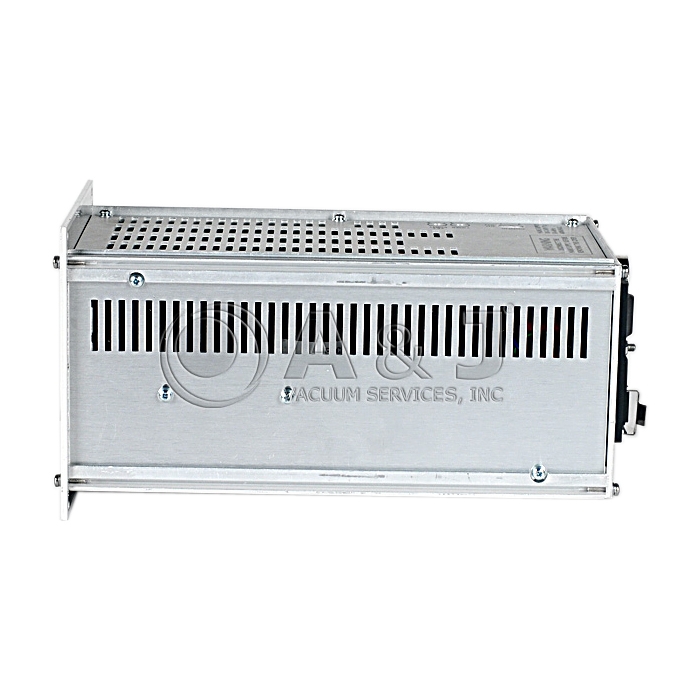

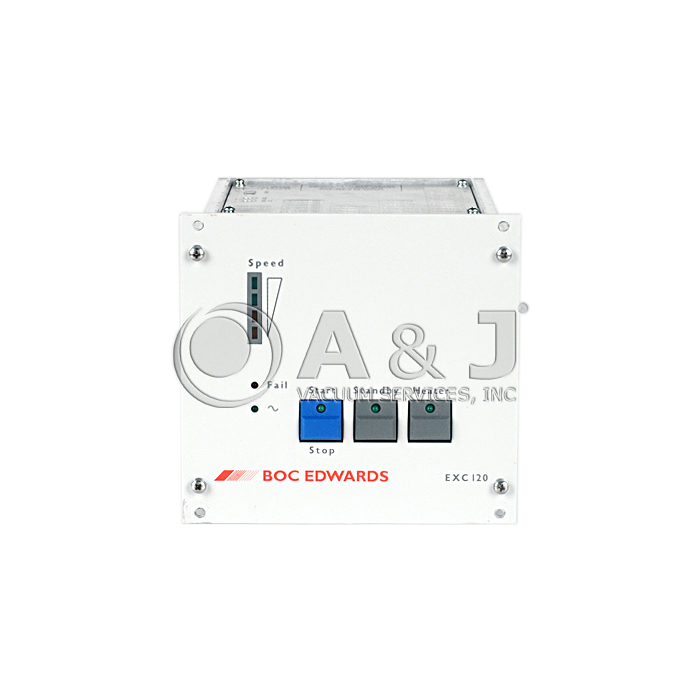

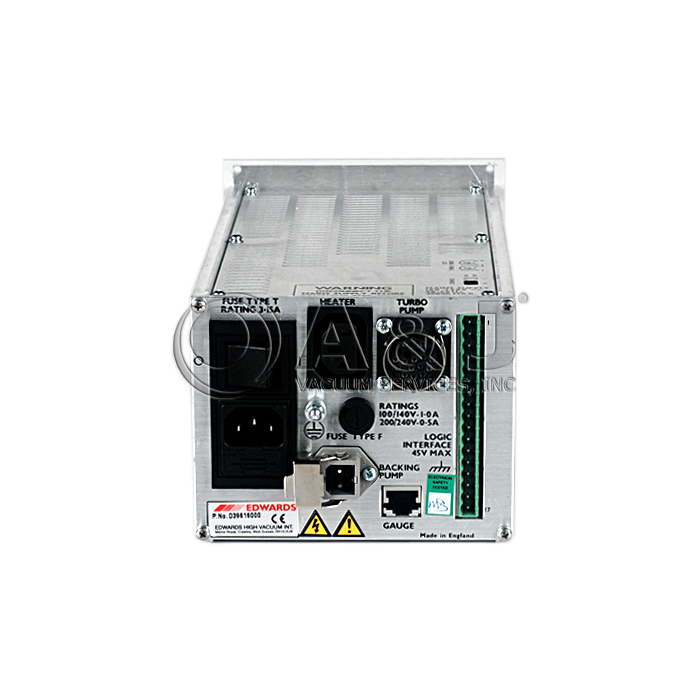

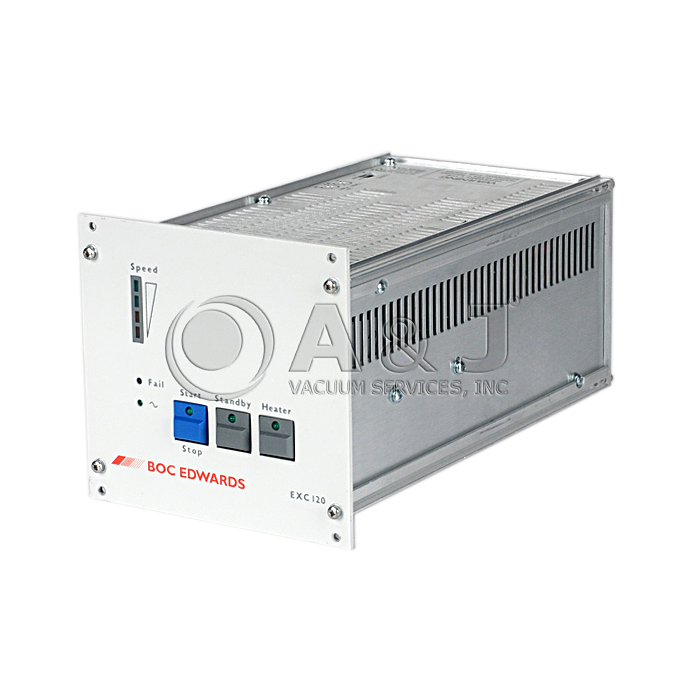

The Edwards EXC120 Controller generates the electrical supply and the control signals necessary to operate an EXT pump and its accessories. D39616000, EXC-120
The Edwards EXC120 Controller has a high-efficiency, auto-ranging power supply which adjusts itself to any external electrical supply in the specified voltage range. The power supply converts the single-phase electrical supply into a regulated d.c. electrical supply to control the
operation of the EXT pump. The pump has three Hall effect devices which operate as rotor position sensors. These sensors ensure that the drive current is correctly commutated to the pump-motor phase-windings. The Hall effect devices also generate a speed signal which the Controller uses to regulate the rotational speed of the pump.
The Edwards EXC120 Controller has a secondary regenerative supply which uses the d.c. motor of the EXT pump as a generator. If the electrical supply fails, the regenerative supply provides the Controller with a back-up source of power without the need for batteries. All Controllers use the regenerative supply to maintain the electrical supply to the vent-valve until the pump speed falls to below 50% of full rotational speed. The Controllers have a number of safety features which limit the power supplied to the EXT pump in the event of sustained high pressure or temperature:
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

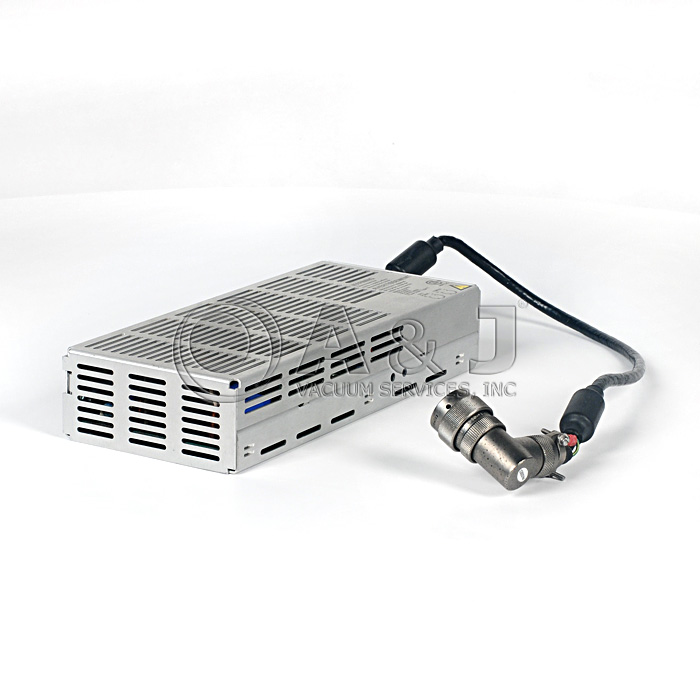

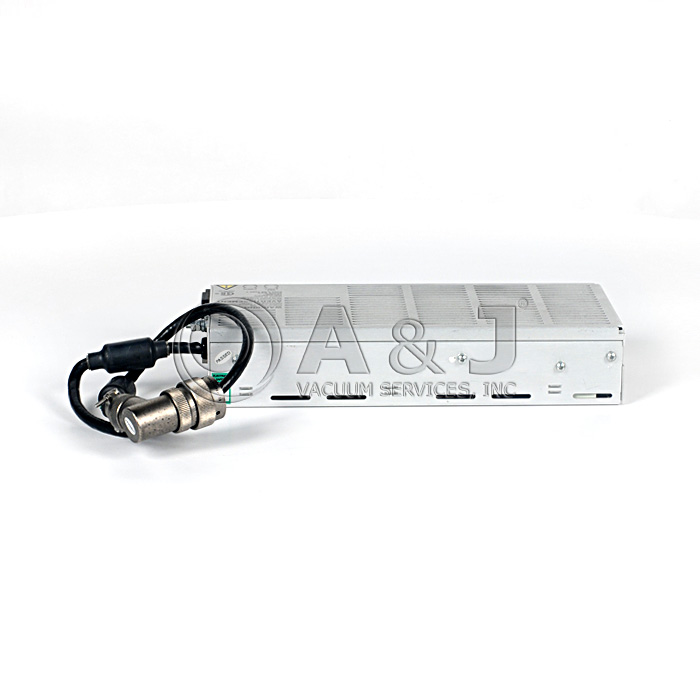

Edwards EXC100L Turbo Pump Controller, D39622000, EXC 100L,
Overview:

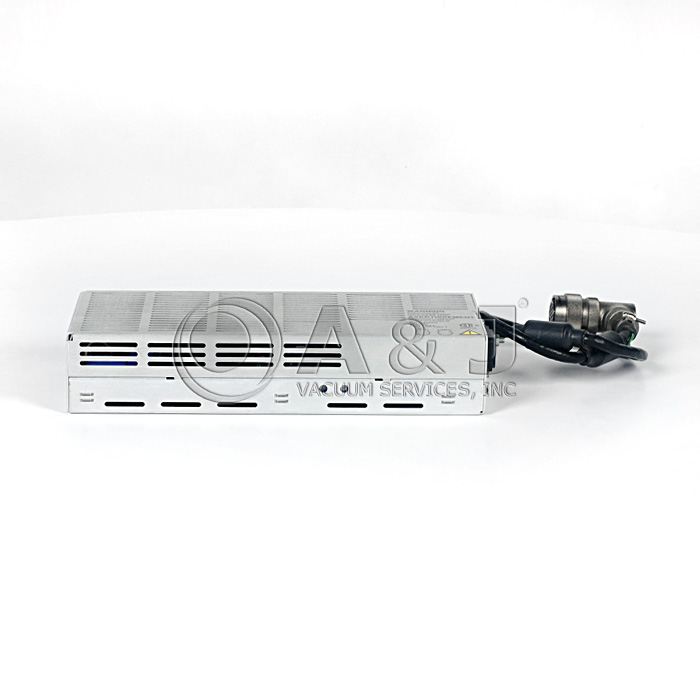

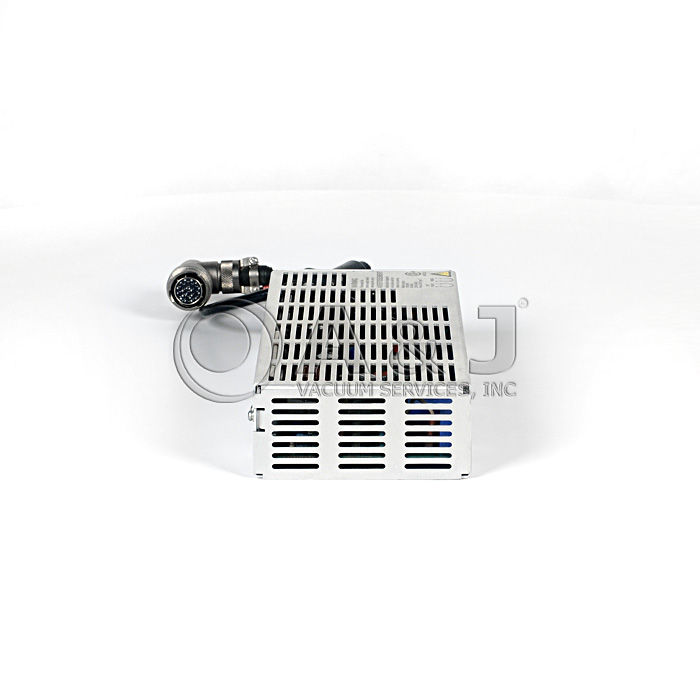

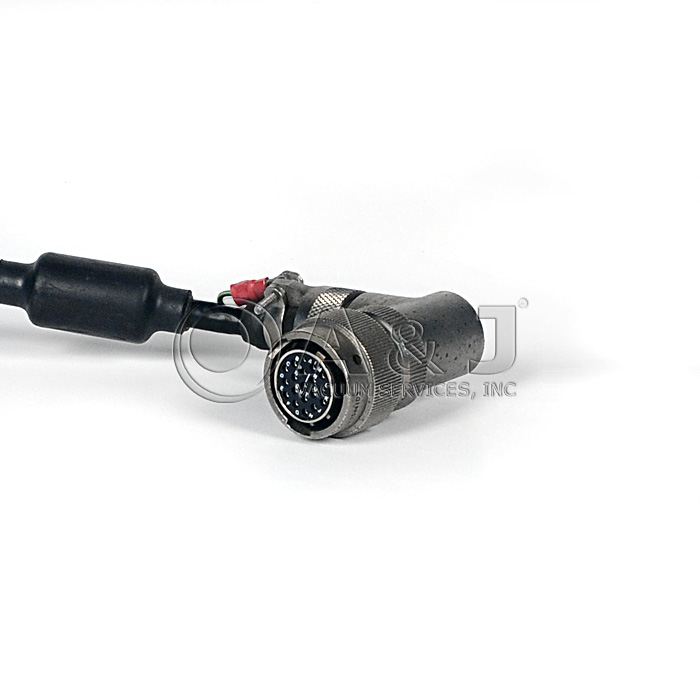

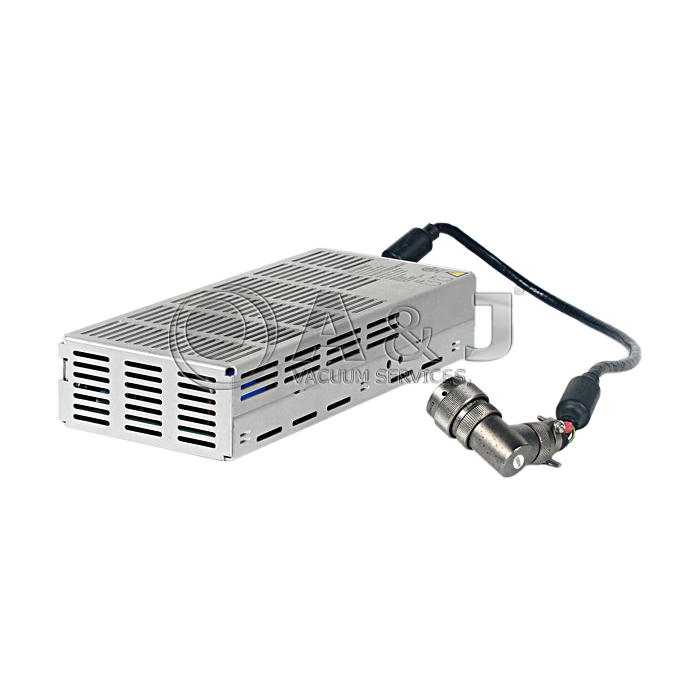

The Edwards EXC100L Turbo Pump Controller generates the electrical supply and the control signals necessary to operate an EXT pump and its accessories.
The Controller has a high-efficiency, auto-ranging power supply which adjusts itself to any external electrical supply in the specified voltage range. The power supply converts the single-phase electrical supply into a regulated d.c. electrical supply to control the operation of the EXT pump. The pump has three Hall effect devices which operate as rotor position sensors. These sensors ensure that the drive current is correctly switched to the phase-windings of the pump-motor . The Hall effect devices also generate a speed signal which the Controller uses to regulate the rotational speed of the pump.
The EXC 100L Controller has a secondary regenerative supply which uses the d.c. motor of the EXT pump as a generator. If the electrical supply fails, the regenerative supply provides the Controller with a back-up source of power without the need for batteries. The Controller uses the regenerative supply to maintain the electrical supplies to the vent-valve, air-cooler and AIM gauge (if connected) until the pump speed falls to below 50% of full rotational speed.
The EXC 100L Controller has no front-panel controls and can only be operated through the logic interface. To operate the EXT pump, you must therefore connect the Controller to your own control equipment. Alternatively, you can configure the mating-plug for the logic interface connector so that the EXT pump starts to operate as soon as the electrical supply to the Controller is switched on.
This Controller is designed for the following Mass Spectrometer Turbo Pumps:
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Overview:
The Edwards EXC Turbo Pump Controller generates the electrical supply and the control signals necessary to operate an EXT pump and its accessories.
The Controller has a high-efficiency, auto-ranging power supply which adjusts itself to any external electrical supply in the specified voltage range. The power supply converts the single-phase electrical supply into a regulated d.c. electrical supply to control the operation of the EXT pump. The pump has three Hall effect devices which operate as rotor position sensors. These sensors ensure that the drive current is correctly switched to the phase-windings of the pump-motor . The Hall effect devices also generate a speed signal which the Controller uses to regulate the rotational speed of the pump.
The Controller has a secondary regenerative supply which uses the d.c. motor of the EXT pump as a generator. If the electrical supply fails, the regenerative supply provides the Controller with a back-up source of power without the need for batteries. The Controller uses the regenerative supply to maintain the electrical supplies to the vent-valve, air-cooler and AIM gauge (if connected) until the pump speed falls to below 50% of full rotational speed.
The Controller has no front-panel controls and can only be operated through the logic interface. To operate the EXT pump, you must therefore connect the Controller to your own control equipment. Alternatively, you can configure the mating-plug for the logic interface connector so that the EXT pump starts to operate as soon as the electrical supply to the Controller is switched on.
This Controller is designed for the following Mass Spectrometer Turbo Pumps:
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Overview:
The Edwards EXDC80 Turbo Pump Controller generates the control signals necessary to operate an EXT pump and its accessories.
The EXDC has no manual controls and can only be operated through the logic interface. To operate the EXT pump, you must therefore connect the EXDC to your own control equipment and electrical supply.
This Controller is designed for the following Mass Spectrometer Turbo Pumps:
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Overview:
The Edwards EXC Turbo Pump Controller generates the electrical supply and the control signals necessary to operate an EXT pump and its accessories.
The Controller has a high-efficiency, auto-ranging power supply which adjusts itself to any external electrical supply in the specified voltage range. The power supply converts the single-phase electrical supply into a regulated d.c. electrical supply to control the operation of the EXT pump. The pump has three Hall effect devices which operate as rotor position sensors. These sensors ensure that the drive current is correctly switched to the phase-windings of the pump-motor . The Hall effect devices also generate a speed signal which the Controller uses to regulate the rotational speed of the pump.
The Controller has a secondary regenerative supply which uses the d.c. motor of the EXT pump as a generator. If the electrical supply fails, the regenerative supply provides the Controller with a back-up source of power without the need for batteries. The Controller uses the regenerative supply to maintain the electrical supplies to the vent-valve, air-cooler and AIM gauge (if connected) until the pump speed falls to below 50% of full rotational speed.
The Controller has no front-panel controls and can only be operated through the logic interface. To operate the EXT pump, you must therefore connect the Controller to your own control equipment. Alternatively, you can configure the mating-plug for the logic interface connector so that the EXT pump starts to operate as soon as the electrical supply to the Controller is switched on.
This Controller is designed for the following Mass Spectrometer Turbo Pumps:
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
