Pfeiffer DCU-002 Display Control Unit, PM061348-T, DCU 002, Demo

Pfeiffer DCU-002 Overview:

• Display and operating instrument for Pfeiffer Vacuum drive instruments
• Ensures the control of all parameters of these instruments
• Power supply exlusively from Pfeiffer electronic drive unit (connection cable Pfeiffer Vacuum DCU002 - TM 3000 see accessories)
• For operating and monitoring all parameters of the drive electronics
• Power by the drive electronics of the pump
• Suitable for all HiPace turbopumps
• 19" partial plug-in 3HU
• Connects to the pump´s drive electronics via RS-485 interface
• Interface cable (3 m) for drive electronics included in scope of delivery
• Various Pfeiffer Vacuum gauges can be connected and read

•  Request product Compare product Remember product

Pfeiffer DCU-002 Electronix Drive Unit:

• TC 110
• TC 120
• TC 400
• TM 700
• TC 1200

Pfeiffer DCU-002 Dimensions:

Click Here for Pfeiffer DCU 002/110/180/310/400 Manual

A&J Vacuum Services offers full repair/service of Pfeiffer Diaghragm Vacuum Pumps, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

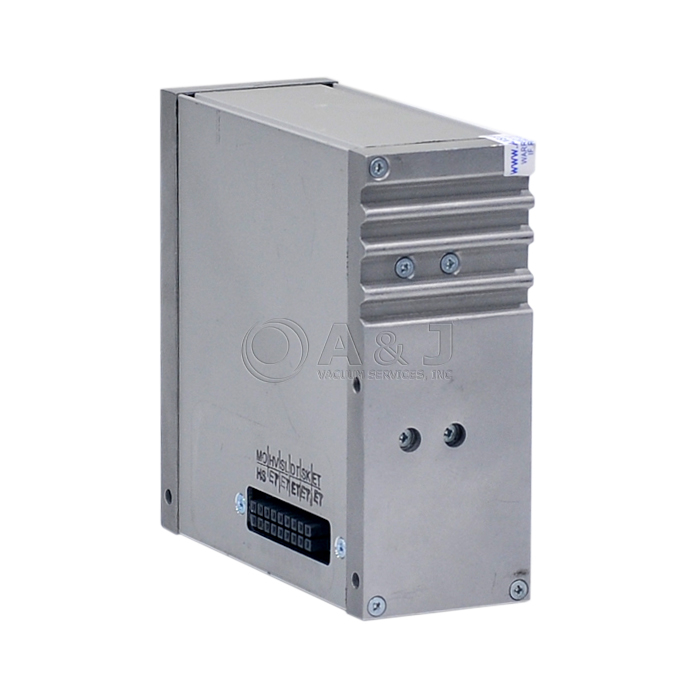

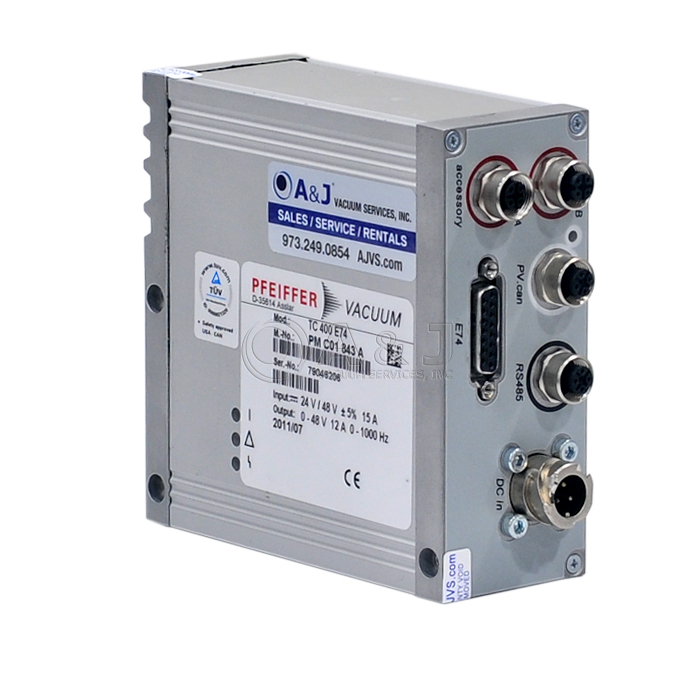

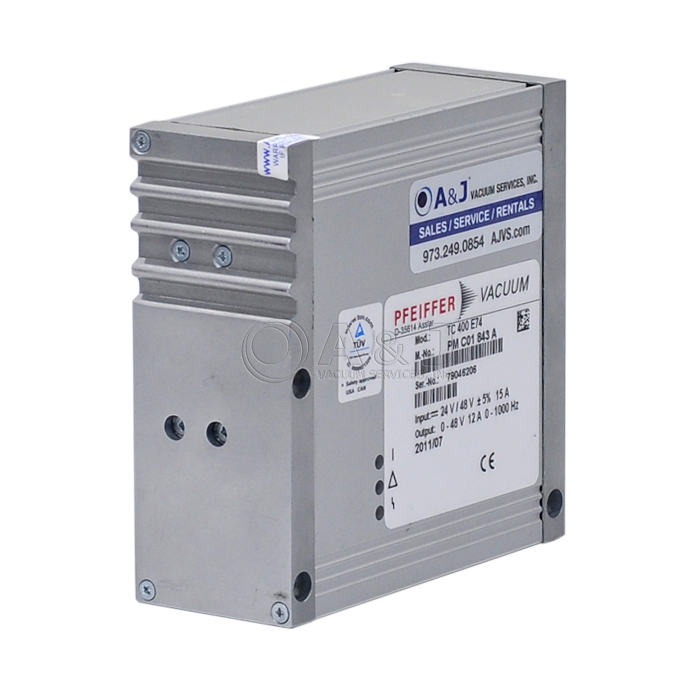

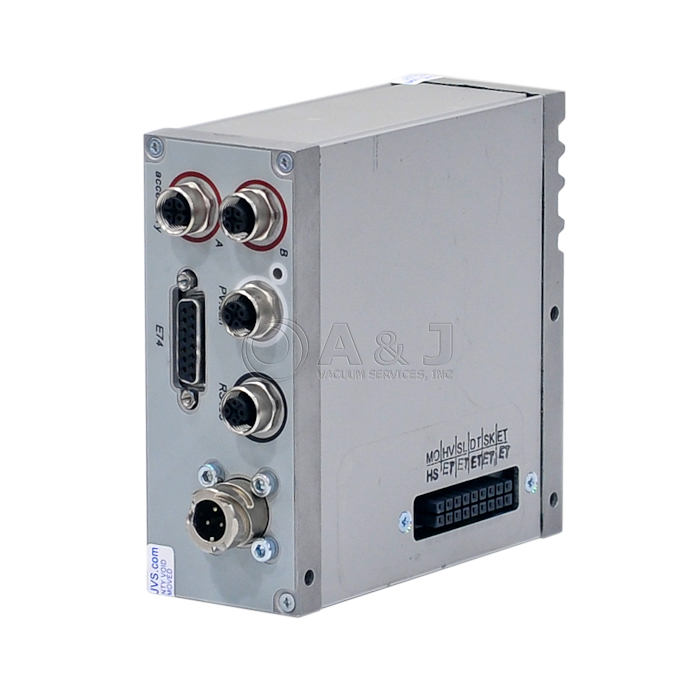

Fully Reburbished Pfeiffer Vacuum TC 400 E74 Turbo Pump Controller.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

Pfeiffer Vacuum TCP 600 Turbo Pump Controller, Power Supply, PMC01320A

Pfeiffer TCP 600 Overview:

Fully Rebuilt Pfeiffer Vacuum TCP-600 Turbo Pump Controller unit for turbo pumps TMH /TMU 1000 thru TMH /TMU 1600, PM C01 320 A

The Pfeiffer Vacuum TCP600 is a microprocessor-controlled unit with diagnostic and monitoring functions. The microprocessor detects the turbo pump type with the aid of programming resistance and automatically associates the setpoint values for rated speed and maximum speed. The TCP-600 monitors oil flow, motor temperature, housing temperature, turbo pump speed and motor current. The TCP 600 has easily accessible controls arranged on the front panel. The standby function option permits the Turbo molecular Pump to be operated at 66% of its rated speed. This results an extended service life of the bearings and reduction in noise and vibration. Connections for remote control and heating and cooling are available. Computer connections for data collection are optional.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

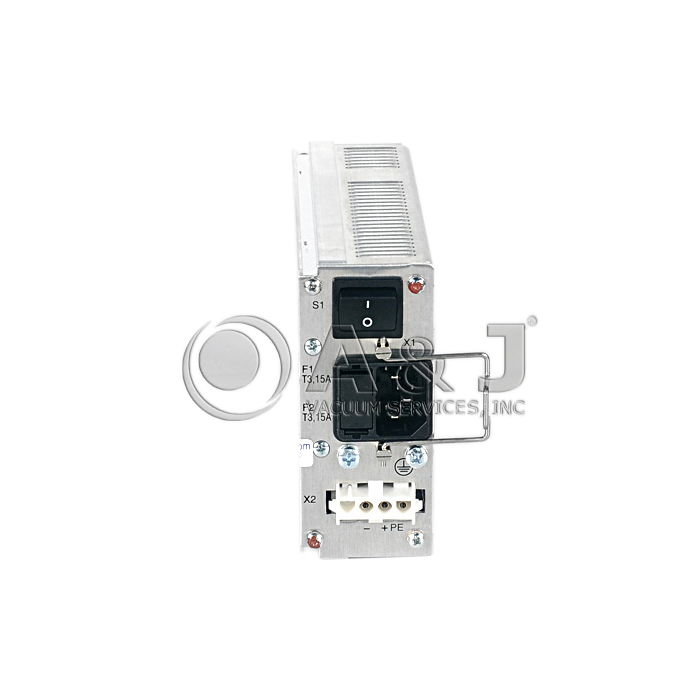

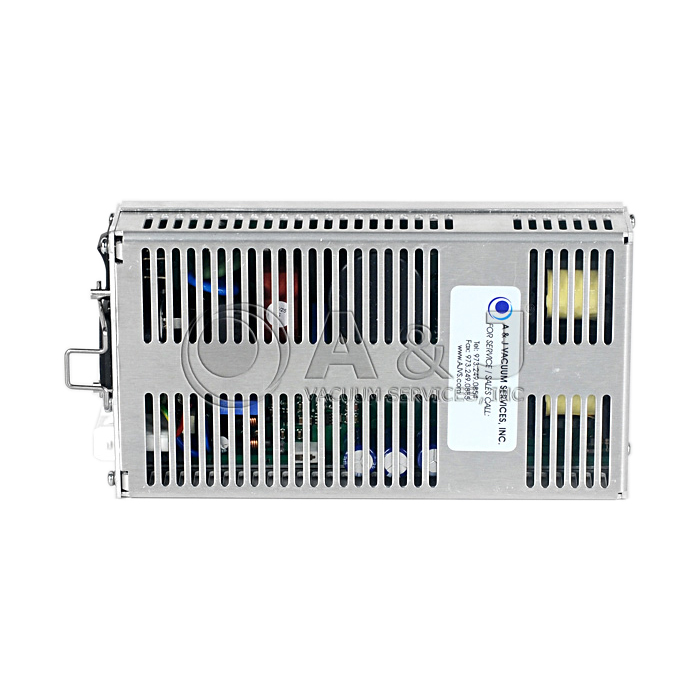

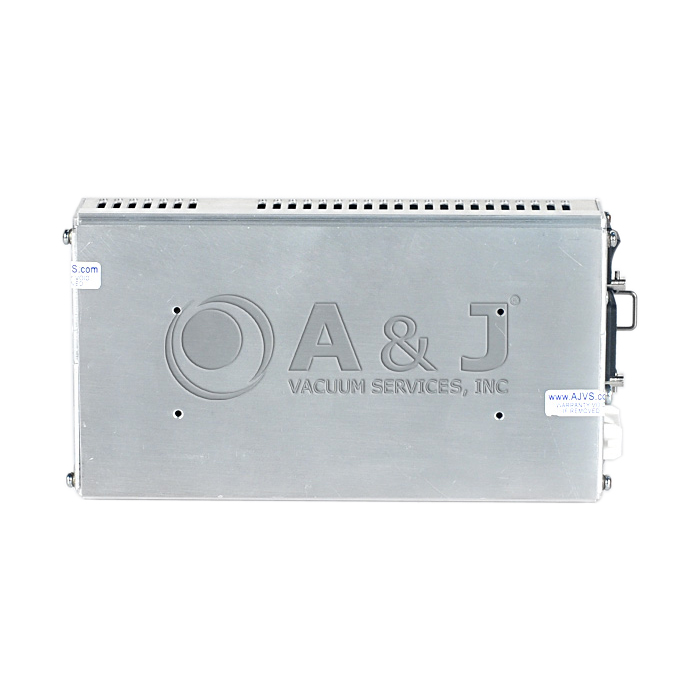

Pfeiffer TPS 201 Turbo Pump Power Supply, PM041819-T

Pfeiffer-Vacuum TPS201 Turbo Pump Power Supply is used for a voltage supply for the Pfeiffer Vacuum TMH /TMU 261 and TMH /TMU 261 C Turbo Pumps. Mains requirement 90-130 / 185-265 V AC 50/60Hz.

• Output voltage 48 V DC, Output current 4.1 A
• Ambient temperature 5-40 C
• Weight 1.4 Kg

Fully Remanufactured Pfeiffer TCP 015 Turbo Pump Controller, PMC01598

The Electronic Drive Unit TCP 015 (TCP015) serves to drive PFEIFFER turbomolecular pumps with single phase direct current motors (1500 Hz). With the aid of a transformer the mains voltage is reduced to 32 V, rectified and provides the drive energy for the Print Module TCP 035 which is an element of the TCP 015. The switchable transformer power pack covers the following input voltage ranges:

• 90-112 V
• 108-133 V
• 198-245 V
• 216-267 V AC.

The TCP can be operated in conjunction with Pumping Station Control Unit TCS 015 to operate a pumping station with backing pump. The delivery consignment encompasses:

• Electronic Drive Unit TCP 015
• Mating plug for X1, X2, X3.

The TCP 015 has been suppressed in accordance with German Industrial Standard VDE 0871, limit value curve B. The unit has been tested and cleared by the appropriate authorities in accordance with EN 61010/VDE0411 “Safety Ordinance For Electrical Units”. The electronic drive unit contains the following functional features:

• Switching power pack
• Motor drive
• Monitoring and process control
• Illuminating diode display with information concerning the operational status of the pump
• Serial Interface RS 232/ RS 485 on the Print Module of the TCP 035

Compatible with Turbo Pumps TMH /TMU 062 to TMH /TMU 064, TMH /TMU 065.

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

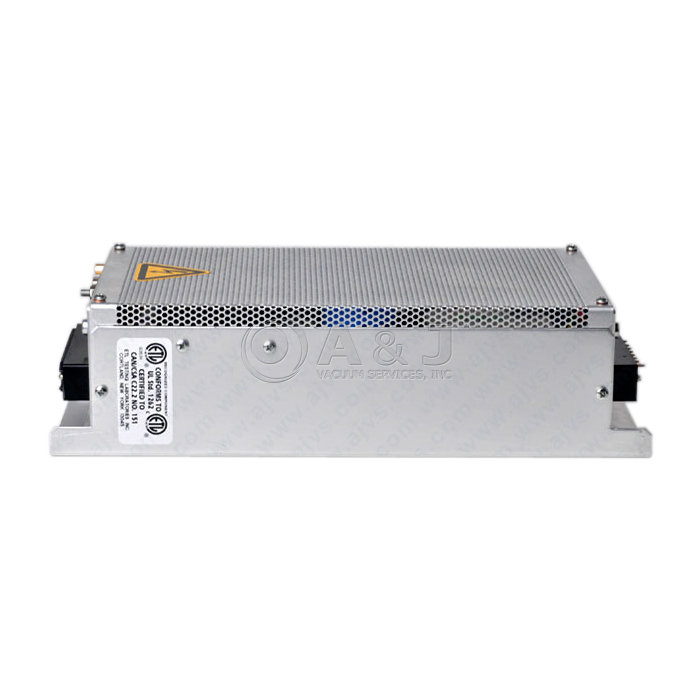

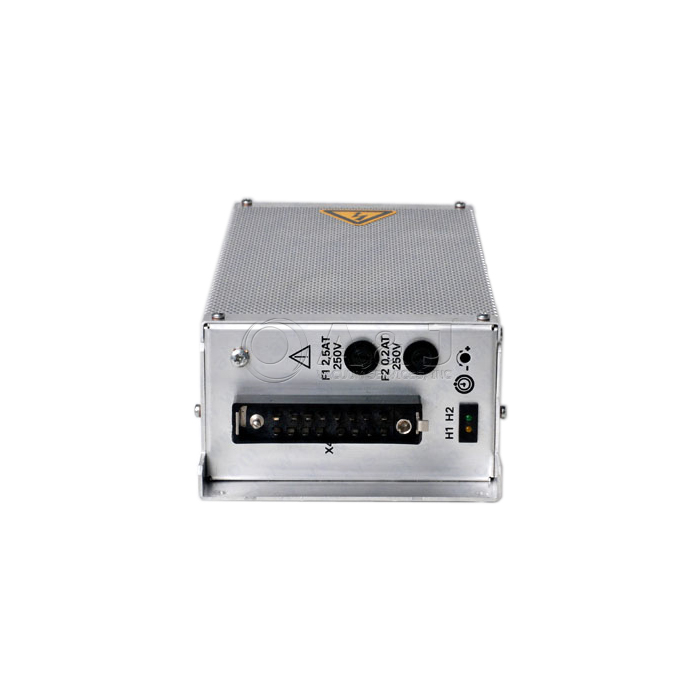

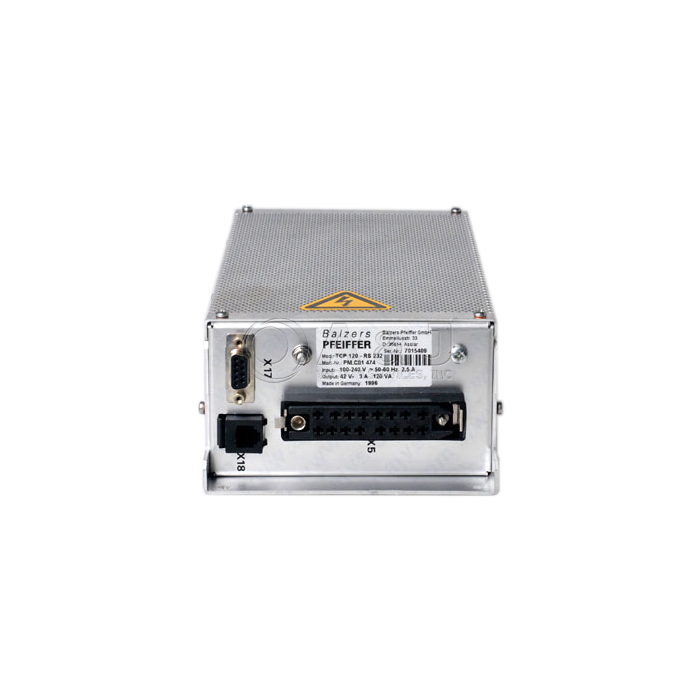

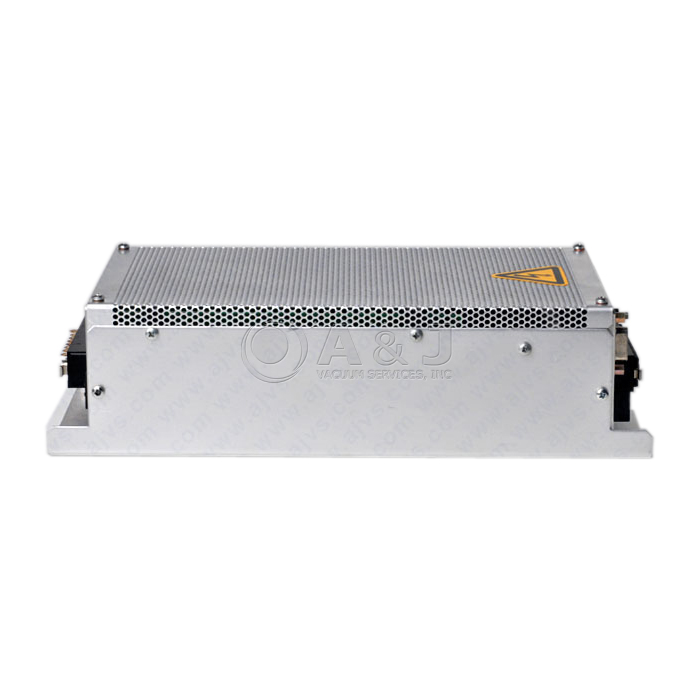

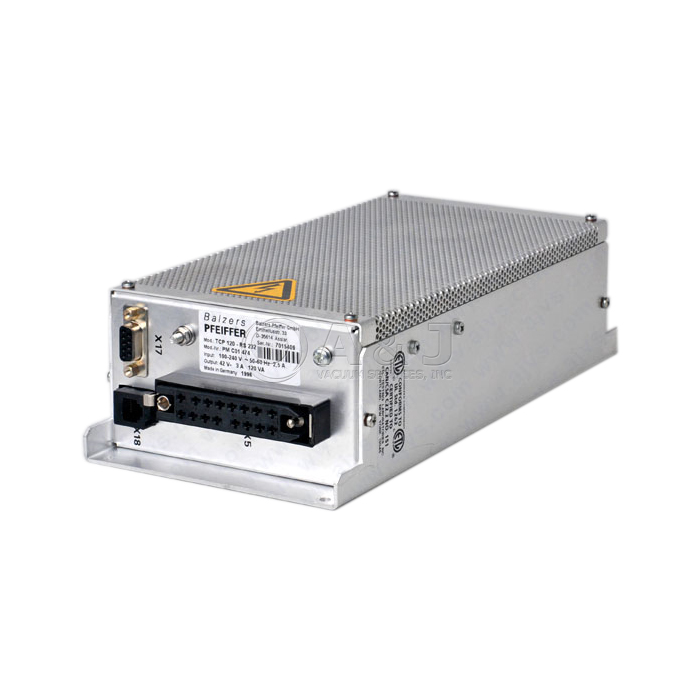

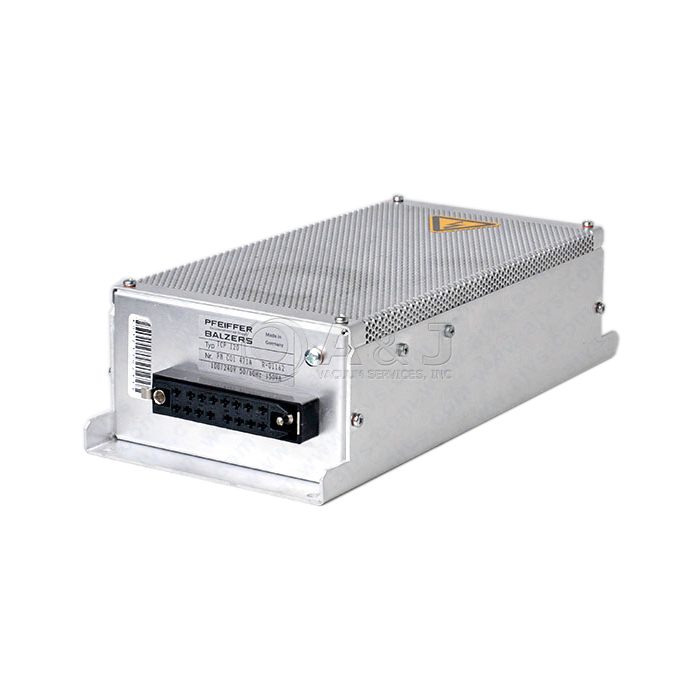

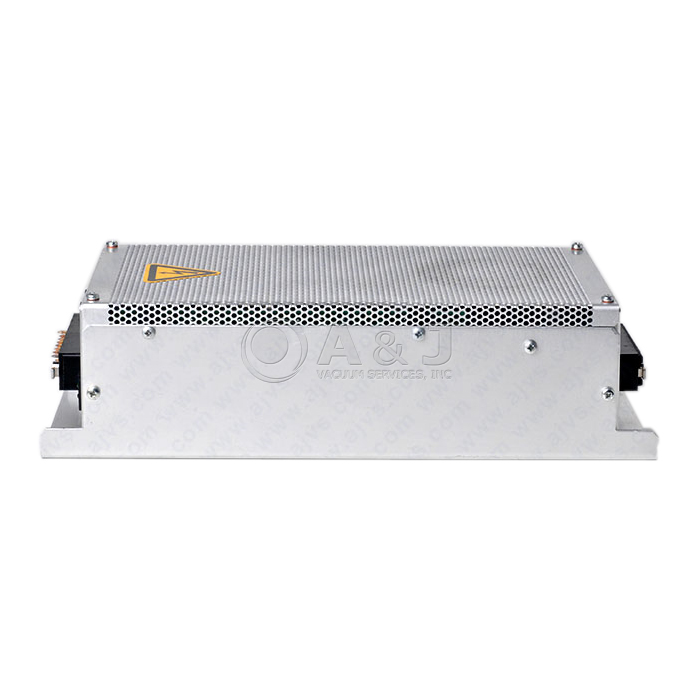

The Pfeiffer TCP 120 is compatible with the following Turbo Molecular Pumps:

• TPH 040, TPU 040
• TPH 050, TPU 050
• TPH 060, TPU 060
• TPH 062, TPU 062
• TPH 110, TPU 110
• TPH 140, TPU 140
• TPH 170, TPU 170
• TPH 190, TPU 190
• TPH 240, TPU 240
• TPH 270, TPU 270
• TPH 330, TPU 330
• TPH 520, TPU 520M

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.

The Pfeiffer TCP 120 is compatible with the following Turbo Molecular Pumps:

• TPH 040, TPU 040
• TPH 050, TPU 050
• TPH 060, TPU 060
• TPH 062, TPU 062
• TPH 110, TPU 110
• TPH 140, TPU 140
• TPH 170, TPU 170
• TPH 190, TPU 190
• TPH 240, TPU 240
• TPH 270, TPU 270
• TPH 330, TPU 330
• TPH 520, TPU 520M

THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
