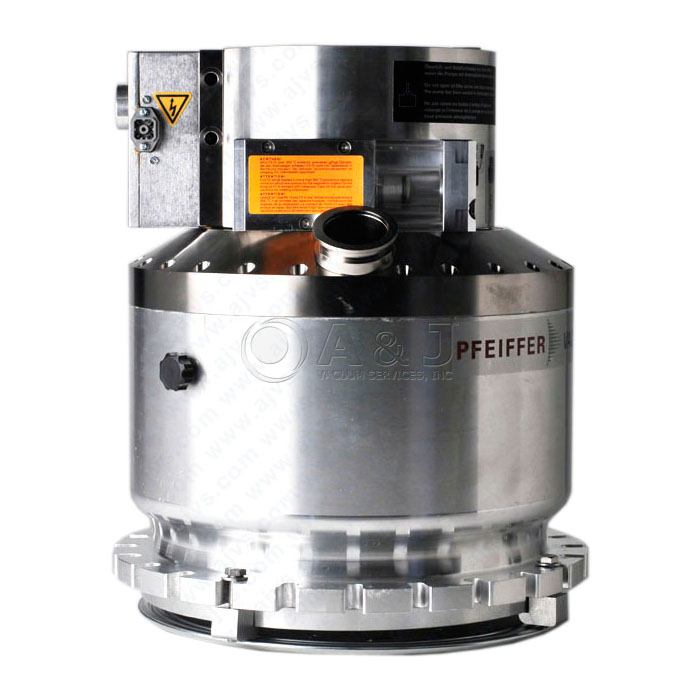

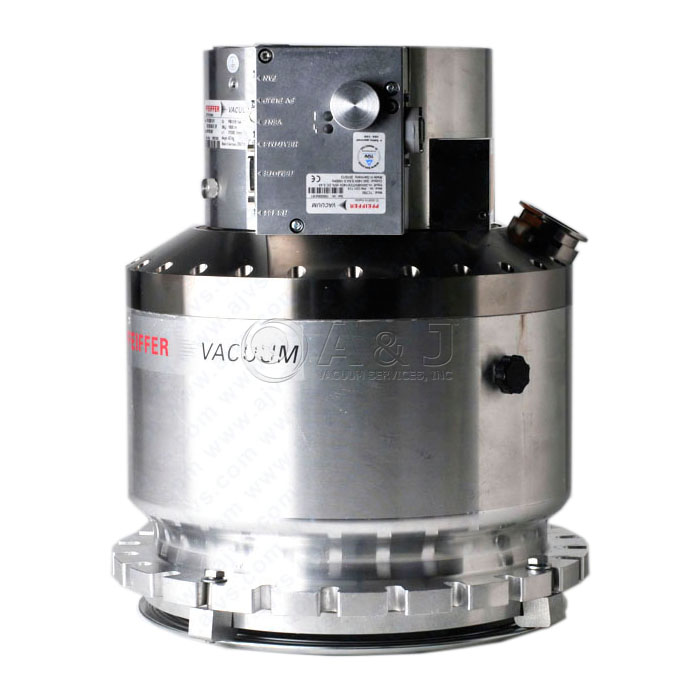

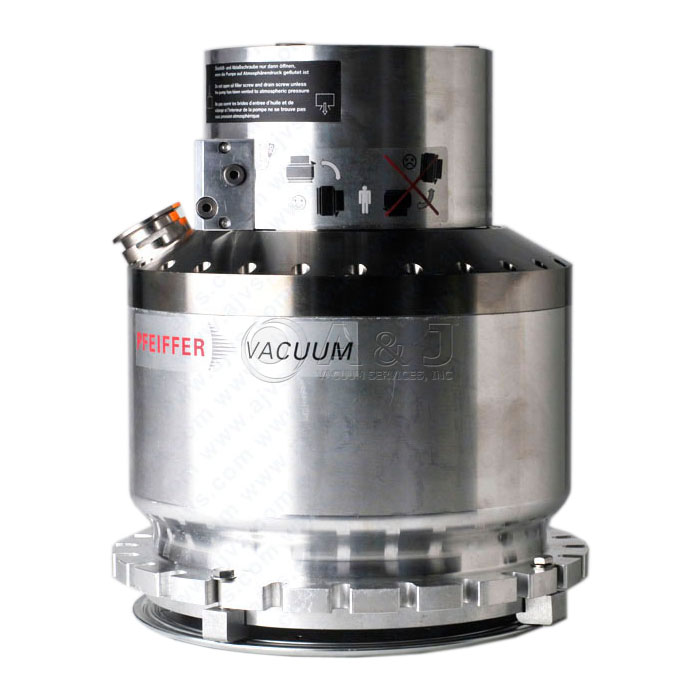

Pfeiffer Vacuum TPH 2301 UP, PMP03847 Turbo Pump, with TC 750, PM C01713, DN 250 ISO-K Inlet Flange, DN 40 ISO-KF Outlet Flange.

Fully refurbished Pfeiffer Vacuum TPH 2301 UP PMP03847 Turbo Pump coupled with a DN 250 ISO-K Inlet Flange and DN 40 ISO-KF Outlet Flange. This particular Turbomolecular Drag Pump has a pumping velocity of 1900 liters per second and a final pressure of 1 x 10^-7. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TPH 2301 UP Turbo Pump comes with an entire 12-Month Warranty.

Overview:

• Pumping speed: 1900 l/sec for N2
• DN 250 ISO-K Inlet Flange
• DN 40 ISO-KF Outlet Flange
• Ultimate pressure with rotary vane pump <1 x 10^-7 Mbar
• Air or Water Cooling required / available.
• This Pfeiffer pump package is fully rebuilt and comes with a  FULL 12-MONTH WARRANTY!

This Pfeiffer Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.

PN06372
