- Fully remanufactured
- Hydrocarbon Service, Air Cooled
- 200/240-380/415V (50Hz)
- 200/240-380/480V (60Hz),
Shopping Cart ( )
Adixen RSV151B Booster Pump, Hydrocarbon Oil, 200/240-380/415V (50Hz), Alcatel RSV-151B, 793272, RSV 151B Air Cooled
Condition:
Remanufactured
Call us for Availability
Item#:PN22487
Mfr Part#:793272 / RSV-151B
Manufacturer:Alcatel / Adixen
Price upon request
CONTACT US
Features:
Fully Remanufactured Adixen RSV151B Booster Pump, 200/240-380/415V (50Hz), Also known as Alcatel RSV-151B, 793272 Air cooled
The most noteworthy feature of RSV-151 and RSC-151B bosster pump is the motor coupling which is made only with static parts.
The roots RSV151 units are called ”in vacuum rotor” machines, i.e., the rotor of the electric motor is completely isolated by
a stainless steel cylindrical sleeve. This sleeve is centred inside the motor stator and attached to the machine casing,
with a static o-ring providing the necessary seal. In this way, any possibility of leaks around the motor/pump coupling
is precluded by eliminating the shaft passage with dynamic seal used in conventional set-ups.
The oil casings of Adixen RSV 151B are sealed from the pumping chamber by means of a link tube connecting the casings to the outlet of
the machine. This avoids the creation of any pressure difference between the pumping chamber and the casing which
would otherwise be conducive to oil migration. An oil mist filter avoids any oil back-streaming into casing tubes.
Features of Adixen RSV-151 B Blower Pump:
Alcatel RSV 151B Boosters with built-in by-pass valve. This valve provides a means of direct communication between the delivery outlet
and suction inlet when the maximum permissible differential pressure is exceeded
In such an event, part of the gas flow is recycled, there by avoiding any overload on the electric motor.
This device enables the Adixen RSV Roots booster and the roughing pump to be started up simultaneously from atmospheric pressure
without the need of pressure switches for delaying start-up of the roots machine. A higher flow rate is thus
obtained in high-pressure ranges, with a resulting reduction in pumping time.
Note : Machines with built-in by-pass valve can operate only with vertical pumping axis arrangement
(valve operation under gravity).
Typical applications:
We repair / rebuild and service Alcatel RSV-151 Adixen RSV151B Booster Pumps along with all other Alcatel Adixen Dry Pumps and Alcatel Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Fully Remanufactured Adixen RSV151B Booster Pump, 200/240-380/415V (50Hz), Also known as Alcatel RSV-151B, 793272 Air Cooled

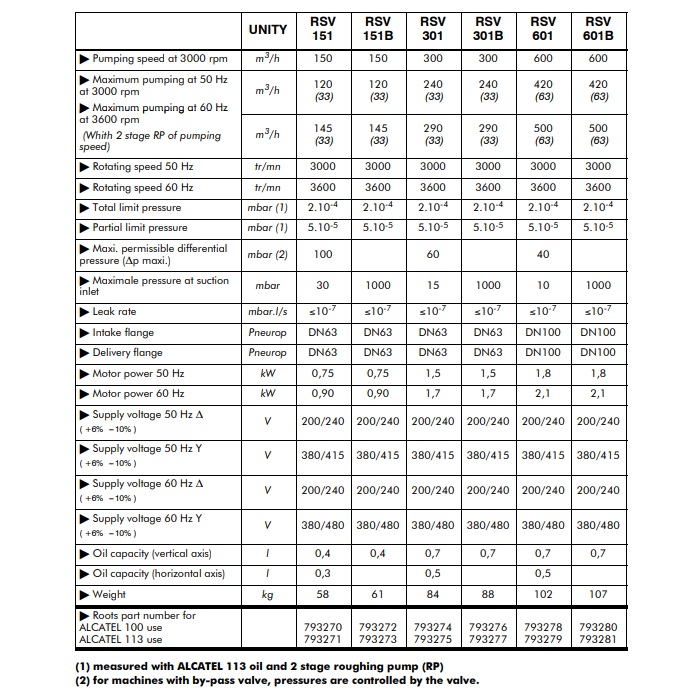

Technical Data:
We repair / rebuild and service Alcatel RSV-151 Adixen RSV151B Booster Pumps along with all other Alcatel Adixen Dry Pumps and Alcatel Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
