- PN P2WW300001102
- ADP ADS SERIES 2
- Model: 602 P
- 380/400 V
Shopping Cart ( )

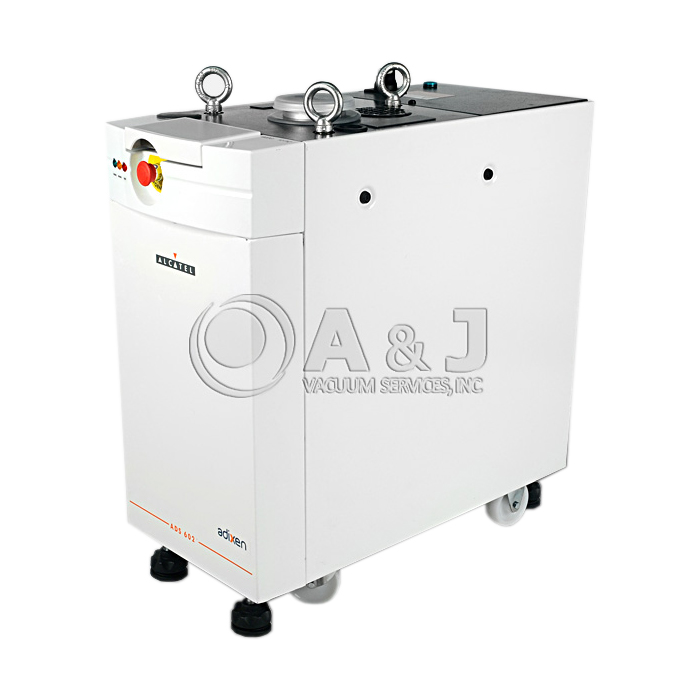

Alcatel Adixen ADS 602P (ADS602P) Series 2 Dry Vacuum Pump, 380/400 V, 50 Hz, P2WW300001102
Condition:
Remanufactured
In Stock
Item#:PN07511
Mfr Part#:P2WW300001102
Manufacturer:Adixen / Alcatel
Price upon request
CONTACT US
Features:
Alcatel Adixen ADS 602P (ADS602P) Series 2 Dry Vacuum Pump, 380/400 V, 50 Hz, P2WW300001102
Alcatel / Adixen ADS 602P Overview:
The Alcatel Adixen ADP ADS Series Two Dry Pump design brings high benefits for applications where cleanliness and reliability are key features. The Series Two family covers a large range of vacuum requirements with 4 models. These models can be chosen in LM versions for clean applications, P versions for light/medium applications, and H for harsh applications. Many major manufacturers from the semi-conductor industry have already selected this product. This choice allows them to reduce unscheduled downtime and overall running cost and increase profitability features and benefits.
The Alcatel Adixen ADP ADS Series Two Dry Pumps were designed to minimize potential residue deposits. This process is achieved by internal gas limitation, diluting the gas on each pump stage with N2, and adjusting the temperature in order to control gas condensation.

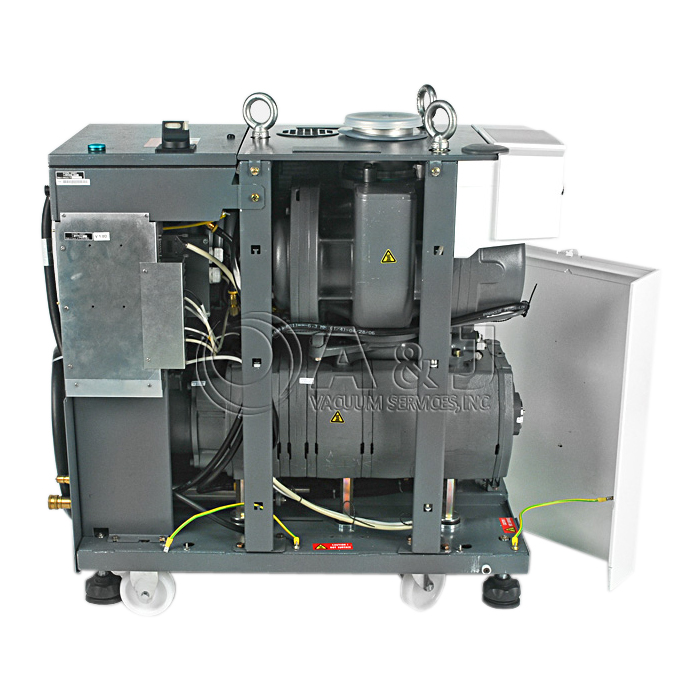

The Alcatel Adixen ADP ADS Dry Vacuum Pumps consist of 5 roots type stages (three stages of low pressure, and two of high pressure), and the two rotors that rotate without touching each other.
The Alcatel Adixen ADP ADS Series Two Dry Pumps offer M4 Monitoring, which consists of an electrical cabinet, hand held remote control, and an electronic cabinet. The ADP ADS Series Two Dry Pumps M4 Monitoring can be interfaced with the main production equipment.
Alcatel / Adixen ADS 602P Dimensions:
The Alcatel Adixen ADP ADS Series Two Dry Pumps offer the following features:
-
Wide inter-stage channels are able to store large quantities of powder and particles.
-
High operating temperature with closed-loop management system controls gas from inlet to outlet.
-
Vertical pumping on each stage prevents particulate accumulation.
-
Compact design: The series 3 ADP ADS Models are only 390 mm wide.
-
Clean: oil-free, dry pump providing no risk of contamination.
-
Quiet: all models include an integrated silencer.
-
Low power consumption.
-
Nitrogen Purge levels can be easily controlled by the user.
Click here to view Alcatel Adixen ADP ADS Series Two Dry Pump Operating Instructions.
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Alcatel Adixen ADS 602P (ADS602P) Series 2 Dry Vacuum Pump, 380/400 V, 50 Hz, P2WW300001102

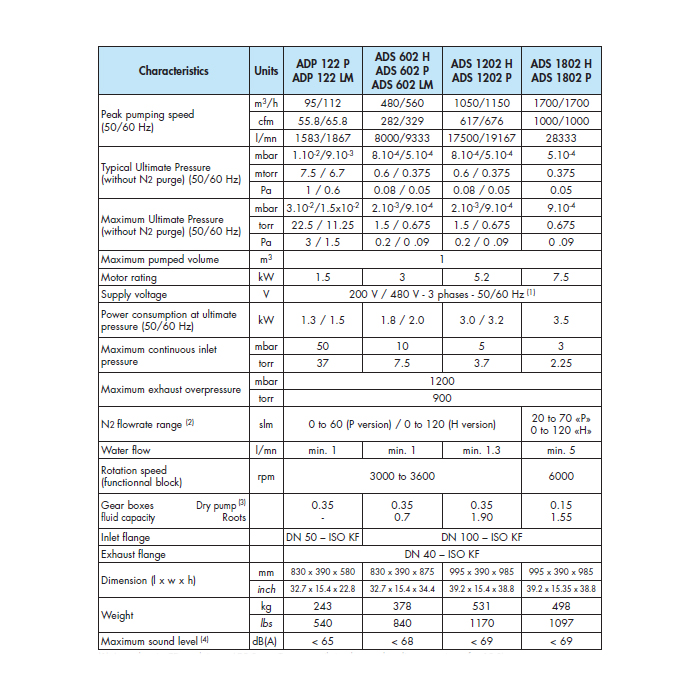

Alcatel / Adixen ADS 602P Technical Data:
Alcatel / Adixen ADS 602P Environmental Conditions
The Alcatel Adixen ADP ADS Series Two Dry Pump Models are designed for use in the following conditions:
-
Use of the product: indoor only
-
Altitude: up to 2000m
-
Ambient Operating temperature: 5 to 40ºC
-
Maximum Relative Humidity: 80% for temp. up to 31ºC decreasing linearly to 50% at 40ºC
-
Transient Overvoltage: Category II
-
Pollution Degree: Rate 2
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
AJVS_Alcatel_ADS602P_Dry_Pump_Sales_and_Repair.pdf
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
