- Measuring Range (air, N2): 5 x 10-9 ... 1000 mbar
- DN 35 CF Flange
- FRG700CF35
Shopping Cart ( )
Agilent FRG 700 Full Range Pirani IMG Vacuum Gauge, FRG700CF35, FRG
Condition:
New
Item#:PN07420
Mfr Part#:FRG700CF35
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:

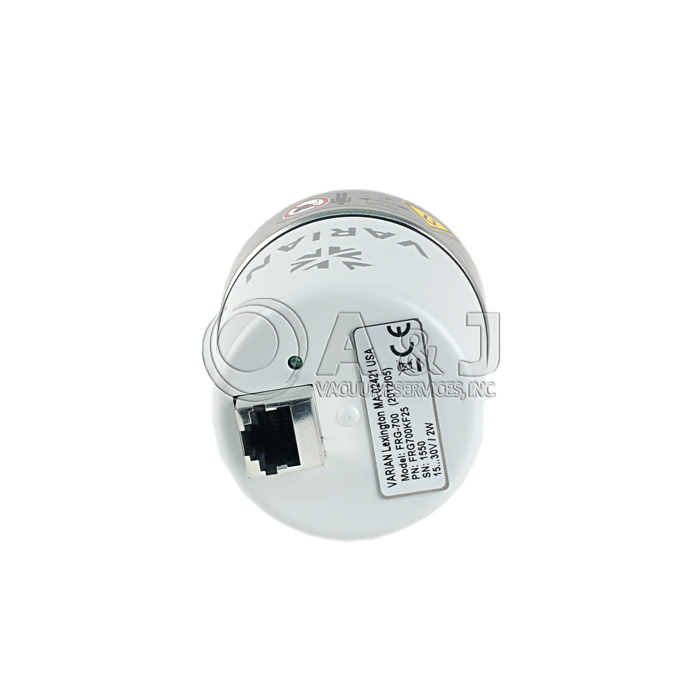

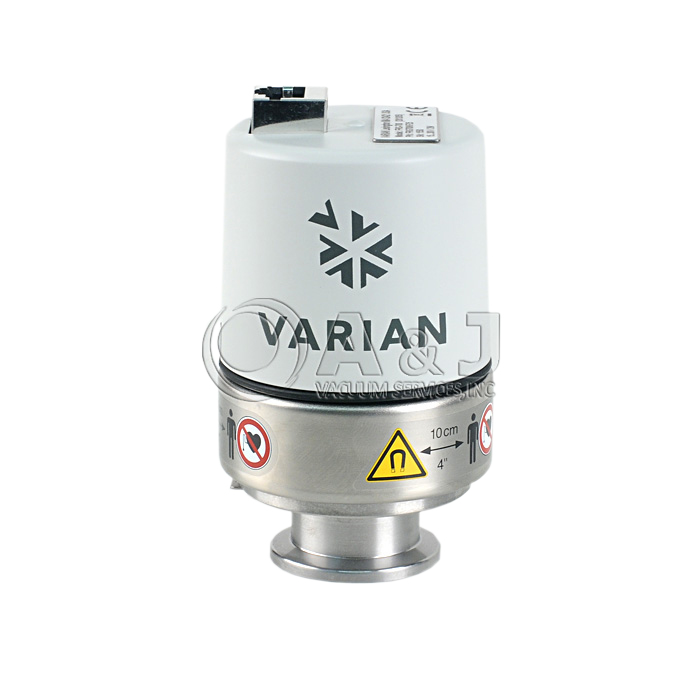

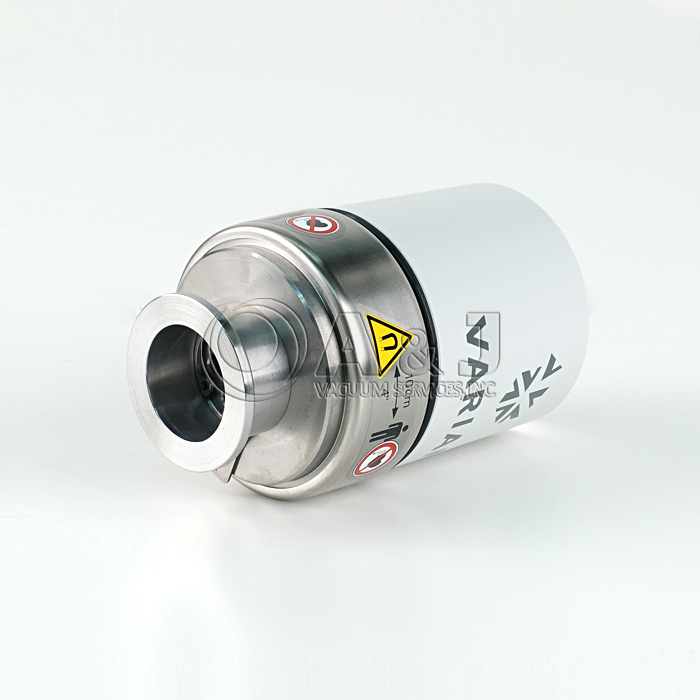

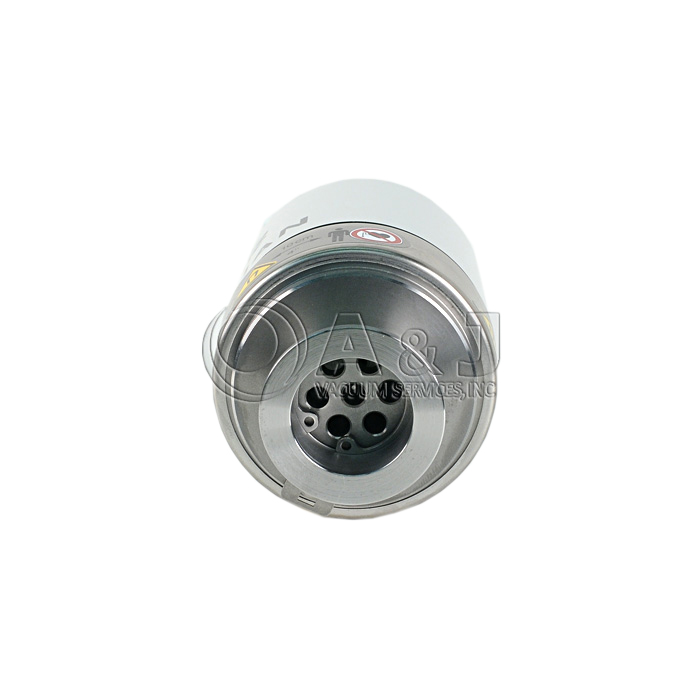

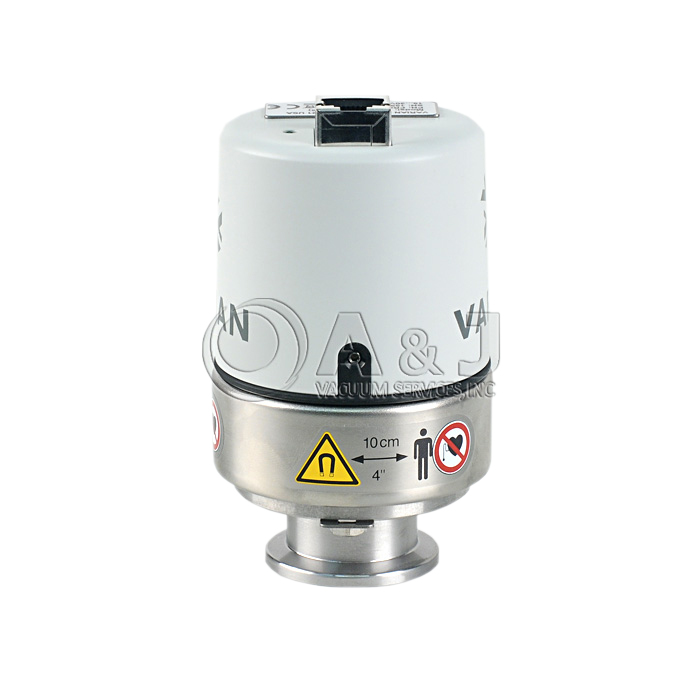

Agilent Technologies FRG700 Full Range Pirani IMG Vacuum Gauge, FRG700CF35, FRG
Agilent FRG 700 Overview:
The gauge consists of two separate measurement systems (Pirani and cold cathode system) the signals of which are combined in such a way that one measurement signal is output. The Pirani measurement circuit is always on.
Over the whole measuring range, the measuring signal is output as a logarithm of the pressure.
The gauge is factory-calibrated. If used under different climatic conditions, through extreme temperatures, aging or contamination, and after exchanging the sensor, the characteristic curve can be offset and readjustment may become necessary.
The cold cathode measuring circuit, which is dominant for low pressures (<1×10-3mbar), is factory-calibrated and cannot be adjusted. By way of contrast, the Pirani measuring circuit can be adjusted. Any adjustment has a negligible effect on the pressure range between approx. 10-2mbar and 102mbar.
Agilent FRG 700 Features:
- Provides 2 measuring technologies in a single, compact, economical package
- Measures process and base pressure from 5 x 10-9 mbar to atmosphere (3.8 x 10-9 Torr to atmosphere)
- A single, compact unit with one logarithmic analog output signal significantly reduces the complexity of installation, setup and integration
- Ideal for high vacuum pressure monitoring, base pressure for evaporation and sputtering systems, and general vacuum measurement and control in the medium and high vacuum range
- Wide measurement range from 5 x 10-9 mbar to atmosphere
- No filament to burn out
- Excellent ignition properties
- Easy to clean
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

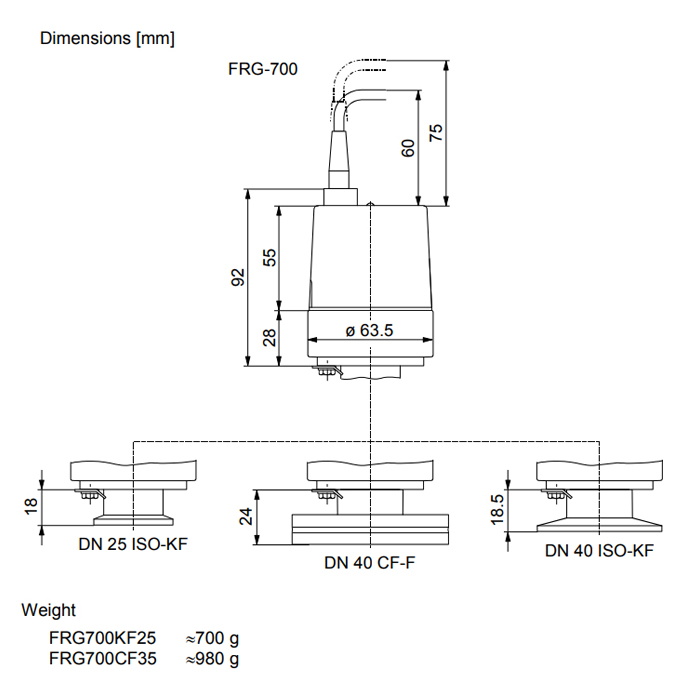

Agilent FRG 700 Dimensions:
Click Here for Agilent FRG 700 Manual
A&J Vacuum Services offers full repair/service of Agilent / Varian, along with all other brands offered on our website. AJVS also services Agilent / Varian pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Agilent Technologies FRG700 Full Range Pirani IMG Vacuum Gauge, FRG700CF35, FRG
Agilent FRG 700 Technical Data:
| Measurement range | 5 x 10-9 to 1000 mbar (3.8 x 10-9 to 760 Torr) | ||||||
| Accuracy | ± 30 % of reading, typical | ||||||
| Repeatability | ± 5 % of reading, typical | ||||||
| Mounting orientation | Any | ||||||
| Admissible temperature (ambient) | Operation Storage | Bake-out* | (Pirani) | Filament Temperature | |||
| 5 to 55 °C | –40 to +65 °C | 150 °C | 120 °C | ||||
| Supply voltage | At gauge | Ripple | Power consumption | ||||
| 15 to 30 VDC | ≤1 Vpp | ≤2 W | |||||
| Output signal (measurement signal) | Voltage range | Measurement range | |||||
| 0 to 10.5 V | 1.82 to 8.6 V | ||||||
| Voltage vs. pressure | 0.6 V/decade, logarithmic | ||||||
| Error signal | <0.5 V (no supply), >9.5 V (Pirani sensor, filament rupture) | ||||||
| Minimum loaded impedance | 10 kΩ, short-circuit proof | ||||||
| Response time | <10 ms (@ p> 10-6 mbar), ≈1000 ms (@ p= 10-8 mbar) | ||||||
| Identification gauge | 85 kΩ, referenced to supply common | ||||||
| Status | Pirani-only mode | Combined Pirani/cold cathode mode | LED | ||||
| 0 V (low) | 15 V to 30 (high) | LED green high voltage on | |||||
| Electrical connection | FCC 68 appliance connector, 8 poles, female | ||||||
| Sensor cable | 8 poles plus shielding | ||||||
| Maximum cable length | ≤ 50 m | ||||||
| Operating voltage/current | ≤3.3 kV/≤500 A | ||||||
| Materials exposed to vacuum | SS, Al2O3, FPM75, Mo, Ni, Au, W | ||||||
| Internal volume | ≈ 20 cm3 | ||||||
| Weight | DN 25 ISO-KF ≈700g, DN 40 CF ≈980g | ||||||
| Standards | EN 61000-6-2, EN 61000-6-3, EN 61010-1 | ||||||
Click Here for Agilent FRG 700 Manual
A&J Vacuum Services offers full repair/service of Agilent / Varian, along with all other brands offered on our website. AJVS also services Agilent / Varian pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
