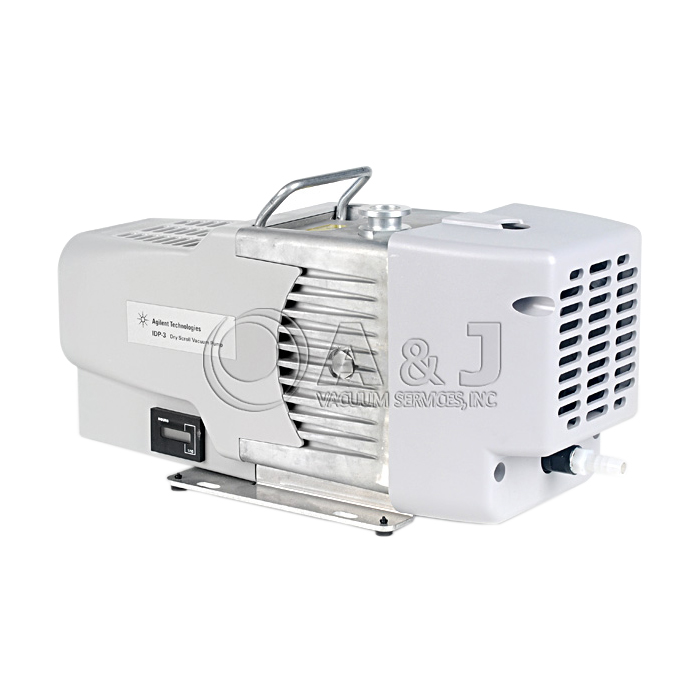

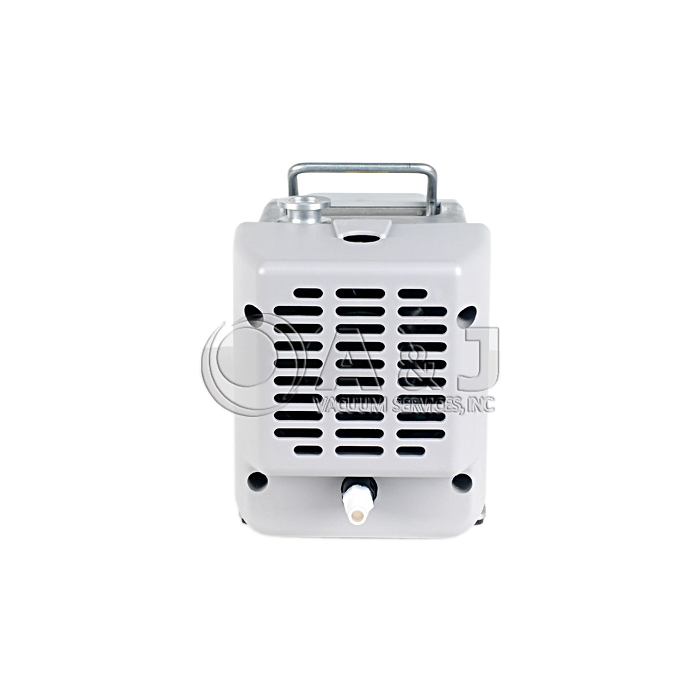

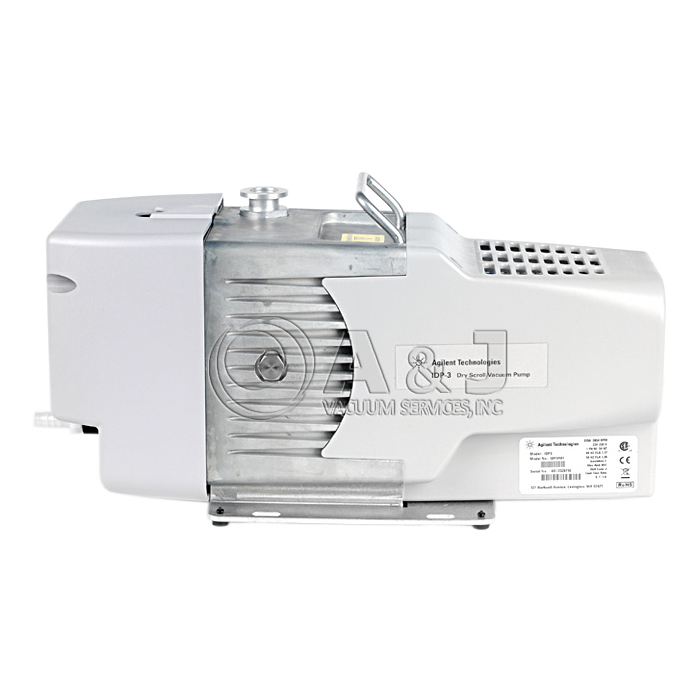

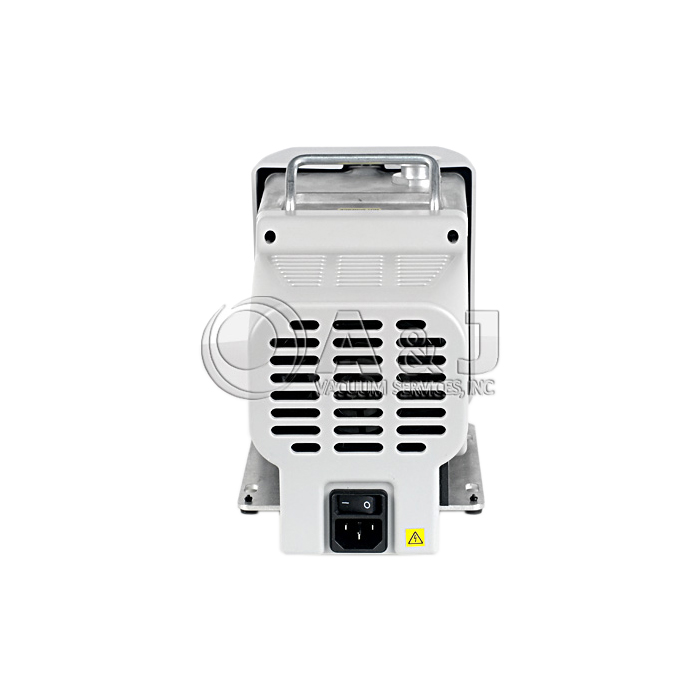

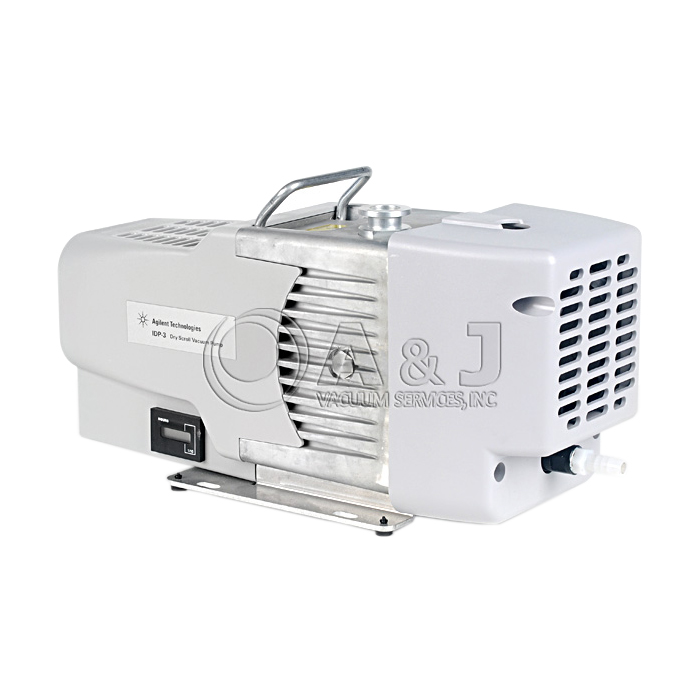

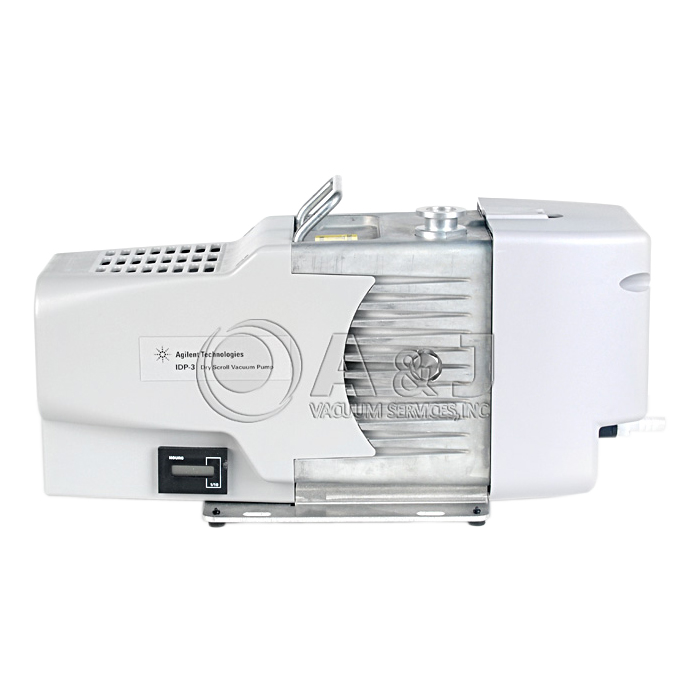

Agilent IDP 3 Dry Scroll Pump, Single Phase, 220 VAC, 50/60 Hz, IDP3A01

Condition: New

Item#:PN06759

Mfr Part#:IDP3A01

Manufacturer:Agilent Technologies / Varian

Price upon request

Request a repair estimate Request sales quote Financing available

New Agilent IDP 3 Dry Scroll Pump, Single Phase, 220 VAC, 50/60 Hz, IDP3A01

Features:

Oil-Free, for No Contamination of the Vacuum System
Peak Pumping Speed (60 Hz): 60 L/m, 3.6 m³/hr, 2.1 cfm
Peak Pumping Speed (50 Hz): 50 L/m, 3.0 m³/hr, 1.8 cfm
Ultimate Pressure: 2.5 × 10-1 torr (3.3 × 10-1 mbar, 33 Pa)

Overview
Specifications
Manuals
MFR Brochures
AJVS Brochures
Service & Repair

Agilent IDP 3 Dry Scroll Pump, Single Phase, 220 VAC, 50/60 Hz, IDP3A01

Agilent IDP 3 Features:

Oil-free, for no contamination of the vacuum system
Hermetic design with fully isolated motor and bearings
Small size: 14 × 7 × 6 inches (351 × 181 × 140 mm)
Lower base pressure than diaphragm pumps
No mechanisms subject to catastrophic failure
Low noise and vibration

IDP 3 / IDP3A01 Overview:

The Agilent Varian IDP 3 Dry Scroll Vacuum Pump is an innovative, compact, high-performance, oil-free vacuum pump that is suitable for a wide variety of applications. It is the smallest scroll pump made for general vacuum applications, which makes it easy to integrate it into OEM systems, and it weighs only 21 pounds (9.5 kg). Yet with a pumping speed of 60 liters/min and a very low base pressure of 250 millitorr, it is the highest-performing dry pump in its class.

IDP3 Applications:

Mass Spectrometry Time of Flight (TOF Systems)
Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
Liquid Chromatography Mass Spectrometry (LC/MC)
Mass Spectrometry
ICP-MS Mass Spectrometry
Optical Coating
Metal Coating
High Vacuum Furnaces
LCD Screens manufature
Solid State Media Storeage
Semiconductor process
Gas Analysis
Surface Analysis
Electron Microscopy
Scaning Electron Microscopy (SEM)
Physics Research
High Vacuum Applications
Light Accelerators Research and Development
UHV Research and Development

A&J Vacuum also repair / rebuild and service Varian IDP3 / G3170-80036 Dry Scroll pumps along with all other Agilent Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

This item is non-returnable/non-refundable

Agilent IDP 3 Dry Scroll Pump, Single Phase, 220 VAC, 50/60 Hz, IDP3A01

Agilent IDP 3 Technical Data:

Base pressure (50 Hz) - Torr & mbar	2.5 x 10-1 Torr \| 3.3 x 10-1 mbar
Base pressure (60 Hz) - Torr & mbar	2.5 x 10-1 Torr \| 3.3 x 10-1 mbar
Dimensions (WxHxL)	5.5 in x 7.13 in x 14.09 in
Exhaust Connection	¼ inch female NPT (10 mm hose barb provided)
Height	7.13 in \| 181.102 mm
Inlet Connection	NW16
Input Voltage	1Ø, 220 V. 50/60 Hz
Length	14.09 in \| 358 mm
Noise Level	55 dB(A)
Pumping Speed (50 Hz)	1.8 CFM \| 3 m3/h \| 50 L/min
Pumping Speed (60 Hz)	2.1 CFM \| 3.6 m3/h \| 60 L/min
UNSPSC Code	40151502
Width	5.5 in \| 140 mm

Agilent-Varian-IDP-3-Scroll-Pump-Operation-Manual

Agilent Technologies IDP 3 Dry Scroll Pump Brochure

AJVS_Agilent_Varian_IDP3_Sales_and_Repair.pdf AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf

Get started with your repair:

We can have a repair estimate ready for your equipment within the hour of submission.

Request a repair estimate

Start your equipment repair process by creating a Service RMA.

Generate Service RMA

High quality service guaranteed

A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.

We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

AJVS repair process:

Repair Steps

Full incoming inspection and run up time check, vibration check, drive inspection.
Full disassembly of the pump, decontamination and cleaning.
Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
