Agilent Technologies TV 401/301/21 NSF Turbo Vacuum Pump Control Unit, 9698979M002
Condition:
Remanufactured
Call us for Availability
Item#:PN15626
Mfr Part#:9698979M002
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:
Agilent Technologies TV 401/301/21 NSF Turbo Vacuum Pump Control Unit, 9698979M002
TV 401/301/21 NSF / 9698979M002 Overview:

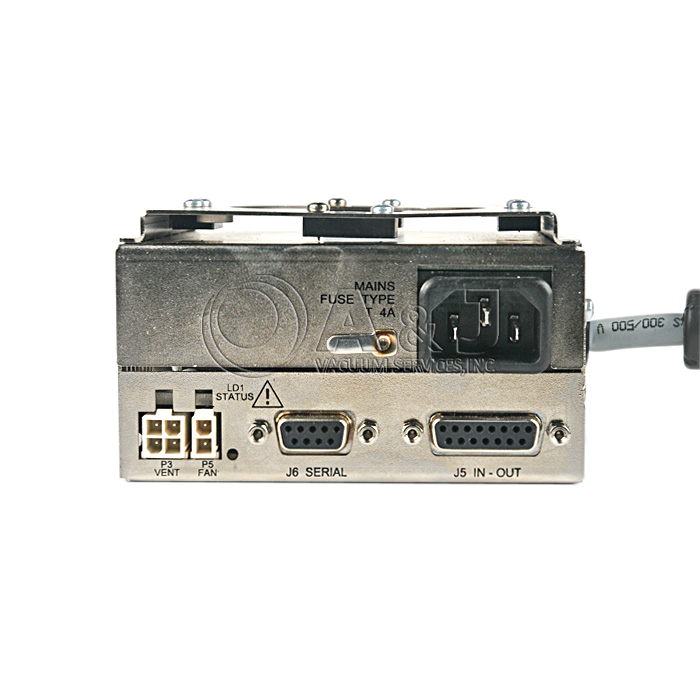

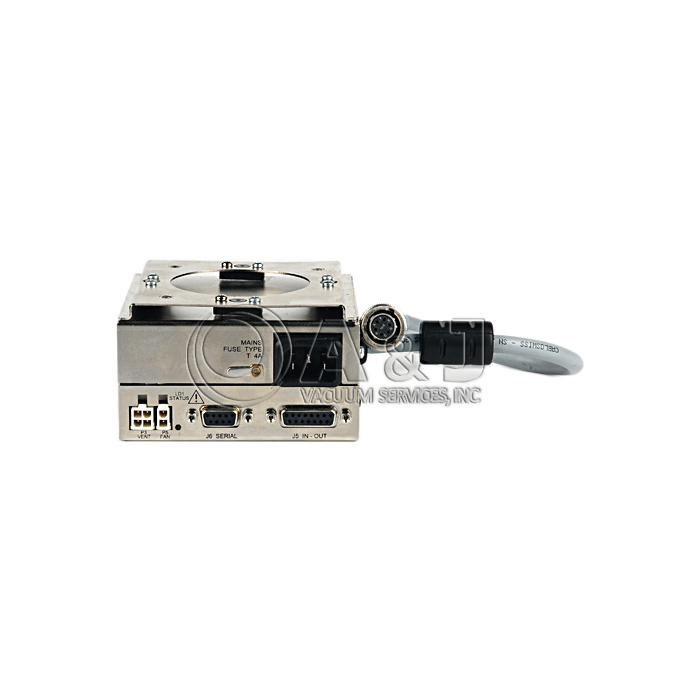

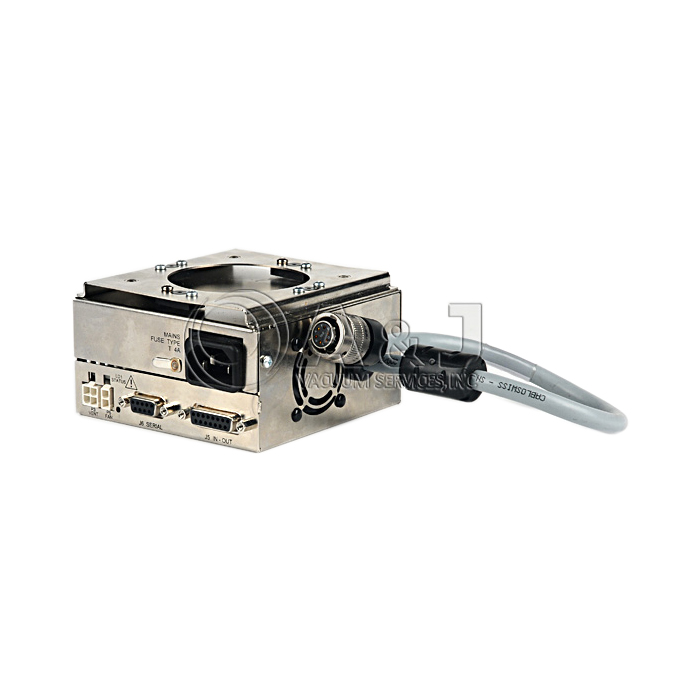

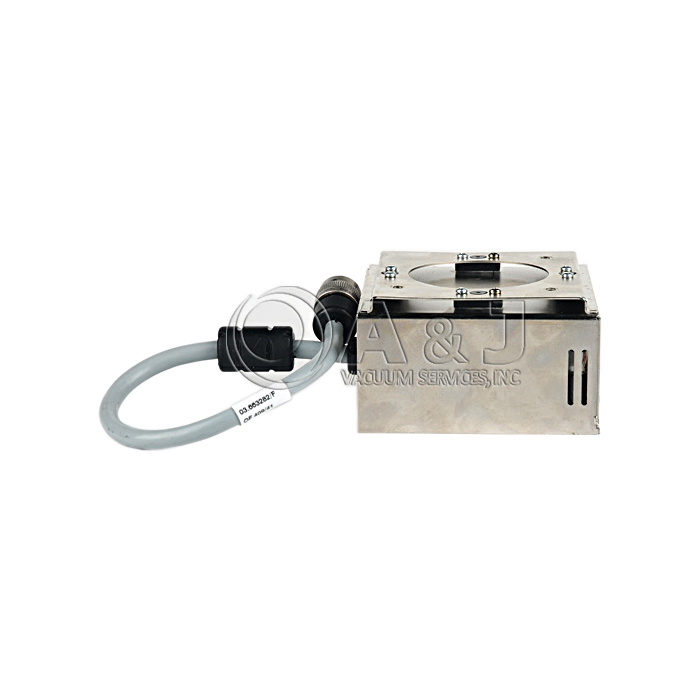

The Agilent Technologies TV 401/301/21 NSF Turbo Pump Control Unit is a solid-state frequency converter which is driven by a single chip micro-computer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section.
The power supply, together with the 3-phase out-put, converts the single phase AC mains supply into a 3-phase output which is required to power the pump.
The controller can be operated in two ways:
- via digital/analog I/O connector
- via serial RS 232 or 485 connector
This item is non-returnable/non-refundable
Agilent Technologies TV 401/301/21 NSF Turbo Vacuum Pump Control Unit, 9698979M002
Agilent Technologies TV 401/301/21 NSF Technical Data:
| Input Voltage | 100-240 Vac |
| Input Frequency | 50/60 Hz |
| Max Input Power | 300 VA |
| Stand-By Power | 10W |
| Protection Fuse | 4 A |
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
