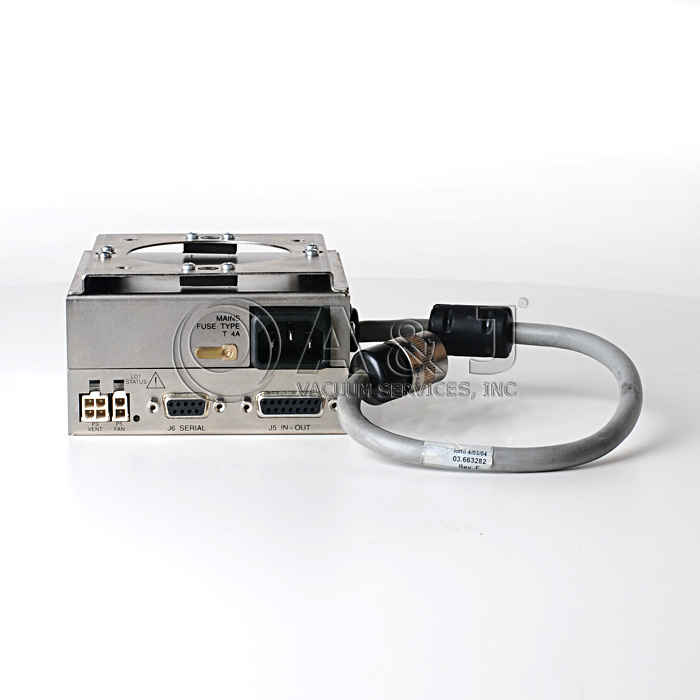

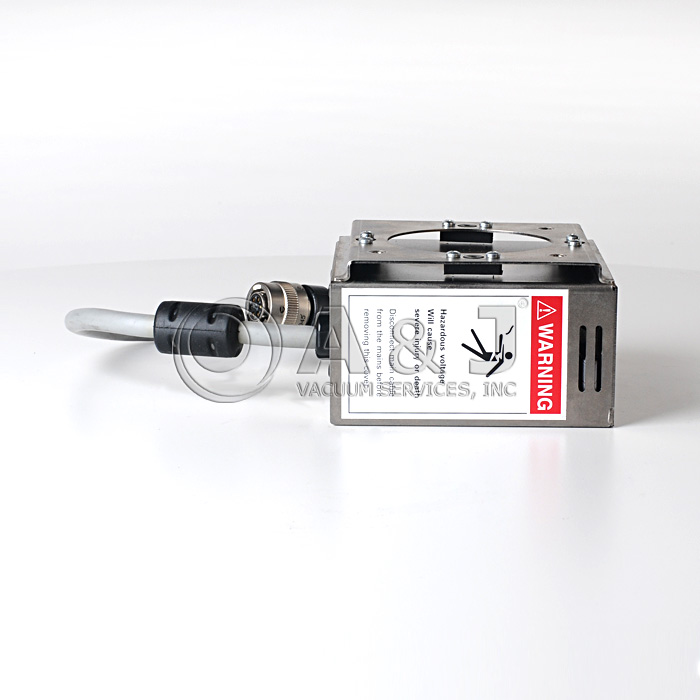

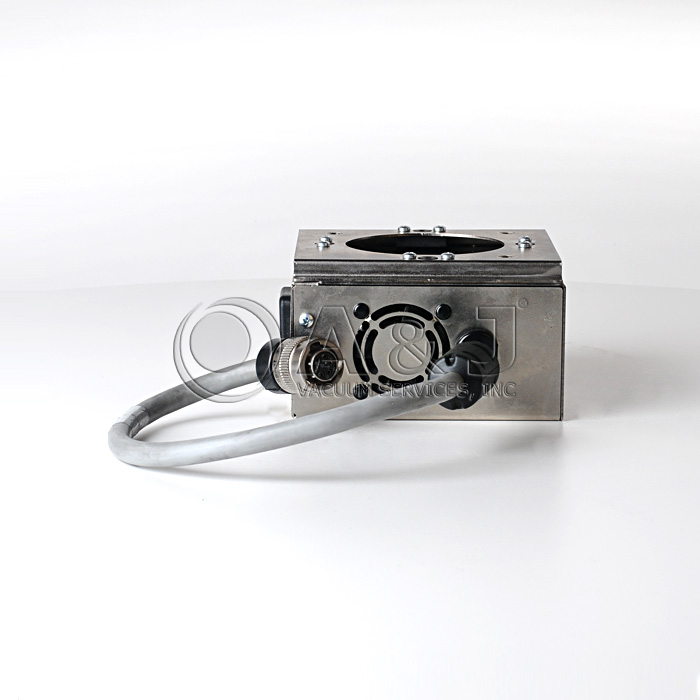

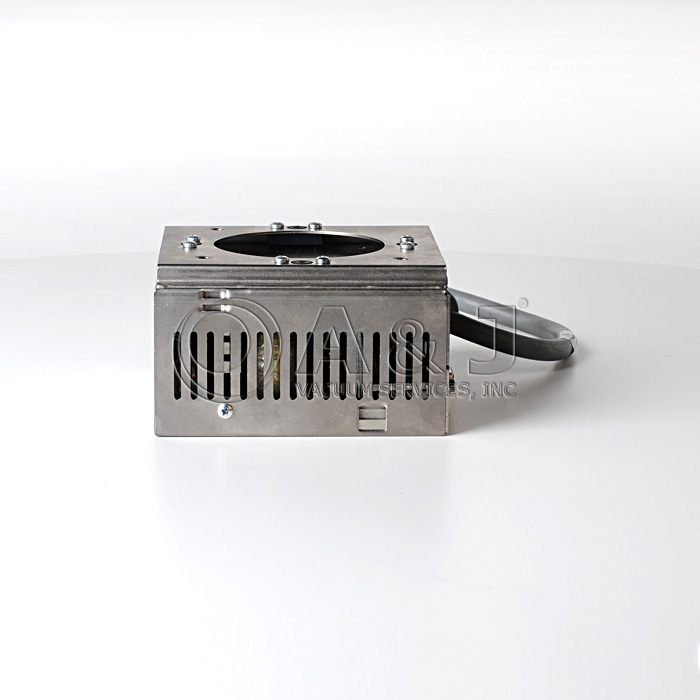

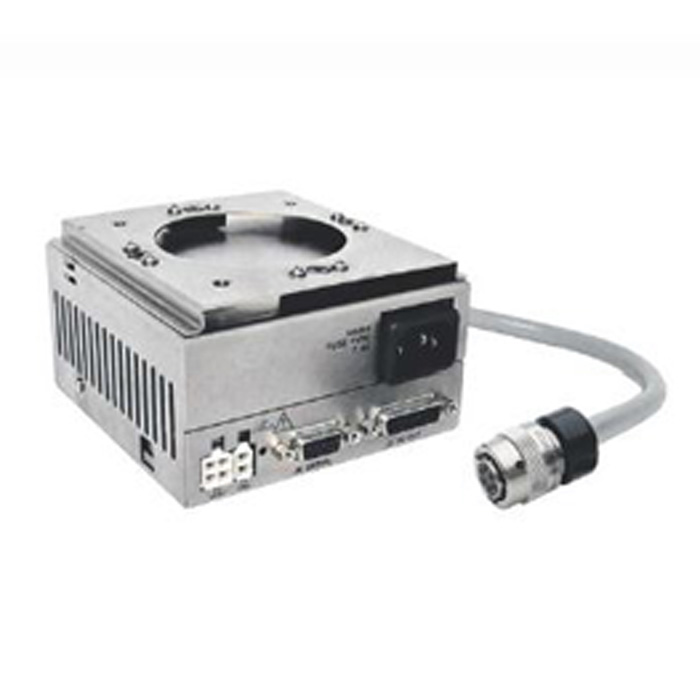

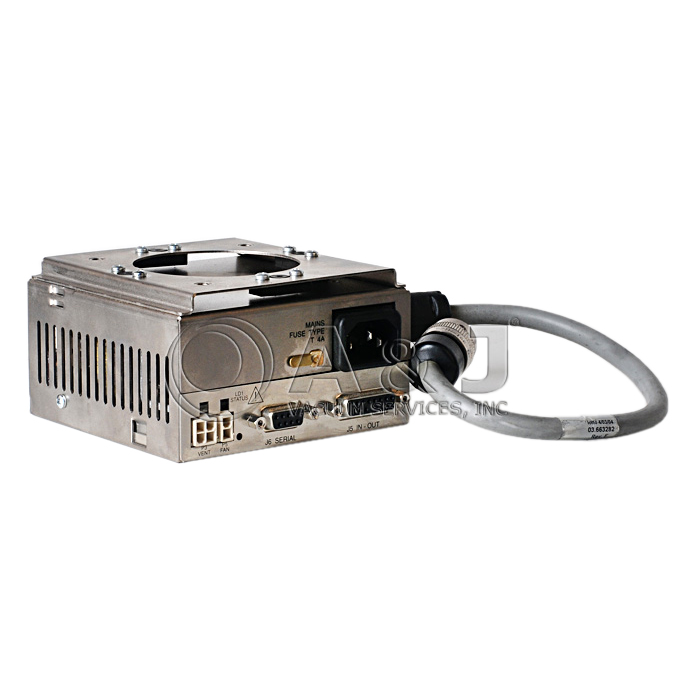

Agilent Technologies TwisTorr 304 FS On Board Turbo Pump Controller, 100-240 VAC, X3507-64043 / X350764043

Condition: Remanufactured

Call us for Availability

Item#:PN20645

Mfr Part#:X3507-64043 / X350764043

Manufacturer:Agilent Technologies / Varian

Price upon request

Request a repair estimate Request sales quote Financing available

Remanufactured Agilent Technologies TwisTorr 304 FS On Board Turbo Pump Controller, 100-240 VAC, X3507-64043 / X350764043

Features:

Overview
Specifications
Service & Repair

Agilent Technologies TwisTorr 304 FS On Board Turbo Pump Controller, 100-240 VAC, X3507-64043 / X350764043

Agilent Technologies TwisTorr 304 FS Features:

Drives the pumps of the 304 NAV family
Powers the pump cooling fan
Drives the vent valve
Provides and acquires teh pressure of the wide range gauge
Remote I/Os compatible with the previous version
TwisTorr 304 default serial compatible with the previous RS 232 and 485 version

TwisTorr 304 FS / X3507-64043 Overview:

The dedicated controller is a solid-state frequency converter which is driven by a single chip microcomputer and consists of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section. The power supply, together with the 3-phase output, converts the single phase AC mains supply or 24Vdc supply into a 3-phase, low voltage, medium frequency output which is required to power the pump. The controller can be operated by a remote host computer via the serial connection. A Windows-based software is available (optional).

This item is non-returnable/non-refundable

Agilent Technologies TwisTorr 304 FS On Board Turbo Pump Controller, 100-240 VAC, X3507-64043 / X350764043

Agilent Technologies TwisTorr 304 FS Technical Data:

Input Voltage	100-240 Vac
Input Frequency	50/60 Hz
Max Input Power	300 VA
Stand-by Power	10 W
Max Operating Power	150 W with water or air cooling
Protection Fuse	4 A
Input	75 Vac, three phase, 1010 Hz

Get started with your repair:

We can have a repair estimate ready for your equipment within the hour of submission.

Request a repair estimate

Start your equipment repair process by creating a Service RMA.

Generate Service RMA

High quality service guaranteed

A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.

We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

AJVS repair process:

Repair Steps

Full incoming inspection and run up time check, vibration check, drive inspection.
Full disassembly of the pump, decontamination and cleaning.
Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

We can repair your:
