- PN X3508-64002
- Profibus
- Weight: 1.7 kg
- Frequency: 50 to 60 Hz
Shopping Cart ( )

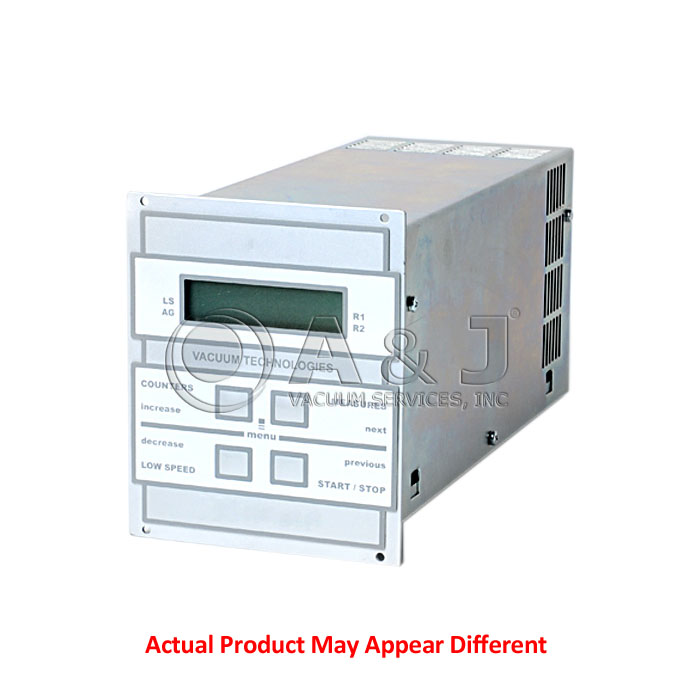

Agilent Technologies TwisTorr 84 FS AG Rack Turbo Pump Controller With Profibus, X3508-64002 / X350864002
Condition:
New
Item#:PN22257
Mfr Part#:X3508-64002 / X350864002
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:
Agilent Technologies TwisTorr 84 FS AG Rack Turbo Pump Controller With Profibus, X3508-64002 / X350864002

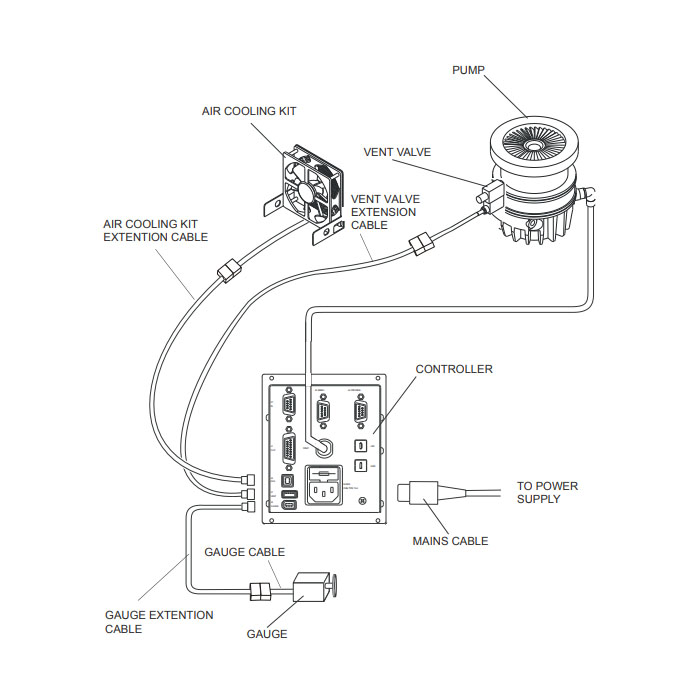

Agilent Technologies TwisTorr 84 FS AG Features:
- Designed for use with 84 FS family
- Powers the pump cooling fan
- Drives the vent valve
- Provides and acquires pressure of the gauge
- Remote is compatible with previous version
- Speed reading after stop
TwisTorr 84 FS AG / X3508-64002 Overview:
The Agilent Technologies TwisTorr 84 FS-AG Rack Controllers are micro-processor controlled, solid-state, frequency converter with selfdiagnostic and self-protection features. The enhaned features of these controllers allow grater control and communication capabilities, such as vent valve control, active gauge pressure reading, and pump operation parameters control.
A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Agilent Technologies TwisTorr 84 FS AG Rack Turbo Pump Controller With Profibus, X3508-64002 / X350864002

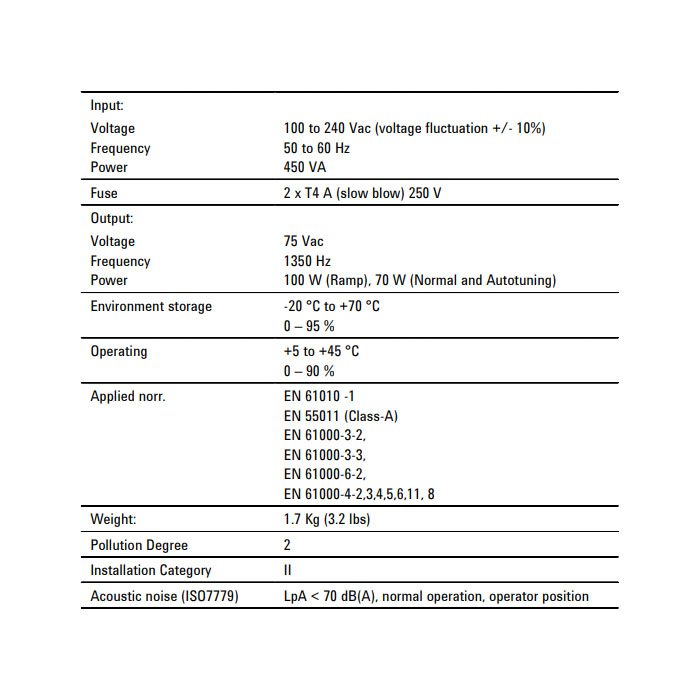

Agilent Technologies TwisTorr 84 FS AG Technical Data:
| Communications Interface | Profibus RS232 RS485 |
| Compatible Mains Cables | IEC-320 |
| Configuration | Remote controller, rack-mounted |

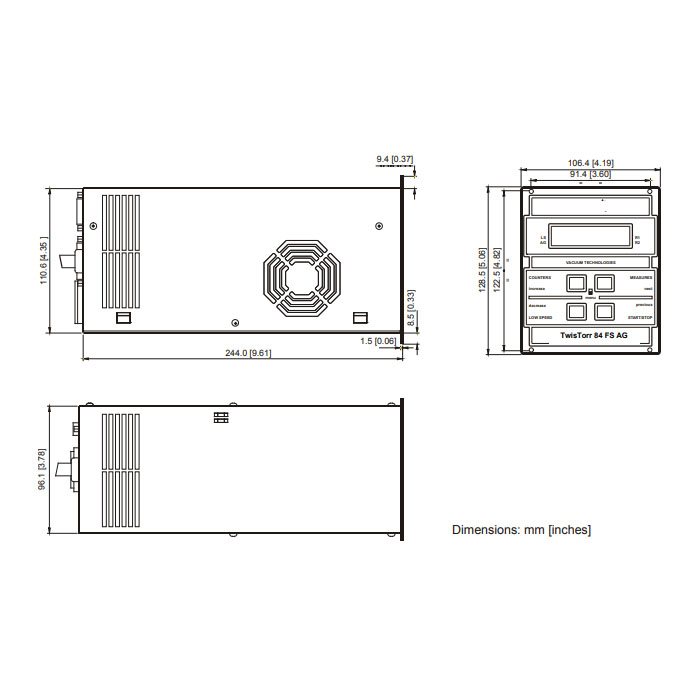

| Dimensions (WxHxL) | 106.4 mm x 128.5 mm x 244 mm | 4.18 in x 5.05 in x 9.6 in |
| Display | LCD |
| Height | 128.5 mm | 5.05 in |
| Input Frequency | 50 to 60 Hz |
| Input Voltage | 100-240 Vac (±10%) |
| Length | 244 mm | 9.6 in |
| Maximum Input Power | 450 VA |
| Maximum Pump Cable Length | 100 m | 3937 in |
| Modes of Operation | Local Remote Serial |
| Pump Model Compatibility | TwisTorr 84 FS Turbo Pump |
| Rack Mount Size | 3U 1/4 Rack |
| Standards and Certifications | EN 61010 -1 EN 55011 (Class-A) EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-4-2,3,4,5,6,11, 8 |
| Storage Temp Conditions | Store from -20°C to +70°C | -4°F to +158°F | 253.15 K to 343.15 K |
| UNSPSC Code | 32151706 |
| Weight | 1.7 kg | 3.7 lb |
| Width | 106.4 mm | 4.18 in |
A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
