- Displacement: 1000 L/min (50Hz) / 1200 L/min (60Hz)
- Ultimate Pressure: < 1 Pa
- Inlet Connection: NW 40
- Voltage: AC 200V / 208V / 230V / 380V
Shopping Cart ( )

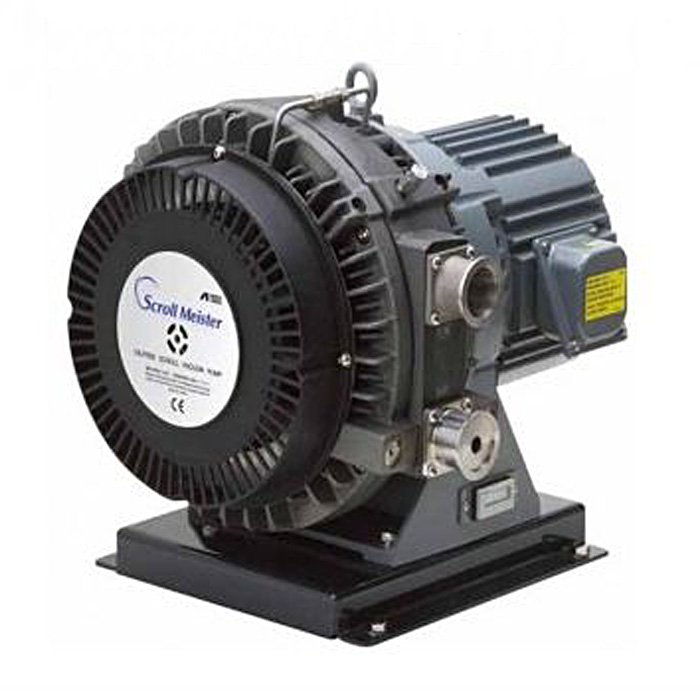

Anest Iwata ISP-1000 Dry Scroll Vacuum Pump, Horizontal Inlet, Three Phase Motor, ISP 1000E, ISP-1000E-TH
Condition:
New
Item#:PN15284
Mfr Part#:ISP-1000E-TH
Manufacturer:Anest Iwata
Features:
Anest Iwata ISP-1000 Dry Scroll Vacuum Pump, Horizontal Inlet, Three Phase Motor, ISP 1000E, ISP-1000E-TH
This is a direct replacement pump for obsolete Leybold SC-60 / PN 133008

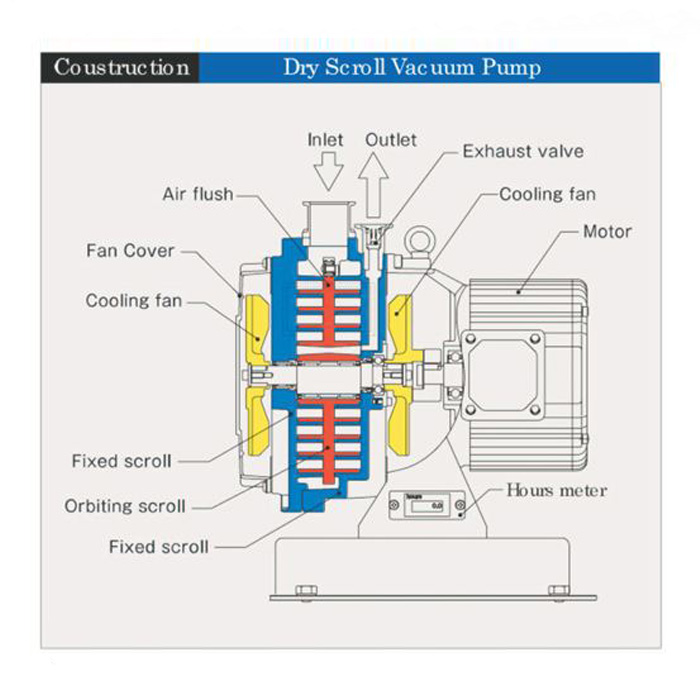

Anest Iwata ISP-1000 Pump Overview:
The Anest Iwata ISP-1000 Dry Scroll Pumps offer a clean vacuum enviroment and elimates the nuisance of cumbersome lubricant maintenance or sealing water administration. The ISP Series Scroll Vacuum Pumps operate under low power consumption from atmosphere to maximum pressure.
The ISP-1000 Dry Pump is free from installation restrictions because of its air-cooled system, and does not require water cooling.
The Anest Iwata ISP-1000 Scroll Vacuum Pump is equipped with Air Flush Port, which pumps out the remaining moisture left over from pumping humid gases and maintains the ultimate pressure.
This pumping system is made for clean processes only. Explosive, flammable, toxic or corrosive substances or substances which contain chemicals, solvents or particles are not to be used with the ISP Series Dry Scroll Pumps.
The ISP-1000 Oil Free Vacuum Pump should be operated at temperature in the range of 5ºC to 40ºC.

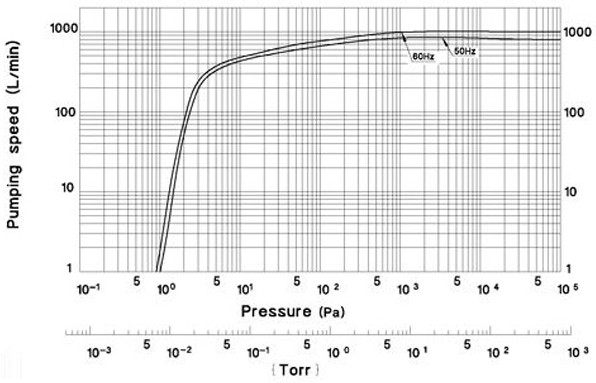

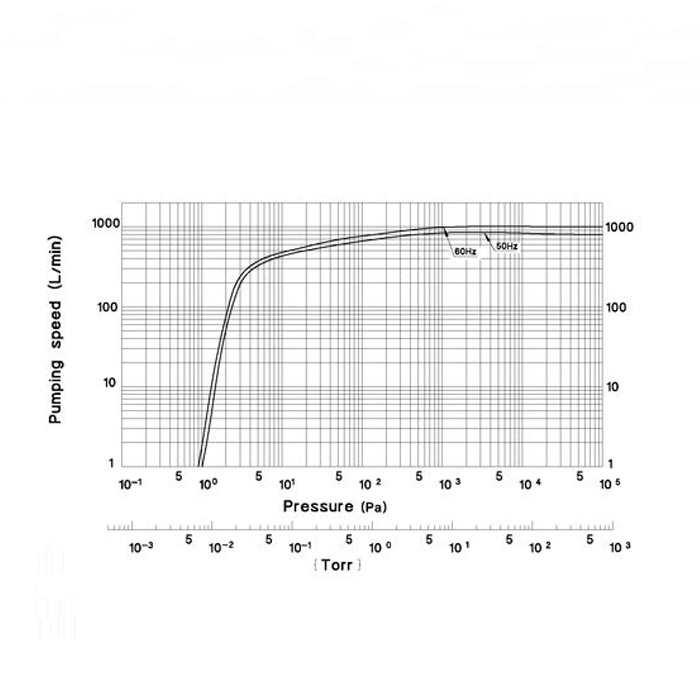

Anest Iwata ISP-1000 Pumping speed:
Anest Iwata ISP-1000 Dry Scroll Pump Applications:
- Sputtering Equipment, Vacuum Depostition Equipment, Ion Plating Equipment
- Accelerator, Synchrotron Radiation
- Surface Modification, Electron Beam Process
- Gas Recovery Devices
- Vacuum Equipment
- Leak Detectors
- Device Handling System
- Vacuum Furnace, Heat Treatment Furnace
- Laboratory Use
- Vacuum Packaging Machine

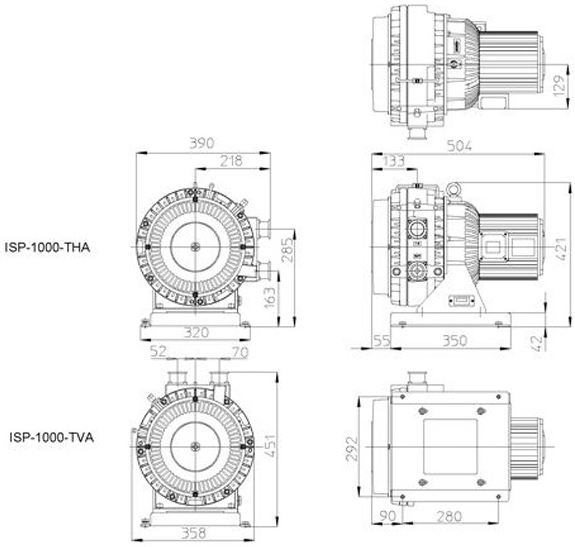

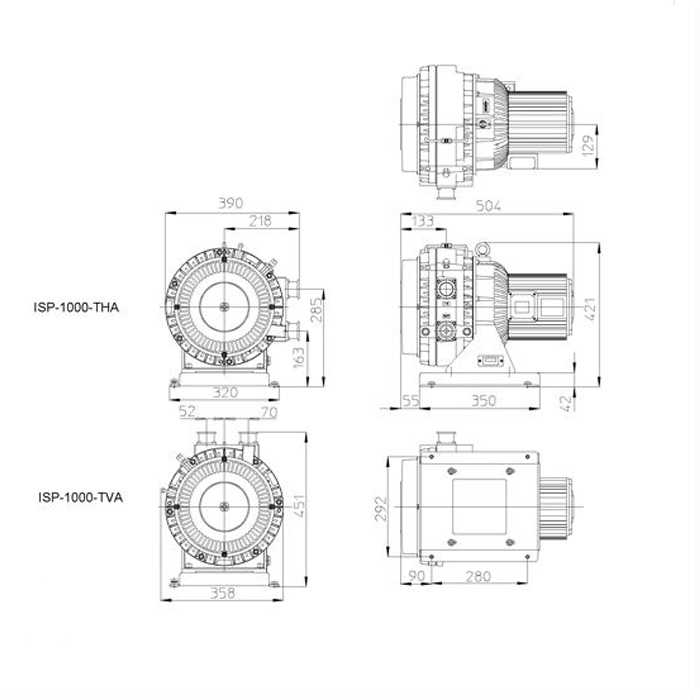

Anest Iwata ISP-1000 Dimensions:
Click Here to view Anest Iwata ISP-1000 Dry Scroll Vacuum Pump Instruction Manual.
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Anest Iwata ISP-1000 Dry Scroll Vacuum Pump, Horizontal Inlet, Three Phase Motor, ISP 1000E, ISP-1000E-TH

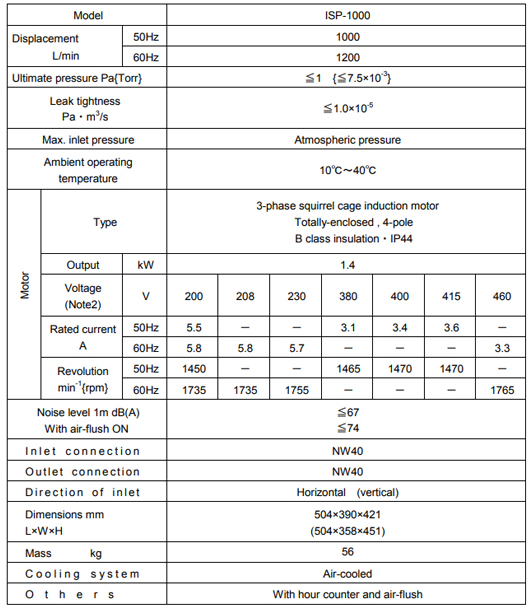

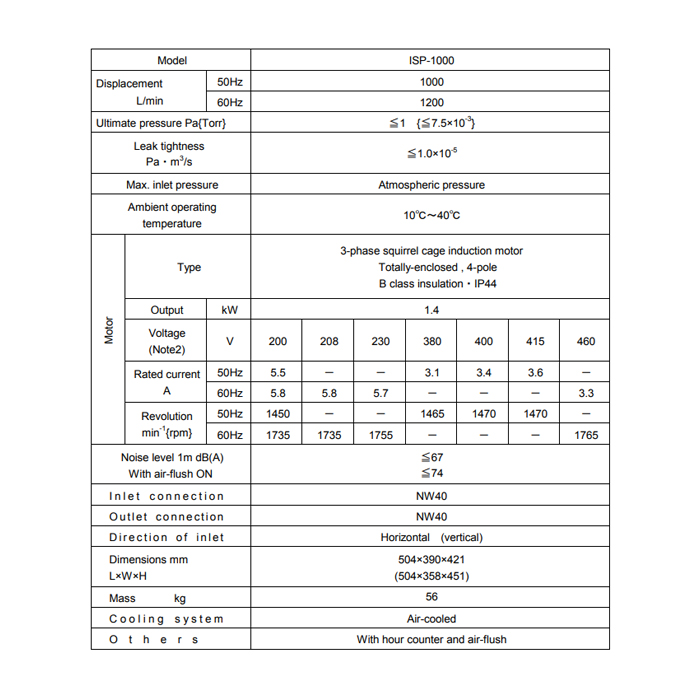

Anest Iwata ISP-1000 Technical Data:
Click Here to view Anest Iwata ISP-1000 Dry Scroll Vacuum Pump Instruction Manual.
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
