- Pumping Speed 520 L/min (60Hz)
- Ultimate Pressure: <60 Pa
- Inlet Connection: NW 25
- Voltage: 230 V
Shopping Cart ( )

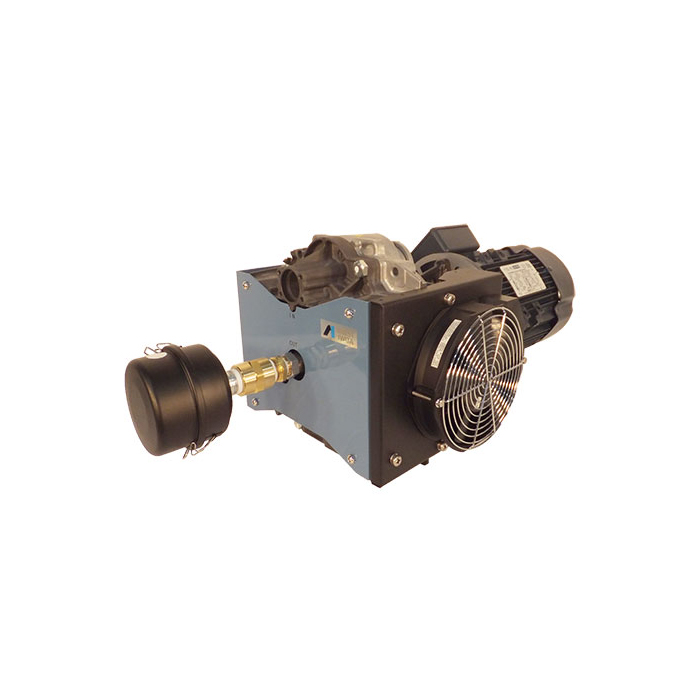

Anest Iwata GVSU-500B Dry Scroll Vacuum Pump, Horizontal Inlet, Three Phase Motor, GVSU 500B
Condition:
New
Item#:PN22599
Mfr Part#:GVSU-500B
Manufacturer:Anest Iwata
Features:
Anest Iwata GVSU-500B Dry Scroll Vacuum Pump, Horizontal Inlet, Three Phase Motor, GVSU 500B
Anest Iwata GVSU-500B Overview:
The Anest Iwata GVSU-500B Dry Scroll Pump offers a clean dry vacuum enviroment and elimates the nuisance of cumbersome lubricant maintenance or sealing water administration. GVSU 500B Pump is compact and produces less noise and vibration.
The Anest Iwata GVSU-500 Dry Scroll Vacuum Pump does not require lubricating oil or sealing water. The GVSU Vacuum Pump is not equipped with gears - no need to change oil and there's no risk of lubricating oil leaks.The Pump is generator powered, ensuring a clean installation area. The GVSU-500B Vacuum Pump is equiped with a water cooling system, therefore it is excellent in displacing water vapor. The GVSU Scroll Pump guarantees low power varince between atmospheric pressure and vacuum. The Anest Iwata GVSU-500 Oil-free Pump uses less energy resulting in savings in the vacuum area.

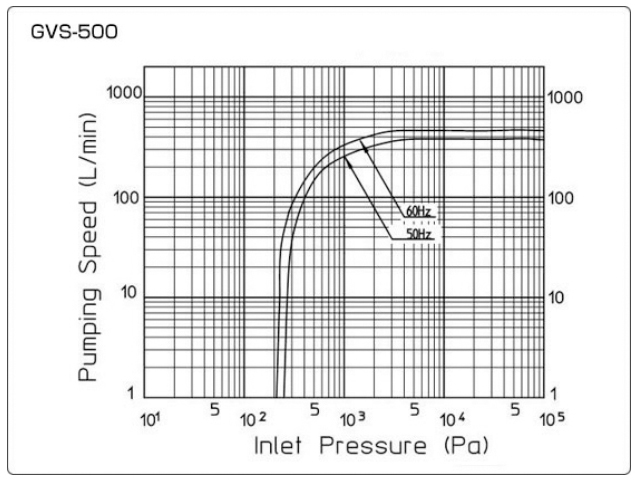

Anest Iwata GVSU-500B Pumping Speed:
Anest Iwata GVSU-500B Oil-free Vacuum Pump Applications:
- Vacuum Forming
- Deairator
- Vacuum Chuck
- Vacuum Drying only for water based
- Ceramic Industry
- Gas Substitution
- Pumping for Electron Tube

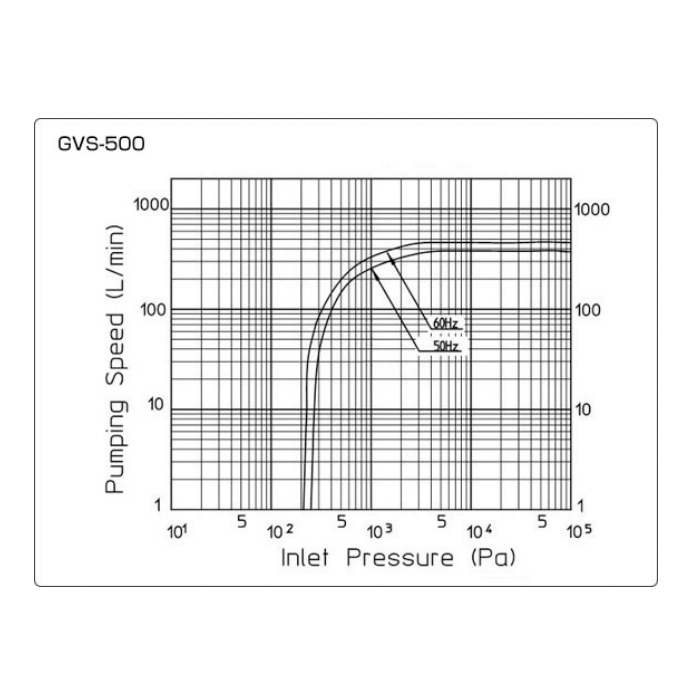

Anest Iwata GVSU-500B Pumping Speed:
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Anest Iwata GVSU-500B Dry Scroll Vacuum Pump, Horizontal Inlet, Three Phase Motor, GVSU 500B

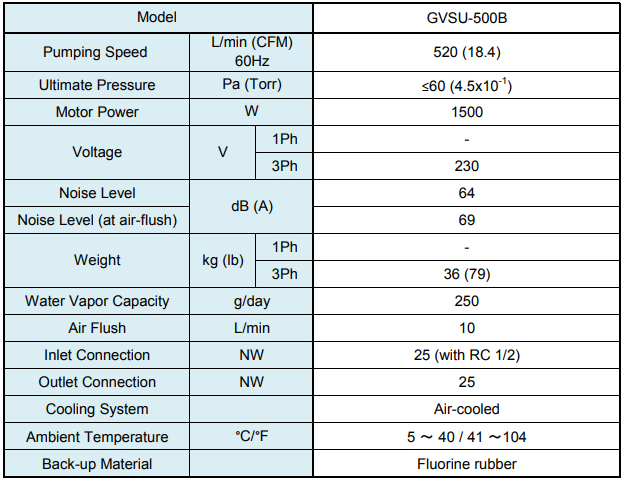

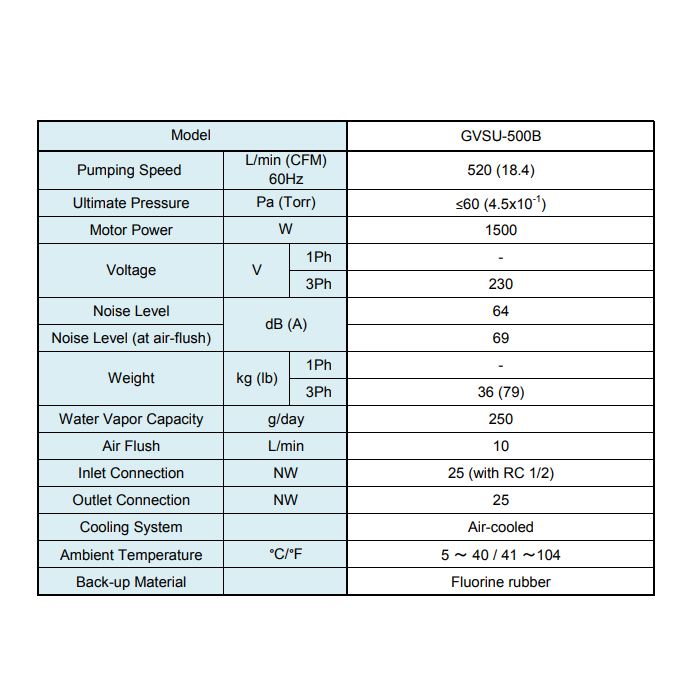

Anest Iwata GVSU-500B Technical Data:
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN15457
Mfr Part#:98881940
Condition: Out of Stock
New
$649.00
Item#:PN15459
Mfr Part#:98885940
Condition: Out of Stock
New
$1,481.00
Item#:PN15460
Mfr Part#:98880950
Condition: Out of Stock
New
$1,176.00
Item#:PN22612
Mfr Part#:98881231
Condition: In Stock
New
In Stock
$112.00
Item#:PN22650
Mfr Part#:98882231
Condition: Ships Within 1-3 Days
New
$125.00
Item#:PN22692
Mfr Part#:610090
Condition: Out of Stock
New
$493.00
Item#:PN22693
Mfr Part#:610100
Condition: Out of Stock
New
$218.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
