- Displacement: 500 L/min (50Hz) / 600 L/min (60Hz)
- Ultimate Pressure: < 1 Pa
- Inlet Connection: NW 40

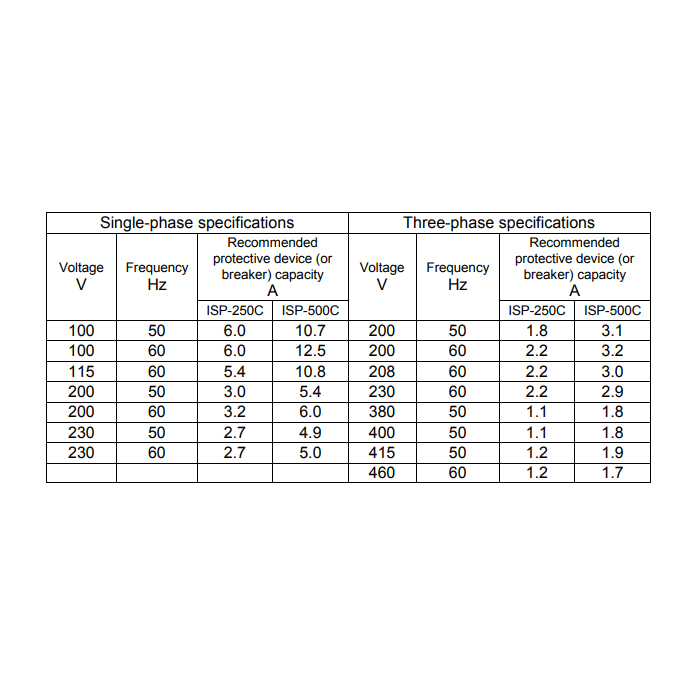

- Voltage: AC 100V / 115V / 200V / 230V
Shopping Cart ( )

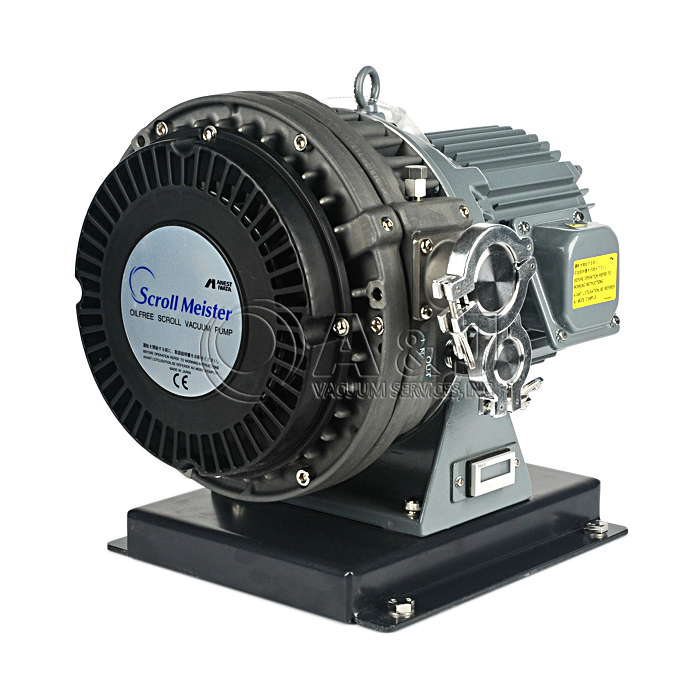

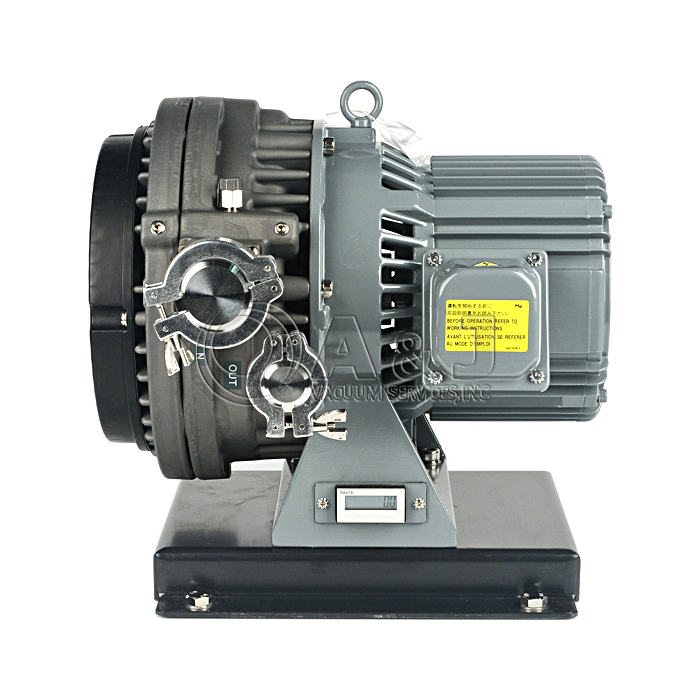

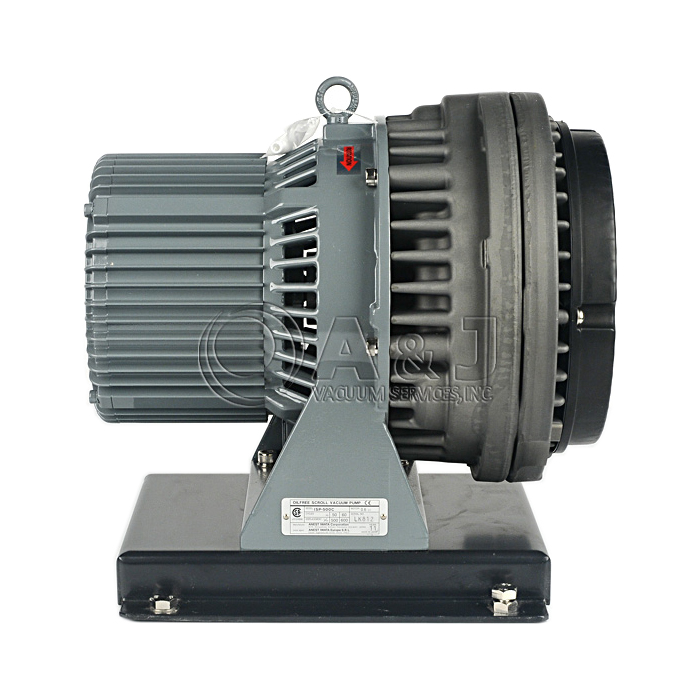

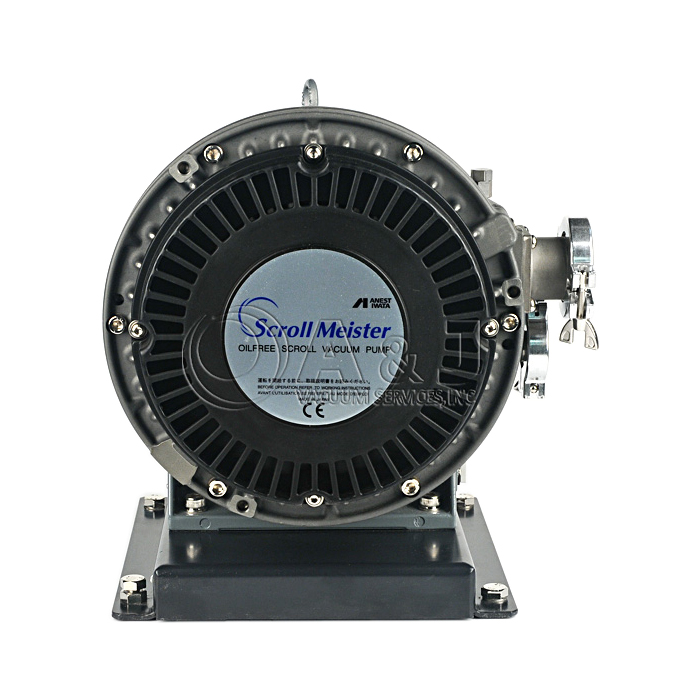

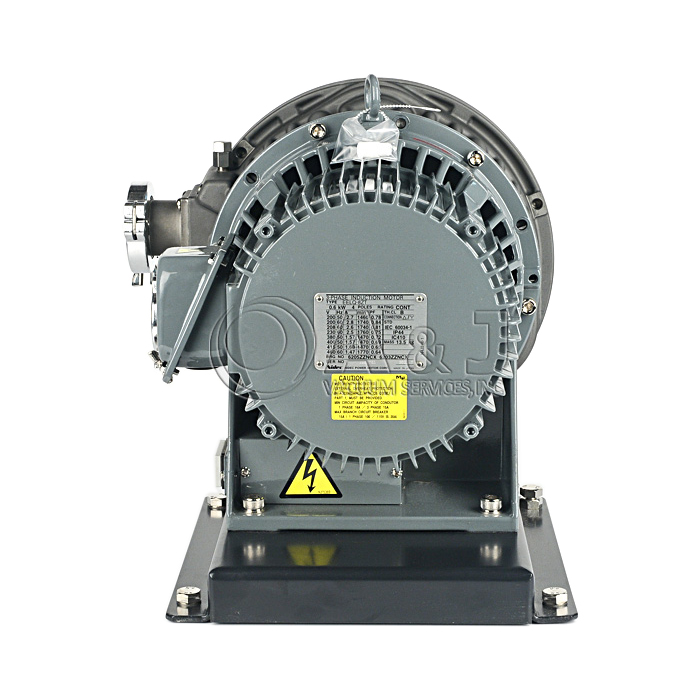

Anest Iwata ISP-500C Dry Scroll Vacuum Pump, Horizontal Inlet, Three Phase Motor, ISP 500C, ISP-500C-TH
Condition:
New
Item#:PN07033
Mfr Part#:ISP-500C-TH
Manufacturer:Anest Iwata
Features:
Anest Iwata ISP-500C Dry Scroll Vacuum Pump, Horizontal Inlet, Three Phase Motor, ISP 500C, ISP-500C-TH
This is a direct replacement pump for obsolete Leybold SC-30 / PN 133004
Anest Iwata ISP-500C Dry Scroll Single Phase VFD Model Pump Overview:
The Anest Iwata ISP-500 Oil Free Scroll Pumps provide a clean vacuum enviroment and elimate the nuisance of cumbersome lubricant maintenance or sealing water administration.
The Anest Iwata ISP-500C Dry Pump is free from installation restrictions because of its air-cooled system, and does not require water cooling.
The ISP-500 Dry Scroll Vacuum Pump has an Air Flush Port installed, which pumps out the remaining moisture left over from pumping humid gases. The port also helps maintain the ultimate pressure.
The ISP series vacuum pumps maintain low power consumption from atmosphere to maximum pressure.
This pumping system is suitable for clean processes only. Do not use explosive, flammable, toxic or corrosive substances or substances which contain chemicals, solvents or particles.
The ISP-500C Vacuum Pump should be used at ambient operation temperature in the range of 5ºC to 40ºC.
Anest Iwata ISP 500C Pumping Speed:
Anest Iwata ISP 500C Oil Free Scroll Pump Applications:
- Sputtering Equipment, Vacuum Depostition Equipment, Ion Plating Equipment
- Accelerator, Synchrotron Radiation
- Surface Modification, Electron Beam Process
- Gas Recovery Devices
- Vacuum Equipment
- Leak Detectors
- Device Handling System
- Vacuum Furnace, Heat Treatment Furnace
- Laboratory Use
- Vacuum Packaging Machine
Anest Iwata ISP 500C Dimensions:
Click Here to view Anest Iwata ISP-500C Dry Scroll Vacuum Pump Instruction Manual.
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Anest Iwata ISP-500C Dry Scroll Vacuum Pump, Horizontal Inlet, Three Phase Motor, ISP 500C, ISP-500C-TH
Anest Iwata ISP-500C Dry Scroll Single Phase VFD Model Pump Overview:
Click Here to view Anest Iwata ISP-500C Dry Scroll Vacuum Pump Instruction Manual.
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN15337
Mfr Part#:98882251
Condition: In Stock
New
In Stock
$1,890.00
