- Displacement: 250 L/min (50Hz) / 300 L/min (60Hz)
- Ultimate Pressure: < 1.6 Pa
- Pumping speed 50Hz: 8.8 CFM
- Inlet Connection: NW 25
Shopping Cart ( )
Anest Iwata ISP-250E Dry Scroll Vacuum Pump, Vertical Inlet, Three Phase Motor, ISP 250E, ISP-250E-TV
Condition:
New
Item#:PN23432
Mfr Part#:ISP-250E
Manufacturer:Anest Iwata
Features:
Anest Iwata ISP-250E Dry Scroll Vacuum Pump, Vertical Inlet, Three Phase Motor, ISP 250E, ISP-250E-TV
Anest Iwata ISP 250E Overview:
The Anest Iwata ISP-250 E Dry Scroll Pumps allow elimination of the nuisance of cumbersome lubricant maintenance or sealing water administration and produce a clean environment.
The ISP series vacuum pumps offer low power consumption from atmosphere to maximum pressure
The ISP-250 E Scroll Vacuum Pump should be used at ambient operation temperature in the range of 5ºC to 40ºC.
The ISP 250E pump is sutable for clean processes only.
The ISP-250 E Dry Pump is free from installation restrictions because of its air-cooled system. Water cooling is not required.
Do not use explosive, flammable, toxic or corrosive substances or substances which contains chemicals, solvents or particals.
The ISP-250 E Scroll Vacuum Pump is supplied with Air Flush Port, which pumps out the remaining moisture left over from pumping humid gases and maintains the ultimate pressure.
The Anest Iwata ISP Pumping System is suitable for clean purposes only. Do not use explosive, flammable, toxic or corrosive substances or substances which contain chemicals, solvents or particles.
Difference between ISP 250C and ISP 250E
- The ISP 250E have an additional pin crank, 3 total, provides less vibration and more reliability.
- The ISP 250E have hardened stainless steel crank shaft provides longer life.
- The ISP 250E have new seal design provides better leak tight tolerance.
- The ISP-250E have new longer life bearings provide stability
Anest Iwata ISP 250E Pumping Speed:
Anest Iwata ISP 250E Applications:
- Sputtering Equipment, Vacuum Depostition Equipment, Ion Plating Equipment
- Accelerator, Synchrotron Radiation
- Surface Modification, Electron Beam Process
- Device Handling System
- Vacuum Furnace, Heat Treatment Furnace
- Laboratory Use
- Vacuum Packaging Machine
- Gas Recovery Devices
- Vacuum Equipment
- Leak Detectors
Anest Iwata ISP 250E Dimensions:
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Anest Iwata ISP-250E Dry Scroll Vacuum Pump, Vertical Inlet, Three Phase Motor, ISP 250E, ISP-250E-TV

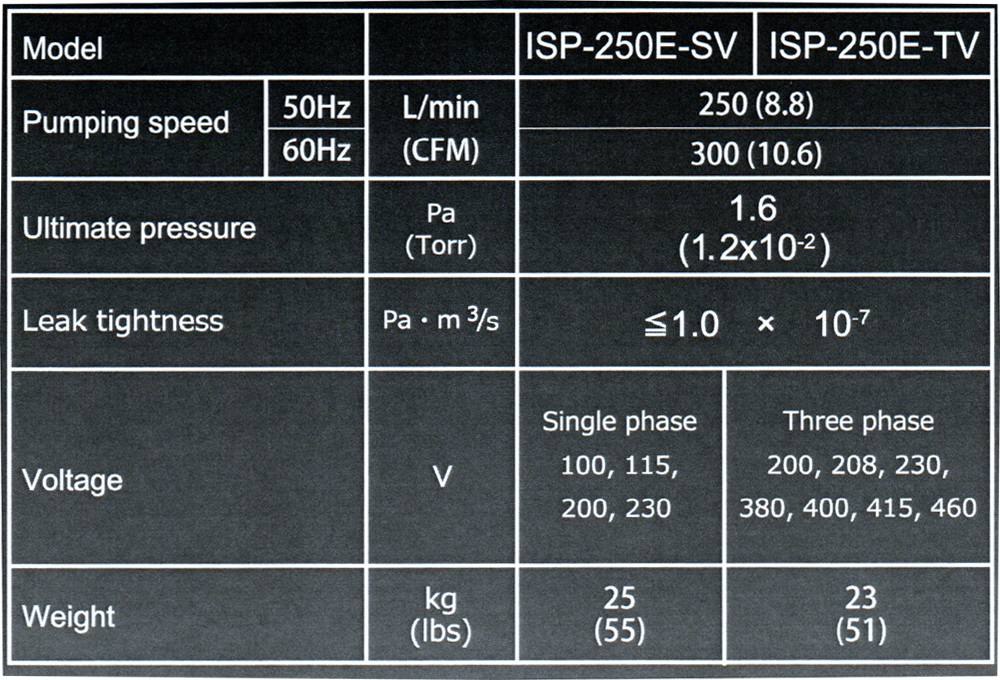

Anest Iwata ISP 250E Technical Data:
A&J Vacuum Services, Inc is Anest Iwata authorized repair / rebuild and service center for all Scroll Dry Vacuum Pumps along with all other. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
