Anest Iwata ISP 500 Dry Scroll Vacuum Pump Major Service Kit, 98882251
Condition:
New
In Stock
Item#:PN15337
Mfr Part#:98882251
Manufacturer:Anest Iwata
Features:
Anest Iwata ISP 500 Dry Scroll Vacuum Pump Major Service Kit, 98882251
The Anest Iwata ISP 500 Major Service Kit includes everything needed for major overhauls on the Anest Iwata ISP 500 Dry Scroll Pump.
This kit could also be used with:
ISP-500C
ISP-500B
This Major Kit includes the following parts:

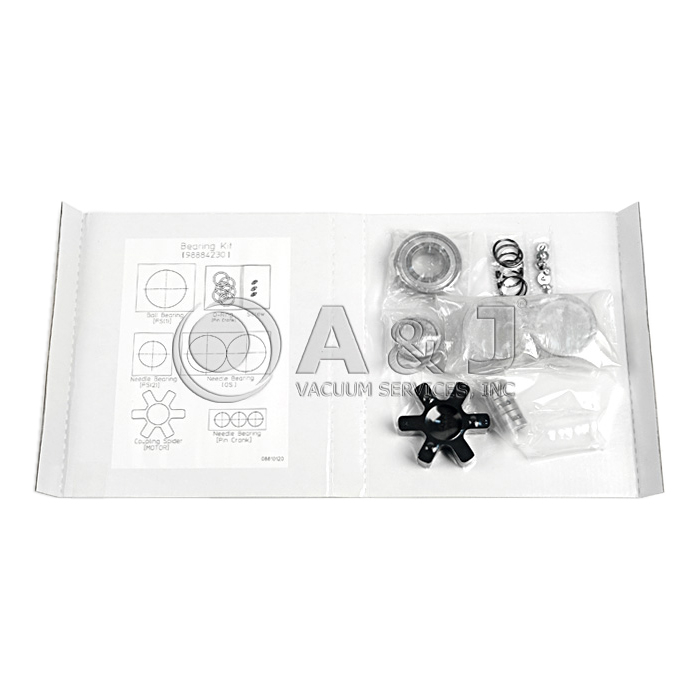

Bearing Kit:
- (1) Needle Bearing (OS Side)
- (1) Needle Bearing (FS2 Side)
- (3) Needle Bearing (OS Pin Crank Side)
- (1) Ball Bearing
- (6) O-Ring
- (1) Coupling Spider
- (6) Screw

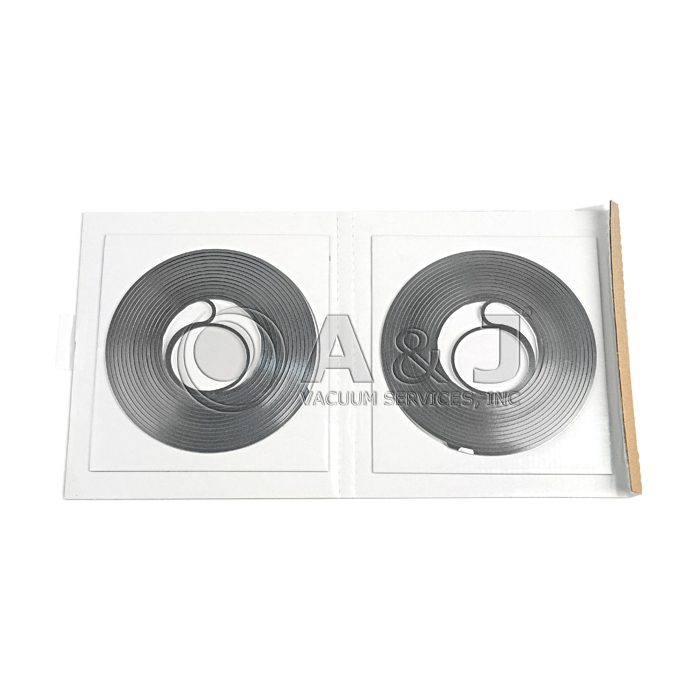

Tip Seal Set:
- (1) Tip Seal Set 1
- (1) Tip Seal Set 2

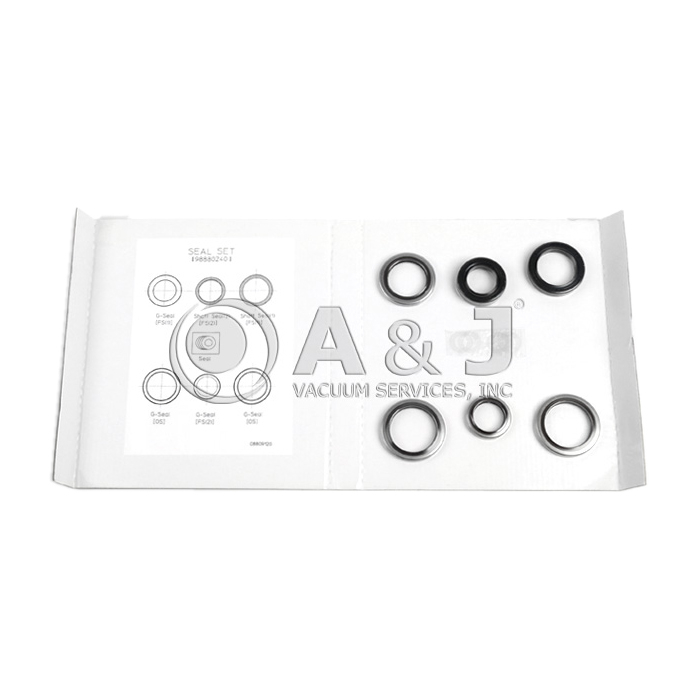

Seal Set:
- (1) Shaft Seal 1
- (1) Shaft Seal 2
- (2) G-Seal (OS Side)
- (1) G-Seal (FS1 Side)
- (1) G-Seal (FS2 Side)
- (3) Seal

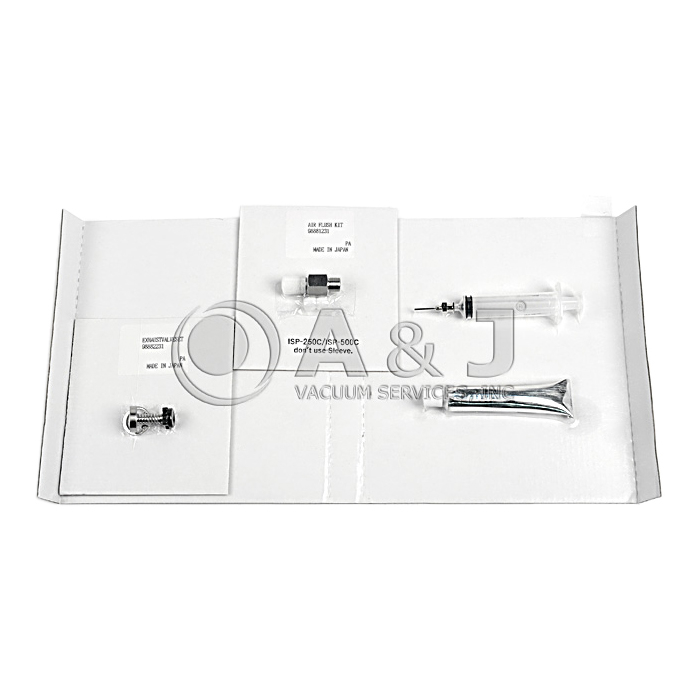

Grease Kit:
- (1) Grease
- (1) Syringe
Exhaust Valve Set:
- (1) Exhaust Valve
- (1) Exhaust Valve Spring
- (1) Exhaust Valve Guide
- (1) Retaining Ring
O-Ring Set:
- (1) O-Ring (FS2 Flange Side)
- (1) O-Ring (Inlet Flange)
- (1) O-Ring (FS2 Flange Side)
Air Flush Kit:
- (1) Filter
- (1) Housing
- (1) Ball
- (1) Retaining Ring
- (2) Sleeve
We also do minor and major repairs for ALL Anest Iwata Dry Scroll Pumps.
THERE ARE NO RETURNS ON THIS PRODUCT.
Anest Iwata ISP 500 Dry Scroll Vacuum Pump Major Service Kit, 98882251
The Anest Iwata ISP 500 Major Service Kit includes everything needed for major overhauls on the Anest Iwata ISP 500 Dry Scroll Pump.
This Major Kit includes the following parts:
Bearing Kit:
- (1) Needle Bearing (OS Side)
- (1) Needle Bearing (FS2 Side)
- (3) Needle Bearing (OS Pin Crank Side)
- (1) Ball Bearing
- (6) O-Ring
- (1) Coupling Spider
- (6) Screw
Tip Seal Set:
- (1) Tip Seal Set 1
- (1) Tip Seal Set 2
Seal Set:
- (1) Shaft Seal 1
- (1) Shaft Seal 2
- (2) G-Seal (OS Side)
- (1) G-Seal (FS1 Side)
- (1) G-Seal (FS2 Side)
- (3) Seal
Grease Kit:
- (1) Grease
- (1) Syringe
Exhaust Valve Set:
- (1) Exhaust Valve
- (1) Exhaust Valve Spring
- (1) Exhaust Valve Guide
- (1) Retaining Ring
O-Ring Set:
- (1) O-Ring (FS2 Flange Side)
- (1) O-Ring (Inlet Flange)
- (1) O-Ring (FS2 Flange Side)
Air Flush Kit:
- (1) Filter
- (1) Housing
- (1) Ball
- (1) Retaining Ring
- (2) Sleeve
We also do minor and major repairs for ALL Anest Iwata Dry Scroll Pumps.
THERE ARE NO RETURNS ON THIS PRODUCT.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
