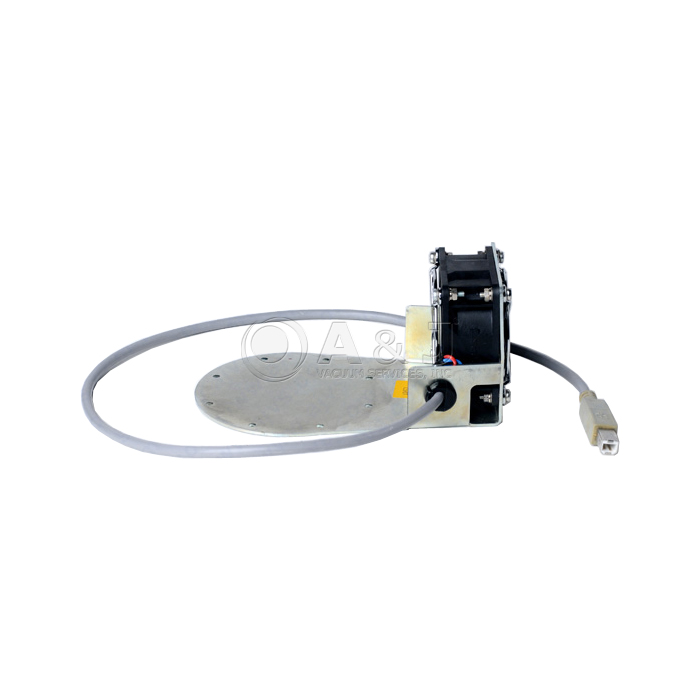

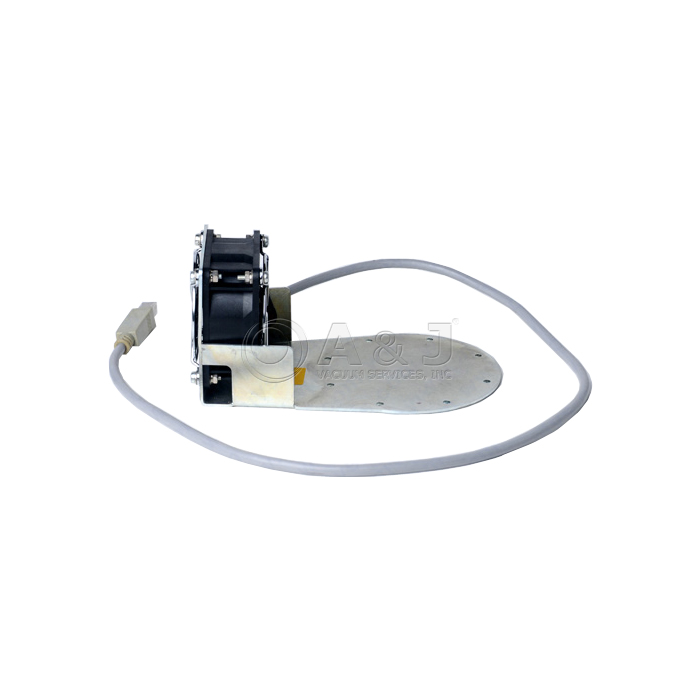

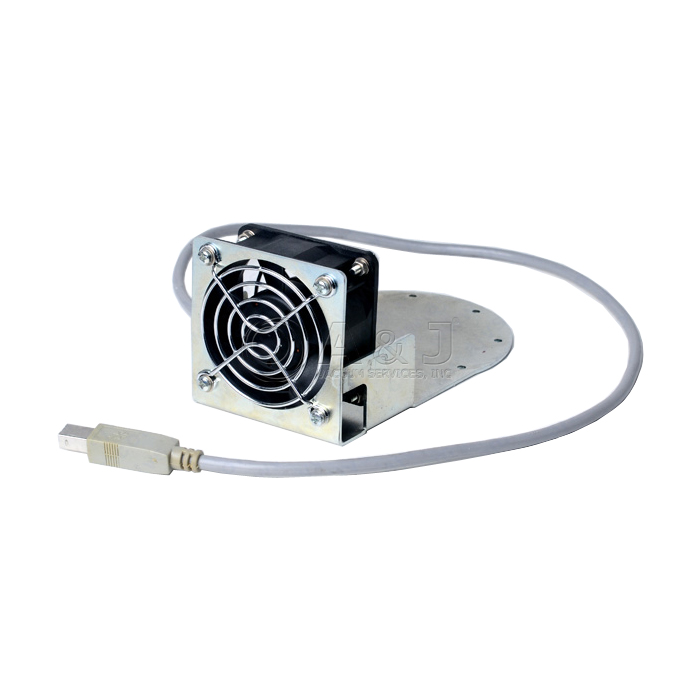

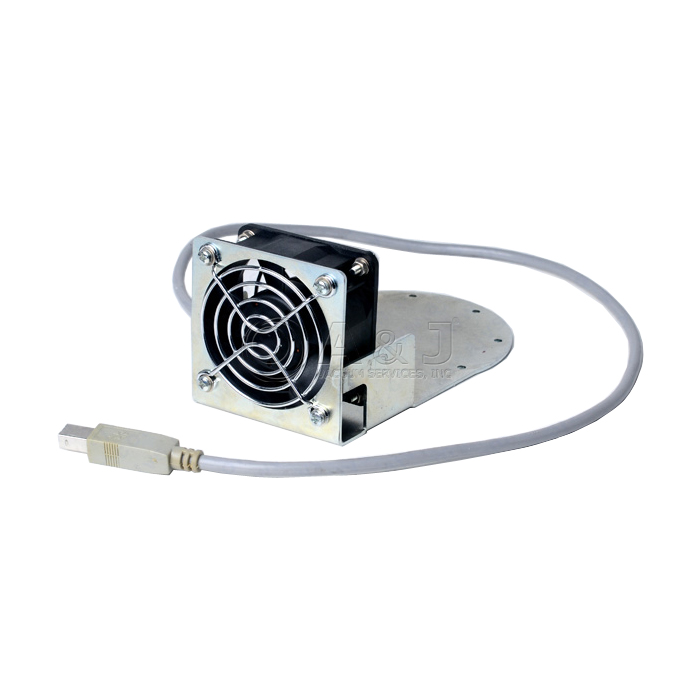

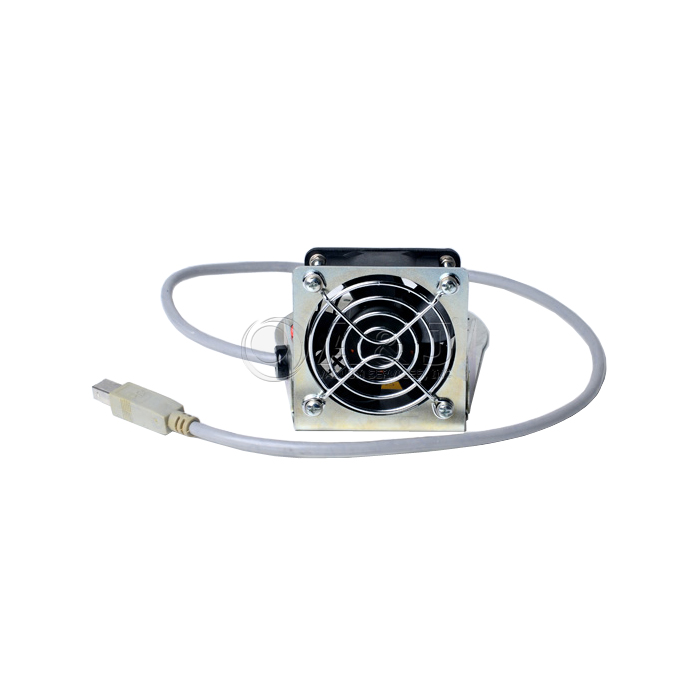

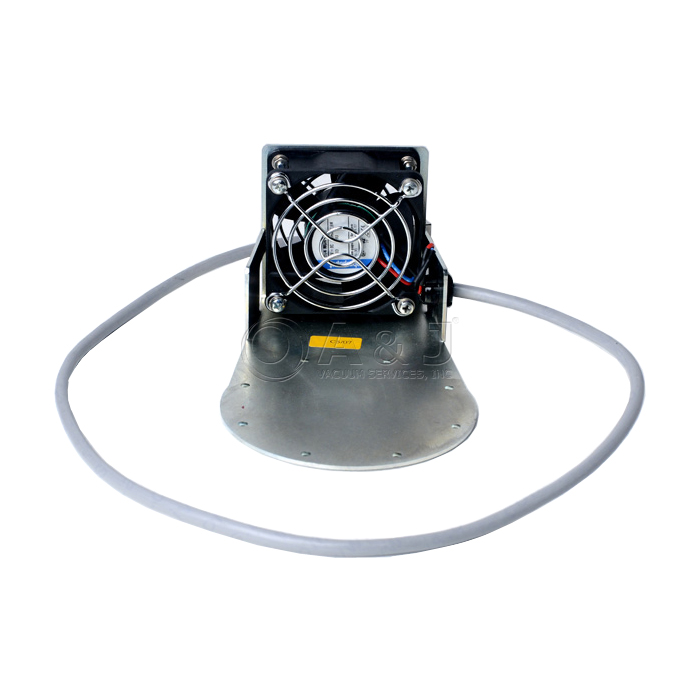

Cooling Fan for Varian TV-81 Turbo Pumps, 9699290, TV 81
Condition:
New
Item#:PN06958
Mfr Part#:9699290
Manufacturer:Agilent Technologies / Varian
Features:
Varian Cooling Fan for Varian V-81 (V81) Turbo Pumps, 969-9290, Agilent TV 81 9699290
Agilent Cooling Fan for TV81, V81 Turbo Molecular Pump comes with connecting cable and plug that plugs directly into TV-81 Turbo Pump Controller.
Fan Specifictions:
- Air Flow; 9 l/s (10 CFM)
- Input voltage; 24 Vdc
- Dimensions; 60 x 60 x 25
- Power: 2.10 W
To fix the fan to the Turbo-V 81-M case execute the following procedure
See the following figure on page 57 in TV81 Pump Manual Listed Below:
Agilent TV81 Turbo Pump Manual
1. Fix the TV 81 fan to the suitable bracket by means of the furnished screws;
2. Fix the bracket to the pump body;
3. Connect the fan supply to the P4 connector of the controller.
A&J Vacuum repair / rebuild and service all Varian TV81, Agilent TV-81 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Varian Cooling Fan for Varian V-81 (V81) Turbo Pumps, 969-9290, Agilent TV 81 9699290
Agilent Cooling Fan for TV81, V81 Turbo Molecular Pump comes with connecting cable and plug that plugs directly into TV-81 Turbo Pump Controller.
Fan Specifictions:
- Air Flow; 9 l/s (10 CFM)
- Input voltage; 24 Vdc
- Dimensions; 60 x 60 x 25
- Power: 2.10 W
To fix the fan to the Turbo-V 81-M case execute the following procedure
See the following figure on page 57 in TV81 Pump Manual Listed Below:
Agilent TV81 Turbo Pump Manual
1. Fix the TV 81 fan to the suitable bracket by means of the furnished screws;
2. Fix the bracket to the pump body;
3. Connect the fan supply to the P4 connector of the controller.
A&J Vacuum repair / rebuild and service all Varian TV81, Agilent TV-81 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
