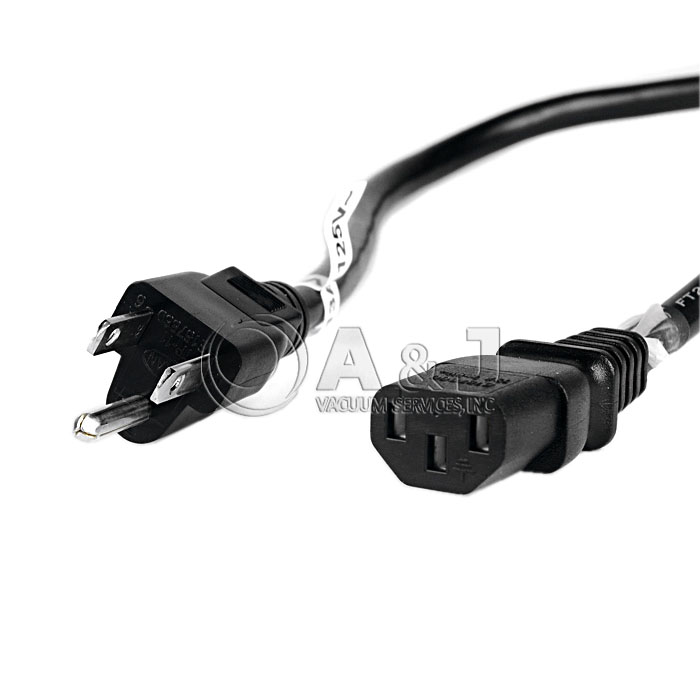

Agilent Technologies Mains Cable For TwisTorr Turbo Pumps, NEMA Plug, 3 m, 969-9958, 969958

Compatible with Agilent TwisTorr 340 FS and 84 FS Turbo Pumps.

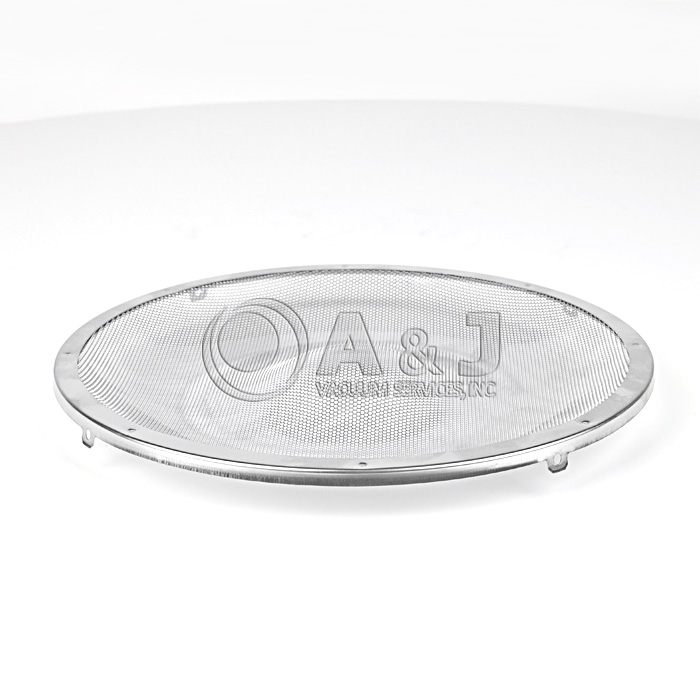

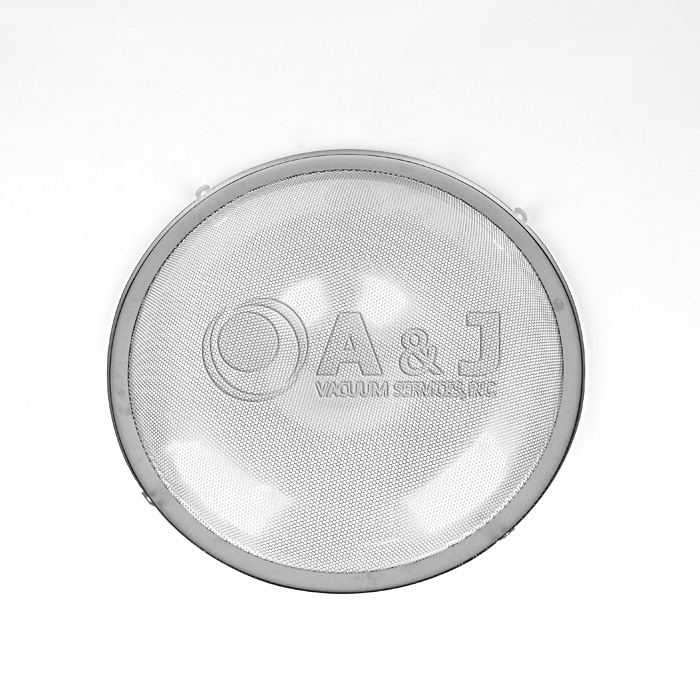

Agilent Technologies Inlet Screen designed to be used with Agilent Turbomolecular Vacuum Pumps.

Agilent Technologies Plastic Water Cooling Kit designed to be used with the TwisTorr 304 FS Turbomolecular Vacuum Pumps.

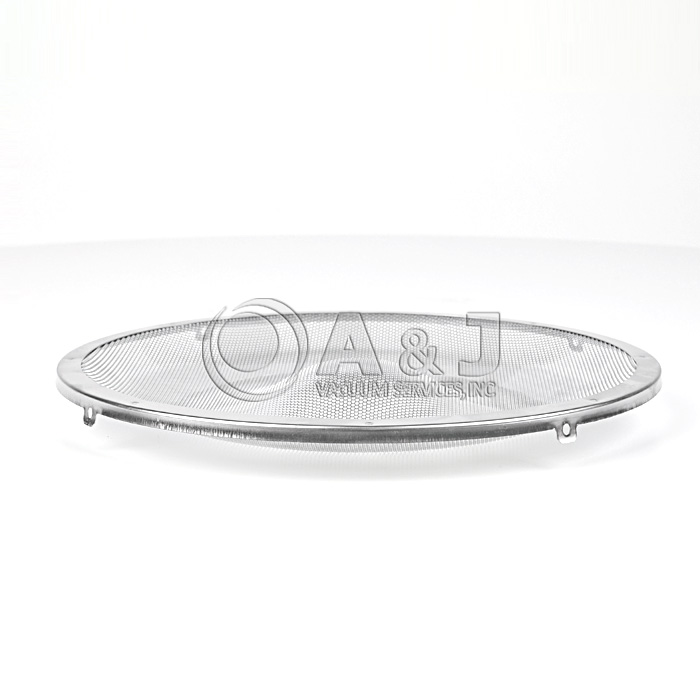

Agilent Technologies Inlet Screen designed to be used with Agilent Turbomolecular Vacuum Pumps.

Cable extension, Male Pins (Blades) to Female Sockets (Slots), 18/3 AWG, 8' long, 100-230V, 10A

Varian Cooling Fan for Varian V-81 (V81) Turbo Pumps, 969-9290, Agilent TV 81 9699290

Agilent Cooling Fan for TV81, V81 Turbo Molecular Pump comes with connecting cable and plug that plugs directly into TV-81 Turbo Pump Controller.

Fan Specifictions:

• Air Flow; 9 l/s (10 CFM)
• Input voltage; 24 Vdc
• Dimensions; 60 x 60 x 25
• Power: 2.10 W

To fix the fan to the Turbo-V 81-M case execute the following procedure

See the following figure on page 57 in TV81 Pump Manual Listed Below:

Agilent TV81 Turbo Pump Manual

1. Fix the TV 81 fan to the suitable bracket by means of the furnished screws;

2. Fix the bracket to the pump body;

3. Connect the fan supply to the P4 connector of the controller.

A&J Vacuum repair / rebuild and service all Varian TV81, Agilent TV-81 Turbo Pump Service, Varian Vacuum Pumps  along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac  Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Overview:

The Wheels Accessory Kit is designed to be used for the Agilent Varian TPS Compact Pumping Station for easy mobility.

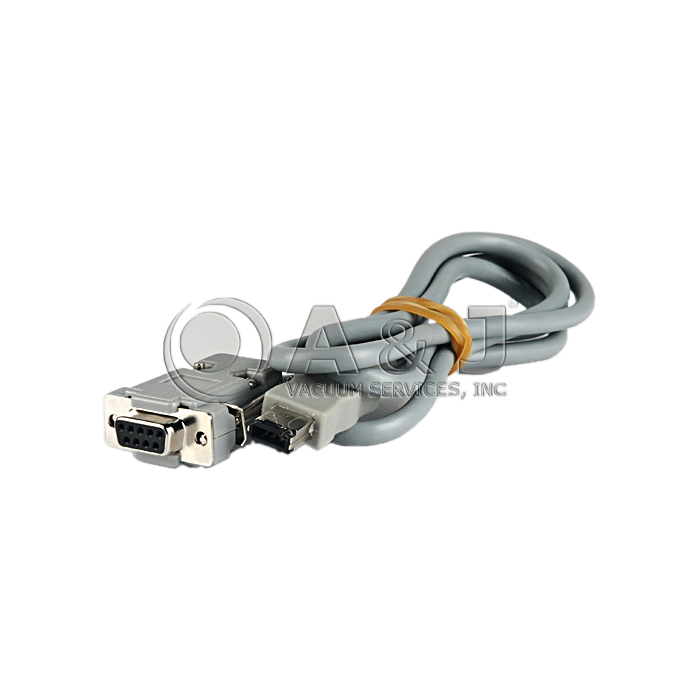

The EyeSys Mini MG Cable is designed to be used with the Agilent Varian TPS Compact Pumping Station.

Overview:

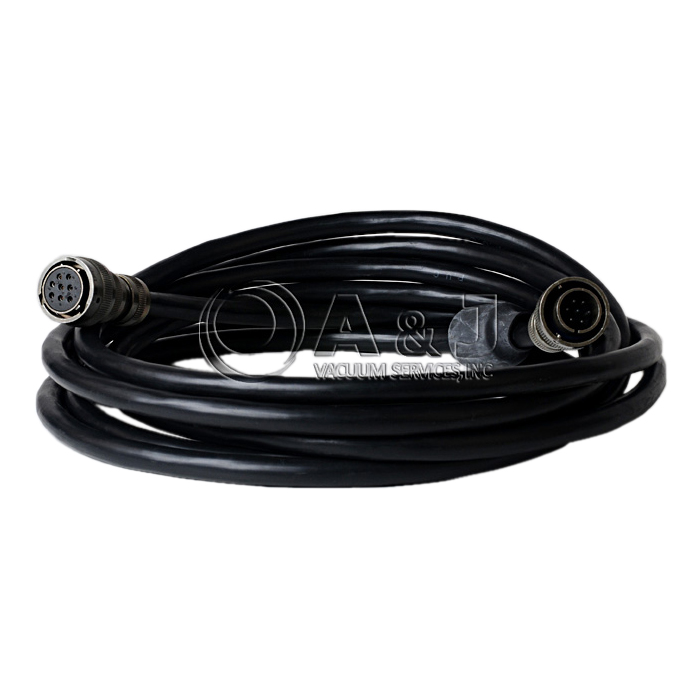

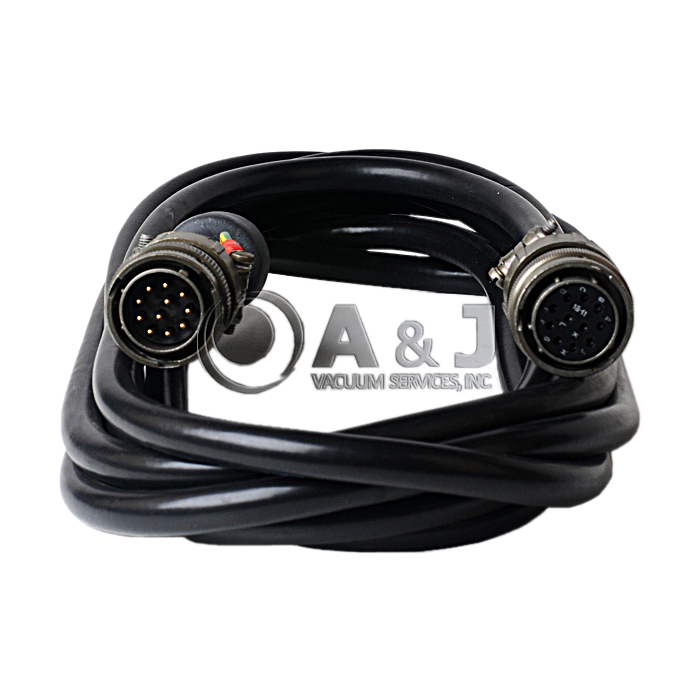

This Connecting Cable is designed to be used with the Varian V 1000 ICE Turbo Pump and the Varian V 1000 ICE Controller.

The Varian Turbo-V 1000 ICE series controllers are microprocessor-controlled, solid-state, frequency converters with self-diagnostic and self-protection features.

The controllers drive (within ten steps) the Turbo-V 1000 ICE pump during the starting phase by controlling the voltage and current respect to the speed reached by the pump. They incorporate all the facilities required for the automatic operation of the Turbo-V 1000 ICE pump series.

Remote start/stop commands, pump status signals, forepump start/stop commands, interlock control signals (for pressure switch, water flow switch), heater jacket control signals, flow meter control signals and purge valve management signals are provided via auxiliary connectors.

The controller is available in two versions:

• Model 969-9447 (220 Vac, 50-60 Hz)
• Model 969-9547 (120 Vac, 50-60 Hz)

The models are provided with a front panel with an LCD alphanumeric display to indicate the operating conditions/parameters of the Turbo-V pump and a keyboard, and a rear panel with input/output connectors.

The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:

• Power transformer
• Front panel display and keyboard
• Rear panel with input/output connectors
• PCB including: power supply analog and input/output section, microprocessor and digital section, display and keyboard circuits. The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump.

The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.

Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation. The heater jacket and flow meter are also handled.

An EEPROM internal to the microprocessor is used to store pump operating parameters and the input/output programmed information.

The controller can be operated via:

• Front panel switches
• Remote signals via rear panel connectors
• RS 232/485/422 serial link (option)

Agilent Technologies Inlet Screen designed to be used with Agilent Turbomolecular Vacuum Pumps.
