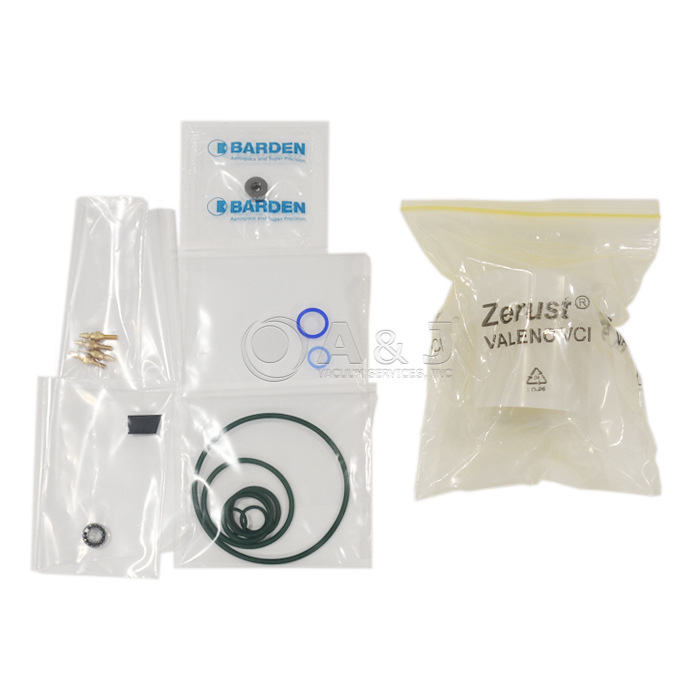

Edwards EXT75DX Service Kit, B72240801, EXT 75DX, Minor Kit

What's Included in the Service Kit:

• V/VALVE COVER POLYPROP EXT75DX
• RADIAL DAMPING RING - 75DX
• AXIAL DAMPING RING - 75DX
• TAPERED CAGE BEARING I/D4X13X6
• O-RING FKM GP 0.875ID X.103SEC
• ORING VIT 0.864ID X.070SEC
• O-RING FKM GP 42.5ID X 3.0SEC
• PODULE LOCKING SPIGOT EXT75DX
• O-RING FKM GP 0.437ID X.070SEC
• O-Ring Fkm Gp 74.5Id X 3.0Sec
• O-RING FKM GP 21.5ID X 3.0SEC
• BRG FC CERAMIC JESA 600215
• FELT WASHER SET
• POLY BOTTLE 55OD 62HT 50MOUTH
• Washer, Felt, 14IDx35ODx1.5mm Thick
• FELT WASHER THIN

A&J Vacuum services and repairs Edwards products available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.

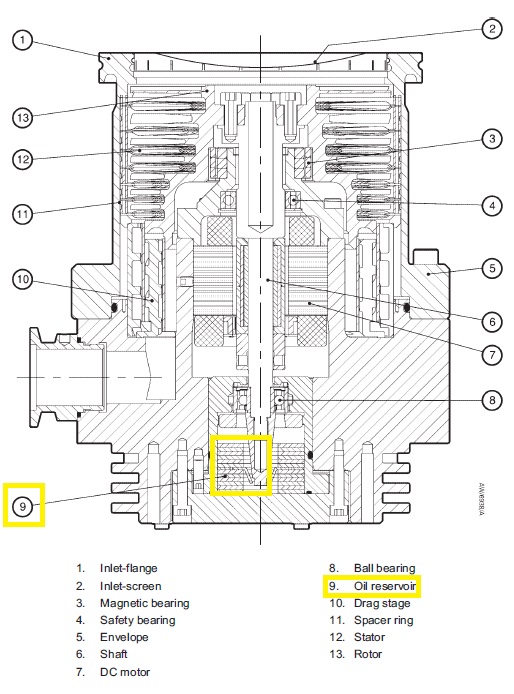

Edwards Oil Reservoir for Edwards EXT250 / EXT255 / EXT200/200 Turbo Pumps, PN22100, Oil Wick Stock, Lubricated with Hydrocarbon Turbo Pump oil.

Edwards Oil Reservoir Replacement is designed to be used with the following pumps::

• EXT250
• EXT255
• EXT255H
• EXT255HI
• EXT200/200
• EXT200/200/30
• EXT250HP
• EXT255HVI
• HPG1946-80001 (EXT250HP)

Please Note that these are supplied lubricated with Hydrocarbon Turbo Pump oil.

Kit Includes:

1 each – Lubricating Wick

15 each – Lubricating Washer

To ensure the efficiency of your pump, the lubricant reservoir should be replaced at least once every three years.

In extreme operating conditions or where contamination is possible, the replacement interval should be carefully evaluated by professionals.

If you have any questions, please call our service department at 855-882-2886 or email us at service@ajvs.com.

A&J Vacuum Services, Inc. AJVS Rrepair / Rebuild and Service All Edwards Turbo Pumps, Edwards Vacuum pumps, Edwards Turbo Pumping Stations along with all other  Edwards Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Inlet Screen for Edwards EXT 70 Turbo Pumps, DN63ISO-K, B58051005

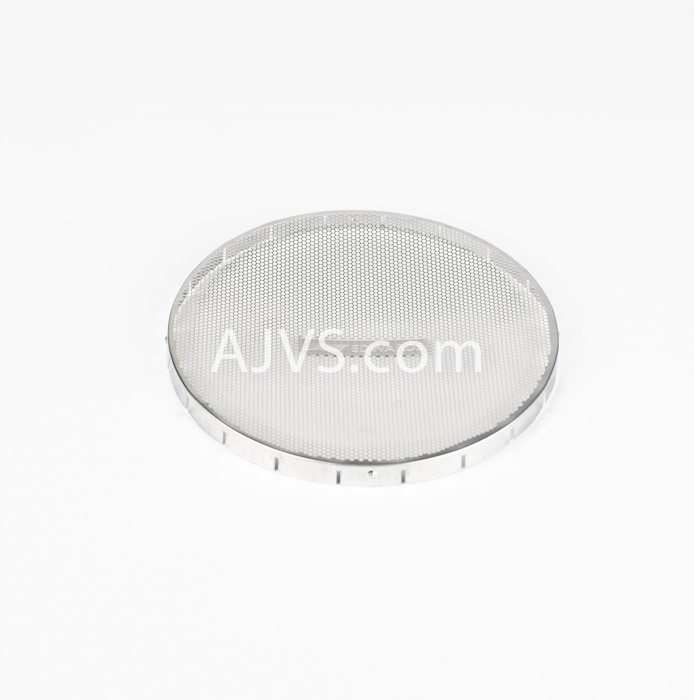

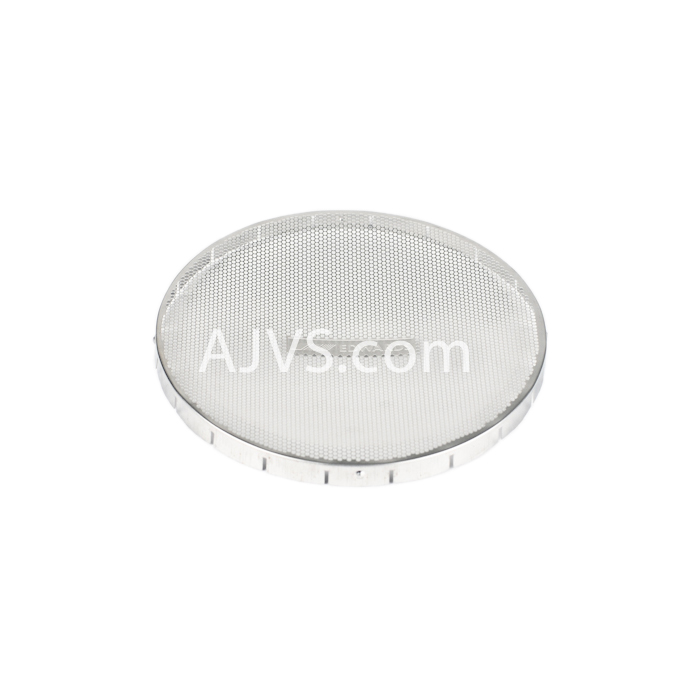

Inlet Screen for Edwards EXT250, EXT255 Turbo Pumps, DN100ISO-K, B58051001

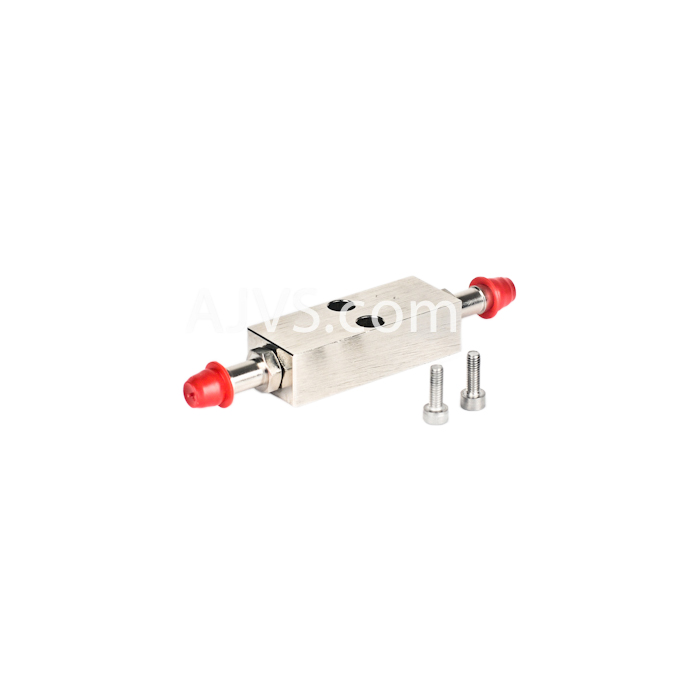

Water Cooling Kit for Edwards EXT70 and EXT255 Turbo Pumps, B736-00-121

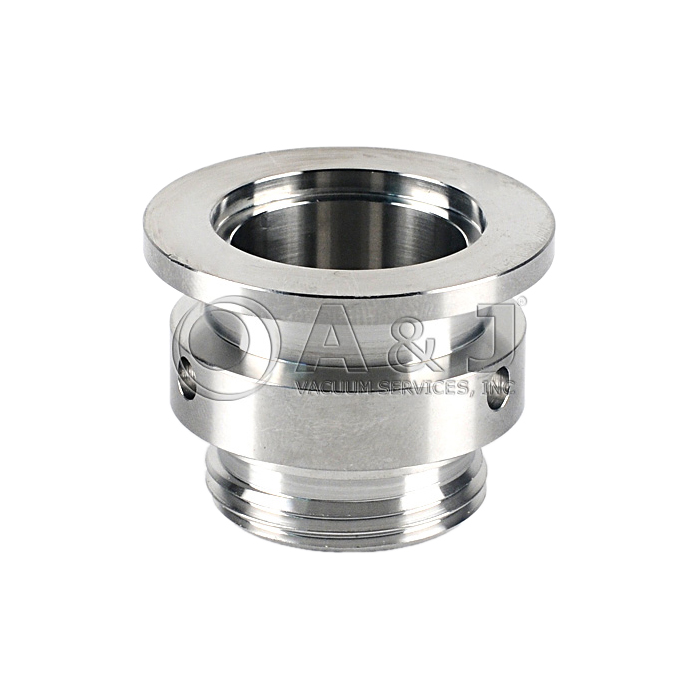

Edwards Vacuum Stainless Steel, KF 25 Screw-in Exhasut Port is designed to be used with the Edwards EXT 250 and EXT 255 Turbomolecular Vacuum Pumps.

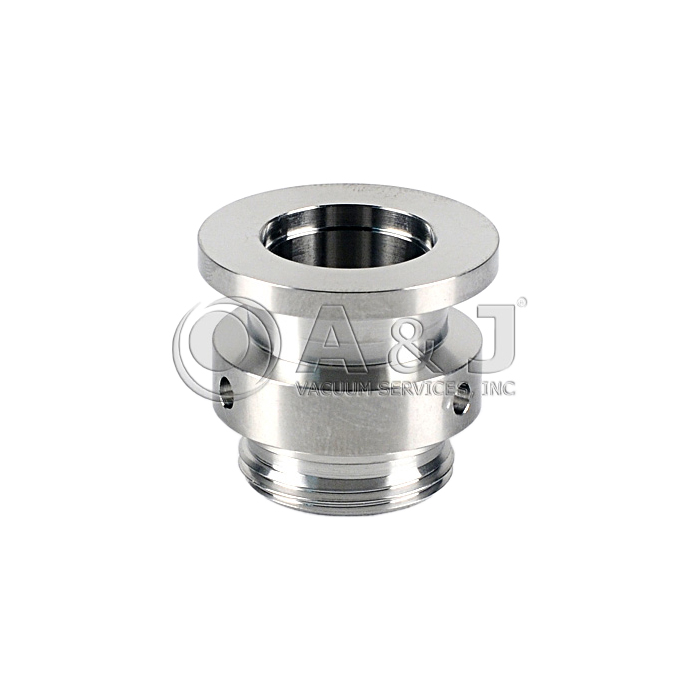

Edwards Vacuum Stainless Steel, KF 16 Screw-in Exhasut Port is designed to be used with the Edwards EXT 70 Turbomolecular Vacuum Pump.

Edwards Communication and Extension Cable for TIC Controller to nEXT Turbo Pumps and nXDS Scroll Pumps, 1 Meter Long, D39700835 / D397-00-835

The Edwards Communication / Extension Cable is designed to be used with the following Edwards Turbo Pumps and Edwards Scroll Pumps:

• nEXT 85
• nEXT 240
• nEXT 300
• nEXT 400
• nEXT 730
• nEXT 930
• nEXT 1230
• nXDS 6i, 6iC
• nXDS 10i, 10iC
• nXDS 15i, 15iC
• nXDS 20i, 20iC

The Edwards Communication cable comes with a pre-wired D-sub 15 pins connectors which connects directly to port on the controller and the pump.

The nEXT Turbo Pumps consist of the Turbomolecular pump with a permanently attached controller containing drive electronics.

nEXT pumps are supplied with an inlet-screen fitted into the centering O-ring for ISO version pumps and into envelope for CF version pumps. nEXT pumps with an NW 25 interstage port are supplied with an inlet-strainer that fits into the interstage-port. The inlet-screen and inlet-strainer protect the pump against damage that would be cause by debris entering the pump.

Click Here for Edwards nEXT Accessories Manual

Photo "Asset: Atlas Copco"

A&J Vacuum Services offers full repair/service of Edwards Turbo Pumps, along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

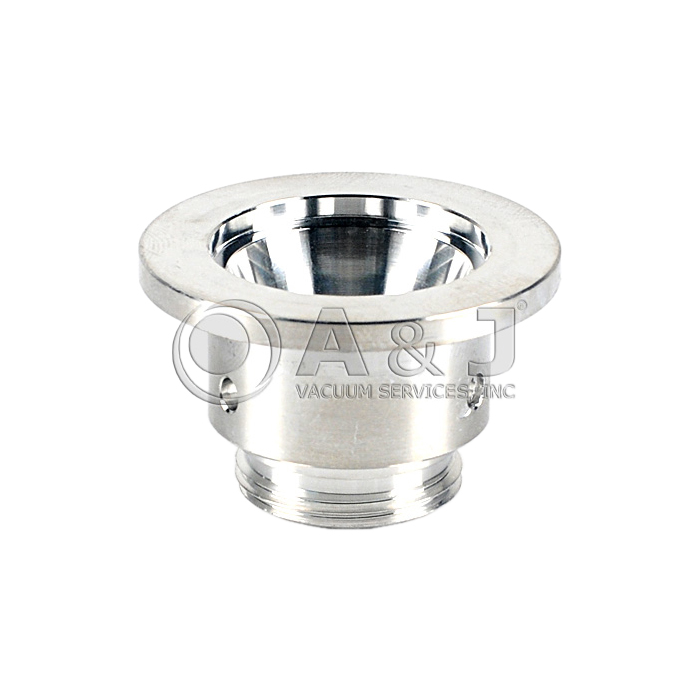

Edwards Vacuum Aluminum, KF 25 Screw-in Exhasut Port is designed to be used with the Edwards EXT 70 Turbomolecular Vacuum Pump.

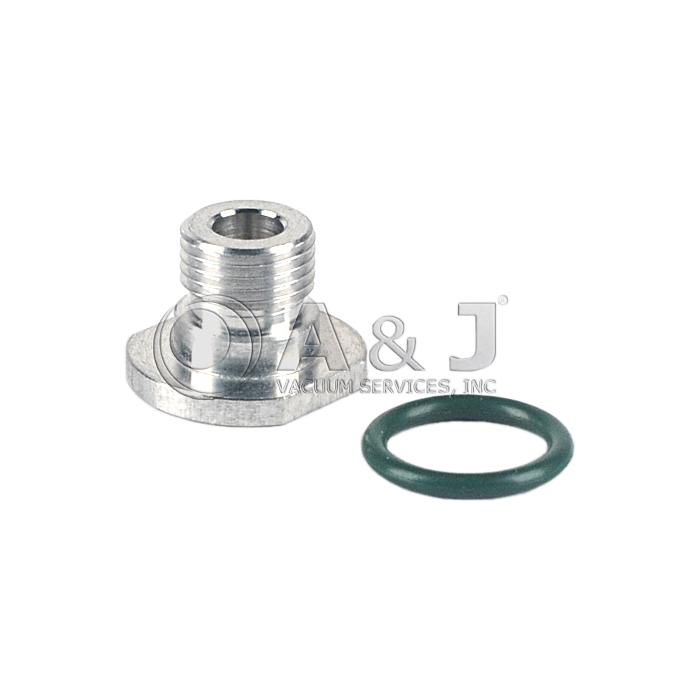

Edwards Vacuum Aluminum, Screw-in Purge Plug is designed to be used with the Edwards EXT 70, EXT 250 and EXT 255 Turbomolecular Vacuum Pumps.
