- Wide Measuring Range 1333 to 3 x 10-4 mbar
- Wide Measuring Range 1000 to 3 x 10-4 Torr
- NW-16-KF Aluminum Flange
Shopping Cart ( )

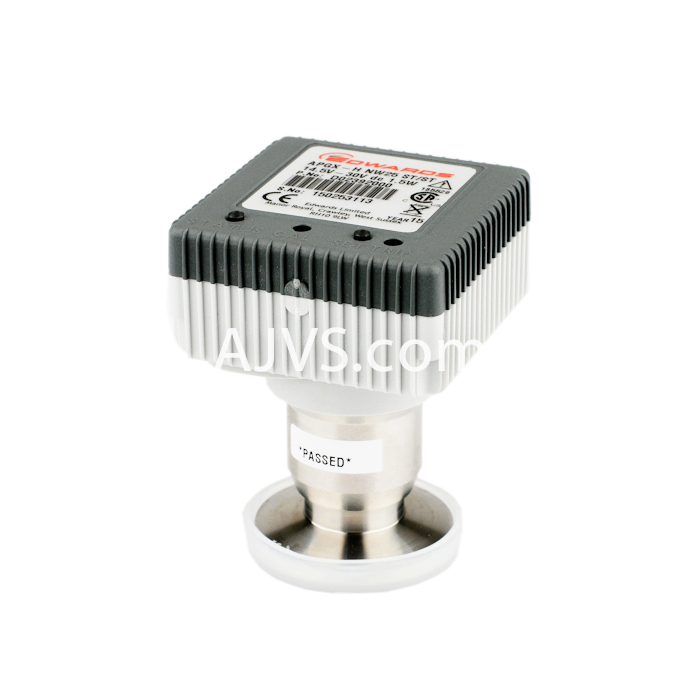

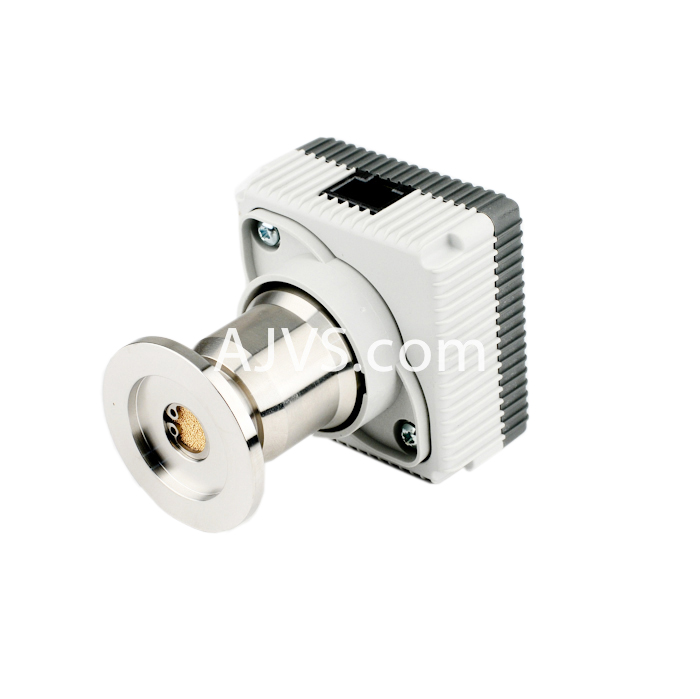

Edwards APGX-H-NW16 (Aluminum) Linear Convection Vacuum Gauge, D02391000
Condition:
New
Item#:PN19735
Mfr Part#:D02391000
Manufacturer:Edwards Vacuum
Features:
Edwards APGX-H-NW16 Linear Convection Vacuum Gauge, D02391000
This gauge is factory calibrated with no calibration certificate. Please see PN57440 for the certificated version.
APGX-H NW16 Overview:
Edwards APGX-H-NW16 (Aluminum) Linear Convection Vacuum Gauge has a wide measuring range from 1333 to 3 x 10-4 mbar (1000 to 2.3 x 10-4 Torr). The use of APGX-H-NW16 convection technology ensures accuracy and sensitivity are maintained to the top of the range.
The Edwards APGX-H-NW16 is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status.

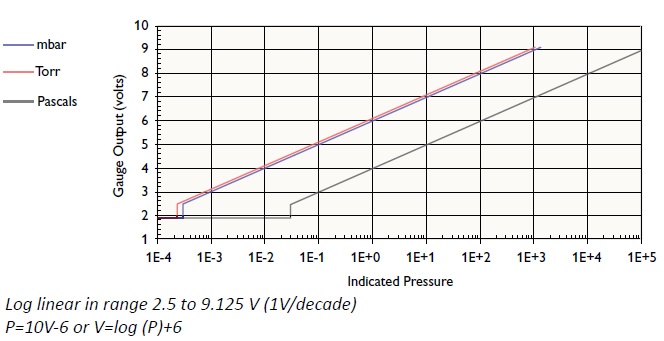

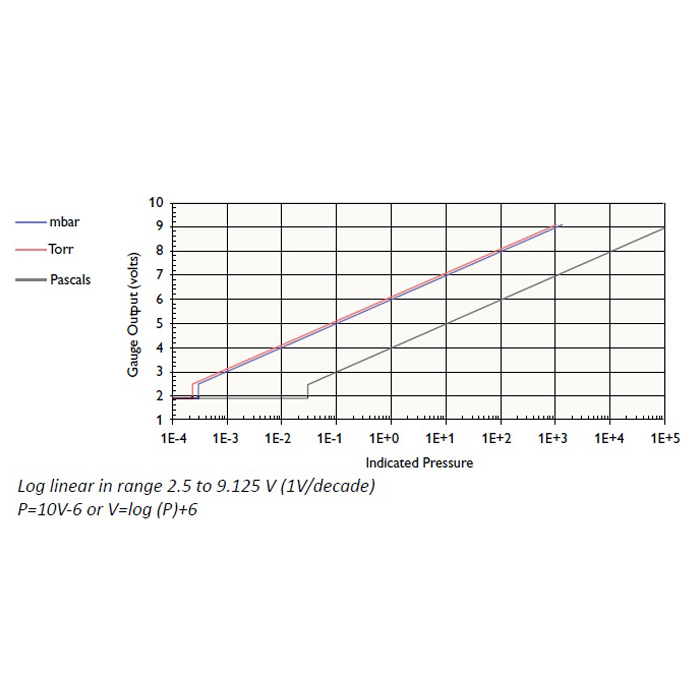

The Edwards APGX-H-NW16 uses the constant temperature principle in which the cooling effect of the gas on the filament is overcome by varying the voltage applied, which in turn maintains a constant resistance and keeps the circuit in equilibrium. This voltage is therefore a measure of the pressure in the gauge tube. It should be noted that different gasses have different thermal properties and as such the output of Edwards APGX-H-NW16 is gas dependant.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

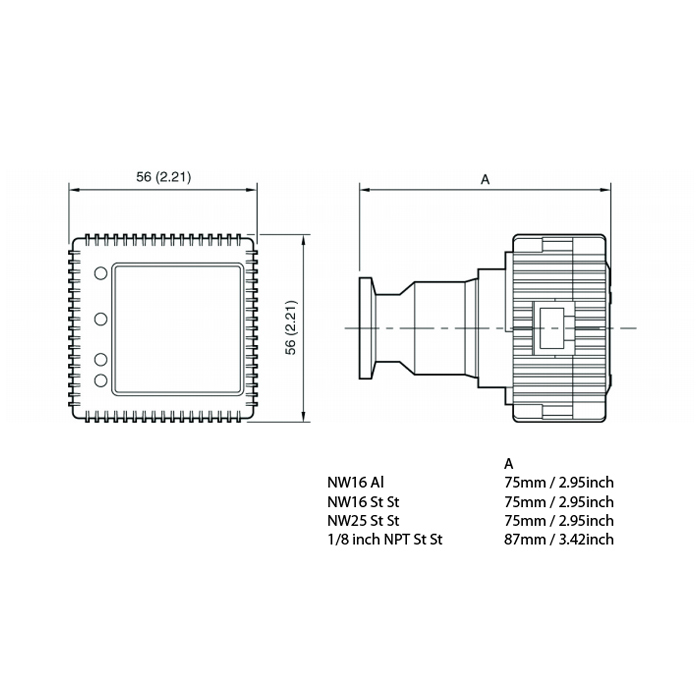

APGX-H NW16 Dimensions:
A&J Vacuum services and repairs Edwards Vacuum Measurement Transmitters, along with all other Edwards Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Edwards APGX-H-NW16 Linear Convection Vacuum Gauge, D02391000
APGX-H NW16 Technical Data:
| Pressure range | 1333 to 3 x 10-4 mbar(1000 to 2.3 x 10-4 Torr) |
| Power supply | 14.5 to 30 V DC |
| Power consumption | 1.5 W maximum |
| Accuracy | ±15% of reading ±3 x 10-4 mbar |
| Repeatability | ±5% of reading |
| Response time | < 100 ms |
| Maximum overpressure | 10 bar absolute (145 psia) |
| Adjustments | Set vacuum and set atmosphere. To allow for variations in barometric pressure, atmosphere may be set in the range 700 to 1100 mbar (525 to 825 Torr). |
| Setpoints† (open collector transistor) | Range of setpoint 1.8 to 9.3 V |
| Rating 30 V DC 100 mA | |
| Fixed hysteresis (1/2 decade) 500 mV |
