- Direct Replacement for obsolete Edwards AIM XL NW25
- DN 25 ISO-KF (NW25)
- Status indicator: LED Light Ring
- Cold-cathode vacuum gauge (IM inverted magnetron)

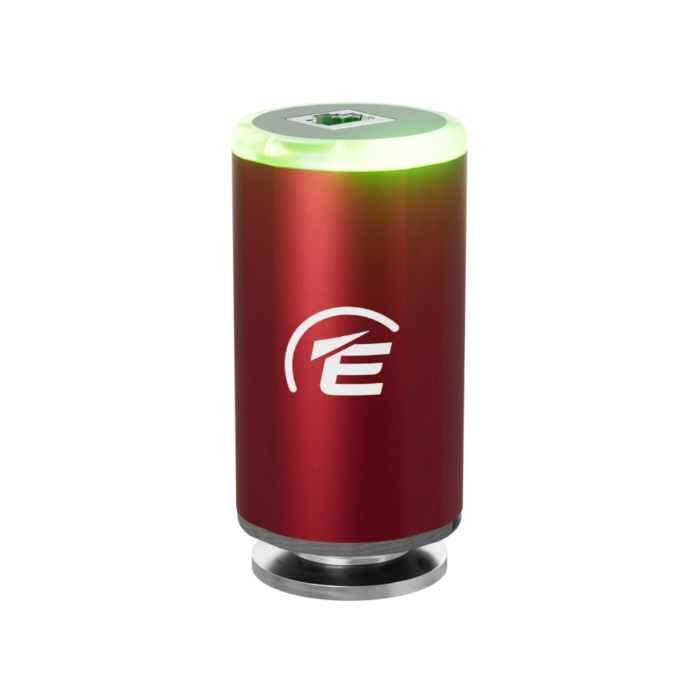

Edwards AIM200 - X Active Inverted Magnetron Gauge, RJ45 (FCC 68) Female Connector, KF25, D2G0021100
Edwards AIM Series Cold Cathode Gauge Overview:
Edwards new Active Inverted Magnetron Gauge AIM200 is rugged and reliable and due to its compact size, 360 degree LED light ring, integrated set-points and flexibility of connections/outputs, is suitable for a wide range of applications from scientific instruments to industrial processes. The AIM200 gauge head and gauge controller have been combined into a single compact unit, and features a very low stray magnetic field, coupled with reduced footprint and improved striking mechanism makes it the perfect choice for use within analytical applications where the gauge needs to be mounted in close proximity to sensitive equipment.
Features:
- 360° LED light ring visual pressure indicator
- Reduced footprint
- Multipoint star striker
- Analogue/digital
- Wide range power supply
- Drop in compatible
- New magnets
- Set-point relay
Benefits:
- Whilst the principle of cold cathode gauging has remained largely unchanged in principle however, the features required onboard the gauge certainly have. With requirements for on gauge set-points, various digital interfaces and adaptive visual aids increasing. Our advanced AIM200 pushes the boundaries further than ever before in a compact package meeting all your needs.
- Everyone wants a reliable vacuum process that works day in, day out, whether being used 24/7 or sporadically. This is something we are able to offer with our advanced active inverted magnetron gauge AIM200. It’s cold cathode measuring cell builds upon the long track record in cold cathode gauging to give great accuracy and performance across its lifetime.
- With standardisation becoming ever more common in the vacuum world, having spare parts that can be changed with little to no impact is a key benefit due to the modular platform our AIM200 is built on. Our digital versions of the gauges are in the same footprint as the analogue, allowing for easy future upgrades.
- A part of a gauges lifetime is its end of life. To ensure that you have minimum downtime and low cost of ownership we have a simple model fo replacement electronics and measuring cells so it is easy when a change is required.
- Discover enhanced versatility with our EX NW25 variant featuring an extended tube, enabling seamless compatibility with C-clamps, expanding application possibilities beyond conventional flange limitations.
Direct replacement for obsolete EDWARDS AIM XL NW25 INVERTED MAGNETRON GAUGE, D14645000, PN17081
A&J Vacuum services and repairs Edwards Vacuum Measurement Transmitters, along with all other Edwards Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Edwards AIM200 - X Active Inverted Magnetron Gauge, RJ45 (FCC 68) Female Connector, KF25, D2G0021100
Edwards AIM 200 X / D2G0021100 Specifications:
| Measuring Range (mbar) |
1x10-9 up to 1x10-2 |
| Accuracy (N2) | <30% measured value from 1x10-8 to 1x10-2 |
| Principle Of Measurement | Cold-cathode vacuum gauge (IM inverted magnetron) |
| Supply voltage | DC 15-48V |
| Connection | RJ45 (FCC 68) - Female |
|
Setpoint Quantity |
0 |
| Status indicator | LED Light Ring |
| Operating temperature | 0 to 50 °C |
| Temperature Baking Max. (Elec. Removed) | 150 °C |
| Temperature Baking Max. | 50 °C |
| Pressure Inlet Continous Max. | 1500 mbar |
| Pressure Inlet Max Overpressure | 10000mbar |
| Materials exposed to vacuum | Stainless Steel 316L and 304L, Glass, Molybdenum, Trace of Nickel and Nickel iron |
| Weight | 350 grams |
| IP rating | IP40 |
| Communication Interface Protocol | 2.0 - 10 V log linear with pressure AIM200 |

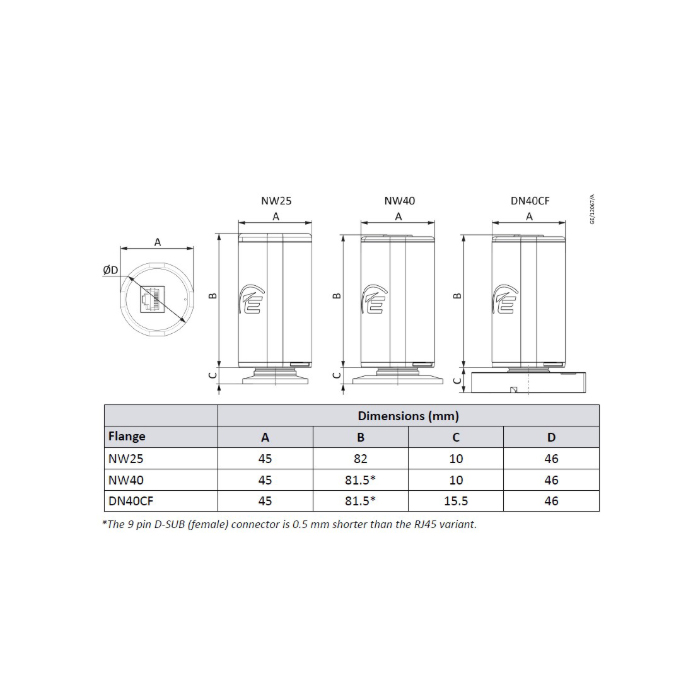

| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Compatible controllers | TIC, ADC, TAG |
| Certifications | UKCA, CE |
| Service | Replaceable measuring tube, replaceable electronics/magnet assembly |
Direct Replacement for obsolete EDWARDS AIM XL NW25 INVERTED MAGNETRON GAUGE, D14645000, PN17081
A&J Vacuum services and repairs Edwards Vacuum Measurement Transmitters, along with all other Edwards Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
